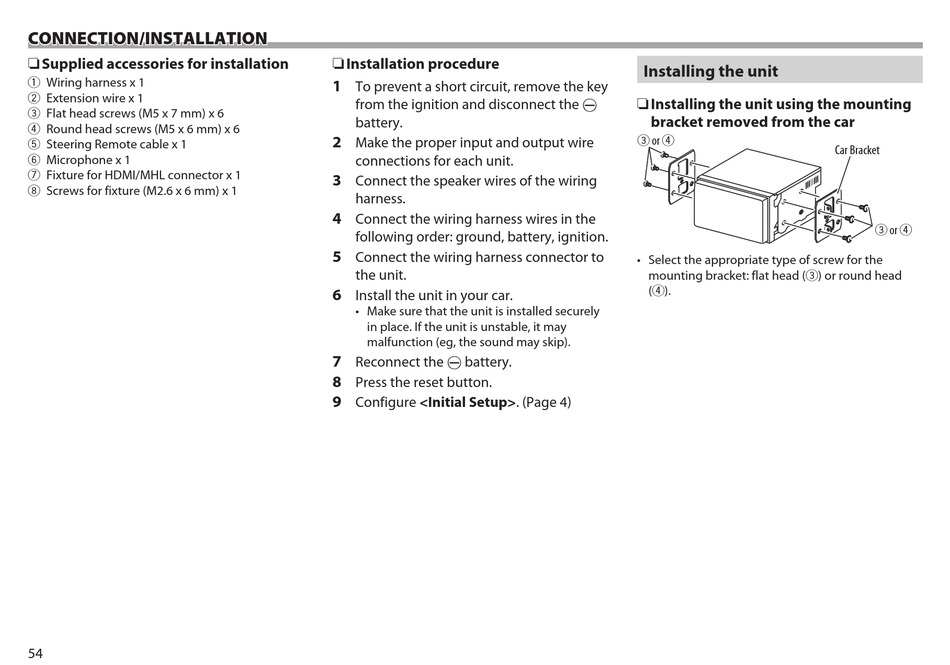

CONNECTION/INSTALLATION
❏ Supplied accessories for installation
1 Wiring harness x 1
2 Extension wire x 1
3 Flat head screws (M5 x 7 mm) x 6
4 Round head screws (M5 x 6 mm) x 6
5 Steering Remote cable x 1
6 Microphone x 1
7 Fixture for HDMI/MHL connector x 1
8 Screws for fixture (M2.6 x 6 mm) x 1
54
❏ Installation procedure
1
To prevent a short circuit, remove the key
from the ignition and disconnect the
battery.
2
Make the proper input and output wire
connections for each unit.
3
Connect the speaker wires of the wiring
harness.
4
Connect the wiring harness wires in the
following order: ground, battery, ignition.
5
Connect the wiring harness connector to
the unit.
6
Install the unit in your car.
• Make sure that the unit is installed securely
in place. If the unit is unstable, it may
malfunction (eg, the sound may skip).
7
Reconnect the · battery.
8
Press the reset button.
9
Configure <Initial Setup>. (Page 4)
Installing the unit
❏ Installing the unit using the mounting
·
bracket removed from the car
3 or 4
• Select the appropriate type of screw for the
mounting bracket: flat head (3) or round head
(4).
Car Bracket
3 or 4
