Summary of Contents for D-Link DWR-555
- Page 2 Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
-
Page 3: Table Of Contents
Internet Connection ......... 15 Routing ............48 Internet Connection Type ........ 15 Advanced Wireless .......... 49 Dynamic IP (DHCP) ......... 16 Advanced Network ........... 50 PPPoE ............. 17 Admin ............... 51 PPTP ............... 18 Time ..............52 D-Link DWR-555 User Manual... - Page 4 Configure WPA (RADIUS) ........69 Connect to a Wireless Network ........ 70 Using Windows Vista™ ......... 70 Configure Wireless Security ......71 Using Windows XP ..........73 ® Configure WEP ..........74 Configure WPA-PSK ........76 Troubleshooting ............78 D-Link DWR-555 User Manual...
-
Page 5: Product Overview
• Power Adapter • Manual and Warranty on CD • 3G Antenna Note: Using a power supply with a different voltage rating than the one included with the DWR-555 will cause damage and void the warranty for this product. System Requirements •... -
Page 6: Introduction
The HSUPA 3G VPN Router can be installed quickly and easily almost anywhere. This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is unavailable. The DWR-555 can even be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting. -
Page 7: Hardware Overview
Insert a standard (U)SIM card into this slot. Power Insert the provided DC power adapter into this socket. Power Switch Turn the device on or off. Phone (RJ-11) Insert an RJ-11 telephone cable connected to a standard landline telephone. D-Link DWR-555 User Manual... -

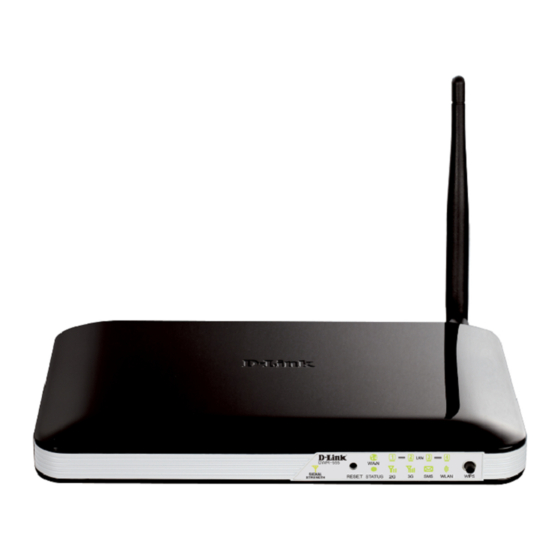

Page 8: Front Panel
Section 1 - Product Overview Hardware Overview Front Panel LAN1 LAN2 LAN3 LAN4 Status WLAN Signal Strength Reset Button Name Function Reset Hold this button down to reset the device. Press this button to initiate a new WPS connection. D-Link DWR-555 User Manual... -
Page 9: Leds
Blinking: Data is being transferred via 2G Solid Green: SMS storage is full Blinking Green: There is an unread SMS WLAN Solid Green: WLAN is active and available Blinking Green: Data is being transferred via WLAN D-Link DWR-555 User Manual... -
Page 10: Installation
Internet connection if the Ethernet WAN is not available. 3. Insert the Ethernet cable into the LAN Port 1 on the back panel of the DWR-555 HSUPA 3G VPN Router and an available Ethernet port on the network adapter in the computer you will use to configure the unit. -
Page 11: Connect A Telephone
Simply plug the phone cable into the RJ-11 jack. You can then use your handset to dial out as you typically would with a standard landline. Your attached phone will also ring for any incoming voice calls. D-Link DWR-555 User Manual... -
Page 12: Wireless Installation Considerations
Wireless Installation Considerations The DWR-555 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the quantity, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. -
Page 13: Configuration
Section 3 - Configuration Configuration This section will show you how to configure your new D-Link mobile router using the web-based configuration utility. Web-based Configuration Utility To access the configuration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.0.1). -
Page 14: Setup Wizard
Manual Internet Connection Setup and skip to page 13. Internet Connection Setup Wizard This wizard will guide you through a step-by-step process to configure your D-Link router to connect to the Internet. Click Next to continue. D-Link DWR-555 User Manual... - Page 15 Click Prev to go back to the previous page or click Cancel to close the wizard. Note: The DWR-555 supports several kinds of WAN interfaces, allowing you to assign either a WAN or a WWAN(3G) connection as the Backup WAN. If the Primary WAN is down or unavailable, configure the Backup WAN to Enable, and all the traffic will be routed through Backup WAN.
- Page 16 2G Connection: Choose this connection if you have installed a SIM card into the DWR-555. See page 20 for information about how to configure this type of connection. Static IP Address...
- Page 17 Section 3 - Configuration You have completed the Setup Wizard. Click Connect to save your settings. A popup will appear, to confirm your settings. Click OK to save your settings. D-Link DWR-555 User Manual...
-
Page 18: Manual Internet Connection Setup
Manual Internet Connection Setup Click Manual Internet Connection Setup to begin. If you want to configure your router to connect to the Internet using the wizard, click Internet Connection Setup Wizard and refer to page 9. D-Link DWR-555 User Manual... -
Page 19: Internet Connection
Auto-Backup: When this box is checked, the selected connection will act as a backup for the 3G connection. Internet Host: Enter the IP address of the Internet host to be used as the backup connection. D-Link DWR-555 User Manual... -
Page 20: Dynamic Ip (Dhcp)
PC. Auto-reconnect: This feature enables this product to renew WAN IP address automatically when the lease time is expiring. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 21: Pppoe
Auto-reconnect will disable this feature. Maximum Transmission Unit (MTU): The default setting of PPPoE is 1492. Auto-reconnect: The device will dial-up PPPoE connection automatically. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 22: Pptp
The time of no activity to disconnect your PPTP session. Set it to zero or choose Always-on to disable this feature. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 23: L2Tp
The time of no activity to disconnect your L2TP session. Set it to zero or choose Always-on to disable this feature. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... - Page 24 Disable or Use LCP Echo Request. It depends on ISP requirement. Bridge Ethernet Ports: Activate this feature to change Ethernet WAN port to LAN port. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual...
-
Page 25: Static Ip
Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 26: Gre Settings
1 to 255. Subnet: Specify the subnet used by the tunnel. Enable: Select this box to enable the tunnel. Default Gateway: You may specify any one of the 8 available tunnels as default or simple choose “none”. D-Link DWR-555 User Manual... -
Page 27: Wireless Settings
Choose the clearest channel to help optimize the performance and coverage of your wireless network. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... - Page 28 Section 3 - Configuration Wireless Channel: Indicates the channel setting for the DWR-555. By default the channel is set to 11. This can be changed to fit the channel setting for an existing wireless network or to customize your wireless network.
-
Page 29: Network Settings
Enter the Subnet Mask of the router. The default subnet mask is 255.255.255.0. Local Domain Name: Enter the local domain name for your network. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 30: Dhcp Server Settings
DHCP Server Settings The DWR-555 has a built-in DHCP (Dynamic Host Control Protocol) server. The DHCP server assigns IP addresses to devices on the network that request them. By default, the DHCP Server is enabled on the device. The DHCP address pool contains a range of IP addresses, which is automatically assigned to the clients on the network. -
Page 31: Vpn Settings
Since VPN function requires signification processing power for encryption, too many concurrent VPN tunnels will greatly degrade the performance of the network. This value indicates the maximum number of VPN tunnels can be established at the same time. D-Link DWR-555 User Manual... - Page 32 Two options can be selected: IKE Method: or Manual. Click the More button to continue settings, and select the Enable checkbox to activate this rule. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual...
-
Page 33: Tunnel 1 - Ike
The phase 2 key life time of the dedicated VPN tunnel between both end gateways (in seconds). Its value can range from 300 seconds to 172,800 seconds. Encapsulation Protocol: ESP, AH, or ESP+AH. PFS: Configures perfect forward secrecy for connections created with this IPSec transport profile by assigning a Diffie-Hellman prime modulus group. D-Link DWR-555 User Manual... - Page 34 IP address of remote VPN gateway). The device will start to Ping the remote host when there is no traffic within the VPN tunnel. If the device is no longer receiving an ICMP response from remote host, it will terminate the VPN tunnel automatically. D-Link DWR-555 User Manual...
- Page 35 Please note that only VPN clients with xAuth can establish VPN connection with the device if this checkbox has been selected. Set IKE Proposal: Select this box to enable IKE proposals. Set IPSec Proposal: Select this box to enable IPSec proposals. D-Link DWR-555 User Manual...
- Page 36 IPSEC PROPOSAL SETTINGS Encryption Algorithm: Three algorithms can be selected: 3DES, DES and AES. However, when the encapsulation protocol is set to AH, the encryption algorithm is unnecessary. Authentication Algorithm: Two algorithms can be selected: SHA1 and MD5. D-Link DWR-555 User Manual...
-
Page 37: Tunnel 1 - Manual Key
Local SPI: SPI is an important parameter during hashing. Local SPI will be included in the outbound packet transmitted to WAN side of local gateway. The value of local SPI should be set in hex format. D-Link DWR-555 User Manual... - Page 38 This authentication key is used by the authentication algorithm. Its length is 16 bytes if authentication algorithm is MD5 or 20 bytes if SHA1. Its length will be 0 if no authentication algorithm is chosen. The key value should be set in hex format. D-Link DWR-555 User Manual...
-
Page 39: Tunnel 1 - Manual Key
The phase 2 key life time of the dedicated VPN tunnel between both end gateways (in seconds). Its value can range from 300 seconds to 172,800 seconds. Encapsulation Protocol: ESP, AH, or ESP+AH. PFS: Configures perfect forward secrecy for connections created with this IPSec transport profile by assigning a Diffie-Hellman prime modulus group. D-Link DWR-555 User Manual... - Page 40 Please note that only VPN clients with xAuth can establish VPN connection with the device if this checkbox has been selected. Set IKE Proposal: Select this checkbox to enable IKE proposals. Set IPSec Proposal: Select this checkbox to enable IPSec proposals D-Link DWR-555 User Manual...
- Page 41 IPSEC PROPOSAL SETTINGS Encryption Algorithm: Three algorithms can be selected: 3DES, DES and AES. However, when the encapsulation protocol is set to AH, encryption algorithm is unnecessary. Authentication Algorithm: Two algorithms can be selected: SHA1 and MD5. D-Link DWR-555 User Manual...
-
Page 42: Message Service
If your ISP provide SMS service, you can create new messages, and manage your messages from this page. SMS INBOX SMS Inbox: Click this button to view any SMS message that you may have received. CREATE MESSAGE Create Message: Click this button to create a message. D-Link DWR-555 User Manual... - Page 43 Push the “Refresh” button to update the list. Delete Message: Deletes the selected SMS message. Reply Message: Replies to the selected SMS message. Refresh: Click this button to check for new messages. D-Link DWR-555 User Manual...
-
Page 44: Virtual Server
S p e c i f y t h e s c h e d u l e r u l e number. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 45: Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have difficulties working through NAT (Network Address Translation). Applications Rules allow some of these applications work with the DWR-555. APPLICATION RULES Popular Applications: Select from a list of popular applications. -
Page 46: Qos Engine
QoS Priority: Select Low, Normal, or High. Enable: Select a checkbox to enable the particular QoS rules individually. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 47: Mac Address Filter
If this box is selected, the rule will follow the connection control setting specified in MAC filtering settings. If this box is selected, the rule will follow the connection control setting specified in MAC filtering settings. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 48: Url Filter
Identifies the rule. URL: Enter URL that you would like to block. Enable: Click to enable the specific URL filter. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 49: Outbound Filter
Specify the schedule rule number. Previous Page: Go back to the previous filter page. Next Page: Advance to the next filter page. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 50: Inbound Filter
Specify the schedule rule number. Previous Page: Go back to the previous filter page. Next Page: Advance to the next filter page. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 51: Snmp
SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each network device to the administrator of the network. SNMP can be used to monitor traffic and statistics of the DWR-555. The DWR-555 supports SNMP v1 or v2c. -
Page 52: Routing
Note: In a transmission path, each link is terminated at a network device such as a router or gateway. The number of hops equals the number of routers or gateways that data must pass through before reaching the destination. Enable: Select this box to enable the rule. D-Link DWR-555 User Manual... -
Page 53: Advanced Wireless
Select the basic transfer rates based on the speed of wireless adapters on your wireless network. It is strongly recommended to keep this setting to Auto. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 54: Advanced Network
Select the box to allow the WAN port to be “pinged.” Blocking the Ping option may provide some extra security from hackers. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 55: Admin
REMOTE MANAGEMENT Remote Management: Remote management allows the DWR-555 to be configured from the Internet using a web browser. A username and password is still required to access the Web- Management interface. Usually... -
Page 56: Time
NTP Server Used: Choose the NTP Server used for synchronizing time and date. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 57: Syslog
Section 3 - Configuration Syslog The DWR-555 keeps a running log of events and activities occurring on the router. You may send these logs to a SysLog server on your network. Enable Logging to Syslog Select this box to send the router Server: logs to a Syslog Server. -
Page 58: E-Mail Settings
E-mail Subject: Enter a subject for the e-mail. E-mail Log Now: Click this button to access the e-mail log. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 59: System
Restore To Factory Default This option will restore all settings Settings: back to their defaults. Any settings that have not been backed up will be lost, including any rules that you have created. D-Link DWR-555 User Manual... -
Page 60: Firmware
Here, you can upgrade the firmware of your Router. Make sure the firmware you want to use is on the local hard drive of the computer and then click Browse to upload the file. Please check the D-Link support site for firmware updates at http://support.dlink.com. You can download firmware upgrades to your hard drive from the D-Link support site. -
Page 61: Dynamic Dns
The DDNS feature allows you to host a server (Web, FTP, or Game Server) using a domain name that you have purchased (www. whateveryournameis.com) with your dynamically assigned IP address. Sign up for D-Link’s free DDNS service at www.dlinkddns.com. Dynamic Domain Name System... -
Page 62: System Check
Host Name or IP Address: Enter a host name or the IP address that you want to ping (Packet Internet Groper) and click Ping. PING Result: The status of your Ping attempt will be displayed in the Ping Result box. D-Link DWR-555 User Manual... -
Page 63: Schedules
End Time (hh:mm): Select the time at which you would like the schedule to become inactive. Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes. D-Link DWR-555 User Manual... -
Page 64: Device Information
Displays the MAC address and the public IP settings for the router. Wireless LAN: Displays the wireless MAC address and your wireless settings such as SSID, Channel, and Encryption type. LAN Computers: Displays the list of DHCP clients. D-Link DWR-555 User Manual... -
Page 65: Logs
Here, you can view logs and define events that you want to view. This router also has an internal syslog server, so you can send the log files to a computer that is running a syslog utility. D-Link DWR-555 User Manual... -
Page 66: Statistics
Section 3 - Configuration Statistics Here you can view the packets transmitted and received passing through your router on both WAN and LAN ports. The traffic counter will reset if the device is rebooted. D-Link DWR-555 User Manual... -
Page 67: Wireless
Section 3 - Configuration Wireless This table displays a list of wireless clients that are connected to your wireless router. It also displays the connection time and MAC address of the connected wireless clients. D-Link DWR-555 User Manual... -
Page 68: Support
Section 3 - Configuration Support D-Link DWR-555 User Manual... -
Page 69: Wireless Security
Section 4 - Security Wireless Security This section will show you the different levels of security you can use to protect your data from intruders. The DWR-555 offers the following types of security: • WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key) •... -
Page 70: Configure Wep
7. Click Save Settings to save your settings. If you are configuring the router with a wireless adapter, you will lose connectivity until you enable WEP on your adapter and enter the same WEP key as you did on the router. D-Link DWR-555 User Manual... -
Page 71: What Is Wpa
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network. D-Link DWR-555 User Manual... -
Page 72: Configure Wpa-Psk
7. Click Save Settings to save your settings. If you are configuring the router with a wireless adapter, you will lose connectivity until you enable WPA-PSK (or WPA2-PSK) on your adapter and enter the same passphrase as you did on the router. D-Link DWR-555 User Manual... -
Page 73: Configure Wpa (Radius)
6. Next to Port, enter the port you are using with your RADIUS server. 1812 is the default port. 7. Next to Shared Secret, enter the security key. 8. If you have a secondary RADIUS server, enter its IP address, port, and secret key. 9. Click Apply Settings to save your settings. D-Link DWR-555 User Manual... -
Page 74: Connect To A Wireless Network
(displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check the TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DWR-555 User Manual... -
Page 75: Configure Wireless Security
Wireless Utility by right-clicking on the ® ™ wireless computer icon in your system tray (lower right corner of screen). Select Connect to a network. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DWR-555 User Manual... - Page 76 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. D-Link DWR-555 User Manual...
-
Page 77: Using Windows ® Xp
(displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check the TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DWR-555 User Manual... -
Page 78: Configure Wep
X P W i r e l e s s U t i l i t y b y r i g h t - ® clicking on the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DWR-555 User Manual... - Page 79 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WEP settings are correct. The WEP key must be exactly the same as on the wireless router. D-Link DWR-555 User Manual...
-
Page 80: Configure Wpa-Psk
(lower-right corner of screen). Select View Available Wireless Networks. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DWR-555 User Manual... - Page 81 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless router. D-Link DWR-555 User Manual...
-
Page 82: Troubleshooting
1. Why can’t I access the web-based configuration utility? When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility. - Page 83 • Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your the web management.
-
Page 84: Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers. -
Page 85: What Is Wireless
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network. How does wireless work? Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. - Page 86 PDAs, headphones, laptops, speakers, and other devices that operate on batteries. Who uses wireless? Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it. Home •...
-
Page 87: Tips
The wireless connection in public places is usually called “hotspots”. Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers. -
Page 88: Wireless Modes
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point. An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate. D-Link DWR-555 User Manual... -
Page 89: Networking Basics
Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below. -
Page 90: Statically Assign An Ip Address
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from your ISP. Step 5 Click OK twice to save your settings. D-Link DWR-555 User Manual... -
Page 91: Technical Specifications
ƒ LAN ƒ 64/128-bit WEP (Wired Equivalent Privacy) ƒ WLAN ƒ WPA & WPA2 (Wi-Fi Protected Access) ƒ 2G ƒ 3G Firewall ƒ SMS ƒ Network Address Translation (NAT) ƒ Signal ƒ Stateful Packet Inspection (SPI) D-Link DWR-555 User Manual... - Page 92 ** Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. D-Link DWR-555 User Manual...
