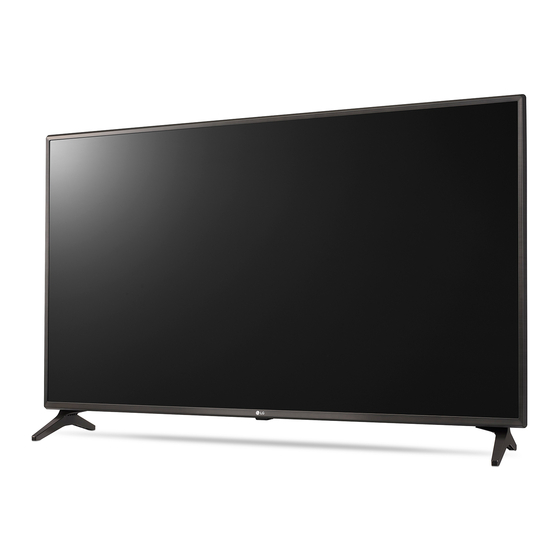

LG 32LV34 Series Owner's Manual
Hide thumbs
Also See for 32LV34 Series:
- Owner's manual (268 pages) ,
- (76 pages) ,
- User manual (38 pages)
Related Manuals for LG 32LV34 Series
Summary of Contents for LG 32LV34 Series

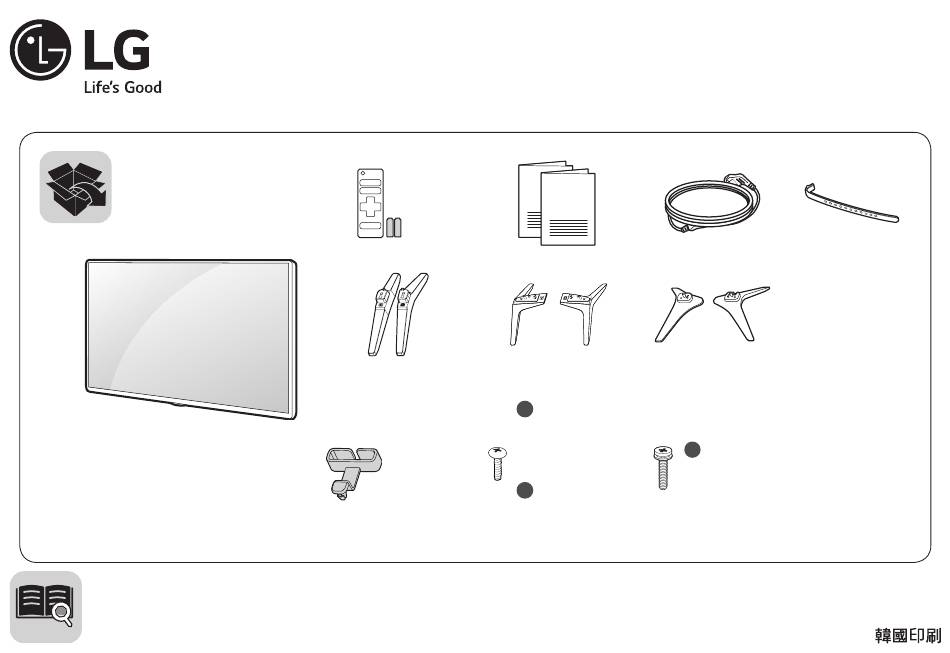

- Page 1 LED TV 32LV34** 43LV34** 49LV34** 55LV34** 55LV34** 43/49LV34** 32LV34** (M4 X L16) 32LV34** (M4 x L20) 55LV34** 55LV34** (M4 X L16) 43/49LV34** P/No: MFL69849903 (1704-REV01) www.lg.com...
- Page 2 32LV34**...
- Page 3 43/49LV34**...
- Page 4 55LV34**...
- Page 6 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 8 32/43/49LV34** 55LV34**...
- Page 9 32LV340C-CB 4.90 4.85 43LV340C-CB 79.4 49LV340C-CB 1107 79.4 11.42 11.30 55LV340C-CB 1241 63.0 16.6 16.34...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. www.lg.com Copyright © 2020 LG Electronics Inc. All Rights Reserved.
- Page 14 Warning! Safety instructions • Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. • Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
- Page 15 - The distance between the product and the wall should be more • Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, than 10 cm. malfunction or product deformation.
- Page 16 Symbols • As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH. Refers to alternating current(AC). • When unplugging the cable, grab the plug and unplug it, by pulling at the plug.
-
Page 17: Lifting And Moving The Tv
Lifting and moving the TV Using the button Please note the following advice to prevent the TV from being You can simply operate the TV functions, using the button. scratched or damaged and for safe transportation regardless of its type and size. • It is recommended to move the TV in the box or packing material that the TV originally came in. -
Page 18: Mounting On A Table
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket,... -
Page 19: Antenna Connection
Separate purchase (Wall mounting bracket) • If you connect a gaming device to the TV, use the cable supplied with the gaming device. Model 32/43LV34** 49/55LV34** • In PC mode, there may be noise associated with the resolution, VESA (A x B) 200 x 200 300 x 300 vertical pattern, contrast or brightness. -
Page 20: Wired Network Connection
Wired network connection Remote control (Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the This TV can be connected to a Pro:Centric server via the LAN port. TV correctly. -
Page 21: Open Source Software Notice Information
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 22: Supported File Format
Supported file format Supported Audio Formats • File type: mp3 [Bit rate] 32 Kbps - 320 Kbps Supported Video Formats [Sample freq.] 16 kHz - 48 kHz [Support] MPEG1, MPEG2, Layer2, Layer3 • Maximum: 1920 x 1080 @ 30p (Only Motion JPEG 640 x 480 @ 30p) • File Type: AAC • .asf, .wmv [Bit rate] Free Format... -
Page 23: Troubleshooting
Troubleshooting Specifications • Cannot control the TV with the remote control. Operating 0 °C to 40 °C - Check the remote control sensor on the product and try again. Temperature - Check if there is any obstacle between the product and the Operating Less than 80 % remote control. - Page 24 RGB(PC), HDMI(PC) supported mode (Use HDMI IN 1 for PC mode.) Horizontal Vertical Frequency Resolution Frequency (kHz) (Hz) 640 x 350 31.46 70.09 720 x 400 31.46 70.08 640 x 480 31.46 59.94 800 x 600 37.87 60.31 1024 x 768 48.36 60.00 1360 x 768...
-
Page 25: External Control Device Setup
External Control Device Setup Key Codes • This feature is not available for all models. Code (Hexa) Function Note Code (Hexa) Function Note R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button (Blue) R/C Button R/C Button (Yellow) R/C Button R/C Button... -
Page 26: Usb To Serial Converter With Usb Cable
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID: 0x0557, Product ID: 0x2008) USB to serial converter which is not made nor provided by LG. • It can be purchased from computer stores that carry accessories for IT support professionals. - Page 27 Type of connector: D-Sub 9-Pin male RS-232C (Serial port) RS-232C Configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID For Set ID number, see “Real Data Mapping”. 1 Press to access the main menus.
-
Page 28: Communication Parameters
Communication Parameters • Baud rate: 9600 bps (UART) • Stop bit: 1 bit • Data length: 8 bits • Communication code: ASCII code • Parity: None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA DATA COMMAND1 COMMAND2 COMMAND1... -
Page 29: Transmission / Receiving Protocol
Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) [Command 2] Second command to control the TV. [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 30 * Commands may work differently depending on model and signal. 03 Screen Mute (Command: k d) ▶ To select screen mute on/off. Transmission [k][d][ ][Set ID][ ][Data][Cr] 01 Power (Command: k a) ▶ To control Power *On or Off of the set. Data 00: Screen mute off (Picture on) Video mute off...
- Page 31 08 Color/Colour (Command: k i) 13 Treble (Command: k r) ▶ To adjust the screen Color (Colour). ▶ To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][r][ ][Set ID][ ][Data][Cr] Transmission [k][i][ ][Set ID][ ][Data][Cr] Data Min: 00 to Max: 64 Data Min: 00 to Max: 64...
- Page 32 18 Equalizer (Command: j v) 20 Tune Command (Command: m a) ▶ Adjust EQ of the set. * This command may work differently depending upon model and signal. Transmission [j][v][ ][Set ID][ ][Data][Cr] • For Europe, Mid-East, Colombia, Asia except South Korea and Japan Model ▶...
- Page 33 3. Tune to the satellite (DVB-S) Channel 1000. Data 05: Input Source (Digital) Set ID = All = 00 - 02: Antenna TV (DTV) – Use Physical Channel Data 00 & 01 = Channel Data is 1000 = 03 E8 Number Data 02 = Digital Satellite TV = 40 - 06: Cable TV (CADTV) –...
- Page 34 [Data 03][Data 04]: Minor/Branch Channel Number 23 Control Backlight (Command: m g) (Don’t care in Satellite) * For LCD TV / LED TV Data 03: High byte Channel Data ▶ To control the backlight. Data 04: Low byte Channel Data Transmission [m][g][ ][Set ID][ ][Data][Cr] Data Min: 00 to Max: 64 Data 05: Input Source (Digital/Satellite for Japan)
- Page 35 Data Structure [Data 01] It has own range for each 3D option determined [Data 00] 00: 3D On by [Data 00]. 01: 3D Off 1) When [Data 00] is 00 02: 3D to 2D 00: Right to Left 03: 2D to 3D 01: Left to Right [Data 01] 00: Top and Bottom...
- Page 36 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
