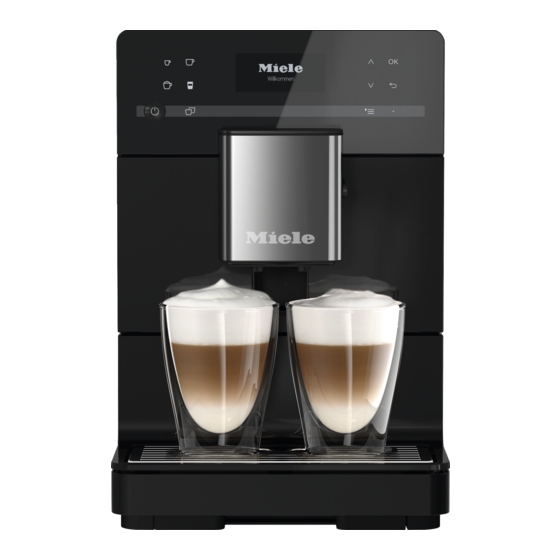

Miele CM 5410 Operating Instructions Manual
Hide thumbs
Also See for CM 5410:
- Operating instructions manual (76 pages) ,
- Operating instructions manual (76 pages)
Related Manuals for Miele CM 5410
Summary of Contents for Miele CM 5410
- Page 1 Operating instructions Coffee maker To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time. en – AU, NZ M.-Nr. 11 557 710...
-
Page 2: Caring For The Environment
Miele for servicing. or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste. -
Page 3: Table Of Contents
Contents Caring for the environment ................Warning and Safety instructions..............Guide to the appliance ..................16 Controls and display ..................17 Accessories ....................... 18 Operating principles..................19 Before using for the first time ................20 Water hardness....................22 Filling the water container ................23 Filling the coffee bean container .............. - Page 4 Contents Changing drinks in a profile................. 36 Preparing User profile drinks................36 Changing a User profile name................36 Deleting a profile ....................36 Setting when the profile should change (Change profile) ........37 Settings ......................38 Displaying and changing Settings............... 38 Language......................
- Page 5 Contents After sales service and warranty ..............67 Contact in case of fault ..................67 Warranty ......................67 Saving energy ....................68 Electrical connection ..................69 Installation......................70 Appliance dimensions..................71 Technical data....................72...
-
Page 6: Warning And Safety Instructions
"Installation", "Electrical connection", as well as in the "Warning and Safety instructions". Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these instructions in a safe place and pass them on to any... - Page 7 Warning and Safety instructions Correct application The coffee machine is intended for use in private households. The coffee machine is not suitable for outdoor use. This coffee machine must not be used at altitudes above 2,000 m. The machine is intended only for the preparation of coffee based drinks such as espresso, cappuccino, latte macchiato etc.
- Page 8 Warning and Safety instructions Safety with children Danger of burning and scalding on the dispensing spouts. Children's skin is far more sensitive to high temperatures than that of adults. Ensure children do not touch hot surfaces of the coffee machine or place parts of their body under the dispensing spouts.
- Page 9 Warning and Safety instructions Technical safety A damaged coffee machine is dangerous. Check it for any visible damage before setting it up. Never attempt to use a damaged coffee machine. Before connecting the appliance to the mains supply, make sure that the rating on the data plate corresponds to the voltage and frequency of the household supply.
- Page 10 The manufacturer's warranty will be invalidated if the appliance is not repaired by a Miele approved service technician. Miele can only guarantee the safety of the appliance when original Miele spare parts are used. Faulty components must only be replaced by original Miele spare parts.
- Page 11 Only use original Miele spare parts and accessories. If other spare parts and accessories are used, warranty, performance and/or product liability claims will be invalidated.
- Page 12 Warning and Safety instructions Correct use Danger of burning and scalding on the dispensing spouts. The liquids and steam dispensed are very hot. Heating surfaces have residual heat after use. Keep well away from the area underneath the spouts when hot liquids and steam are being dispensed.
- Page 13 Warning and Safety instructions Do not use any caramelised ready ground coffee. The sugar in the coffee will stick to and block the brew unit of the coffee machine. The cleaning tablets for degreasing the brew unit will not remove this type of deposit.
- Page 14 Descale the coffee machine regularly depending on the water hardness level in your area. Descale the machine more frequently in areas with very hard water. Miele cannot be held liable for damage arising from insufficient descaling, the use of incorrect descaling agents or the use of a descaling agent which is not of the appropriate concentration.
- Page 15 Warning and Safety instructions The following applies to appliances with stainless steel surfaces: Do not adhere stickers, adhesive tape or any other adhesive materials to the stainless steel surfaces. Stainless steel scratches very easily and even magnets can cause damage to the surface.
-
Page 16: Guide To The Appliance
Guide to the appliance a Lower panel with drip tray cover g Grinder setting (behind the appliance door) b Central spout with cappuccinatore h Brew unit (behind the appliance and hot water spout door) c On/Off sensor i Park position for milk tube (behind d Control panel the appliance door) e Water container... -
Page 17: Controls And Display
For showing information about the Other drinks current action or status (CM 5410, CM 5510, User profiles d Optical interface CM 5710) (for Miele service technicians only) Maintenance Parameters e sensor controls Settings For scrolling through lists of options, highlighting a selection or changing j "2 portions“... -
Page 18: Accessories
These products and other useful Optional accessories accessories can be ordered via the Miele accessories and cleaning and Miele webshop or directly from Miele conditioning products are available for (see back cover for contact details). your coffee machine. Accessories supplied... -
Page 19: Operating Principles
You will then be able to start an action you are in the drinks menu: or change settings in the menu. A bar on the right-hand side indicates that Miele further options or text are available. To select an option, touch the or ... -
Page 20: Before Using For The First Time
Switching on for the first time Touch the On/Off sensor. " " appears briefly in Miele - Willkommen Remove the protective foil from the the display. drip tray cover and place the drip tray Use the arrow sensors to cover into the lower panel. - Page 21 Before using for the first time Please note that the full aroma of the coffee and typical crema will not develop fully until several coffees have been made. To ensure that any coffee residues from the factory testing process are removed from the brewing system, please pour away the first two cups of coffee when using the coffee...
-
Page 22: Water Hardness
Water hardness Water hardness is an indication of the Setting the water hardness amount of minerals dissolved in water. Touch the sensor. The more minerals in the water, the higher the water hardness. The harder Select Settings | Water hardness the water is, the more frequently the... -
Page 23: Filling The Water Container
Filling the water container Fill the water container with fresh, Risk to health due to cold tap water up to the “max.” mark. contaminated water. Replace the water container and Bacteria can develop in water which close the lid. has been sitting in the water container for too long and is a risk to Make sure that the water container... -
Page 24: Filling The Coffee Bean Container
Filling the coffee bean container Coffee or Espresso can be made from whole roasted coffee beans which are freshly ground for each portion. This requires the coffee bean container to be filled with coffee beans. Alternatively, you can make coffee drinks with ready ground coffee (see "Making drinks with ready ground coffee"). -
Page 25: Switching On And Off
Switching on and off Switching the coffee machine Switching the coffee machine Touch the On/Off sensor. Touch the On/Off sensor. The appliance will begin rinsing after If the coffee machine has been used for the heating-up phase. Hot water will run making a drink it will rinse itself before out of the central spout. -
Page 26: Adjusting The Central Spout To The Correct Cup Height
Adjusting the central spout to the correct cup height You can adjust the central spout to suit the height of the cup you are using so that the coffee or espresso will not cool down as quickly and the crema will have a better consistency. -
Page 27: Making Drinks
Making drinks Hot milk or milk froth can also be Danger of burning and scalding made separately. on the dispensing spouts. The liquids and steam dispensed are Preparing hot milk very hot and can cause scalding. Keep well away from the area Additives containing sugar or milk underneath the spouts when hot alternatives, e.g. -
Page 28: Using Milk Cartons Or Bottles
Making drinks Using milk cartons or bottles Useful tip: The Miele milk flask is the perfect addition to Miele coffee machines if you make a lot of coffees with milk. The milk flask is dishwasher- safe and easy to store in the fridge after preparing. -
Page 29: 2 Portions ( Sensor Control)
Making drinks Useful tip: As soon as Stop appears in Coffee pot the display, you can cancel making a You can make several cups of coffee drink by touching the OK sensor one after the other automatically with control. Coffee pot function (max. -
Page 30: Adding Ready Ground Coffee
Making drinks Replace the cover to the ground decaffeinated coffee, for example, even if the bean container is filled with coffee chute after adding the ground regular coffee beans. coffee. Replace the lid on the coffee bean Only 1 portion of coffee or espresso can be made at a time when using container. -
Page 31: Dispensing Hot Water (Cm 5410, Cm 5510, Cm 5710)
Making drinks Dispensing hot water (CM 5410, CM 5510, CM 5710) Please note that the water dispensed is not hot enough for making black tea. Place a suitable cup or glass centrally underneath the central spout. Touch the sensor. Select | Other drinks Hot water... -
Page 32: Grinder Setting
Grinder setting When the beans are ground correctly, the coffee or espresso will flow evenly into the cup with a good crema. The crema should have an even hazelnut brown colour. The grinder setting you select will be used for all coffee drinks. There are various ways to tell whether the coffee grinder is set correctly. -
Page 33: Amount Of Coffee, Brew Temperature And Pre-Brewing
Amount of coffee, brew temperature and pre-brewing You can set the amount of coffee, the Increase the amount of coffee so that brewing temperature and pre-brewing more ground coffee is brewed. for each coffee drink individually. To do The amount of coffee is too high if: this, first select the drink from the menu and then adjust the - espresso or coffee flows into the cup... -
Page 34: Portion Size
Portion size The flavour of the coffee produced Cancelling portion size programming depends not only on the type of coffee, Touch the drinks sensor which is lit but also on the amount of water used. up or the sensor for drinks from You can programme the amount of Other drinks water for all coffee drinks and hot water... - Page 35 Portion size Changing the portion sizes in the Parameters menu You can only change the portion sizes for Long coffee, Caffè Latte, Hot milk and Milk froth via the Parameters menu. Place a suitable cup or glass underneath the central spout. ...
-
Page 36: User Profiles
(CM 5410, CM 5510, CM 5710) The name of the profile selected will be shown in the top left-hand corner of the In addition to the Miele drinks menu display. (Miele profile), you can create individual profiles to cater for different tastes and You can now change the drinks preferences. -
Page 37: Setting When The Profile Should Change (Change Profile)
- Manually: The selected profile remains active until you select another profile. - After each use: The Miele profile is displayed after every drink. - When switched on: Every time the coffee machine is switched on, the Miele profile is displayed, regardless of which profile had been selected before switching off. -
Page 38: Settings
Settings Displaying and changing Info (display information) Settings You can display the number of drink portions or the number of possible The drinks menu is displayed. portions before maintenance Touch the sensor. programmes are necessary. Select and confirm with OK. Settings System lock ... -
Page 39: Demo Mode (Showroom Programme)
Settings The following will not be reset: - The number of drinks dispensed and the appliance status (No. of portions until appliance needs descaling, ... brew unit needs degreasing) - Language - Profiles and the associated drinks (CM 5410, CM 5510, CM 5710) Demo mode (showroom programme) Do not activate this setting for domestic use. -
Page 40: Cleaning And Care
Cleaning and care Risk to health due to inadequate cleaning. Heat and moisture inside the coffee machine can cause coffee residues to become mouldy and/or milk residues to go off and pose a risk to health. Carefully clean the coffee machine regularly. Cleaning intervals - Quick guide Recommended frequency What do I have to clean / maintain? -
Page 41: Cleaning By Hand Or In The Dishwasher
Cleaning and care Cleaning by hand or in the Risk of damage as a result of dishwasher excessively high dishwasher temperatures. The brew unit is not dishwasher- Components may be rendered safe. unusuable (e.g. deformed) if washed Clean the brew unit by hand only in a dishwasher at a temperature of under warm running water. -
Page 42: Unsuitable Cleaning Agents
Cleaning and care Unsuitable cleaning agents Danger of burning and scalding on hot components or by hot liquids. Contact with unsuitable cleaning Components can become very hot agents can alter or discolour all during operation. Touching hot surfaces. All surfaces of this components can cause burning. -
Page 43: Waste Container, Drip Tray And Drip Tray Cover
Cleaning and care - sharp metal scrapers Waste container, drip tray and drip tray cover - steel wool or stainless steel wire scourers Clean the drip tray and waste container every day to avoid unpleasant smells and mildew. The waste container is located in the drip tray. -
Page 44: Cleaning The Water Container
Cleaning and care Cleaning the water container Clean the lower panel by hand only using hot water, a little washing up Clean the water container by hand liquid and a soft cloth. every day. You can clean the water All other parts are dishwasher-safe. container in the dishwasher once a week. -
Page 45: Central Spout
Cleaning and care Central spout Clean the central spout’s stainless steel cover by hand only, using warm water and a little washing-up liquid. All other parts are dishwasher-safe. Unscrew the cap. Remove the seal and the filter. Clean all parts thoroughly. Rinse all parts carefully under running water. - Page 46 Cleaning and care If the milk pipework connecting pieces are blocked, clean them under running water with the brush supplied: Insert the brush into the connecting piece. Move it back and forth until all milk residue has been removed. Reassembling the central spout The dispensing unit is easier to reassemble if the individual parts are...
-
Page 47: Milk Pipework
Clean milk pipework Useful tip: Use a vacuum cleaner to maintenance programme together remove any coffee residues from the with the Miele cleaning agent for milk bean container and the ground coffee pipework (see “Maintenance chute. programmes - Rinsing the milk pipework”). -
Page 48: Cleaning The Housing
The milk pipework should Useful tip: You can also clean the therefore be rinsed regularly. If a drink appliance front with the Miele all has been made using milk, the prompt purpose microfibre cloth. to insert the end of the milk tube into the drip tray will appear at the latest when you switch the machine off. - Page 49 Miele coffee machines and prevents subsequent damage. It is available to order from the Miele online shop or directly from Miele (see the end of this booklet for contact details).
-
Page 50: Degreasing The Brew Unit And Cleaning The Interior
Miele coffee machines and prevent subsequent damage. Miele Cleaning Tablets can be ordered via the Miele webshop or directly from Miele (see the end of this booklet for contact details). The maintenance programme for degreasing the brew unit lasts for approx. 15 minutes. - Page 51 Cleaning and care Carefully pull the brew unit out of the The cleaning process cannot be coffee machine. cancelled. It must be completed through to the end. When you have removed the brew unit, do not change the position of ...
- Page 52 Cleaning and care Clean the interior of the coffee Press the button under the handle of machine. Make sure that the areas the brew unit and, whilst doing so, highlighted (in white) in the illustration turn the handle to the right . are cleaned especially well.
-
Page 53: Descaling The Appliance
Miele webshop or directly descaling programme at this point in from Miele (see the end of this booklet time. You cannot make any drinks until for contact details). the machine has been descaled. - Page 54 Cleaning and care The descaling process has finished when the drinks menu appears in the display. Place 1 descaling tablet in the water container. Fill the water container to the marker with lukewarm water. Follow the instructions for the mixing ratio carefully.
-
Page 55: Transporting The Machine
Transporting the machine If you are not going to use the coffee Danger of burning and scalding machine for an extended period of time on the dispensing spouts. and you intend to transport it, e.g. when Hot steam can cause scalding. moving house, a number of procedures Keep well away from the area will need to be carried out:... -
Page 56: Problem Solving Guide
With the help of the following guide, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be remedied without contacting Miele. This will save you time and money because you won't need a service call. - Page 57 Problem solving guide Problem Possible cause and remedy F73 or The brew unit cannot be positioned correctly. Check the brew unit Switch the coffee machine off with the On/Off sensor. Switch off at the wall socket and remove the plug. Wait for two minutes before inserting the plug back in the socket and switching back on.
- Page 58 Problem solving guide Problem Possible cause and remedy Too much ground coffee There is too much ground coffee in the coffee chute. The brew unit cannot compact coffee powder if more than two level spoonfuls of ground coffee are added to the coffee chute.
-
Page 59: Unusual Performance Of The Coffee Machine
Switch off at the wall socket and remove the plug. Contact a qualified electrician or Miele. The coffee machine The switch-off time programmed using the timer has switches off suddenly. - Page 60 Problem solving guide Problem Possible cause and remedy The water container is Droplets of water have settled between the water empty. container and the side walls of the housing, or this Fill and replace the water container has not area is damp (see illustration). appeared in the display.
- Page 61 Problem solving guide Problem Possible cause and remedy After switching on the This is not a fault. machine the message When the drip tray and waste container are emptied Empty the drip tray and the after the coffee machine has been switched off, the waste container appears internal counter is not reset.
- Page 62 Problem solving guide Problem Possible cause and remedy Fill the bean container This is not a fault. appears in the display Confirm the message with OK. even though the bean Insufficient coffee beans are getting into the grinder. container has just been Have you used a dark roast? filled.
- Page 63 Problem solving guide Problem Possible cause and remedy The descaling The descaling programme cannot be stopped once programme was started the OK sensor has been touched. by mistake. Descaling must be continued through to completion. This is a safety precaution to make sure the machine is descaled correctly.
- Page 64 Clean the surface underneath the coffee machine underneath the coffee regularly. machine. The display lights up The Demo mode of the coffee machine for Miele but the coffee machine Experience Centres and Chartered Agents has been does not heat up and no activated.
-
Page 65: Unsatisfactory Results
Problem solving guide Unsatisfactory results Problem Possible cause and remedy The coffee is not hot The cup has not been pre-heated. enough. The smaller the cup and the thicker its walls, the more important it is to pre-heat it. Pre-heat the cup, for example with hot water. The brewing temperature has been set too low. - Page 66 Fill the coffee bean container with fresh beans. There may be foreign objects such as plastic or stones in amongst the coffee beans. Switch the coffee machine off immediately. Call Miele. The coffee flows too The coffee is too coarsely ground. quickly into the cup.
-
Page 67: After Sales Service And Warranty
2 years. Miele. For further information, please refer to your warranty booklet. You can book a Miele customer service call-out online at www.miele.com/service. Contact information for Miele can be found at the end of this booklet. -
Page 68: Saving Energy
Saving energy The following tips can help you save energy and money as well as care for the environment: - Operate the coffee machine in "Eco mode" (default setting). - Energy consumption may increase if you change the settings for the "Timer". -
Page 69: Electrical Connection
Electrical connection Before connecting the appliance, make The machine must not be used with so- sure that the connection data on the called energy saving plugs. These data plate (voltage and frequency) reduce the amount of energy supplied match the mains electricity supply. to the machine, causing it to overheat. -
Page 70: Installation
*INSTALLATION* Installation If the machine is installed in a niche, the Danger of overheating due to niche must provide the following insufficient ventilation. minimum dimensions: If the coffee machine is not sufficiently ventilated, the appliance Height 510 mm can overheat. Width 450 mm Ensure that there is sufficient... -
Page 71: Appliance Dimensions
*INSTALLATION* Appliance dimensions a = 241 mm b = 360 mm c = 460 mm... -
Page 72: Technical Data
Technical data Current draw in standby mode < 0.5 Watt (default setting): Pump pressure: max. 15 bar Through-flow heater: 1 stainless steel thermo block Appliance dimensions (W x H x D): 241 x 360 x 460 mm Net weight: 9.48 kg Connection cable length: 120 cm Water container 1.3 l capacity: Bean container 200 g capacity: Waste container... - Page 75 Miele Experience Centre South Melbourne: Auckland: 206-210 Coventry Street 8 College Hill South Melbourne, VIC 3205 Freemans Bay, Auckland 1011 Miele Experience Centre and Office Sydney: Miele Experience Centre Wellington: 3 Skyline Place Frenchs Forest, NSW 2086 183 Featherston Street...
- Page 76 CM 5310, CM 5410, CM 5510, CM 5710 en – AU, NZ M.-Nr. 11 557 710 / 00...
