LG SJ8 Installation Manual

LG TV Stand

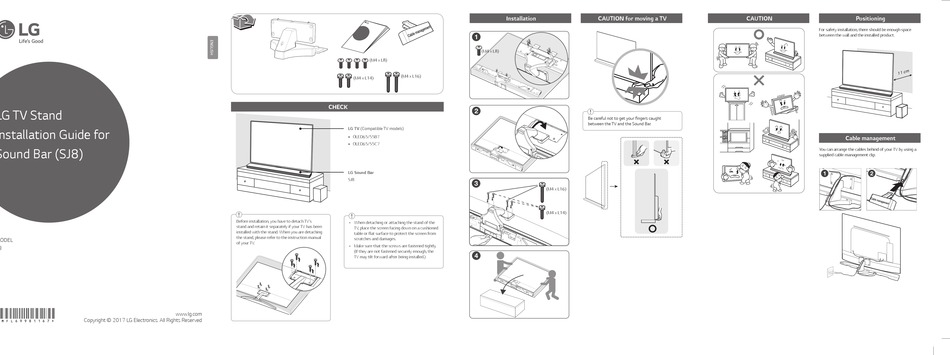

Installation Guide for
Sound Bar (SJ8)
MODEL
T8
*MFL69981167*
www.lg.com
Copyright © 2017 LG Electronics. All Rights Reserved
(M4 x L8)
(M4 x L16)
(M4 x L14)
CHECK
LG TV (Compatible TV models)
OLED65/55B7
y
y OLED65/55C7

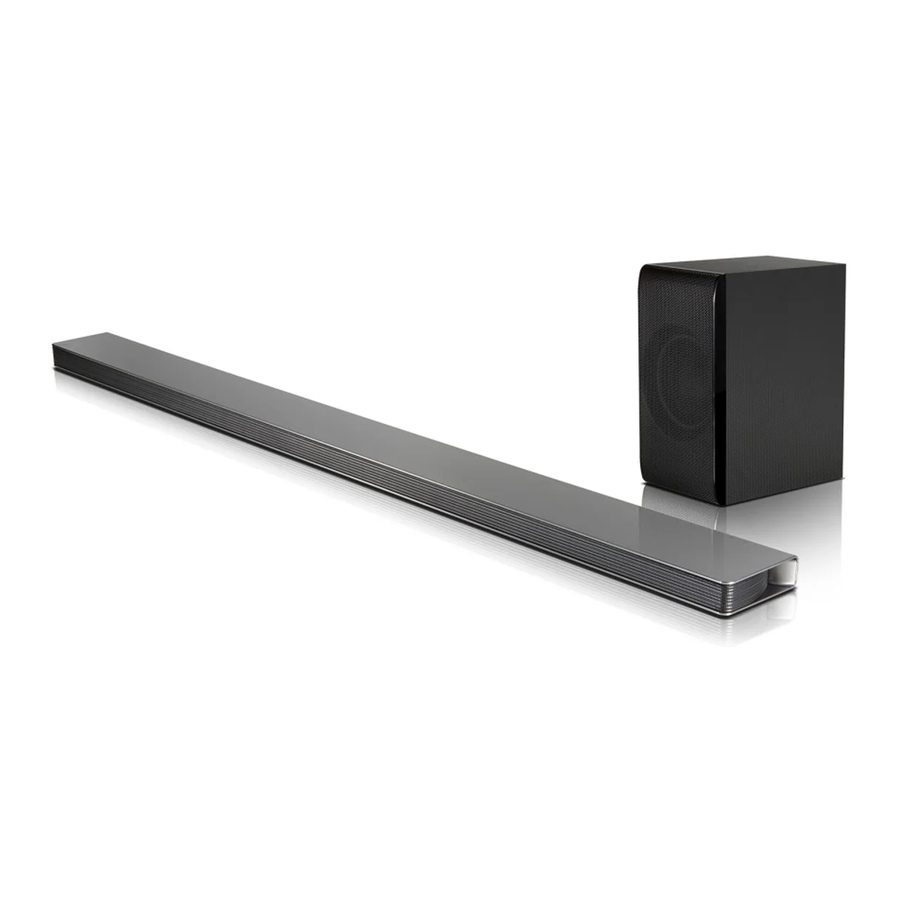

LG Sound Bar
SJ8
Before installation, you have to detach TV's
• When detaching or attaching the stand of the
stand and retain it separately if your TV has been
TV, place the screen facing down on a cushioned
installed with the stand. When you are detaching
table or flat surface to protect the screen from
the stand, please refer to the instruction manual
scratches and damages.
of your TV.
• Make sure that the screws are fastened tightly.
(If they are not fastened securely enough, the
TV may tilt forward after being installed.)
Installation CAUTION for moving a TV
a
(M4 x L8)
b
Be careful not to get your fingers caught
between the TV and the Sound Bar.
c
(M4 x L16)
(M4 x L14)
d
CAUTION Positioning
For safety installation, there should be enough space
between the wall and the installed product.
1 1 cm
Cable management
You can arrange the cables behind of your TV by using a
supplied cable management clip.
a b
