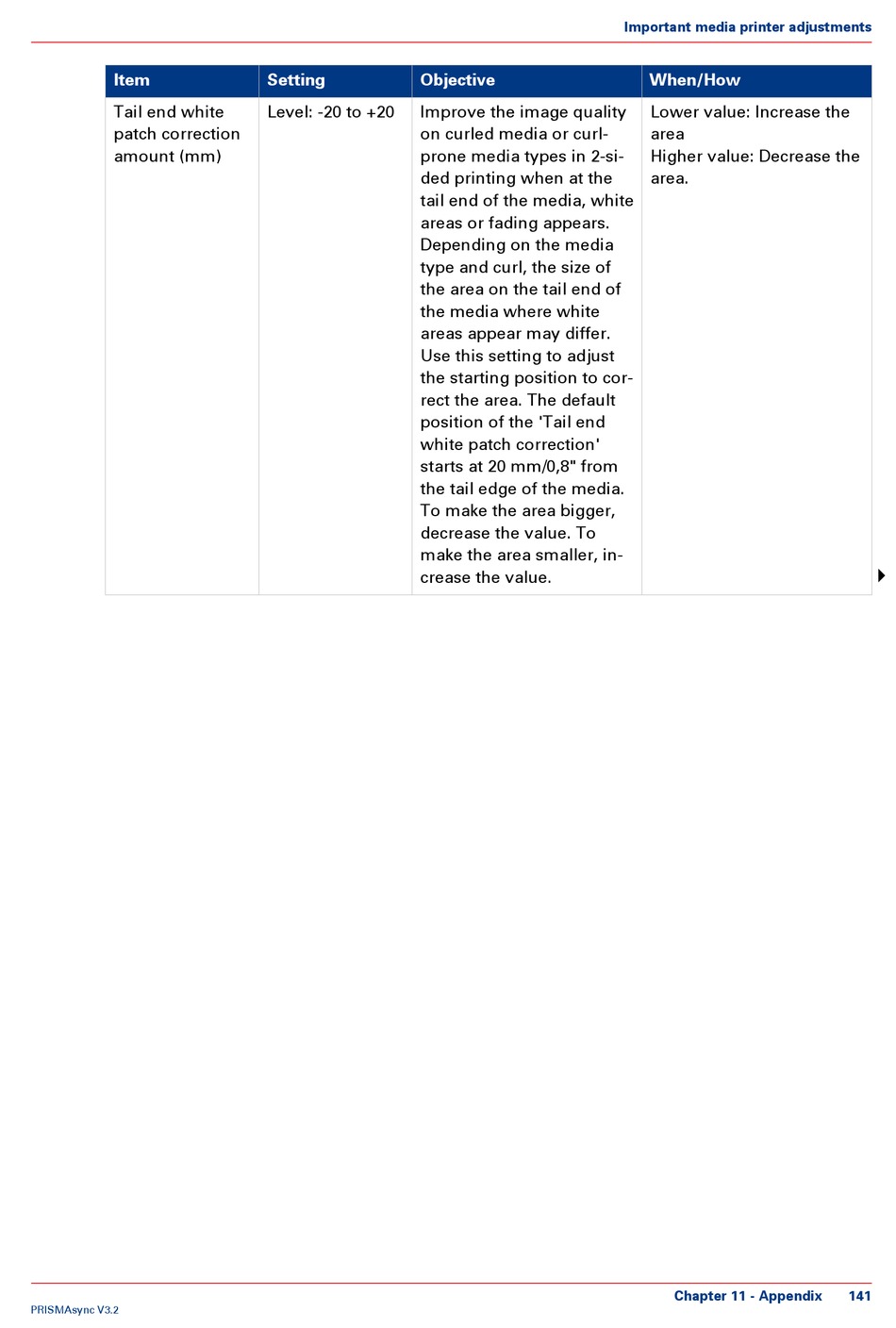

Item
Tail end white
patch correction
amount (mm)
PRISMAsync V3.2
Setting Objective
Level: -20 to +20 Improve the image quality
on curled media or curl-
prone media types in 2-si-
ded printing when at the
tail end of the media, white
areas or fading appears.
Depending on the media
type and curl, the size of
the area on the tail end of
the media where white
areas appear may differ.
Use this setting to adjust
the starting position to cor-
rect the area. The default
position of the 'Tail end
white patch correction'
starts at 20 mm/0,8" from
the tail edge of the media.
To make the area bigger,
decrease the value. To
make the area smaller, in-
crease the value.
Important media printer adjustments
When/How
Lower value: Increase the
area
Higher value: Decrease the
area.
