Sealey VSE4786 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS
INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to instruction manual
1. SAFETY
1.1. GENERAL SAFETY
IMPORTANT! These instructions are offered as a guide only, albeit compiled with good practical user advice. Always refer to the vehicle

manufacturer's service instructions, or a proprietary manual to establish the current procedure and data.
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this tool.

WARNING! Familiarise yourself with the specific applications and limitations of the kit, as well as any potential hazards.

WARNING! This tool is heavy, over 8.25kg, two people recommended for some tasks.

This kit should be used in conjunction with inspection maintenance procedures recommended in the vehicle manufacturer's manual.

Ensure that the kit is correct for the task.

Wear the appropriate personal protective equipment for the task. A full range is available from your Sealey dealer.

DO NOT use the kit for any purpose other than that for which it is designed.

Ensure that the vehicle is properly supported with axle stands before working under the vehicle.

Ensure there is adequate lighting prior to using the kit. A range of inspection lamps are available from your Sealey dealer.

Keep children and unauthorised persons away from the working area.

DO NOT use the kit if any parts are damaged or missing, as this may cause failure and/or personal injury.

DO NOT use the kit when you are tired, or under the influence of alcohol, drugs or intoxicating medication.

After use, store in a safe, dry childproof area.

WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that

may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
Warning! Failure to adhere to safety and warning instructions may result in personal injury or damage which would invalidate the

warranty. The bush extraction and insertion screw maximum recommended torque is 180Nm. Exceeding this torque value may shorten
the life of the thrust screw and distort other components. The thrust screw is considered to be a consumable item and is NOT
covered under warranty. Always lubricate the threads male and female with a molybdenum/copper based grease after removing
from the carry case.
ALWAYS KEEP FORCE SCREW
WELL LUBRICATED. MOLYBDENUM
COPPER BASED RECOMMENDED.
2. INTRODUCTION

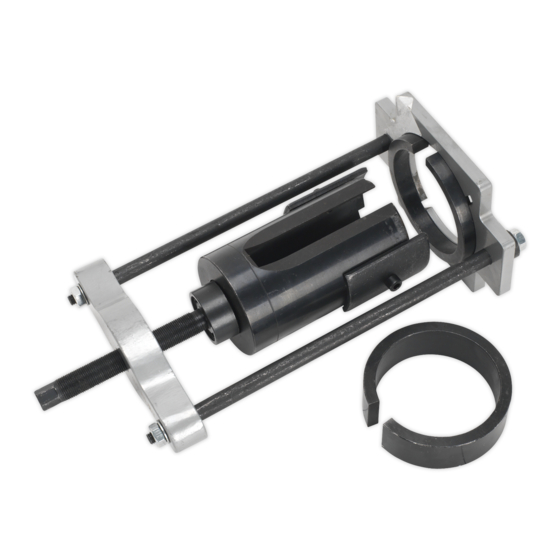

Suitable for the removal/installation of the rear trailing arm mounting bushes on Ford/Volvo vehicles. Can be used in situ without removing the arm
from the vehicle. Supplied in carry-case.
3. SPECIFICATION
Make
Ford
Ford
Ford
Volvo
Volvo
Volvo
Volvo
Volvo
Volvo
Volvo
Volvo
© Jack Sealey Limited
INSTRUCTIONS FOR:
TRAILING ARM BUSH TOOL VOLVO AND
FORD
MODEL No:
Wear eye protection
Model
Mondeo Mk IV
S-Max
Galaxy
S80 II (1.6, 2.0, 2.4, 3.2)
S80 II (Flexifuel Sedan (2.5)
V70 III (1.6, 2.0, 2.4, 2.5, 3.2)
V70 III Flexifuel (2.0)
V60 D6 Hybrid (2.4)
V60 (1.6, 2.0, 2.4)
S60 II (1.6, 2.0, 2.4)
XC70 III (2.0, 2.4, 3.2)
VSE4786
DO NOT USE AIR TOOLS
TO OPERATE FORCE SCREW
Year
2007 Onward
2006 Onward
2006 Onward
2007 Onward
2007 Onward
2008 Onward
2008 Onward
2014 Onward
2012 Onward
2010 Onward
2008 Onward
Original Language Version

VSE4786 Issue No.1 - 10/12/15
