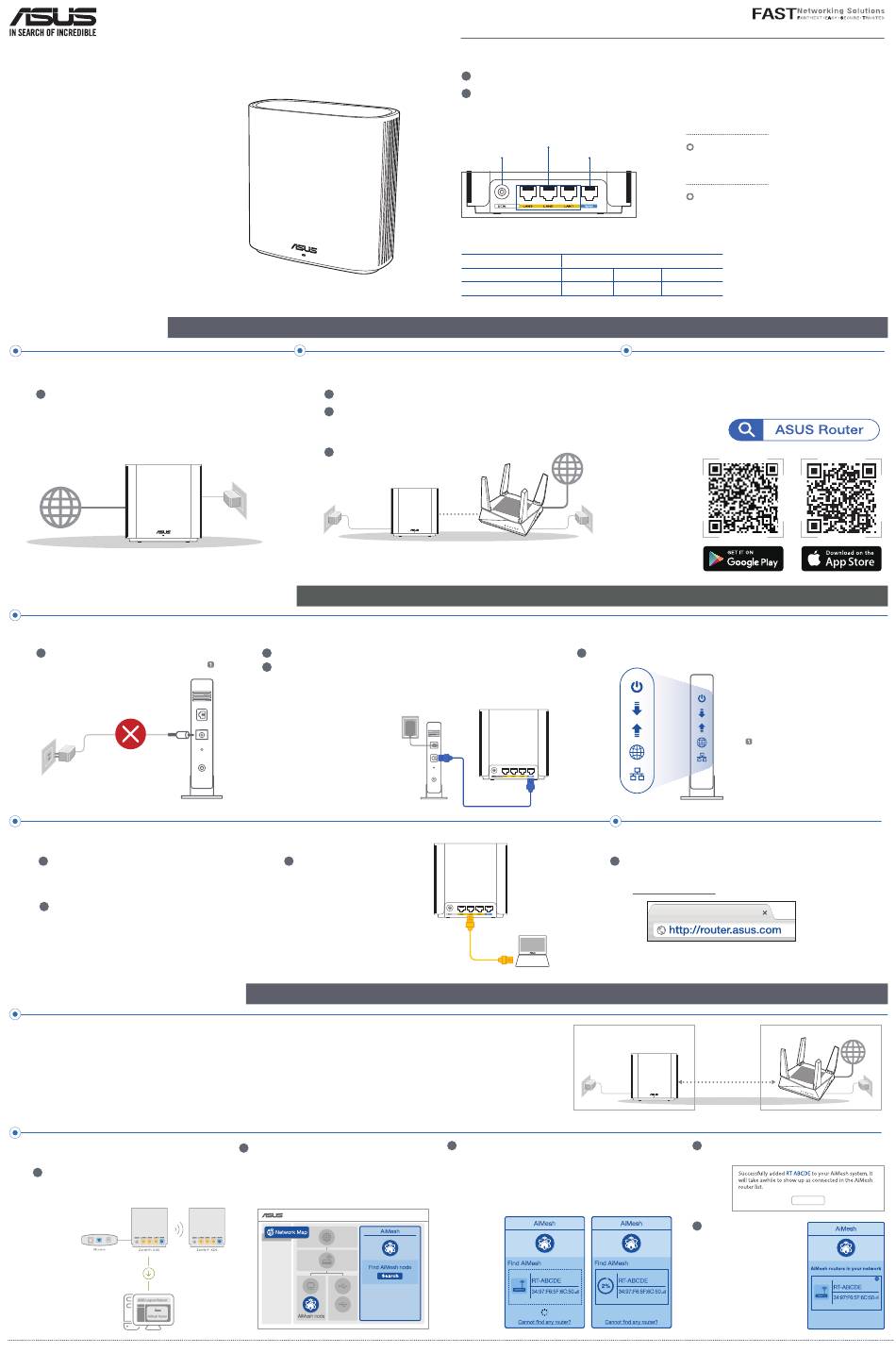

Asus ZenWiFi XD6 Quick Start Manual

Quick
Start Guide
ASUS ZenWiFi XD6
AX5400 Dual Band WiFi Router
Model: XD6
Before Setup
01 Setting up a standalone router
Go to ONE ROUTER SETUP STEPS.
1
One Router Setup
One Router Setup Steps
01 Prepare your Modem
Unplug the power of cable / DSL modem. If it
1
has a battery backup, remove the battery.
Connect your Device
02
Plug the adapter into the DC-IN port of your ZenWiFi
1
XD6.
Check that the LED turns solid blue to indicate that
2
the hardware connection is ready for setup.
AiMesh Setup Steps
01 Prepare
Place your AiMesh router and node within 3 meters of each other during the setup process.
02
AiMesh node
Keep your AiMesh node powered on and standby for AiMesh system settings.
03
AiMesh router
[Web] Refer to ONE ROUTER SETUP STEPS to connect
1
your AiMesh router to your PC and modem, and
then log in into the web GUI.
[App] Log in to your existing router via ASUS Router App and choose "Add AiMesh Node" to complete the setup.
02 Setting up an AiMesh WiFi system
Prepare two or more ASUS routers supporting AiMesh.
1
Assign one as AiMesh router, and another one as AiMesh node.
2
** If you have multiple AiMesh routers, we recommend using the router with the highest specifications
as your AiMesh router and the others as AiMesh nodes.
Go to AiMesh SETUP STEPS.
3
WE SUGGEST...
Connect your modem to the router with the network cable provided.
2
Power on the modem. Plug modem to the power outlet and power on.
3
Modem back
[Web] Connect your PC to the
3
router using an additional network
cable.
[App] Or you can use a phone or
pad to complete the setup via
ASUS Router App.
Go to Network Map page, click AiMesh icon and
2
then Search for your extending AiMesh node.
Hardware Explanations
Plug the adapter into the DCIN port.
1
The power LED will light up when the hardware is ready.
2
Button and Port Explanations
LAN ports 1~3
DCIN port
Specifications:
DC Power adapter
Operating Temperature
Operating Humidity
AiMesh node AiMesh router
AiMesh Setup Steps
Modem back
Click Search, it will automatically search for your AiMesh
3
node nearby. When the AiMesh node shows on this page,
click it to add it into the AiMesh system.
** If you cannot find any AiMesh node, please go to
TROUBLE SHOOTING.
WAN port
WAN port
Connect your modem to this port with
a network cable.
LAN ports 1~3
Connect your PC to a LAN port with a
network cable.
DC Output: +12V with max 2A current
0~40 o C Storage 0~70 o C
50~90% Storage 20~90%
03 Download free ASUS Router
APP to set up and manage your
router(s)
Check the modem LED lights to ensure the connection is active.
4
Modem front
03 Login and Connect
[Web] Open a web browser.
1
You will be redirected to the ASUS Setup Wizard. If not, navigate
to http://router.asus.com.
[App] Launch ASUS Router App and follow the instructions to
complete the setup.
within 3 meters
AiMesh node
A message is displayed when synchronization is
4
completed.
Congratulations! You
5
will find the pages
below show up when an
AiMesh node has been
successfully added to the
AiMesh network.
If you are using DSL for internet,
you will need your username
/ password from your Internet
service provider (ISP) to properly
configure your router.
AiMesh router
OK
