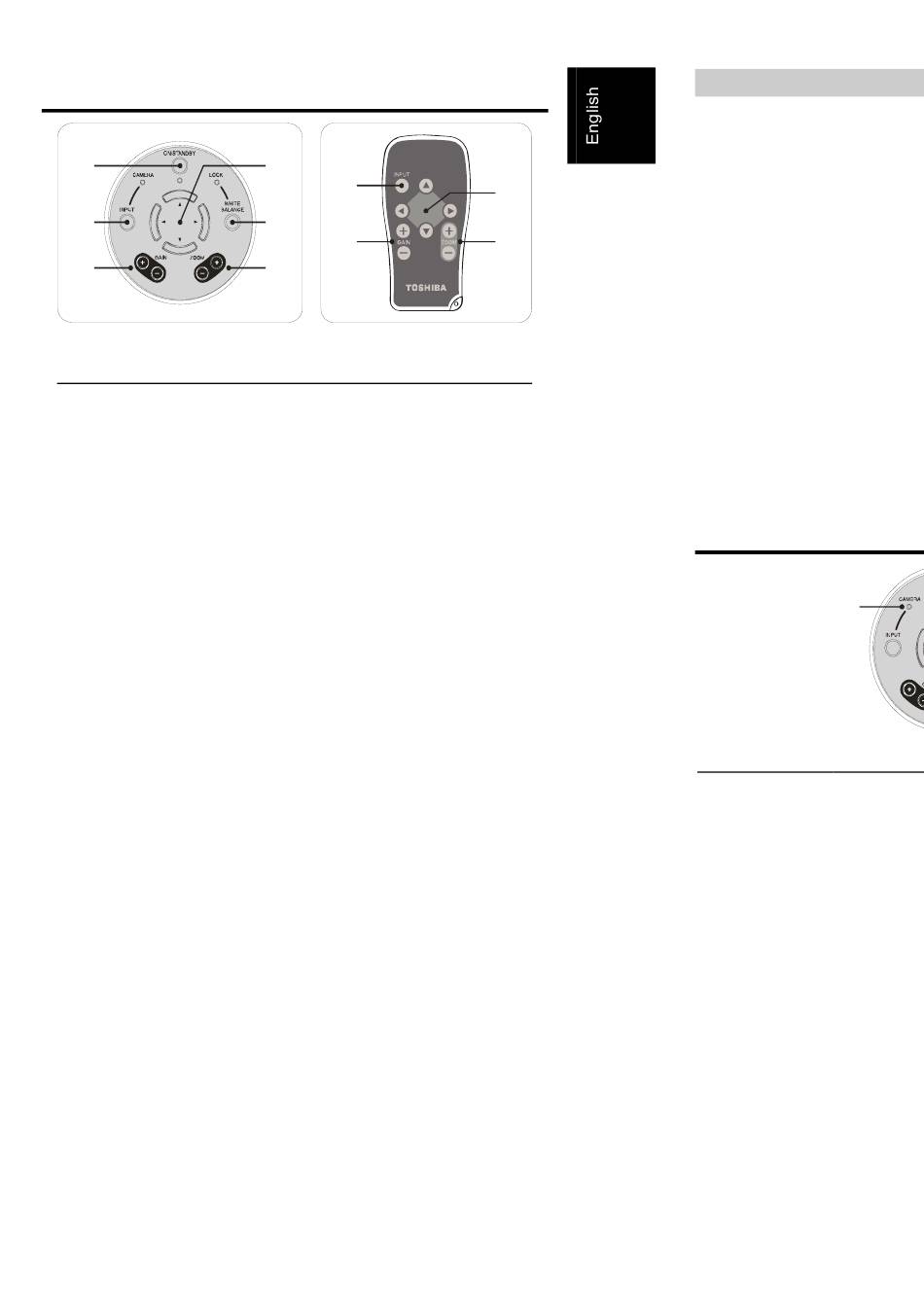

Control panel and remote control

(1)
(2)
(3)
Control Panel
Name
Control panel
(1) ON/STANDBY
(2) INPUT
(3) GAIN
(4) ▲, ►, ▼, ◄
(5) WHITE
BALANCE
(6) ZOOM
Remote control
(1) INPUT
(2) GAIN
(3) ▲, ►, ▼, ◄
(4) ZOOM
All manuals and user guides at all-guides.com
(4)
(1)
(5)
(2)
(6)
Remote control
Function
: Turn the unit on/standby
: Switch to output signal from TLPC001
document camera or computer in
: Adjust the gain value of the image (±16)
: Pan the magnified image in camera mode
: Lock/unlock auto white balance
: Zoom in and zoom out the image in
camera mode
: Switch to output signal from TLPC001
document camera or computer in
: Adjust the gain value of the image (±16)
: Pan the magnified image in camera mode
: Zoom in and zoom out the image in
camera mode
11
(3)
(4)

♦ Zoom operation

TLPC001 uses 3Mega CMOS cam
x V1536 (QXGA).
[Sensor zoom]
•
Sensor zoom outputs the imag
which only uses a portion of th
pixel data and does not affect
[Digital zoom]
•
Digital zoom interpolates the p
expansion makes the image b
[Zoom operation]
•
Zooming process changes aut
100% Normal
110%-190% Digital zo
200% Sensor z
210%-400% Sensor z
When the "zoom +" key is pres
•
zoom in the image and stops u
to 400%, release and press "z
When switching from digital to
•
200%), the image would norm
the processing mode.

LED indicator

(1)
Name Function
(1) CAMERA : Light up in
(2) ON/ STANDBY - Blink when
- Turn orang
- Turn green
(3) LOCK : Light up wh
