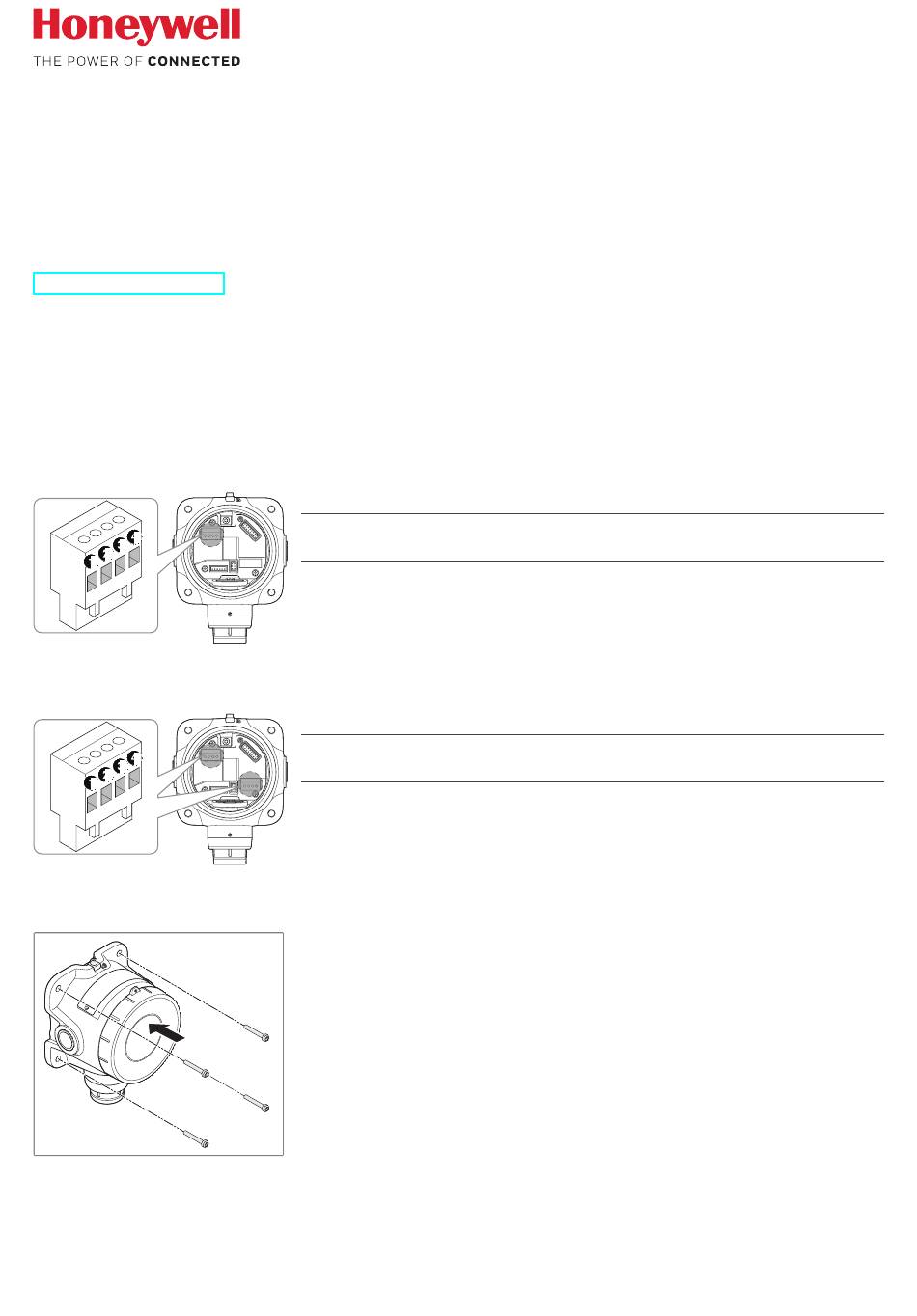

Sensepoint XRL

Fixed Gas Detector

Read and understand the Sensepoint XRL Instruction Manaul before installing, operating or

servicing this product. These are available for download from the Honeywell Analytics website. Visit

www.honeywellanalytics.com.

1 Safety

Installation must be in accordance with the recognized standards of the appropriate authority in the

country and locality concerned.

2 Analog (mA) Output Versions

3 Modbus RTU Output Versions

4 Securing the Detector to a Wall

1) +24 V DC or 24 V AC

3) 4 to 20 mA

1) +24 V DC or 24 V AC

3) A

1. Determine where the detector is to be placed. Mark and drill

holes as required.

2. Secure the detector in its mounting position with suitable ﬁxings

appropriate to the mounting surface. Do not over-tighten.

Quick Start Guide

2) 0 V or 24 V AC

4) Common

2) 0 V or 24 V AC

4) B

Page 1 Fixed Gas Detector Quick Start Guide Read and understand the Sensepoint XRL Instruction Manaul before installing, operating or servicing this product. These are available for download from the Honeywell Analytics website. Visit www.honeywellanalytics.com. 1 Safety Installation must be in accordance with the recognized standards of the appropriate authority in the country and locality concerned.
Page 2 5 Cable Connections 1. Unscrew the front cover counterclockwise until it is open. 2. Hold the handle of the main electronics module and pull it outward with a steady force. Do not pull sharply. 3. Pull out the thread protector from the left cable entry, and remove the blanking plug from the right by turning it counterclockwise.
Page 3 2. Create and register a user account, and log on with the created account information. 3. To associate with the Sensepoint XRL gas detector, scan the QR code on the sheet included in the box or enter its Activation Key.
Page 4 Zone 21, AEx tb IIIC T85°C, IP6X Ex db IIC T6 GbX Ex tb IIIC T85°C DbX Tamb −40 to +65°C, Temp Code T6 Keep this manual for later use. For full operating instructions: 3017M5034_1 HAA170035 http://www.honeywellanalytics.com/products/Sensepoint-XRL © 2017 Honeywell Analytics...
