Sealey IWMH2000R Quick Start Manual

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. safety
electrical safety
1.1.
warning! It is the responsibility of the owner and the operator to read, understand and comply with the following:
‰
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets
and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. You
must also read and understand the following instructions concerning electrical safety.
1.1.1. ensure that cables are always protected against short circuit and overload.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections
to ensure that none are loose.
1.1.3. imPortant: ensure that the voltage marked on the appliance matches the power supply to be
used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.4. do not use worn or damaged cables, plugs or connectors. Have any faulty item repaired or
replaced immediately by a competent electrician.
1.1.5. It is recommended that this heater is wired directly to a fused isolator switch. If, however, a plug
is fitted, the following applies:
1.1.6. Fit a new plug according to the following instructions (UK only).
a) Connect the GReen/YelloW earth wire to the earth terminal 'e'.
b) Connect the BRoWn live wire to the live terminal 'l'.
c) Connect the BlUe neutral wire to the neutral terminal 'n'.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable restraint is tight.
general safety
1.2
warning! Ensure the heater is at least 1m from any object, 500mm from the ceiling and 1800mm from floor level.
‰
warning! This heater is not equipped with a device to control the room temperature. do not use this heater in small rooms when
‰
they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
warning! If a fuse blows, ensure it is replaced with an identical fuse type and rating.
‰
warning! Never touch the element directly with fingers. Use a soft cloth, otherwise the tube may get damaged.
‰
Familiarise yourself with the applications and limitations of the heater.
9
ensure the heater is in good condition before use. If in any doubt do not use the unit and contact your Sealey stockist.
9
only use recommended attachments and parts. Using unauthorised parts may be dangerous and will invalidate your warranty.
9
Check that element guards are in place, undamaged and firmly attached.
9
Keep tools and other items away from the heater when it is in use.
9
Keep the work area clean and clear of unnecessary items.
9
Keep children and unauthorised persons away from the heater, as it gets very hot.
9
disconnect from mains and allow to cool before moving or attempting any cleaning or maintenance.
9
do not use this heater with timers or other devices which switch the heater on automatically.
8
do not immerse the heater in water.
8
do not locate the heater below the power outlet.
8
do not move the heater whilst in operation or even when still
8
do not use the heater to perform a task for which it has not been designed.
8
noTe: Two dark points may exist on the surface of the heating element, or the surface of the heating element may turn white during
the first few minutes of operation. This is normal and will not affect the performance of the heater.
caution: Some parts of this product can become very hot and cause burns. particular attention has to be given where children and
vulnerable people are present.
note: Children of less than 3 years should be kept away unless supervised continuously.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or
installed in its intended normal operating position and they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user maintenance.
note: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
© Jack Sealey limited

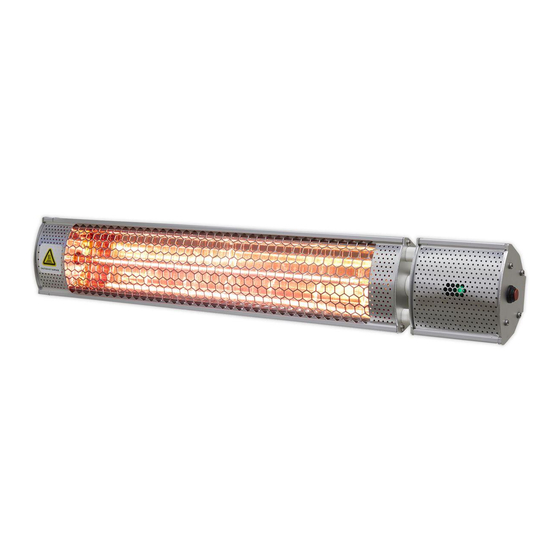

high efficiency infrared short wave
wall mounted heater 2000w
iwmh2000r
model no:
warm.ATeRed BY CompeTenT peRSonnel onlY.
Original Language Version
recommended fuse rating
13 amp
IWmH2000R | Issue 1 06/03/18
