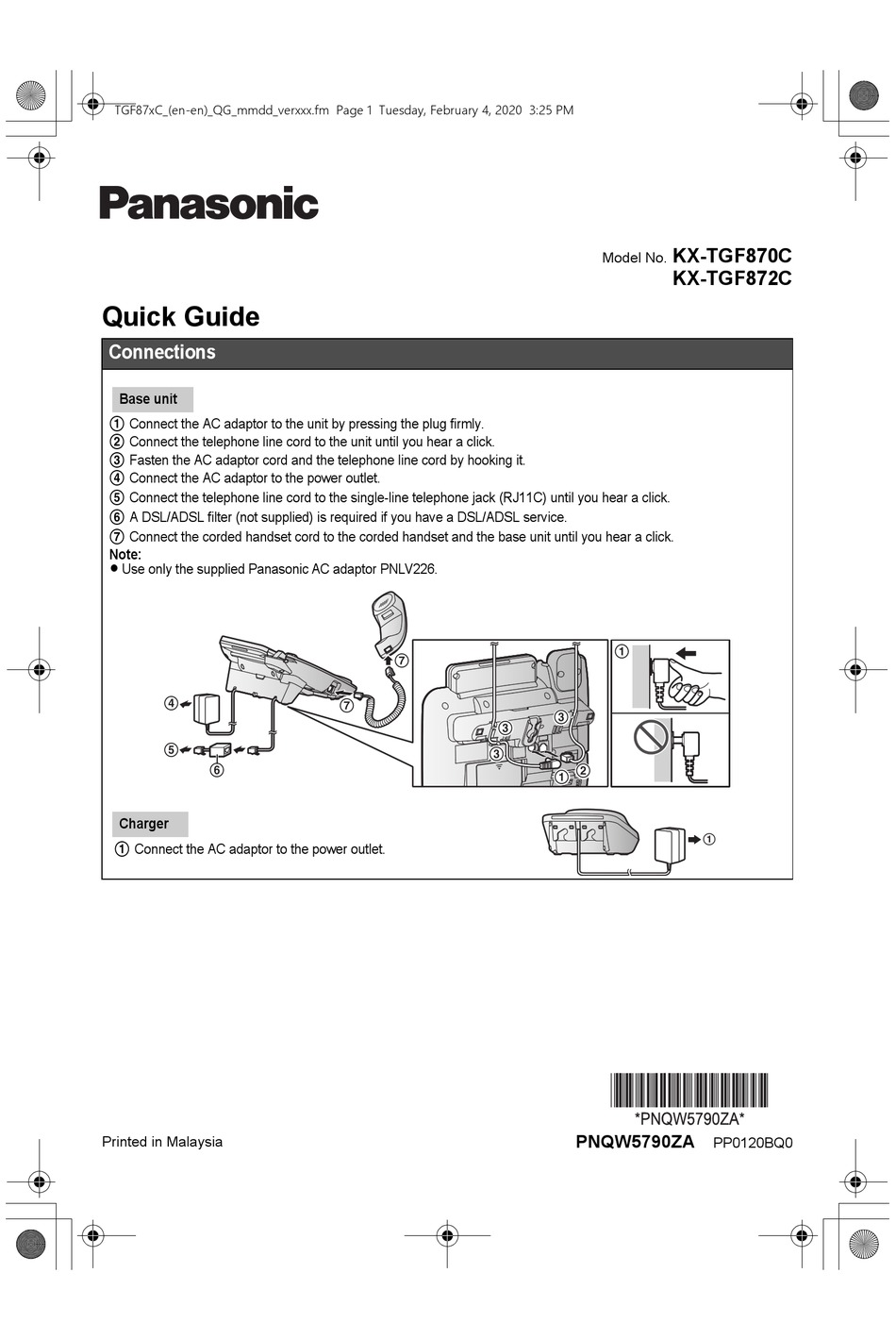

TGF87xC_(en-en)_QG_mmdd_verxxx.fm Page 1 Tuesday, February 4, 2020 3:25 PM
Quick Guide
Connections
Base unit
1
Connect the AC adaptor to the unit by pressing the plug firmly.
2
Connect the telephone line cord to the unit until you hear a click.
3
Fasten the AC adaptor cord and the telephone line cord by hooking it.
4
Connect the AC adaptor to the power outlet.
5
Connect the telephone line cord to the single-line telephone jack (RJ11C) until you hear a click.
6
A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service.
7
Connect the corded handset cord to the corded handset and the base unit until you hear a click.
Note:
L Use only the supplied Panasonic AC adaptor PNLV226.
4
5
6
Charger
1
Connect the AC adaptor to the power outlet.
Printed in Malaysia
7
7
3
3
KX-TGF870C
Model No.
KX-TGF872C
1
3
1 2
1
PNQW5790ZA
PP0120BQ0
Advertisement
Related Manuals for Panasonic KX-TGF870C
Summary of Contents for Panasonic KX-TGF870C
- Page 1 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service. Connect the corded handset cord to the corded handset and the base unit until you hear a click. Note: L Use only the supplied Panasonic AC adaptor PNLV226. Charger Connect the AC adaptor to the power outlet.
- Page 2 TGF87xC_(en-en)_QG_mmdd_verxxx.fm Page 2 Tuesday, February 4, 2020 3:25 PM Handset battery installation/Handset battery charging Charge for about 7 hours. Note: L USE ONLY rechargeable Ni-MH batteries AAA (R03) size (1). L Do NOT use alkaline/manganese/Ni-Cd batteries. L Confirm correct polarities (S, T). L Follow the directions on the display to set up the unit.
-
Page 3: Operating Tips
TGF87xC_(en-en)_QG_mmdd_verxxx.fm Page 3 Tuesday, February 4, 2020 3:25 PM Operating tips Soft keys By pressing a soft key, you can select the feature shown directly above it on the display. Pay attention to the display to see what functions the soft keys are assigned during operation. Navigator key Handset: −... -
Page 4: Basic Operations
TGF87xC_(en-en)_QG_mmdd_verxxx.fm Page 4 Tuesday, February 4, 2020 3:25 PM Basic operations Making/Answering calls (Handset/Base unit) Making calls Handset: Dial the phone number. s {C}/{s} Base unit: Dial the phone number. s Lift the corded handset, or press {s}. Answering calls Handset: {C}/{s} Base unit: Lift the corded handset, or press {s}. -
Page 5: Frequently Asked Questions
TGF87xC_(en-en)_QG_mmdd_verxxx.fm Page 5 Tuesday, February 4, 2020 3:25 PM Frequently asked questions Question Cause/solution Why is _ displayed? L The handset is too far from the base unit. Move closer. L The base unit’s AC adaptor is not properly connected. Reconnect AC adaptor to the base unit. - Page 6 TGF87xC_(en-en)_QG_mmdd_verxxx.fm Page 6 Tuesday, February 4, 2020 3:25 PM Notes – 6 –...
- Page 9 { 7 }...
