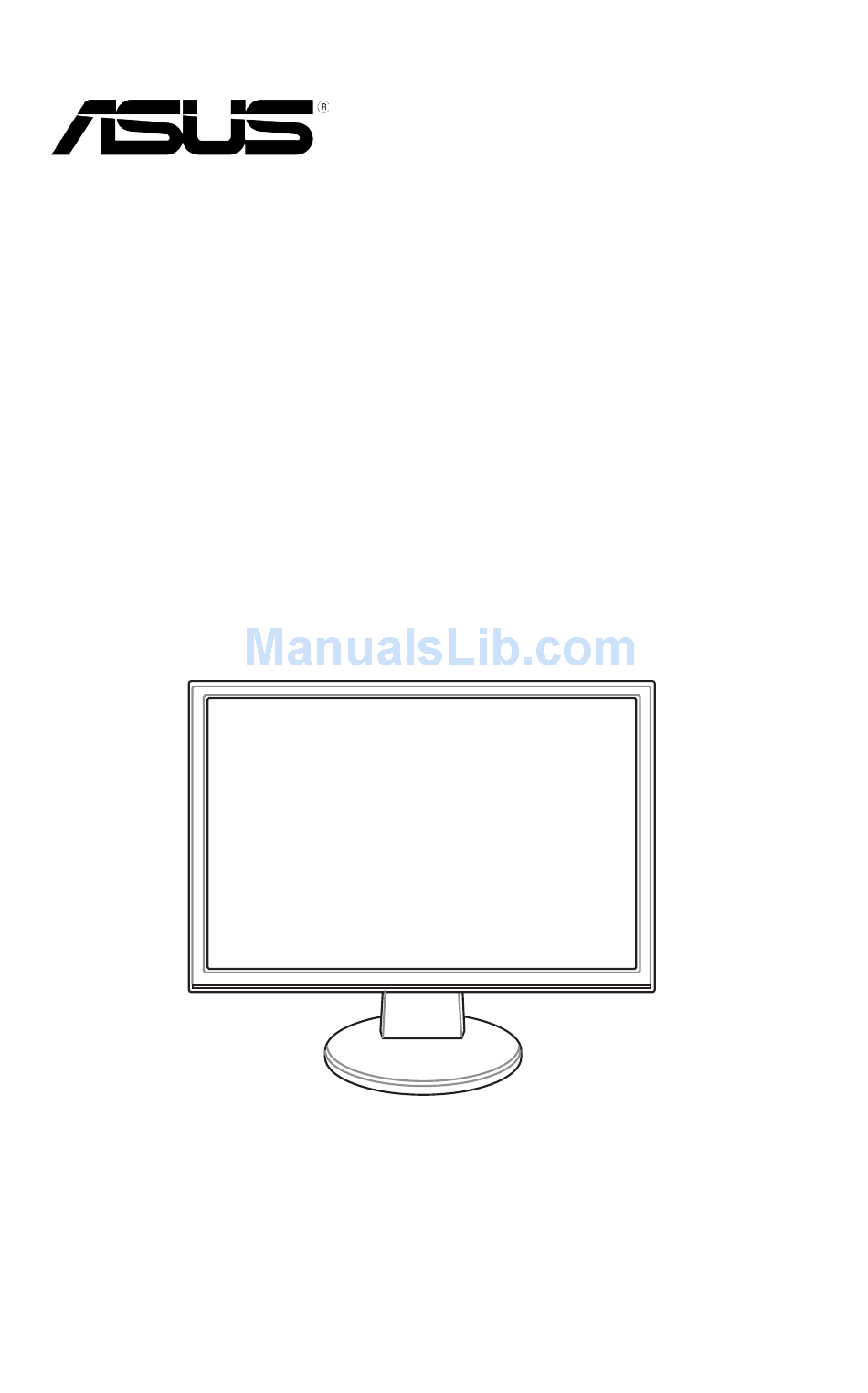

Page 1: Lcd Monitor
VW202/VW222 Series LCD Monitor User Guide... - Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Contents Notices ... iv Safety information ... vi Care & Cleaning ... vii Chapter 1: Product introduction Welcome! ... 1-1 Package contents ... 1-1 Monitor introduction ... 1-2 1.3.1 Front view ... 1-2 1.3.2 Back view ... 1-3 Chapter 2: Setup Assembling the monitor base ... -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Tco Development
TCO Development Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. -
Page 6: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. -
Page 8: Where To Find More Information
Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer. -
Page 9: Welcome
Welcome! Thank you for purchasing the ASUS The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Monitor Introduction
Monitor introduction 1.3.1 Front view Base Button: • Use this hotkey to switch from five video preset modes (Game Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode) with SPLENDID™ Video Enhancement Technology. • Exit the OSD menu or go back to the previous menu as the OSD menu is active. -
Page 11: Back View
DVI port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal connection. VGA port. This 15-pin port is for PC VGA connection. The VESA wall mount kit (100 mm x 100 mm) is purchased separately. ASUS VW202/VW222 Series LCD Monitor Description Standby mode Stereo... - Page 12 Chapter 1: Product introduction...
-
Page 13: Assembling The Monitor Base
Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from -3º to 20º. It is normal that the monitor slightly shakes while you adjust the the viewing angle. ASUS VW202/VW222 Series LCD Monitor -3º~20º... -
Page 14: Detaching The Arm/Base (For Vesa Wall Mount)
2.3 Detaching the arm/base (for VESA wall mount) The detachable arm/base of the VW202/VW222 Series LCD monitor is specially designed for VESA wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Remove the rubbers in the four screw holes (Figure ). Use a screwdriver to remove the two screws on the arm (Figure ), then slide out the arm/base to detach it from the monitor (Figure 2). -
Page 15: Connecting The Cables
Gather all the cables with the cable hook. 2.5 Turning on the monitor Gently press the power button button. The power indicator ASUS VW202/VW222 Series LCD Monitor Cable hook . See page -2 for the location of the power lights up in blue to show that the monitor is ON. - Page 16 Chapter 2: Setup...
-
Page 17: Osd (On-Screen Display) Menu
In the Standard Mode, the Satuation and Sharpness functions are not • user-configurable. In the other modes, the sRGB function is not user-configurable. • ASUS VW202/VW222 Series LCD Monitor again to navigate through the sub-menu button. Repeat step 2 and step 3 to... - Page 18 • activate this function. Contrast: the adjusting range is from 0 to 00. • ASCR: turns on/off the ASCR(ASUS Smart Contrast Ratio) function. • Sharpness: the adjusting range is from 0 to 00. • Saturation: the adjusting range is from 0 to 00.
- Page 19 Simplified Chinese, and Japanese. Aspect Control: adjusts the aspect ratio to “Full” or “:3”. • Information: shows the monitor information. • Reset: “Yes” allows you to restore the default setting. • ASUS VW202/VW222 Series LCD Monitor is a hotkey to activate...
- Page 20 3.2 Specifications summary (VW202U) Panel Type Panel size Max. Resolution Pixel pitch Brightness (Typ.) Brightness (Max.) Contrast Ratio (Typ.) Contrast Ratio (Max.) Viewing angle(H/V) CR>10 Display colors Response time SPLENDID™ Video Enhancement SPLENDID™ selection Auto adjustment Color temperature selection Skin-Tone selection Digital input Analog input Audio-in port...
-
Page 21: Specifications Summary
Temperature (Non-operating) Humidity (Operating) Humidity (Non-operating) Multi-languages Accessories Regulation approvals *Specifications are subject to change without notice. ASUS VW202/VW222 Series LCD Monitor TFT LCD 20" (16:10) wide screen WSXGA+ 1680 x 1050 0.258mm 250cd/m 300cd/m 800:1 2000:1 (with ASCR ON) 160˚/160˚... - Page 22 Specifications summary (VW202S) Panel Type Panel size Max. Resolution Pixel pitch Brightness (Typ.) Brightness (Max.) Contrast Ratio (Typ.) Contrast Ratio (Max.) Viewing angle(H/V) CR>10 Display colors Response time SPLENDID™ Video Enhancement SPLENDID™ selection Auto adjustment Color temperature selection Skin-Tone selection Analog input Audio-in port Colors...
- Page 23 Temperature (Non-operating) Humidity (Operating) Humidity (Non-operating) Multi-languages Accessories Regulation approvals *Specifications are subject to change without notice. ASUS VW202/VW222 Series LCD Monitor TFT LCD 20" (16:10) wide screen WSXGA+ 1680 x 1050 0.258mm 250cd/m 300cd/m 800:1 2000:1 (with ASCR ON) 160˚/160˚...
- Page 24 Specifications summary (VW222U) Panel Type Panel size Max. Resolution Pixel pitch Brightness (Typ.) Brightness (Max.) Contrast Ratio (Typ.) Contrast Ratio (Max.) Viewing angle(H/V) CR>10 Display colors Response time SPLENDID™ Video Enhancement SPLENDID™ selection Auto adjustment Color temperature selection Skin-Tone selection Digital input Analog input Audio-in port...
- Page 25 Temperature (Non-operating) Dimension (W x H x D) Weight (Esti.) Multi-languages Accessories Regulation approvals *Specifications are subject to change without notice. ASUS VW202/VW222 Series LCD Monitor TFT LCD 22" (16:10) wide screen WSXGA+ 1680 x 1050 0.282mm 250cd/m 300cd/m 800:1 2000:1 (with ASCR ON) 170˚/160˚...
- Page 26 Specifications summary (VW222S) Panel Type Panel size Max. Resolution Pixel pitch Brightness (Typ.) Brightness (Max.) Contrast Ratio (Typ.) Contrast Ratio (Max.) Viewing angle(H/V) CR>10 Display colors Response time SPLENDID™ Video Enhancement SPLENDID™ selection Auto adjustment Color temperature selection Skin-Tone selection Analog input Audio-in port Colors...
- Page 27 Temperature (Non-operating) Dimension (W x H x D) Weight (Esti.) Multi-languages Accessories Regulation approvals *Specifications are subject to change without notice. ASUS VW202/VW222 Series LCD Monitor TFT LCD 22" (16:10) wide screen WSXGA+ 1680 x 1050 0.282mm 250cd/m 300cd/m 800:1 2000:1 (with ASCR ON) 170˚/160˚...
-
Page 28: Troubleshooting (Faq)
Troubleshooting (FAQ) Problem Power LED is not ON The power LED lights amber and there is no screen image Screen image is too light or dark Screen image is not centered or sized properly Screen image bounces or a wave pattern is present in the image Screen image has color defects (white does not look white) -
Page 29: Supported Operating Modes
VESA (Primary) 1680 x 1050 * Modes not listed in the table may not be supported. For optimal resolution, we recommend that you choose a mode listed in the table above. ASUS VW202/VW222 Series LCD Monitor Horizontal Vertical Frequency Frequency 31.7KHz... - Page 30 3-1 Chapter 3: General Instruction...
