Siemens SION 3AE5 Operating Instructions Manual

Vacuum circuit-breaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
SION
Vacuum circuit-breaker
7.2 kV – 17.5 kV, 16 kA – 40 kA
24 kV, 16 kA – 25 kA
OPERATING INSTRUCTIONS
© Siemens AG 2019. All rights reserved.
Order no.: 9229 0025 176 0A
Version: 07.2019 en

Advertisement

Table of Contents
loading

Related Manuals for Siemens SION 3AE5

Summary of Contents for Siemens SION 3AE5

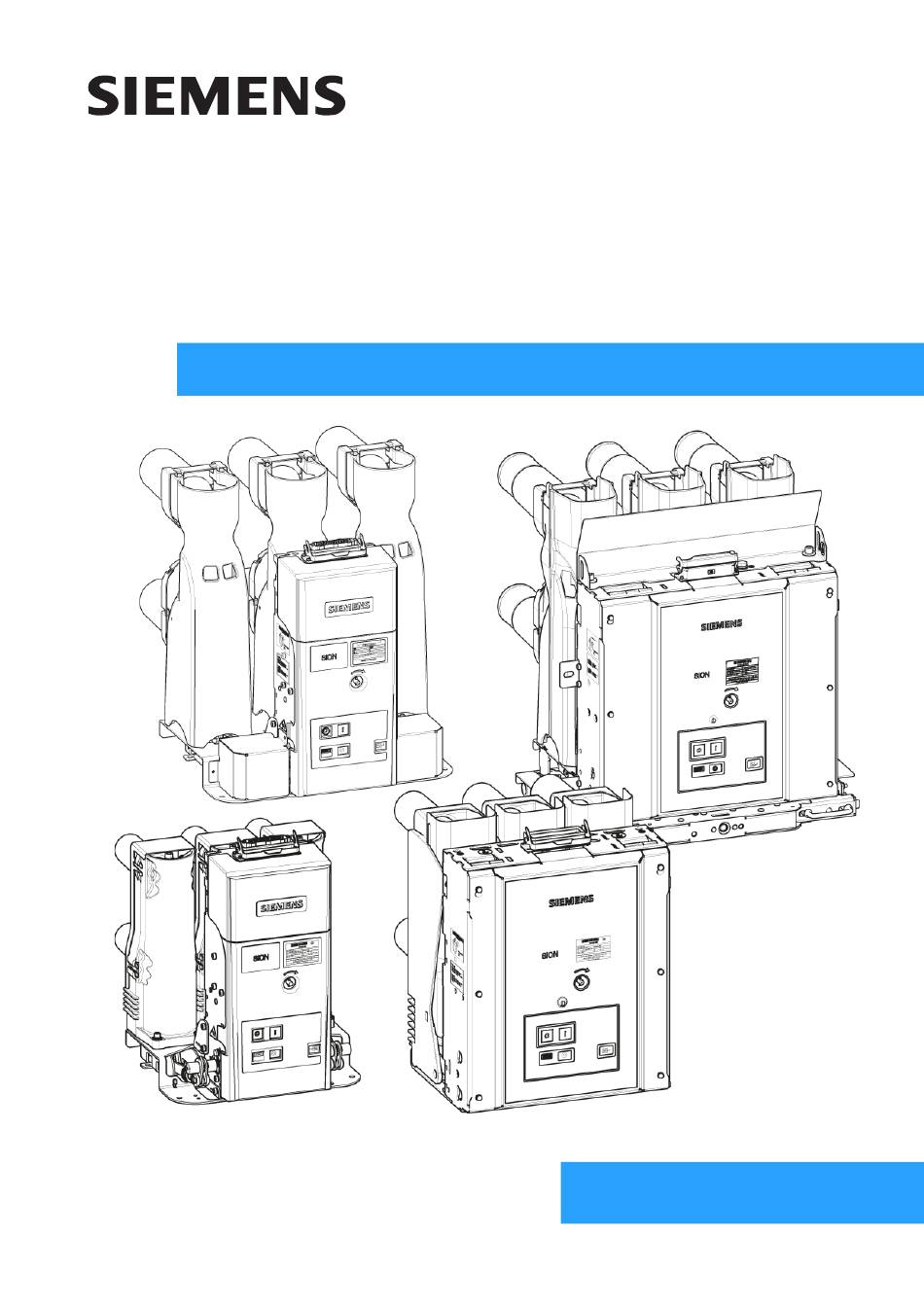

  • Page 1 ® SION Vacuum circuit-breaker 7.2 kV – 17.5 kV, 16 kA – 40 kA 24 kV, 16 kA – 25 kA OPERATING INSTRUCTIONS Order no.: 9229 0025 176 0A Version: 07.2019 en © Siemens AG 2019. All rights reserved.
