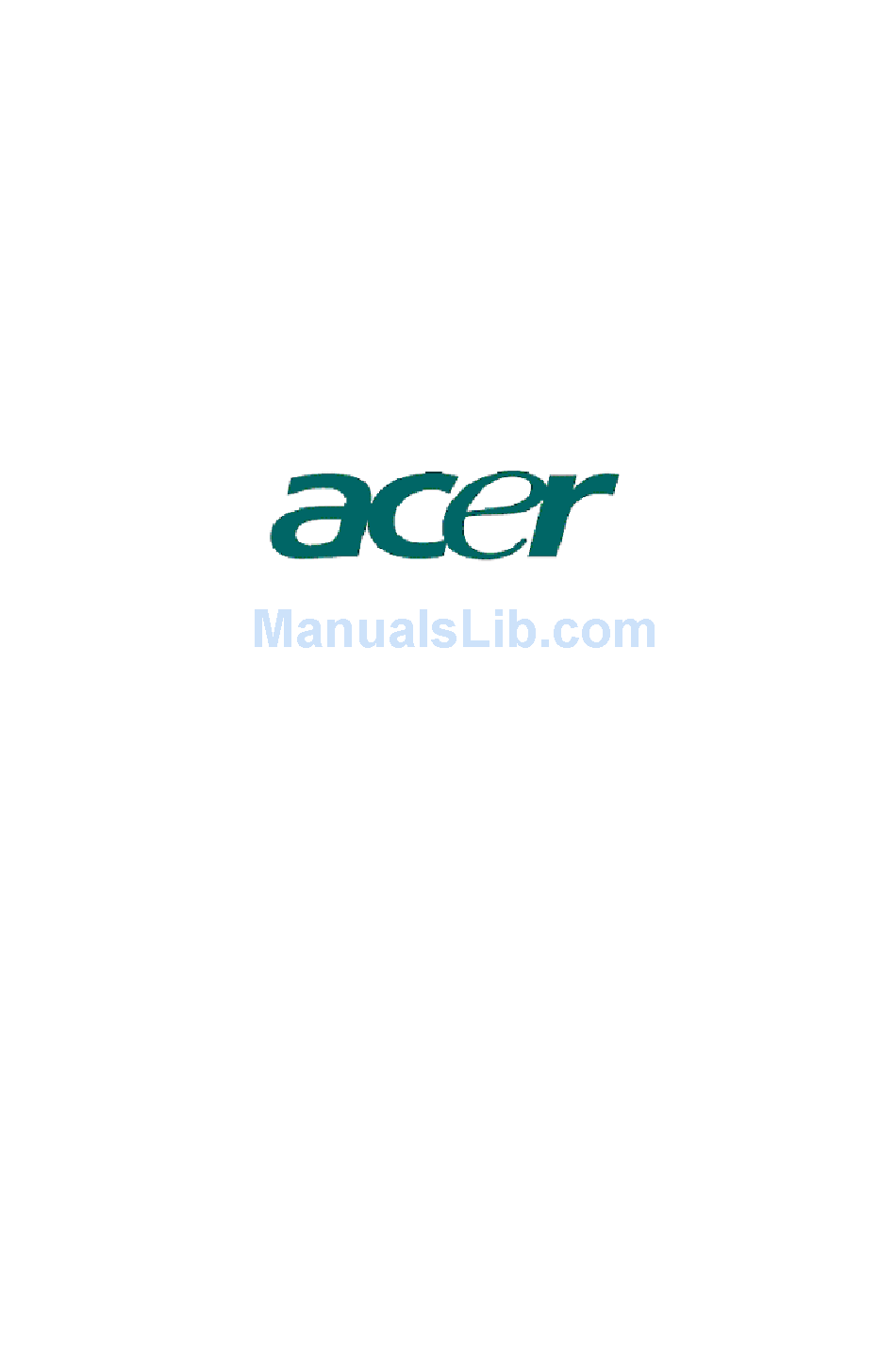

- Page 1 Aspire T620 User’s Guide...
- Page 2 Model Number :__________________________________ Serial Number:___________________________________ Purchase Date: ___________________________________ Place of Purchase: ________________________________ Acer and the Acer Logo are registered trademarks of Acer Inc. Other company's product names or trademarks are used herein for identification purposes only and belong to their respective companies.
-
Page 3: Table Of Contents
System Tour Front panel Rear panel System Features Performance Multimedia Connectivity System peripherals Mouse(PS/2 or USB, manufacturing option) Keyboard(PS/2 or USB, manufacturing option) Speakers System upgrade Open the computer Set up new components Setting up your computer Necessary to know before Setup Select location Open package Connecting the peripherals... - Page 4 Remark: All the drawings in the Guide are diagrams. About components’s quantity and style, substances shall take precedence.
-
Page 5: System Tour
System Tour Your computer’s front panel consists of the following: Front panel Description Optical Drive USB 2.0 Ports Volume Control Speaker or Headphone Jack Description Power Button Status Indicator Card Reader Microphone Jack... -
Page 6: Rear Panel
Rear panel Description Fan Aperture RJ-45 Ethernet Connector Rear Speaker Out Power cord socket PS/2 Mouse Connector S/PDIF Out Serial Port Microphone-In Jack Side Speaker Out Digital Visual Interface Description Printer Connector Line-In Jack S-Video Out Voltage selector switch PS/2 Keyboard Connector S/PDIF In USB 2.0 Ports Front Speaker Out... -
Page 7: System Features
System Features Your computer features: Performance • Intel® Pentium® 4 Socket LGA775 CPU • System Memory DDR 400/333 DIMM, 4 DDR DIMM Slots, expandable to 4GB • Power management function • 3.5 inch floppy drive / card reader (optional) • CD-ROM, DVD-ROM, CD-RW (52X/24X), DVD/CD-RW combo or DVD writer •... -
Page 8: System Peripherals
System peripherals The Aspire T620 computer consists the system itself, and system peripherals, like a mouse, a keyboard and a set of speakers (optional). This section provides a brief description of basic system peripherals. Mouse(PS/2 or USB, manufacturing option) The included mouse is a standard two-button wheel mouse. Connect the mouse to the PS/2 mouse port or USB port on the back panel of the system. -
Page 9: Speakers
Speakers For systems bundled with speakers, before powering on the system, connect the speaker cable to the audio out (external speaker) port on the back panel of the system. For more detailed information about the speakers, please refer to the included operating instructions. -
Page 10: System Upgrade
System upgrade You can expand your Aspire T620 system quickly and easily by adding components. You can also upgrade the components of your Aspire T620 system. Open the computer Before removing any panels or covers, please make sure to shut off the computer and unplug the power cord from the outlet. -
Page 11: Setting Up Your Computer
Express (PCI Express). This improves system efficiency and helps the system support varied multimedia and software applications. Your Aspire T620 has standard I/O (Input/Output) interfaces such as a parallel port, PS/2 keyboard and mouse ports, six USB ports, two microphone ports and stereo line-out jacks (one at front and one at rear panel) and a stereo line-in Jack. -
Page 12: Connecting The Peripherals
• Aspire T620 Series • PS/2 or USB keyboard (manufacturing option) • PS/2 or USB mouse (manufacturing option) • Speakers ( for selected models only) • User's Guide and Starter poster Other user documentation and third party software. Connecting the peripherals Note: Don't connect system power cord before connecting all peripherals to the system. -
Page 13: Troubleshooting
Troubleshooting The following questions are possible situations that may arise during the use of your computer and each is followed by simple answers and solutions to the situation. Q: I pressed the power switch but the system did not boot up. A: Check the LED located above the power switch. - Page 14 Q: No sound comes out from the speakers. A: Check the following: • The volume may be muted. Look for the Volume icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute option. You can also press the volume control/mute knob on your USB keyboard to toggle the mute function.
-
Page 15: Taking Care Of Your Computer
Taking Care of your computer Please read the important instructions listed in this section. Following these instructions will help you maximize the durability of your computer. Important tips • Do not expose the computer to direct sunlight. Do not place it near sources of heat, such as a radiator. -
Page 16: To Clean Your Pointing Device
If the computer is not operating normally. Asking for technical assistance For technical assistance, contact your local dealer or distributor. You may also access the Acer Web site (www.acersupport.com) for information on how and where to contact the service centers available in your area. -
Page 17: Energy Star Guidelines Compliance
Energy Star Guidelines Compliance As an Energy Partner, Acer Inc., has determined that this product meets the Energy Star guidelines for energy efficiency. Declaration of Conformity for EU countries Hereby, Acer, declares that this personal computer is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. - Page 18 Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. Slots and openings are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered.
-
Page 19: Lithium Battery Statement
Always disconnect all telephone lines from the wall outlet before serving or disassembling this equipment. Avoid using a telephone line (other than cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Lithium battery statement CAUTION Danger of explosion if battery is incorrectly replaced. - Page 20 LUOKAN 1 LASERLAITE LASER KLASSE 1 VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHLL AUSSETZEN PRODUCTO LÁSER DE LA CLASE I ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE EXPONERSE A LOS RAYOS. ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN. VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.
-
Page 21: Declaration Of Conformity For Ce Marking
Decision 98/482/EC (CTR21) for pan- European single terminal connection to the Public Switched Telephone Network (PSTN). We, Acer Inc., hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable Rules...
