Bosch WE800EV2 RF Quick Start Manual

Intrusion Systems WE800EV2 RF Arming Kit
We800Ev2 Rf Arming Kit

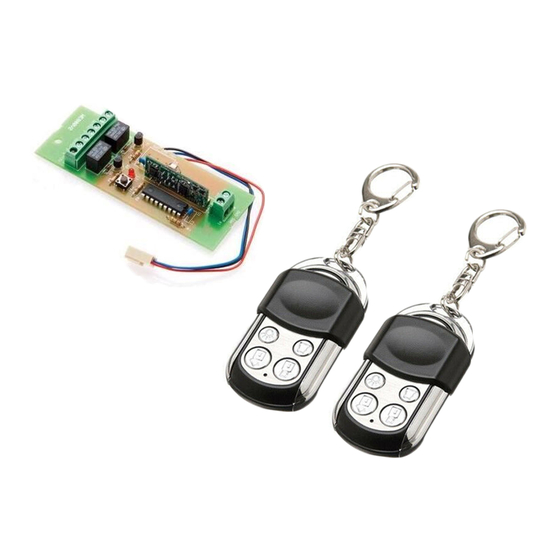

The WE800EV2 RF Arming Kit is designed to provide a
convenient ON/OFF control for the Solution 800 Series
alarm panels. Provision is also made for the control of up
to two (2) external devices via on board relays.

Features

GND
RF Receiver
3 pin panel
connection
+5V
DAT
GND
NO NC COM
WE800EV2
ANT
Antenna
connetion
Microprocessor
Learn/Delete
LED
NO NC COM +12V
PCB Retaining
for Solution 800 Series
ON/OFF functionality for Solution 16 panels
►
Code hopping RF security (4.2 billion combinations)
►
Simple installation
►
Superheterodyne receiver (less interference)
►
Robust attractive key fobs
►
2 onboard programmable relays
►

Installation and Set up

1. Remove small knockout in the Solution
antenna and insert the supplied rubber grommet.
2. Install WE800V2 PCB in panel with top of PCB in the
slot provided at the top of the case and secure with the
provided screw at the bottom of PCB.
3. Install antenna wire through grommet into the "ANT"
terminal.
4. Connect the 3 pin plug to JP3 in the panel. Note that
the connector will only install one way. If the relays are to
be used a wire will need to be connected from the +12V
terminal on the WE800V2 to a +12 terminal in the panel.
5. The supplied fobs are already learned to the WE800V2
with both relays set for momentary operation. If however
a different relay set up is required then the fobs will need
Switch to be deleted and learned again as below.
TO DELETE FOBS - Press and hold the Learn/Delete
Relays
switch. Note that the LED will light and then extinguish
after 4 seconds. The EEPROM memory is now erased.
Individual fob deletion is not possible.
screw
panel for
TM
