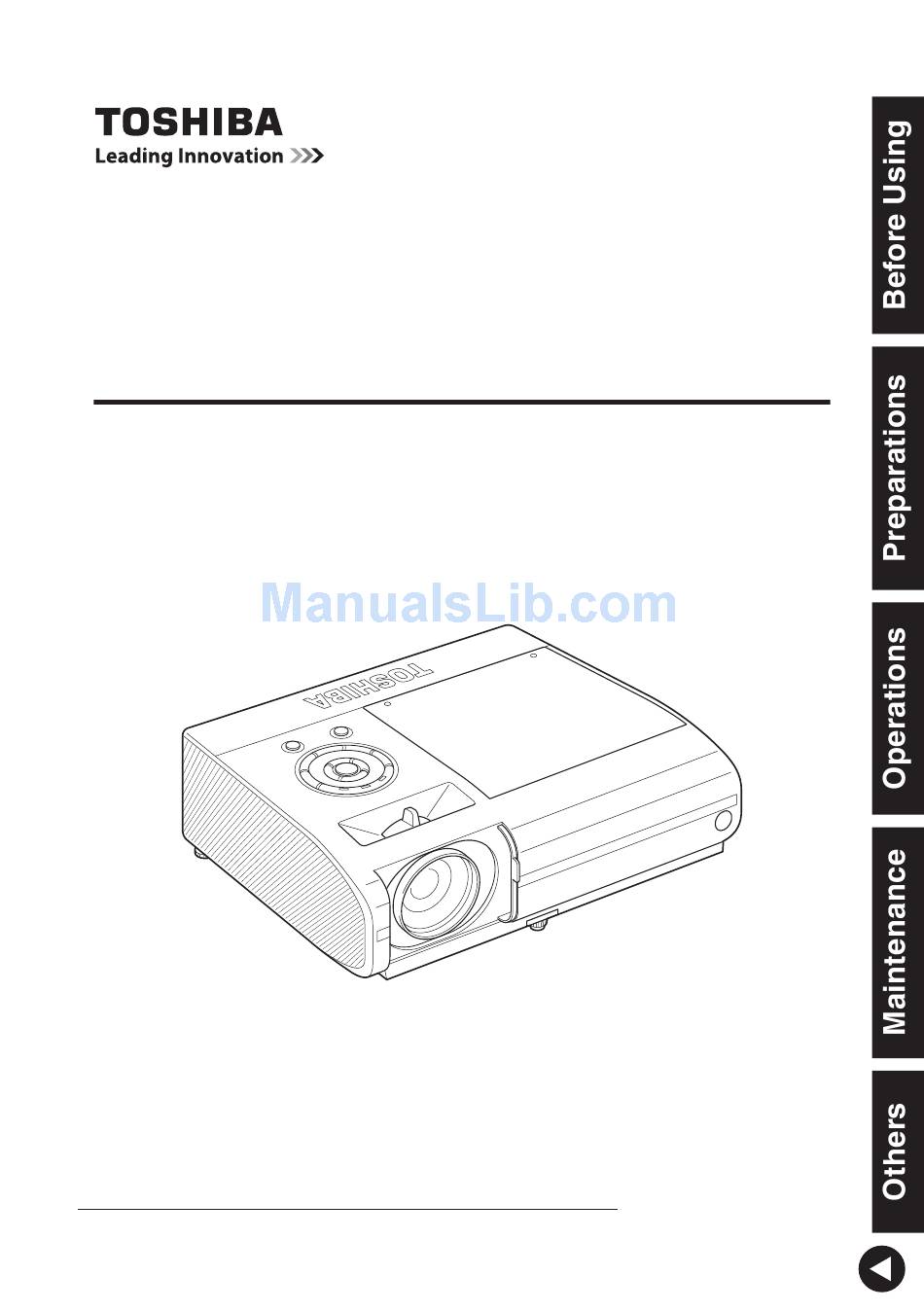

- Page 1 TDP-T420 TDP-T360 DATA PROJECTOR OWNER’S MANUAL In the spaces provided below, record the Model and Serial No. located at the bottom of your projector. Model No. Retain this information for future reference. Serial No.
-
Page 2: Safety Precautions
Phone: (949) 58-000 Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-00. Cet appareil... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This unit is fully transistorized and does not contain any parts that can be repaired by the user. - Page 4 IMPORTANT SAFETY INSTRUCTIONS (Continued) 11. Lightning storms 13. Do not place or keep the projector within the reach For added protection for this product during a storm, or when it of the children. is left unattended and unused for It may fall or tip over, possibly long periods of time, unplug it from causing serious injury.
-
Page 5: Power Supply Information
IMPORTANT SAFETY INSTRUCTIONS (Continued) 20. If glass components, 23. Safety Check including lens and lamp, Upon completion of any service or repairs to this product, ask should break, contact your the service technician to perform dealer for repair service. safety checks to verify that the This product incorporates glass product is in proper operating components, including a lens and... -
Page 6: Exemption Clauses
EXEMPTION CLAUSES • Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, acts by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems. -
Page 7: Table Of Contents
CONTENTS Before Using SAFETY PRECAUTIONS ... IMPORTANT SAFETY INSTRUCTIONS ... POWER SUPPLY INFORMATION ... IMPORTANT PRECAUTIONS ... EXEMPTION CLAUSES ... OTHER INFORMATION ... REMOTE CONTROL BATTERIES ... CONTENTS ... Preparations Checking the package contents ... Names of each part on the main unit ... Names of each part on the control panel and remote control ... -
Page 8: Remote Control Batteries
Checking the package contents Please make sure that the following items are included in the box, along with the main unit. If any item is missing, immediately contact the store where you purchased the product. (1) Remote control (2) LR03 (SIZE AAA) batteries for remote control (2) ... -
Page 9: Names Of Each Part On The Control Panel And Remote Control
Names of each part on the control panel and remote control Control panel Remote Control (11) (12) (13) (14) (10) (16) (15) (23) (10) CAUTION Do not look into the laser light • (19) (20) source of the remote control or direct the laser pointer toward a person or a mirror. -
Page 10: Names Of The Terminals On The Rear Panel
Names of the terminals on the rear panel (7) (8) (10) Name : Main Function (1) COMPUTER (Y/P ) 2 IN terminal RGB: Input analog RGB signal from a computer or other source, or a component video signal (Y/P equipment. AUDIO IN: Input audio signals. -
Page 11: Operating A Computer Using The Remote Control
OS, that is equipped with a USB port which can support USB1.1 (The mouse remote control receiver is also supported on OS 9 or OS X for the Macintosh). However, please note that Toshiba does not guarantee the operation of all computers. Connecting a computer Connect the mouse remote control receiver (supplied) to a computer. -
Page 12: Connection
Connection Before connection • Read the owner’s manual of the device you are connecting to the projector. • Some computers cannot be used with or connected to this projector. Check for an RGB output terminal, supported signal • Turn off the power of both devices before connecting. •... -
Page 13: Operations
Turning the power on and off Connecting the power cord Insert the power cord connector into the AC IN socket of the projector. Insert the power cord plug into a wall or other power outlet. Removing the lens cap ... -
Page 14: Basic Operations
Basic operations Turn on the power. Turn on the power by following the instructions in “Turning the power on” Select the language and the lamp power (When using the first time). When the projector is used for the first time after purchase, the start menu for language (to display the menus and messages on the screen) and lamp power selection and configuration is displayed in English. -
Page 15: Using Handy Features
Basic operations (Continued) Precautions • Lamp characteristics may rarely cause the brightness to fluctuate slightly. ® • The DLP chip is made using extremely advanced technology. There may be black spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. These are intrinsic characteristics of the technology and are not malfunctions. -
Page 16: Zooming Out The Images
Using handy features (Continued) Zooming out the images This projector is provided with the digital zoom (electric zoom: 100 - 6%) in addition to the optical zoom (manual adjustment with zooming lever). (Note that the display, if digitally zoomed out, may suffer from some degradation.) Press the ZOOM –... -
Page 17: Cutting Off The Picture And Sound Temporarily (Mute)
Using handy features (Continued) Cutting off the picture and sound temporarily (Mute) When you want to project the images of another projector, overhead projector, etc. temporarily, this projector’s images and sound can be turned off. Press the remote control’s MUTE button. The picture and sound are cut off. -
Page 18: Using The Menus
Using handy features (Continued) How to set password (from [Off] to [On]) Select [Password] in the Default setting 2 menu and press the button. Select [Password setting] next, and press the Select [On]. Select [OK] and press the button. The password entry screen is displayed. Enter the password using numeric keys of the remote control. -
Page 19: The Image Adjustment Menu
Using the menus (Continued) The image adjustment menu Use this menu to set or adjust image-related items. Items that can be set or adjusted are marked “Yes”, and those that cannot are marked “No”. (When an item is masked, it indicates that you cannot select for the current input.) Digital (DVI) Analog (D-SUB)(DVI) Item... -
Page 20: The Display Setting Menu
TOSHIBA is set for [Logo] by factory setting. If user’s logo has been registered, it is displayed when [Logo] is set for... -
Page 21: The Default Setting Menu
Using the menus (Continued) <Logo registration> How to register user logo Project a picture to register. Select [User logo] in the Display setting menu, and press the button. Select <Logo registration> from the displayed menu list and press button. The registration area is displayed for confirmation. Select [OK] and press the button. -
Page 22: Displaying Information (Status Display)
Using the menus (Continued) Default setting 2 menu Item Description Projection Sets projection mode in accordance with Placement Style. mode (Standard) (Rear) Fan mode Sets the cooling fan speed. Remote control When projectors are used and controlled by the remote control respectively, this menu sets the code for the projector and the remote control. -
Page 23: Maintenance
• If the projector is mounted on the ceiling, it is recommended to use your Toshiba dealership when the lamp has to be exchanged. Uncovering the lamp while the projector is mounted on a ceiling may lead to a danger of damage from falling pieces of glass if the lamp is broken. - Page 24 Lamp replacement (Continued) Remove the inner lamp cover. Loosen the screw to remove the inner lamp cover. Pull out the lamp. Remove the locking screws and carefully set them aside. Then pull up the handle and remove the lamp. Mount the new lamp.
-
Page 25: Lens And Main Unit Cleaning
Lens and main unit cleaning WARNING • Request cleaning and maintenance of a ceiling-mounted unit from your projector dealership. Attempting to clean or replace the lamp in a high location by yourself may cause you to fall, resulting in injury. Lens cleaning ... - Page 26 Troubleshooting If you think something is wrong, check the followings before contacting customer service. Please see “Trouble indications” as well. p.49 If This Happens Check No power • Is the power cord plugged in? Is it connected to the projector? •...
-
Page 27: List Of General Specifications
Specifications List of general specifications Item Specification Consumption Power 85 W Weight 4. kg External Dimensions 8 × 18 × 68 mm (W × H × D) (including protruding parts) Cabinet material PC+ABS resin and ABS resin Conditions for usage environment Temp: 5°C to 5°C; relative humidity: 0% to 70% ®... - Page 28 Specifications (Continued) List of supported signals (Component signals) Signal format fh(kHz) 480i(55i)@60Hz 15.7 480p(55p)@60Hz 1.47 576i(65i)@50Hz 15.6 576p(65p)@50Hz 1.5 70p(750p)@60Hz 45.00 70p(750p)@50Hz 7.50 1080i(115i)@60Hz .75 1080i(115i)@50Hz 8.1 1080p(115p)@60Hz 67.50 1080p(115p)@50Hz 56.5 * DVI digital input is not supported. List of supported signals (Video, S-Video signals) ...
-
Page 29: Control Terminal
Specifications (Continued) CONTROL terminal Pin assignment Pin No. Signal Name D sub 9 pin connector DC 5 V Interface format 1. Communication method RS-C, 9600 bps, No Parity, Data Length: 8 bits; Stop Bit Length: 1 bit .
