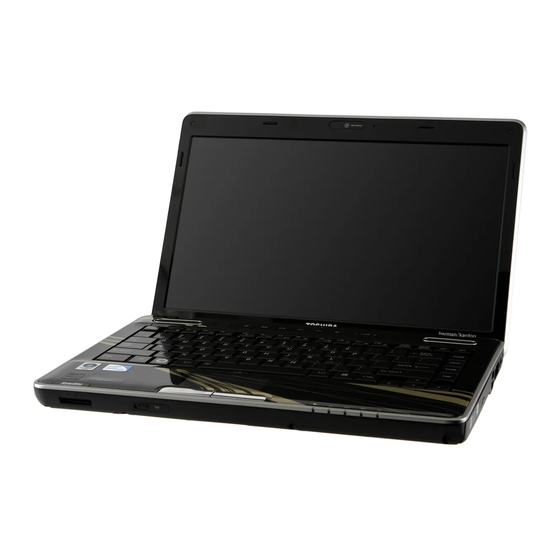

Page 1 Satellite User’s Guide If you need assistance: ❖ Toshiba’s Support Web site pcsupport.toshiba.com ❖ Toshiba Customer Support Center Calling within the United States (800) 457-7777 Calling from outside the United States (949) 859-4273 For more information, see page 183 in this guide.
Page 2 TOSHIBA AMERICA INFORMATION SYSTEMS, INC. (“TOSHIBA”), ITS AFFILIATES AND SUPPLIERS DO NOT WARRANT THAT OPERATION OF THE PRODUCT WILL BE UNINTERRUPTED OR ERROR FREE. YOU AGREE THAT TOSHIBA,...
Page 3 Only Peripherals complying with the FCC Class B limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by Toshiba is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer's ports.
Page 4: Industry Canada Requirement
Contact either: ❖ Toshiba’s Support Web site at pcsupport.toshiba.com. ❖ Or call the Toshiba Customer Support Center: Within the United States at (800) 457-7777 Outside the United States at (949) 859-4273 Industry Canada Requirement This Class B digital apparatus complies with Canadian ICES-003.
Page 5: Telephone Company Procedures
Toshiba Corporation, Toshiba America Information Systems, Inc. or an authorized representative of Toshiba, or the Toshiba Customer Support Center within the United States at (800) 457-7777 or Outside the United States at (949) 859-4273. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
Page 6 Alarm Equipment If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. Instructions for IC CS-03 Certified Equipment NOTICE: The Industry Canada label identifies certified equipment.
Page 7: Wireless Interoperability
Wireless Interoperability The TOSHIBA Wireless LAN Mini PCI Card products are designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS) radio technology, and is compliant to: ❖ The IEEE 802.11 Standard on Wireless LANs (Revision A/B/G), as defined and approved by the Institute of Electrical and Electronics Engineers.
Page 8: Wireless Lan And Your Health
The radiated output power of the TOSHIBA Wireless LAN Mini PCI Card is far below the FCC radio frequency exposure limits. Nevertheless, the TOSHIBA Wireless LAN Mini PCI Card shall be used in such a manner that the potential for human contact during normal operation is minimized. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Page 9 Canada – Industry Canada (IC) This device complies with RSS 210 of Industry Canada. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population;...
Page 10 This Directive applies to EU member countries only and does not apply to end users in other countries such as the United States. Although the initial emphasis is in Europe, Toshiba is already working with design engineers, suppliers, and other partners to determine appropriate worldwide product life cycle planning and end-of-life strategies for our products.
Page 11 VCCI Class B Information Modem Warning Notice Conformity Statement The equipment has been approved to [Commission Decision “CTR21”] for pan- European single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries/regions the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.
Page 12 2. If this equipment causes RF interference to other radio stations, promptly change the frequency being used, change the location of use, or turn off the source of emissions. 3. Contact TOSHIBA Direct PC if you have problems with interference caused by this product to Other Radio Stations. 2. Indication The indication shown below appears on this equipment.
Page 13: Device Authorization
FH: This equipment uses FH-SS modulation. The interference range of this equipment is less than 10m. This equipment uses a frequency bandwidth from 2,400 MHz to 2,483.5 MHz. 3. TOSHIBA Direct PC Monday – Friday: 10:00 – 17:00 Toll Free Tel: 0120-15-1048 Direct Dial: 03-3457-4850...
Page 14: Radio Approvals For Wireless Devices
Radio Approvals for Wireless Devices NOTE The following information is dependent on what type of wireless device is in your computer. Not all devices are available on all models. Approved Country/Region for the Intel ® Wi-Fi /WiMAX™ Link 5150/5350 Series This equipment is approved to the radio standard by the country/region in the following table.
Page 15 Because Wireless WAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless WAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
Page 16: Regulatory Information
Part 2 section 1093. Exposure to Radio Frequency Radiation The radiated output power of the TOSHIBA Wireless WAN Card is far below the FCC radio frequency exposure limits. Nevertheless, the TOSHIBA Wireless WAN Card shall be used in such a manner that the potential for human contact during normal operation is minimized.
Page 17 Canada – Industry Canada (IC) Wireless WAN complies with RSS-129, RSS-133 Industry Canada. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population;...
Page 18 Approved Countries/Regions for the Intel Link 5100/5300 Series This equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. Andorra Austria Belgium Brazil Cambodia Chile Costa Rica...
Page 19 Paraguay Poland Qatar Russia San Marino Singapore South Africa Sri Lanka Tahiti Turk Islands United Kingdom Vatican Virgin Islands Approved Countries/Regions for the Atheros Link AR5B95 Series This equipment is approved to the radio standard by the countries/regions in the following table.
Page 20 Kuwait Lebanon Lithuania Malaysia Monaco Nambia New Zealand Norway Panama Peru Portugal Romania Senegal Slovak Republic South Korea Sweden Thailand Ukraine Yemen Europe - Restrictions for use of 2.4 GHz Frequencies in European Community Countries België/ For private usage outside buildings across public grounds over less than Belgique: 300m no special registration with IBPT/BIPT is required.
Page 21 France: Restricted frequency band: only channels 1 to 7 (2400 MHz and 2454 MHz respectively) may be used outdoors in France. Please contact A.R.T. (http://www.art-telecom.fr) for applicable procedures to follow. Bande de fréquence restreinte: seuls les canaux 1- 7 (2400 et 2454 MHz respectivement) doivent être utilisés endroits extérieur en France.
Page 22 ❖ To remain in conformance with European spectrum usage laws for Wireless LAN operation, the above 2.4 GHz and 5 GHz channel limitations apply. The user should use the wireless LAN utility to check the current channel of operation. If operation is occurring outside of the allowable frequencies as listed above, the user must cease operating the Wireless LAN at that location and consult the local technical support staff responsible for the wireless network.
Page 23 Iceland Ireland Japan Kenya Latvia Liechtenstein Macedonia Mexico Mozambique Nicaragua Pakistan Paraguay Poland Qatar Serbia Slovenia Spain Switzerland Trinidad United Kingdom Venezuela Approved Countries/Regions for the Realtek This equipment is approved to the radio standard by the countries/regions in the following table.
Page 24 Hong Kong India Israel Japan Kenya Latvia Lithuania Malaysia Monaco Netherlands Antilles Netherlands Norway Panama Peru Portugal Romania Serbia Slovenia Spain Switzerland Trinidad UAE (United Arab Emirates) Uruguay Vietnam Hungary Iceland Indonesia Ireland Italy Jamaica Jordan Kazakhstan Kuwait Kyrgyzstan Lebanon Liechtenstein Luxembourg Macedonia...
Page 25 Approved Countries/Regions for the Realtek This equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. Albania Australia Bahrain Bolivia Brunei Canada Colombia Cyprus Dominican Republic El Salvador...
Page 26 Approved Countries/Regions for use for the ® Intel PRO/Wireless 3945ABG Network Connection This equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. NOTE An adhoc mode is available in Ch1-Ch11(802.11b/g), An Infrastructure mode is available in Ch1-Ch11 (802.11b/g)
Page 27 11a, 11b, 11g and 11n wireless are based on IEEE 802.11a, 802.11b, 802.11g and 802.11n respectively. The IEEE 802.11n specification has not been finalized and is currently in draft release. The TOSHIBA 11a/b/g/n Wireless LAN Adapters are based on the Draft Release, Version 1.0, of the IEEE 802.11n specification.
Page 28: Bluetooth Wireless Technology Interoperability
Always use Bluetooth cards from TOSHIBA in order to enable wireless networks over two or more (up to a total of seven) TOSHIBA portable computers using these cards. Please contact TOSHIBA computer product support on Web site http://www.toshiba-europe.com/computers/tnt/ bluetooth.htm in Europe or pcsupport.toshiba.com in the United States for...
Page 29: Bluetooth Wireless Technology And Your Health
Approved Countries/Regions for use (Bluetooth technology) ® Bluetooth Card from Toshiba equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. Argentina Belgium...
Page 30: Regulatory Statements
The radiated output power of the Bluetooth Card from TOSHIBA is far below the FCC radio frequency exposure limits. Nevertheless, the Bluetooth Card from TOSHIBA shall be used in such a manner that the potential for human contact during normal operation is minimized.
Page 31 Never attempt to disassemble, adjust or repair an optical drive. You could damage the drive. You would also be exposed to laser light or other safety hazards, resulting in serious injury. Always contact an authorized Toshiba service provider, if any repair or adjustment is required.
Page 32 Copyright This guide is copyrighted by Toshiba America Information Systems, Inc. with all rights reserved. Under the copyright laws, this guide cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed, however, with respect to the use of the information contained herein.
Page 33 Atheros is a registered trademark of Atheros Communications, Inc. Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Toshiba is under license. Other trademarks and trade names are those of their respective owners.
Page 34: Table Of Contents
Contents Introduction... 42 This guide ...44 Safety icons ...45 Other icons used...45 Your computer’s features and specifications ...46 Other documentation ...46 Service options ...46 Chapter 1: Getting Started... 47 Selecting a place to work ...47 Setting up a work environment ...47 Keeping yourself comfortable ...48 Precautions...48 Important information on your computer’s...
Page 35 Turning on the power ...55 Setting up your software...56 Registering your computer with Toshiba ...56 Adding optional external devices...56 Adding memory (optional) ...57 Installing a memory module ...57 Removing a memory module...62 Checking total memory ...65 Recovering the Internal Storage Drive ...65 Recovering to out-of-box state (recommended recovery method)...66...
Page 36 Contents Using and configuring Hibernation mode ...92 Using and configuring Sleep mode ...94 Closing the display panel ...97 Customizing your computer’s settings...97 Caring for your computer...97 Cleaning the computer ...97 Moving the computer...98 Using a computer lock ...98 Chapter 2: Learning the Basics... 99 Computing tips ...99 Using the keyboard ...100 Character keys ...101...
Page 37 Setting battery notifications ...123 Conserving battery power ...124 Power Plans...125 Using a hot key to set the Power Plan...126 Using the TOSHIBA eco power plan...127 Changing the main battery ...128 Removing the battery from the computer ...128 Inserting a charged battery ...130 Taking care of your battery ...131...
Page 38 Inserting an ExpressCard Removing an ExpressCard Using the Memory card reader...147 Inserting memory media...148 Removing memory media...148 Using the eSATA/USB combo port...149 Chapter 5: Utilities...150 TOSHIBA Assist ...151 Connect...152 Secure...153 Protect & Fix ...154 Optimize...155 from, the Internet ...143 ®...
Page 39 Using an instant password...157 Using a supervisor password...158 Using a user password ...159 Deleting a user password...160 TOSHIBA Face Recognition Utility...161 TOSHIBA PC Diagnostic Tool Utility...162 TOSHIBA HDD Protection Utility ...163 Mouse Utility ...164 TOSHIBA Hardware Setup...165 USB Sleep and Charge Utility ...168 Starting the USB Sleep and Charge Utility...168...
Page 40 Wireless networking problems...202 DVD operating problems...203 Develop good computing habits ...204 Data and system configuration backup in If you need further assistance...210 Before you contact Toshiba ...210 Contacting Toshiba ...211 Other Toshiba Internet Web sites...211 Toshiba’s worldwide offices...212 ® operating system is not ®...
Page 41 Appendix A: Hot Keys/TOSHIBA Cards ... 214 Hot Key Cards ...214 Using the Hot Key Cards ...215 Application Cards...216 Using the Application Cards...217 Card Case...218 Hot key functions ...218 Volume Mute ...219 Lock (Instant security) ...220 Power plan ...221 Sleep mode ...222 Hibernation mode ...223...
Page 42: Introduction
You can wake the computer from Sleep mode by pressing the power button. See the “Mobile Computing” section of the Toshiba User’s Guide for more information on using power management settings to...
Page 43 (RoHS), which restricts use of lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. Toshiba requires its computer component suppliers to meet RoHS requirements and verifies its suppliers’ commitment to meeting RoHS requirements by conducting component sampling inspections during the product design approval process.
Page 44: This Guide
Toshiba’s Web site at pcsupport.toshiba.com. While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice.
Page 45: Safety Icons
Safety icons This manual contains safety instructions that must be observed to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and icons highlight these instructions as follows: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Page 46: Your Computer's Features And Specifications
To stay current on the most recent software and hardware options for your computer, and for other product information, be sure to regularly check the Toshiba Web site at pcsupport.toshiba.com. If you have a problem or need to contact Toshiba, see Goes Wrong” on page System icons 183.
Page 47: Chapter 1: Getting Started
Chapter 1 Getting Started This chapter provides tips for using your computer effectively, summarizes how to connect components, and explains what to do the first time you use your computer. The “Instruction Manual for Safety and Comfort,” that is shipped with your computer, contains important safety information.
Page 48: Keeping Yourself Comfortable
Extreme heat, cold, or humidity. ❖ Liquids and corrosive chemicals. Keeping yourself comfortable The Toshiba Instruction Manual for Safety and Comfort, included with your computer, contains helpful information for setting up your work environment and tips for working comfortably throughout the day.
Page 49 ❖ Avoid prolonged physical contact with the underside or surface of the computer. ❖ Computer base and palm rest can become hot! Avoid prolonged contact to prevent heat injury to skin. Read the “Avoid extended contact between computer base/palm rest and skin”...
Page 50: Important Information On Your Computer's Cooling Fan
Getting Started Setting up your computer Important information on your computer’s cooling fan Your computer may have a CPU cooling fan that cools the CPU by drawing outside air into the computer. Always make sure your computer and AC adaptor have adequate ventilation and are protected from overheating when the power is turned on or when an AC adaptor is connected to a power outlet (even if your computer is in Sleep mode).
Page 51: Connecting To A Power Source
TOSHIBA Battery Charger (that may have been provided with your computer), or use AC adaptors and battery chargers specified by TOSHIBA to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor or Battery Charger could cause fire or damage to the computer possibly resulting in serious injury.
Page 52 Getting Started Connecting to a power source To connect AC power to the computer: Connect the power cord/cable to the AC adaptor. (Sample Illustration) Connecting the power cord/cable to the AC adaptor Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
Page 53: Charging The Main Battery
The computer’s main battery light gives you an indication of the main battery’s current charge: ❖ Glows amber while the main battery is being charged (AC adaptor connected) ❖ Glows white when the main battery is fully charged ❖ Is unlit when the main battery has discharged, the battery is not charging, or the AC adaptor is not plugged into the computer or AC outlet ❖...
Page 54: Using The Computer For The First Time
Getting Started Using the computer for the first time NOTE Battery life and charge time may vary depending on the applications, power management settings, and features used. Using the computer for the first time The computer is now ready for you to turn it on and begin using it. Opening the display panel Facing the front of the computer, locate the center of the display panel.
Page 55: Turning On The Power
Small bright dots may appear on your screen display when you turn on your computer. Your display contains an extremely large number of thin-film transistors (TFT) and is manufactured using high- precision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology.
Page 56: Setting Up Your Software
Product registration can be completed by either visiting the Toshiba Web site at http://www.register.toshiba.com, or by clicking Start, All Programs, My Toshiba, and then Toshiba Registration. Failure to complete Product Registration will not diminish Customer rights under the Toshiba standard limited Warranty.
Page 57: Adding Memory (Optional)
NOTE Before adding external devices or memory, Toshiba recommends setting up your software. See Installing a memory module Memory modules can be installed in the memory module slots on the base of the computer.
Page 58 Getting Started Adding memory (optional) NOTE For this model, Slot A is the bottom slot. Slot B is the top slot. If only one memory module is to be installed, it must be installed in Slot A. If the computer is on, begin at step 1; otherwise, skip to step 3. Click Start.
Page 59 Using a small Phillips screwdriver, loosen the captive screws that secure the memory module slot cover. Front of computer (Sample Illustration) Removing the memory module slot cover Remove the memory module slot cover. Place the screws and the cover in a safe place so that you can retrieve them later.
Page 60 Getting Started Adding memory (optional) NOTE If your system has the memory modules stacked on top of one another, you must remove the top module first before removing/installing the bottom module. NOTE For this model, Slot A is the bottom slot. Slot B is the top slot. If only one memory module is to be installed, it must be installed in Slot A.
Page 61 Once the module’s connector is fully inserted into the socket, press downward on the top edge of the module to seat the module into the latches at the sides of the socket. These latches should “snap” into place securely with the corresponding cutouts in the side of the module.
Page 62: Removing A Memory Module
Getting Started Adding memory (optional) Turn the computer right side up. Make sure to remove the soft cloth from the work surface before restarting the computer. Always make sure your computer and AC adaptor have adequate ventilation and are protected from overheating when the power is turned on or when an AC adaptor is connected to a power outlet (even if your computer is in Sleep mode).
Page 63 Do not try to remove a memory module with the computer turned on. You can damage the computer and the memory module. Do not remove the memory module while the computer is in Sleep or Hibernation mode. The computer could hang up the next time you turn it on and data in memory will be lost.
Page 64 Getting Started Adding memory (optional) Gently lift the memory module to a 30-degree angle and slide it out of the slot. Front of computer (Sample Illustration) Removing the memory module Replace the memory module slot cover and secure it using the screws.
Page 65: Checking Total Memory
Reconnect the cables. Restart the computer. TECHNICAL NOTE: You must have at least one memory module installed for the computer to work. Checking total memory When you add or remove a memory module, you can check that the computer has recognized the change. To do this: ❖...
Page 66: Recovering To Out-Of-Box State (Recommended Recovery Method)
DVDs/media before using your system for the first time. For more information on creating recovery DVDs/media, see “Creating recovery DVDs/media” on page ❖ The Toshiba Recovery Wizard also provides the option of erasing your internal storage drive, without restoring the information on the drive. See more information.
Page 67 Recovering the Internal Storage Drive NOTE During the recovery process it is strongly recommended that your computer be connected to an external power source via the AC adaptor. You can recover the original factory image (returning the computer to its out-of-box state) using the utilities stored on your computer’s internal storage drive or using recovery DVDs/media, if you have created such media.
Page 68 Getting Started Recovering the Internal Storage Drive When the Toshiba Recovery Wizard opens and the Selecting a process screen displays, select Recovery of Factory Default Software and then click Next. (Sample Image) Selecting a Process screen The Recovery of Factory Default Software screen appears.
Page 69: Recovering To A Custom Size Partition
Click Next. A confirmation message displays reminding you that all data will be lost during the recovery process. Be sure to save your work to external media before proceeding. Click Next to begin the recovery. When the process is complete, a message displays indicating that the internal storage drive has been recovered.
Page 70 Click Yes to continue. (Sample Image) Warning screen When the Toshiba Recovery Wizard opens and the Selecting a process screen displays, select Recovery of Factory Default Software and then click Next. (Sample Image) Selecting a Process screen...
Page 71: Recovering Without Changing The Internal Storage Drive Partitions
The Recovery of Factory Default Software screen appears. Select Recover to a custom size portion. (Sample Image) Recovery of Factory Default Software screen Use the on-screen arrow buttons in The size of drive C: field to set the partition size. Click Next.
Page 72 Getting Started Recovering the Internal Storage Drive You can recover the C: drive without affecting other partitions by either using the utilities stored on your computer’s internal storage drive or by using recovery DVDs/media, if you have created such media. To recover using the first method, follow the procedure below.
Page 73 Recovering the Internal Storage Drive When the Toshiba Recovery Wizard opens and the Selecting a process screen displays, select Recovery of Factory Default Software and then click Next. (Sample Image) Selecting a Process screen The Recovery of Factory Default Software screen appears.
Page 74: Creating Recovery Dvds/Media
If your optical disc drive is not a writable drive, contact Toshiba Customer Support to obtain the Recovery media for your system. The Toshiba Customer Support Center in the United States is (800) 457-7777; outside the United States it is (949) 859-4273. To create recovery DVDs/media: Click Start, All Programs, My Toshiba, and then Recovery Media Creator.
Page 75: Restoring From Recovery Dvds/Media
A warning screen appears, stating that when the recovery is executed all data will be deleted and rewritten. Click Yes to continue. When the Toshiba Recovery Wizard opens and the Selecting a Process screen displays, select Recovery of Factory Default Software and then click Next.
Page 76: Erasing The Internal Storage Drive
For more information, “Recovering the Internal Storage Drive” on page To delete all data and partitions from the internal storage drive: Access the Toshiba Recovery Wizard on your internal storage drive or on your recovery DVDs/media. ❖...
Page 77 DVD option on the boot menu and then press Toshiba Recovery Wizard, and then click Next. Select Erase the hard disk and then click Next. Choose one of the following options on the Erase the hard disk screen: ❖...
Page 78: Checking The Internal Storage Drive Operating Status
Highlight the internal storage drive in the Volume list to display its status in the lower portion of the screen. Installing drivers and applications The Toshiba Application Installer allows you to reinstall the drivers and applications that were originally bundled with your computer. To reinstall drivers and applications: Click Start, All Programs, My Toshiba, and then TOSHIBA Application Installer.
Page 79 ❖ Zoom out to see more information at once Primary control button (Sample Illustration) The TouchPad and associated control buttons Refer to the table below for specific instructions on performing each operation. NOTE The pointer is the icon (usually an arrow) that moves on the screen when you slide your finger across the TouchPad or move a mouse connected to your computer.
Page 80 Getting Started Using the TouchPad™ Do the following: Open or activate an Move the pointer to the item you want to open/activate. item Do one of the following: ❖ ❖ Right-click an item Move the pointer to the item you want to right-click.
Page 81: Adjusting Touchpad™ Settings
Do the following: Scroll continuously Begin scrolling vertically or horizontally by sliding your finger along the right or (Circular scrolling) bottom edge of the TouchPad as described above. Without lifting your finger from the TouchPad, start moving your finger in a circular motion on the TouchPad.
Page 82: Disabling Or Enabling The Touchpad
TouchPad setting options vary by computer model. The TouchPad settings are accessible through the Mouse Properties option of the Windows Control Panel. For more information, please visit www.support.toshiba.com, and enter the phrase “Mouse pointer jumps around as you type” into the Search field. Disabling or enabling the TouchPad™...
Page 83: Connecting The Display Device
CE Industry which allows devices to work together over an HDMI cable. Toshiba computers with HDMI-CEC include a Toshiba utility (that may need to be installed via the Toshiba Application Installer. To access the 156.) The HDMI-CEC utility is dedicated to take advantage of its capabilities which can allow you to: ❖...
Page 84: Directing The Display Output When You Turn On The Computer
❖ Enable/Disable the HDMI-CEC function on the computer. For more detailed HDMI-CEC information visit pcsupport.toshiba.com. Connecting an external monitor or projector You can easily attach an external monitor or projector to your computer if you need a larger screen. To do this: Read the directions that came with the monitor to see if you first need to install new software.
Page 85: Adjusting The Quality Of The External Display
This hot key cycles through the settings in the following order: ❖ Built-in display only ❖ Built-in display and external monitor simultaneously ❖ External monitor only ❖ TV (or other external video device) only ❖ External monitor and TV simultaneously ❖...
Page 86: Using A Mouse
Getting Started Using a mouse Using a mouse You may want to use a mouse instead of the computer’s built-in TouchPad™. You can use a USB-compatible mouse. Connecting a printer NOTE Your printer documentation may require you to install the printer software before physically connecting the printer to your computer.
Page 87: Setting Up A Printer
Setting up a printer NOTE Some printers require a specific installation process. Refer to your printer installation guide for instructions before completing the following procedure. If your printer does not support Plug and Play, follow these steps to set it up for the first time. You only need to set up the printer once. Click Start, Control Panel, Hardware and Sound, and then under Devices and Printers, click Add a printer.
Page 88: Options For Turning Off The Computer
Getting Started Turning off the computer Options for turning off the computer Depending on the operating system installed, you have more than one option available for turning off the computer: Shut down, Hibernate, and Sleep. Each option has its advantages. ❖...
Page 89 For information on how to use and configure Hibernation mode see “Using and configuring Hibernation mode” on page Sleep mode The Sleep command places the computer into a power-saving mode. Sleep saves the current state of the computer to memory so that, when you restart the computer, you can continue working from where you left off.
Page 90: Using The Shut Down Command
Getting Started Turning off the computer Using the Shut down command The Shut down command completely shuts down the computer without saving your work or the current state of the computer. This command closes all open programs, shuts down the operating system, and then turns off your computer.
Page 91 Click Change advanced power settings. The Advanced settings tab of the Power Options window appears. Double-click Power buttons and lid to display the actions that you can configure. (Sample Image) Advanced settings tab of Power Options screen Select the options you want from the drop-down lists. NOTE These options can be set separately for how they operate while the computer is running on battery power or while connected to AC...
Page 92: Using And Configuring Hibernation Mode
Getting Started Turning off the computer Restarting your computer To start the computer up again, press the power button until the ON/OFF light glows white. If you turn off the computer by closing the display panel, you can start it again by opening the display panel. Using and configuring Hibernation mode To turn off the computer using the Hibernation command: Click Start, and then click the arrow next to the Shut down...
Page 93 Click Change advanced power settings. The Advanced settings tab of the Power Options window appears. Double-click Power buttons and lid to display the actions that you can configure. (Sample Image) Advanced settings tab of Power Options screen Select Hibernate for the options you want. NOTE These options can be set separately for how they operate while the computer is running on battery power or while connected to AC...
Page 94: Using And Configuring Sleep Mode
Getting Started Turning off the computer Click Apply. Click OK. Once the computer is configured, you can place it into Hibernation mode by either pressing the power button or closing the display panel, depending on the Hibernation options set. Starting again from Hibernation mode To start up the computer from Hibernation mode, press the power button until the ON/OFF light glows white.
Page 95 Configuring Sleep mode options You can place the computer into Sleep mode by either pressing the power button or closing the display panel. You can also specify an amount of time after which the computer automatically goes into Sleep mode. To use any of these methods, you first need to enable them using the Power Options feature.
Page 96 Getting Started Turning off the computer Click Change advanced power settings. The Advanced settings tab of the Power Options window appears. Double-click Power buttons and lid to display the actions that you can configure. (Sample Image) Advanced settings tab of Power Options screen Select Sleep for the options you want.
Page 97: Closing The Display Panel
Starting again from Sleep mode To start up the computer from Sleep mode, press the power button until the ON/OFF light glows white. The computer returns to the screen(s) you were using. If you place the computer in Sleep mode by closing the display panel, you can start it again by opening the display panel.
Page 98: Moving The Computer
You may want to secure your computer to a heavy object such as your desk. The easiest way to do this is to purchase an optional computer lock cable. For more information on purchasing a cable lock, visit accessories.toshiba.com. (Sample Illustration) Computer lock cable To secure the computer: Wrap the cable through or around some part of a heavy object.
Page 99: Chapter 2: Learning The Basics
Chapter 2 Learning the Basics This chapter gives some computing tips and provides important information about basic features. Computing tips ❖ Save your work frequently. Your work stays in the computer’s temporary memory until you save it to the internal storage drive. If the network you are using goes down and you must restart your computer to reconnect, or your battery runs out of charge while you are working, you will lose all work since you last saved.
Page 100: Using The Keyboard
Learning the Basics Using the keyboard ❖ Back up your files to external media on a regular basis. Label the backup copies clearly and store them in a safe place. It is easy to put off backing up because it takes time. However, if your internal storage drive suddenly fails, you will lose all the data on it unless you have a separate backup copy.
Page 101: Character Keys
Character keys Typing with the character keys is very much like typing on a typewriter, except that: ❖ The space bar creates a space character instead of just passing over an area of the page. ❖ The lowercase letter l (el) and the number 1 are not interchangeable.
Page 102: Special Windows ® Keys
Learning the Basics Using the keyboard through programmed functions when pressed. Used in combination with the key, function keys marked with icons execute specific functions on the computer. For example, ON/OFF. For more information, see page 218. ® Special Windows keys (Sample Illustration) Special Windows Your computer’s keyboard has one key and one button that have...
Page 103: Backlit Keyboard
You can modify the time-out interval or change the keyboard backlight setting to always on or always off using the Illumination tab of the TOSHIBA Hardware Setup utility. For more information, see Starting a program The easiest way to start a program is to double-click the name of the file that contains the information you want to work on.
Page 104: Starting A Program From The Start Menu
Learning the Basics Starting a program Starting a program from the Start menu When you install a program, the operating system usually puts an icon in the All Programs menu. To start a program that has an icon in the All Programs menu, follow these steps, which use the ®...
Page 105: Starting A Program Using The Search Programs And Files Field
In the right part of the window, double-click the folder containing the program, in this case Program Files. Windows folder on the right side of the window. In the right part of the window, double-click Windows NT. In the right part of the window, double-click Accessories. Windows folder on the right side of the window.
Page 106: Saving Your Work
Learning the Basics Saving your work Saving your work Before you turn off the computer using the Shut down command, save your work on the internal storage drive, diskette, flash media, or optical disc. This is one of the most important rules of computing.
Page 107: Printing Your Work
File names The Windows contain up to 260 characters and can include spaces. Some applications do not support long file names and require file names limited to no more than eight characters. You may use all the letters, numbers, and other characters on the keyboard, except for these characters: \ / ? : * "...
Page 108: Backing Up Your Work
Learning the Basics Backing up your work Click on the arrow in the upper-left corner of your Windows and then click Print. The program displays a Print dialog box. (Sample Image) Print dialog box Specify the print parameters. For example, the range of pages and number of copies to print.
Page 109: Restoring Your Work
Restoring your work To restore information from your backup media to your internal storage drive, use the Restore option in the Windows Restore program. Look in the online Help or your operating system documentation for information on restoring files. (Sample Image) Backup and Restore screen TECHNICAL NOTE: When restoring files, the backup program prompts you if you try to overwrite a file that already exists on the internal storage drive.
Page 110: Optical Drive Components
Learning the Basics Using the optical drive NOTE For optimum DVD performance, it is recommended that you play DVDs while running the computer on AC power. NOTE When viewing DVD movies use the DVD Player software that came with your computer. Optical drive components The optical drive is located on the side of the computer.
Page 111: Media Control Buttons
Manual eject hole (available on certain models)—Use if you need to release the disc tray when the power is off. Use a straightened paper clip or other narrow object to press the manual eject button located inside the hole. Never use a pencil to press the manual eject button. Pencil lead can break off inside the computer and damage it.
Page 112: Removing A Disc (Slot-Type Drive)
Learning the Basics Using the optical drive Handle DVDs and CDs carefully, making contact only with the center hole and edge. Do not touch the surface of the disc. Do not stack discs. If you incorrectly handle the discs, you could lose data. If the disc is dusty, clean it as described in discs”...
Page 113: Inserting An Optical Disc (Tray-Type Drive)
Inserting an optical disc (tray-type drive) (Available on certain models) To insert an optical disc into the drive: Make sure the computer is turned on. The drive will not open if the computer’s power is off. Make sure the drive’s in-use indicator light is off. Press the drive’s eject button.
Page 114: Playing An Audio Cd
If you insert the disc incorrectly, it may jam the drive. If this happens, contact Toshiba support for assistance. Push the disc tray in by pressing gently on the center of the tray until it clicks into place.
Page 115: Recording Optical Media
Due to manufacturing and quality variations in third party optical media (e.g., CD or DVD) or optical media players/recorders, in certain cases, your Toshiba optical drive may not record on certain optical media that bear the applicable logo, or play back optical media recorded by other computers or optical media recorders.
Page 116: Removing A Disc With The Computer Off (Tray-Type Drive)
Toshiba’s online resources Toshiba maintains a number of online sites to which you can connect. These sites provide information about Toshiba products, give help with technical questions and keep you up to date with future upgrades.
Page 117: Chapter 3: Mobile Computing
It has a number of other features that enhance its energy efficiency. Many of these energy-saving features have been preset by Toshiba. We recommend you leave these features active, allowing your computer to operate at its maximum energy efficiency, so that you can use it for longer periods while traveling.
Page 118: Battery Notice
This is normal for all batteries. To purchase a new battery pack, see the accessories information included with your computer or visit the Toshiba Web site at accessories.toshiba.com. Use only batteries designed to work with your Toshiba computer.
Page 119: Power Management
Never leave batteries in the battery charger for more than a week at a time. Doing so may reduce the potential charge of the battery. Always use the battery charger specified by Toshiba. You can order a Toshiba battery charger from Toshiba’s Web site at accessories.toshiba.com.
Page 120: Charging The Main Battery
Mobile Computing Charging batteries Charging the main battery To charge the main battery while it is in your computer, plug the computer into a live electrical outlet. The battery charges whether the computer is on or off. TECHNICAL NOTE: The recharging of the battery cannot occur when your computer is using all of the power provided by the AC adaptor to run applications, features, and devices.
Page 121: Monitoring Main Battery Power
To recharge the RTC battery, plug the computer into a live electrical outlet and leave the computer powered on for 24 hours. NOTE It is seldom necessary to charge the RTC battery because it charges while the computer is on. If the RTC battery is low, the real-time clock and calendar may display the incorrect time and date or stop working.
Page 122: Determining Remaining Battery Power
Mobile Computing Monitoring main battery power HINT: Be careful not to confuse the battery light ( light ( the keyboard). When the ON/OFF light or power button light flashes amber, it indicates that the system is suspended (using the Windows operating system Sleep command).
Page 123: What To Do When The Main Battery Runs Low
Move the pointer over the power icon in the notification area, see “Finding your way around the desktop” on page 136 information on the notification area. A pop-up message displays the remaining battery power as a percentage. With repeated discharges and recharges, the battery’s capacity gradually decreases.
Page 124: Conserving Battery Power
Mobile Computing Monitoring main battery power To change the default notification settings: Click Start, Control Panel, System and Security, and then Power Options. The Power Options window appears. Click Change plan settings under the power plan to be customized. The Edit Plan Settings window appears. Click Change advanced power settings.
Page 125: Power Plans
There are various ways in which you can conserve power and extend the operating time of your battery: ❖ Enable Sleep or Hibernation, which saves power when you turn off the computer and turn it back on again ❖ Use the Windows These power-saving options control the way in which the computer is configured.
Page 126: Using A Hot Key To Set The Power Plan
Mobile Computing Monitoring main battery power Select an appropriate plan for your work environment or create your own custom plan. Click Create a power plan in the left pane to set up a new plan. NOTE To edit a plan or to edit advanced settings, continue to the following steps.
Page 127: Using The Toshiba Eco Power Plan
To learn how to access the utility, “TOSHIBA eco Utility™” on page For more information on the Toshiba eco power plan, see the Help file in the TOSHIBA eco Utility window. Mobile Computing...
Page 128: Changing The Main Battery
Mobile Computing Changing the main battery Changing the main battery When your main battery has run out of power, you have two options: plug in the AC adaptor or install a charged main battery. Never short circuit the battery pack by either accidentally or intentionally bringing the battery terminals in contact with another conductive object.
Page 129 Slide the battery release lock to the unlocked position. (Sample Illustration) Unlocking the battery release lock Slide the battery release latch to release the battery. Pull the discharged battery out of the computer. (Sample Illustration) Removing the battery If the battery is leaking or its case is cracked, put on protective gloves to handle it, and discard it immediately.
Page 130: Inserting A Charged Battery
Mobile Computing Changing the main battery Inserting a charged battery To insert a battery: Wipe the terminals of the charged battery with a clean cloth to ensure a good connection. Insert the charged battery into the slot until the latch clicks. The battery pack has been designed so that you cannot install it with reverse polarity.
Page 131: Taking Care Of Your Battery
If a battery is leaking or damaged, replace it immediately. Use protective gloves when handling a damaged battery. ❖ To replace the main battery, use an identical battery that you can purchase through the Toshiba Web site at accessories.toshiba.com. ❖ A reverse polarity condition should be avoided with all batteries.
Page 132: Maintaining Your Battery
Mobile Computing Taking care of your battery Maintaining your battery Fully discharging your battery pack will allow better accuracy of the battery meter. To fully discharge your battery pack: ❖ Periodically, disconnect the computer from a power source and operate it on battery power until the battery pack fully discharges.
Page 133: Disposing Of Used Batteries
If you cannot find the information you need elsewhere, call Toshiba at: (800) 457-7777. In addition, Toshiba’s recycling initiatives include recycling programs, events and consumer promotions. For details, please visit www.laptops.toshiba.com/green.
Page 134: Traveling Tips
❖ Always travel with the computer in a carrying case. Toshiba offers a choice of carrying cases for the computer. They all provide plenty of extra space for manuals, power cords, and compact discs.
Page 135: Chapter 4: Exploring Your Computer's Features
Chapter 4 Exploring Your Computer’s Features In this chapter, you will explore some of the special features of your computer. Exploring the desktop The desktop is the launching pad for everything you can do in the ® Windows operating system. You use its features to start programs, find documents, set up system components, and perform most other computing tasks.
Page 136: Finding Your Way Around The Desktop
Exploring Your Computer’s Features Exploring the desktop Finding your way around the desktop Your computer’s desktop includes several standard features: icons, Start button, taskbar, notification area, and background pattern. Icons Start button (Sample Image) Windows Icons An icon represents a folder, file, or program that can be quickly activated by double-clicking the icon.
Page 137 Your desktop may contain other icons depending on your configuration. See Windows information on each icon and how to use it. Start button You use the Start button to: ❖ Start programs ❖ Open documents ❖ Adjust system settings ❖ Find files ❖...
Page 138: Setting Up For Communications
Fn+F8. For more information see page 214. NOTE When the Wireless antenna ON/OFF switch is ON, the wireless indicator light For help with common Wi-Fi networking problems” on page “Hot Keys/TOSHIBA Cards” on will be lit. ® networking problems, see 202. “Wireless...
Page 139: Connecting Your Computer To A Network
Connecting your computer to a network You can connect your computer to a network to increase its capabilities and functionality using one of its communication ports. Accessing a network To access a network: ❖ At the office, connect an Ethernet cable to the Network port (RJ45) on your computer.
Page 140 Exploring Your Computer’s Features Setting up for communications ❖ Communicate with your office’s local area network (LAN) or larger corporate wide area network (WAN) For specific information about connecting to a LAN or WAN, consult your network administrator. ❖ Send a fax directly from your computer Before you can communicate using the modem, you need to connect it to a telephone line.
Page 141: An Overview Of Using The Internet
Now you are ready to send a fax or use the modem to connect to an online service or the Internet. An overview of using the Internet The following sections give a quick introduction to the Internet and some of its exciting features, under these headings: ❖...
Page 142: Connecting To The Internet
Exploring Your Computer’s Features An overview of using the Internet Connecting to the Internet To connect to the Internet, you need: ❖ A modem and telephone line, or a LAN connection ❖ A Web browser ❖ An Internet Service Provider (ISP) account Once you have established an ISP account, you can connect to the Internet.
Page 143: Uploading To, And Downloading Files From, The Internet
❖ Internet chat rooms A chat room is a Web site that offers a place where people with similar interests and ideas communicate in real-time, one-on- one or in groups, by typing messages which are instantly viewed by others on their computer screens. ❖...
Page 144: Exploring Audio Features
Exploring Your Computer’s Features Exploring audio features Exploring audio features You can use your computer to record sounds using the computer’s internal microphone (available on certain models) or an optional external microphone. You can listen to sound files or audio CDs using the built-in speakers, headphones, or external speakers.
Page 145: Using The Web Camera
The Web Camera software, by default, should already be running. The Web Camera indicator light glows when the Web Camera is active. For more information on the software, click Start, All Programs, TOSHIBA, Utilities, and then Web Camera Application Help. Exploring Your Computer’s Features...
Page 146: Using An Expresscard
Exploring Your Computer’s Features Using an ExpressCard Using an ExpressCard The ExpressCard slot also supports hot swapping, which allows you to replace one ExpressCard with another while the computer is on. Inserting an ExpressCard Before you insert an ExpressCard comes with the card to see if you need to do anything before you insert it.
Page 147: Using The Memory Card Reader
Gently press the ExpressCard inward to release it. The ExpressCard pops out slightly. Grasp the edges of the ExpressCard and slide it out of the slot. (Sample Illustration) Removing an ExpressCard Using the Memory card reader The Memory card reader supports the use of Memory Stick Memory Stick PRO ®...
Page 148: Inserting Memory Media
Exploring Your Computer’s Features Using the Memory card reader Inserting memory media The following instructions apply to all types of supported media devices. Turn the media so that the contacts (metal areas) are face down. Push the media into the adapter until it locks in place. (Sample Illustration) Inserting memory media When inserting memory media, do not touch the metal contacts.
Page 149: Using The Esata/Usb Combo Port
Do not remove memory media while data is being written or read. Even when the Windows to the media might still be in progress and your data could be destroyed. Wait for the indicator light to go out. Using the eSATA/USB combo port Your computer includes an eSATA/USB combo port, which can be used with both eSATA (external Serial Advanced Technology Attachment) devices and USB devices.
Page 150: Chapter 5: Utilities
TOSHIBA Assist ❖ TOSHIBA Application Installer ❖ Supervisor password ❖ User password ❖ TOSHIBA Face Recognition Utility ❖ TOSHIBA PC Diagnostic Tool Utility ❖ TOSHIBA HDD Protection Utility ❖ Mouse Utility ❖ TOSHIBA Hardware Setup ❖ USB Sleep and Charge Utility...
Page 151: Toshiba Assist
TOSHIBA PC Health Monitor ❖ ConfigFree® TOSHIBA Assist The TOSHIBA Assist provides quick access to computer functions and allows you to customize a range of computer settings. To access TOSHIBA Assist, click Start, All Programs, TOSHIBA, Utilities, and then TOSHIBA Assist.
Page 152: Connect
Utilities TOSHIBA Assist Connect The features available in this category are: ❖ ConfigFree ❖ Bluetooth (Sample Image) TOSHIBA Assist window – Connect tab ® Connectivity Doctor ® Settings...
Page 153: Secure
Secure The features available in this category are: ❖ Supervisor password ❖ User password (Sample Image) TOSHIBA Assist window – Secure tab Utilities TOSHIBA Assist...
Page 154: Protect & Fix
Utilities TOSHIBA Assist Protect & Fix The features available in this category are: ❖ TOSHIBA PC Diagnostic Tool Utility ❖ TOSHIBA HDD Protection Utility (Sample Image) TOSHIBA Assist window – Protect & Fix tab...
Page 155: Optimize
❖ TOSHIBA Zooming Utility ❖ TOSHIBA Button Support ❖ TOSHIBA Hardware Setup ❖ TOSHIBA Face Recognition Utility ❖ TOSHIBA eco Utility™ ❖ USB Sleep and Charge Utility (Sample Image) TOSHIBA Assist window – Optimize tab Utilities TOSHIBA Assist (Hardware Settings)
Page 156: Toshiba Application Installer
Utilities TOSHIBA Application Installer TOSHIBA Application Installer The TOSHIBA Application Installer allows you to reinstall the drivers and applications that were originally bundled with your computer. To reinstall drivers and applications: Click Start, All Programs, My Toshiba, and then TOSHIBA Application Installer.
Page 157: Setting Passwords
When you set a password, you must enter the password before you can work on your computer again. Toshiba supports several types of passwords on your computer: ❖ An instant password—Secures your open programs and files when leaving the computer temporarily.
Page 158: Using A Supervisor Password
Toshiba is not responsible for any losses that may occur to you, your organization or others as a result of the inability to access your computer.
Page 159: Using A User Password
Toshiba is not responsible for any losses that may occur to you, your organization or others as a result of the inability to access your computer.
Page 160: Deleting A User Password
Utilities Setting passwords To register a password for the power-on password functions: Click Start, All Programs, TOSHIBA, Utilities, and then TOSHIBA Assist. The TOSHIBA Assist window appears. On the left side, click the Secure tab. Click the User Password icon.
Page 161: Toshiba Face Recognition Utility
Toshiba does not guarantee that the face recognition utility will accurately screen out unauthorized users at all times. Toshiba is not liable for any failure or damage that might arise out of the use of the face recognition software or utility.
Page 162: Toshiba Pc Diagnostic Tool Utility
Refer to the online Help documentation within the application for additional help. NOTE The TOSHIBA PC Diagnostic Tool utility may show tests for features you do not have. This is normal and does not indicate a problem. To use the TOSHIBA PC Diagnostic Tool utility:...
Page 163: Toshiba Hdd Protection Utility
TOSHIBA HDD Protection Utility The TOSHIBA HDD Protection Utility controls your computer’s hard disk drive (HDD) protection feature, which parks the HDD whenever motion is detected on the computer. Using this utility, you can enable or disable hard disk drive (HDD) protection, and set the motion detector’s sensitivity level for AC power and battery...
Page 164: Mouse Utility
The settings you can change are divided into these categories: ❖ Buttons ❖ Pointers ❖ Pointer Options ❖ Hardware ❖ Advanced You may see additional categories depending on your particular pointing device. Adjust the settings as desired, then click OK. TOSHIBA Assist.
Page 165: Toshiba Hardware Setup
To access it: ❖ Click Start, All Programs, TOSHIBA, Utilities, and then HWSetup, or click the TOSHIBA Hardware Settings icon in the Optimize tab of The TOSHIBA HWSetup screen appears. (Sample Image) TOSHIBA HWSetup screen – General tab options The TOSHIBA HWSetup screen may have the following tabs: ❖...
Page 166 TOSHIBA Hardware Setup ❖ Button Setting—Lets you set the conditions for the power button and/or the other buttons. (Sample Image) TOSHIBA HWSetup screen - Button Setting tab options ❖ Display—Allows you to change the default settings for the built-in display NOTE When the computer restarts, it remembers the last configuration.
Page 167 ❖ Illumination—Turns the panel LED lights on and off (available on certain models) (Sample Image) TOSHIBA HWSetup screen - Illumination tab options ❖ Password—Allows you to set a user password ❖ USB—Allows you to enable or disable USB Legacy Emulation...
Page 168: Usb Sleep And Charge Utility
“USB Sleep and Charge function.” It also displays the remaining battery capacity. Starting the USB Sleep and Charge Utility To start this utility click Start, All Programs, TOSHIBA, Utilities, and then USB Sleep and Charge. USB Sleep and Charge...
Page 169 ❖ NOTE When “USB Sleep and Charge function” is set to Enabled, USB bus power (DC 5V) will be supplied to the compatible port even when the power of the computer is turned OFF. USB bus power (DC 5V) is similarly supplied to the external devices which are connected to the compatible ports.
Page 170: Enabling Usb Sleep And Charge
USB Sleep and Charge window if the charge function cannot be used in Mode 4. (Sample Image) TOSHIBA USB Sleep and Change Utility screen In this situation, select a different mode. “USB Sleep and Charge function” may not be functional with some connected external devices even if the appropriate group is selected.
Page 171: Toshiba Zooming Utility
Acrobat ❖ Icons on the desktop To access the TOSHIBA Zooming Utility: Click Start, All Programs, TOSHIBA, Utilities, and then Zooming Utility. The TOSHIBA Zooming Utility Properties screen appears. (Sample Image) TOSHIBA Zooming Utility Properties screen Select the desired option(s).
Page 172: Toshiba Button Support
Utilities TOSHIBA Button Support TOSHIBA Button Support TOSHIBA Button Support allows you to customize the Mute and Media buttons. These buttons are located on the system control panel directly above the keyboard. To access TOSHIBA Button Support: Click the TOSHIBA Button Support icon in the Optimize...
Page 173: Toshiba Accessibility
TOSHIBA Accessibility The TOSHIBA Accessibility utility allows you to use the create a hot key combination with one of the function keys without pressing the two keys simultaneously as is usually required. Using Accessibility lets you make the press it once, release it, and then press a function key to activate the hot key function.
Page 174: Fingerprint Authentication Utility
Toshiba does not guarantee that the fingerprint utility will accurately screen out unauthorized users at all times. Toshiba is not liable for any failure or damage that might arise out of the use of the fingerprint software or utility.
Page 175: Care And Maintenance Of Your Fingerprint Reader
The Fast User Switching feature of the Windows is also supported. If user A is logged on and the fingerprint utility verifies the fingerprint of user B (who is already enrolled), the utility recognizes the fingerprint and switches the users. If your system supports power-on security, existing fingerprint samples can be used also for power-on authentication.
Page 176: Fingerprint Reader Limitations
Toshiba does not guarantee that the fingerprint reader will recognize the enrolled user or accurately screen out unauthorized users at all times. Toshiba is not liable for any failure or damage that might arise out of the use of this fingerprint recognition...
Page 177: Toshiba Eco Utility
(Sample Image) TOSHIBA eco Utility™ window To activate the Toshiba eco power plan, select ON in the upper-left section of the screen. For more information on the Toshiba eco power plan and utility, click the Help button at the bottom of the window. Utilities...
Page 178: Toshiba Service Station
You may disable the TOSHIBA PC Health Monitor at any time by uninstalling the software via the Windows will automatically delete all collected information from the internal storage drive.
Page 179: Configfree
The TOSHIBA PC Health Monitor software does not extend or modify Toshiba's obligations under its standard limited warranty in any way. Toshiba's standard limited warranty terms and limitations apply. ® ConfigFree NOTE All references to Bluetooth Bluetooth ® ConfigFree is a set of utilities that makes it easy to control communication devices and network connections.
Page 180: Configfree ® Utilities
Utilities ConfigFree® ❖ Click the ConfigFree icon then click the desired utility. NOTE If your computer is not connected to a network, the ConfigFree icon in the notification area is displayed with an “X.” ® ConfigFree Utilities Connectivity Doctor The Connectivity Doctor lets you analyze your network connections and fix network connection problems.
Page 181 Profile Settings The Profile Settings utility lets you save network settings in ® “profiles.” ConfigFree network settings and devices. You can switch network settings simply by selecting the profile with the desired settings. If you visit a client company occasionally, for example, you can set up a profile to match that environment and connect to the network.
Page 182 Utilities ConfigFree® Click Open Settings. The ConfigFree Profile Settings window appears. (Sample Image) ConfigFree Profile Settings window Click Add to start the Create Profile Wizard.
Page 183: Chapter 6: If Something Goes Wrong
This chapter aims to help you solve many problems by yourself. It covers the problems you are most likely to encounter. If all else fails, contact Toshiba. You will find information on Toshiba’s support services at the end of this chapter.
Page 184: Problems When You Turn On The Computer
If Something Goes Wrong Problems when you turn on the computer Click the Applications tab. If a program has stopped responding, the words “not responding” appear beside its name in the list. Select the program you want to close, then click End Task. Closing the failed program should allow you to continue working.
Page 185 Problems when you turn on the computer The computer starts but when you press a key nothing happens. Verify that the active program accepts text input. Try clicking your mouse on an area where you can type text and try typing again. Your computer may be in Sleep mode and have a software or resource conflict.
Page 186 “trickle-charge” to the battery. Once the battery has been trickle-charged, it may begin working correctly again. If the trickle-charging does not prove effective, visit the Toshiba Web site at Bulletin Step-Charging the computer’s battery (click the ® Ask Iris Connect the AC adaptor to a different power outlet, preferably in a different room.
Page 187: The Windows Operating System Is Not Working
The output specifications of the AC adaptor must match the input specifications of the computer. If the specifications do not match, locate and use the AC adaptor that shipped with your computer. If the specifications do match, contact Toshiba. See page 211. ®...
Page 188: Using Startup Options To Fix Problems
If Something Goes Wrong The Windows Using Startup options to fix problems If the operating system fails to start properly, you may have to change your system’s configuration or verify the startup procedure to fix the problem. To do this, use the options in the Startup menu. To open the Startup menu: Restart your computer.
Page 189: Internet Problems
You can connect to Support Online by clicking the Ask button and then clicking the Microsoft Customer Support or by going to Toshiba support at pcsupport.toshiba.com. If Something Goes Wrong ® operating system is not working ®...
Page 190: Fixing A Problem With Device Manager
If Something Goes Wrong Fixing a problem with Device Manager Fixing a problem with Device Manager Device Manager provides a way to check and change the configuration of a device. Changing the default settings using Device Manager can cause other conflicts that make one or more devices unusable.
Page 191: Memory Problems
Memory problems Incorrectly connected or faulty memory modules may cause errors that seem to be hardware or even software related. It is worthwhile checking for these first: Click Start, and then click the Shut down button in the lower-right corner of the Start menu. The computer shuts down completely.
Page 192 After a period of time, the battery will lose its ability to perform at maximum capacity and will need to be replaced. This is normal for all batteries. To purchase a new battery pack, see your accessories information included with your computer, or visit the Toshiba Web site at accessories.toshiba.com.
Page 193: Keyboard Problems
Keyboard problems If, when you type, strange things happen or nothing happens, the problem may be related to the keyboard itself. The keyboard produces unexpected characters. A keypad overlay may be on. If the numlock light or cursor control overlay light is on, press overlay light, or If the problem occurs when both the keypad overlays are off, make sure the software you are using is not remapping the keyboard.
Page 194 If Something Goes Wrong Display problems If you are using an external monitor: ❖ Check that the monitor is turned on. ❖ Check that the monitor’s power cord/cable is firmly plugged into a working power outlet. ❖ Check that the cable connecting the external monitor to the computer is firmly attached.
Page 195: Disk Or Storage Drive Problems
Small bright dots appear on your TFT display when you turn on your computer. Small bright dots may appear on your screen display when you turn on your computer. Your display contains an extremely large number of thin-film transistors (TFT) and is manufactured using high- precision technology.
Page 196 If Something Goes Wrong Disk or storage drive problems You can choose one or both options: ❖ Automatically fix file system errors ❖ Scan for and attempt recovery of bad sectors Click Start. Error-checking tests and repairs the storage drive. Your hard disk seems very slow.
Page 197: Optical Drive Problems (Tray-Type Drive)
For more information regarding supported optical media formats, refer to the complete detail specifications for your computer at pcsupport.toshiba.com. If the problem is with an optical data disc, refer to the software’s documentation and check that the hardware configuration meets the program’s needs.
Page 198: Sound System Problems
If Something Goes Wrong Sound system problems The disc will not come out of the drive when you click the eject button on the screen. Press the button on the optical drive itself. For additional information see does not slide out.” on page Sound system problems No sound is coming from the computer’s speakers.
Page 199: Resolving Expresscard Problems
Resolving ExpressCard Here are some common problems and their solutions: The slot appears to be dead. ExpressCards no longer work. Check the ExpressCard Click Start, Control Panel, System and Security, and then under System, click Device Manager. Double-click the appropriate ExpressCard, which will be listed under one of the categories shown, for example: Disk drives, Network adapters, Other, etc.
Page 200: Printer Problems
If Something Goes Wrong Printer problems Hot swapping (removing one ExpressCard another without turning the computer off) fails. Follow this procedure before you remove an ExpressCard Prepare the card for removal by clicking on the Show hidden icons button ( selecting the Safely Remove Hardware icon.
Page 201: Modem Problems
The other system may be busy or off line. Try making a test transmission to someone else. For more information regarding your system’s V.92 modem, visit the Toshiba Web site at pcsupport.toshiba.com. If Something Goes Wrong Modem problems or in the instructions that came...
Page 202: Wireless Networking Problems
To determine if your computer has an internal Wi-Fi NOTE the device list in Device Manager (part of the Windows Panel, System and Security). Some Toshiba models may have a Wireless antenna ON/OFF switch even though they do not have an internal Wi-Fi ❖...
Page 203: Dvd Operating Problems
Ensure that the disc is properly inserted in the drive tray. If Something Goes Wrong DVD operating problems in the Search programs and files field. and press IPCONFIG /ALL operating system wireless management utility ® adapter (an ExpressCard “Hot Keys/TOSHIBA Cards” on ® Enter ® , USB...
Page 204: Develop Good Computing Habits
“Checking device properties” on page 190 on using Device Manager to view the optical drive properties. Check the Toshiba Web site for new information on optical drives and their operation. A blank screen appears while watching a DVD-ROM movie or title.
Page 205: Data And System Configuration Backup In The Windows Operating System
On a regular basis, back up the information stored on your internal storage drive. Use Windows disc, or external hard disk. Here are some ways you can do this: ❖ Use the Windows entire computer to an optical disc, or external hard disk. ❖...
Page 206 If Something Goes Wrong Develop good computing habits Saving system configuration with restore points The System Restore feature of the Windows quickly creates restore points—‘snapshots’ of your Windows operating system configuration—and saves them for later recall. If you experience problems after installing some new hardware or software, you can easily select a previously established Control Point to ‘turn back the clock,’...
Page 207 An external hard drive is recommended in case the internal storage drive fails. No additional software is required. Most of the optical drives built into recent Toshiba portable computer models can write to (or ‘burn’) as well as read from optical discs.
Page 208 If Something Goes Wrong Develop good computing habits Click Back up your computer under the System and Security heading. Follow the on-screen instructions to back up your files. For more help, click Start, Help and Support, and search for “back up files.” General tips for installing hardware and software Here are a few tips to help ensure safe and easy installation of new hardware (printers, pointing devices, external hard drives, DVD...
Page 209 Create a restore point. Install one item of hardware or software. Restart the Windows Use the new hardware or software for a while, noting any new problems. Make sure that your critical applications (e- mail, business applications, etc.) are working correctly, and verify that important devices are still functioning.
Page 210: If You Need Further Assistance
Since some problems may be related to the operating system or the program you are using, it is important to investigate other sources of assistance first. Try the following before you contact Toshiba: ❖ Review the troubleshooting information in your operating system documentation.
Page 211: Contacting Toshiba
Toshiba’s Technical Support Web site For technical support, or to stay current on the most recent software and hardware options for your computer, and for other product information, be sure to regularly check the Toshiba Web site at pcsupport.toshiba.com Toshiba voice contact Before calling Toshiba, make sure you have: ❖...
Page 212: Toshiba's Worldwide Offices
Germany Japan Toshiba Corporation, PCO-IO 1-1, Shibaura 1-Chome Minato-Ku, Tokyo, 105-8001 Japan Mexico Toshiba de México S.A. de C.V. Sierra Candela No.111, 6to. Piso Col. Lomas de Chapultepec. CP 11000 Mexico, DF. United Kingdom Toshiba Information Systems (U.K) Ltd. Toshiba Court...
Page 213 United States Toshiba America Information Systems, Inc. 9740 Irvine Boulevard Irvine, California 92618 United States For more information on additional Toshiba worldwide locations, please visit: www.toshiba.co.jp/index.htm. If Something Goes Wrong Toshiba’s worldwide offices The Rest of Europe Toshiba Europe (I.E.) GmbH...
Page 214: Appendix A: Hot Keys/Toshiba Cards
Appendix A Hot Keys/TOSHIBA Cards Hot keys and TOSHIBA Cards provide a quick way to modify selected system functions and to launch applications. There are two types of TOSHIBA Cards: Hot Key Cards and Application Cards. Hot Key Cards The Hot Key Cards are used to set or modify the following system functions: ❖...
Page 215: Using The Hot Key Cards
To use the Hot Key Cards: Press and hold the The TOSHIBA Cards appear along the top of the screen. (Sample Image) Hot Key Card display Click the Card for the system function to be modified.
Page 216: Application Cards
TOSHIBA Zooming utility For more information, refer to Zooming Utility” on page Disc Creator utility This Application Card launches the TOSHIBA Disc Creator utility. TOSHIBA Hardware Setup utility For more information, refer to Hardware Setup” on page TOSHIBA Button Support utility For more information, refer to Support”...
Page 217: Using The Application Cards
Using the Application Cards To launch an application using the Application Cards: Press and hold the The TOSHIBA Cards display at the top of the screen. (Sample Image) TOSHIBA Card display Click the “stacked” card on the far right of the display. The Application Cards are hidden under this card.
Page 218: Card Case
The Card Case feature allows you to choose which cards appear in the Application Card display (see page 217). To use the Card Case: Click Start, All Programs, TOSHIBA, Utilities, and then Settings for Flash Cards. (Sample Image) Enabling and Disabling Application Cards Click the Open cards case button.
Page 219: Volume Mute
Volume Mute This TOSHIBA Card or hot key enables/disables volume mute on your computer. When volume mute is enabled, no sound will come from the speakers or headphones. Selecting this Card or pressing the hot key displays the following options: (Sample Image) Volume Mute options ❖...
Page 220: Lock (Instant Security)
Hot Keys/TOSHIBA Cards Hot key functions Lock (Instant security) This TOSHIBA Card or hot key blanks the display. Selecting this Card or pressing the hot key displays the following options: (Sample Image) Security options ❖ ❖ hot key function activates instant security. The user...
Page 221: Power Plan
Hot Keys/TOSHIBA Cards Hot key functions Power plan This TOSHIBA Card or hot key displays the power plans and cycles through the power plans. The properties of each power plan, and the power plans that are displayed by this function, are set in the Power Options window.
Page 222: Sleep Mode
Hot Keys/TOSHIBA Cards Hot key functions Sleep mode This TOSHIBA Card or hot key places the computer into Sleep mode. For more information about Sleep mode, please see and configuring Sleep mode” on page Selecting this Card or pressing the hot key displays the...
Page 223: Hibernation Mode
Hibernation mode This TOSHIBA Card or hot key places the computer into Hibernation mode. If Hibernation mode is disabled, this hot key will not respond. For more information on Hibernation mode, see “Using and configuring Hibernation mode” on page Selecting this Card or pressing the hot key displays the...
Page 224: Output (Display Switch)
Hot Keys/TOSHIBA Cards Hot key functions Output (Display switch) This TOSHIBA Card or hot key cycles through the power- on display options (only the first option is available when you do not have an external monitor attached) (the last option is available only if you are in Extended Display Mode).
Page 225: Display Brightness
To swap sides, select Swap Image Display. Display brightness This TOSHIBA Card decreases or increases the screen brightness. This hot key decreases the screen brightness. This hot key increases the screen brightness.
Page 226: Disabling Or Enabling Wireless Devices
Hot Keys/TOSHIBA Cards Hot key functions Disabling or enabling wireless devices This TOSHIBA Card or hot key enables/disables the optional wireless devices installed in your computer. The wireless modes are: ❖ ❖ ❖ ❖ ❖ Selecting this Card or pressing the hot key displays the...
Page 227: Disabling Or Enabling The Touchpad
Disabling or enabling the TouchPad™ This TOSHIBA Card or hot key enables/disables the TouchPad. For more information on using the TouchPad, see the TouchPad™” on page Selecting this Card or pressing the hot key displays the following options: (Sample Image) Disable or Enable TouchPad options ❖...
Page 228: Zoom (Display Resolution)
Hot Keys/TOSHIBA Cards Hot key functions Zoom (Display resolution) This TOSHIBA Card or hot key switches screen resolution. Selecting this Card or pressing the hot key displays the following options: [Space bar] (Sample Image) Screen resolution options Cycle through the screen resolutions, then select the desired...
Page 229: Keyboard Hot Key Functions
This hot key turns the numeric overlay on and off. This hot key turns the scroll lock feature on and off. This hot key turns the TOSHIBA Zooming Utility to zoom out. This hot key turns the TOSHIBA Zooming Utility to zoom in.
Page 230: Appendix B: Power Cord/Cable Connectors
Appendix B Power Cord/Cable Connectors Your computer ships with the correct power supply for the country of purchase. This appendix shows the shapes of the typical AC power cord/cable connectors for various parts of the world. UL approved United Kingdom BS approved Australia AS approved...
Page 231: Glossary
Glossary TECHNICAL NOTE: Some features defined in this glossary may not be available on your computer. Acronyms The following acronyms may appear in this user’s guide. BIOS CD-ROM CD-RW CMOS COM1 COM2 DIMM alternating current basic input/output system bits per second compact disc compact disc read-only memory compact disc rewrite memory...
Page 232 Glossary DSTN DVD-ROM digital versatile (or video) disc read-only memory EPROM eSATA HDMI HDMI-CEC HTML IEEE LPT1 MIDI PCMCIA disk operating system dots per inch dual supertwist nematic digital versatile (or video) disc enhanced capabilities port erasable programmable read-only memory external Serial Advanced Technology Attachment file allocation table Federal Communications Commission...
Page 233 SCSI SDRAM SRAM SVGA Terms The following terms may appear in this user’s guide. active-matrix display — A liquid crystal display (LCD) made from an array of liquid crystal cells using active-matrix technology. Also known as a “TFT display,” in its simplest form there is one thin film transistor (TFT) for each cell.
Page 234 Glossary application — A computer program that you use to perform tasks of a specific type. Applications include word processors, spreadsheets, and database management systems. See also program. backup — A copy of a file, usually on a removable disk, kept in case the original file is lost or damaged.
Page 235 CD — An individual compact disc. See also CD-ROM. CD-ROM (compact disc read-only memory) — A form of high- capacity storage that uses laser optics instead of magnetic means for reading data. See also CD. Compare DVD-ROM. central processing unit (CPU) — The chip that functions as the “brain” of the computer.
Page 236 Glossary cursor — An on-screen symbol (usually a flashing vertical line) that indicates the position where characters will appear when you enter data. default — The setting selected by a program when the user does not specify an alternative setting. device —...
Page 237 document — Any file created with an application and, if saved to disk, given a name by which it can be retrieved. See also file. double-click — To press and release the pointing device’s primary button rapidly twice without moving the pointing device. In the Windows button, unless otherwise stated.
Page 238 Glossary file — A collection of related information, saved on disk with a unique name. A file may be a program, information used by a program, or a document. See also document. file allocation table (FAT) — The section of a storage drive that keeps track of the location of stored files.
Page 239 Hibernation — A feature of many Toshiba computers that saves to the internal storage drive the current state of your work, including all open files and programs, when you turn the computer off. When you turn on the computer again, your work is returned to the same state it was when the computer was turned off.
Page 240 Glossary liquid crystal display (LCD) — A type of display that uses a liquid substance between two transparent electrode panels. When an electric current passes through the electrodes, the molecules in the liquid form a crystalline pattern that polarizes the light passing through it.
Page 241 network — A collection of computers and associated devices that are connected by communications facilities. A network allows you to share data and peripheral devices, such as printers, with other users and to exchange electronic mail. non-interlaced — A method of refreshing a computer screen, in which each pixel of every line is refreshed as the electron beam scans across and down the screen.
Page 242 Glossary Plug and Play — Generally, refers to the computer’s ability to automatically configure itself to work with peripheral devices. When capitalized, refers to a standard that, when followed by a device manufacturer, allows a computer to configure itself automatically to work with the device. pointer —...
Page 243 restart — Synonymous with reboot. To reset the computer by reloading the operating system without turning the computer off. See also boot. RJ11 — A modular connector used on most U.S. telephone systems and direct-connect modems. The RJ11 connector is a 6-wire connector. ROM (read-only memory) —...
Page 244 Glossary system prompt — The symbol (in the MS-DOS generally a drive letter followed by a “greater than” sign) indicating where users are to enter commands. TFT display — See active-matrix display. universal serial bus (USB) — USB is a serial bus that supports a data transfer rate of up to 480 Mbps (480 million bits per second).
Page 245: Index
221 power plan hot key 126 real-time clock (RTC) 118 remaining power 122 removing 128 safety precautions 131 BIOS Setup see TOSHIBA Hardware Setup button power 55 start 137 buttons eject, optical drive 110 Media control buttons 111 Call2Recycle™...
Page 246 Index character keys 101 charging the battery 53 checking device properties 190 communications network connection 139 set up 138 compact discs handling 112 inserting 112 compact discs (slot-type drive) removing 112 computer caring for 97 cleaning 97 moving 98 non-system disk or disk error message 186 not accessing disk drives 185 running on battery power 117...
Page 247 error messages non-system disk or disk error 186 problem with display settings/ current settings not working with hardware 194 warning resume failure 185 Error-checking 195 eSATA connecting to the eSATA/USB combo port 210 eSATA/USB combo port Using 149 exploring the desktop 135 ExpressCard®...
Page 248 Index CDs and DVDs 112 ExpressCards® 146 installation memory module 57 installing main battery 128 memory modules 57 mouse 86 Internet bookmarked site not found 189 connecting to 142 features 142 slow connection 189 surfing 142 uploading and downloading files URL address not found 189 using 141 Internet Service Providers...
Page 249 196 changing display properties 194 checking device properties 190 computer hangs when computer will not power up 184 contacting Toshiba 210 corrupted/damaged data files 196 Device Manager 190 disk drive is slow 196 display is blank 193 ExpressCard®...
Page 250 Index external monitor 194 faulty memory 191 high-pitched noise 198 Internet bookmarked site not found 189 Internet connection is slow 189 keyboard not responding 185 keyboard produces unexpected characters 193 missing files/trouble accessing a drive 195 modem not receiving or transmitting 201 no sound 198 non-system disk or disk error 186...
Page 251 TOSHIBA eco Utility 177 TOSHIBA Face Recognition Utility TOSHIBA Hardware Setup 165 TOSHIBA HDD Protection Utility Toshiba online resources 116 Index TOSHIBA PC Diagnostic Tool Utility TOSHIBA PC Health Monitor 178 TOSHIBA Service Station 178 TOSHIBA Zooming Utility 171 TouchPad™ adjusting settings 81...
Page 252 Index Web 141 Web Camera using 145 Web sites 211 Wi-Fi® wireless networking 138 Windows® Explorer 104 Windows® operating system Help and Support 189 problem solving 187 Windows® operating system desktop Windows® Start menu 104 wireless networking 138 Wizards Connect to the Internet 139 wizards Connect to the Internet 139 World Wide Web 141...

Toshiba M500-ST54E2 User Manual

Chapter 1: Getting Started

Chapter 2: Learning the Basics

Chapter 3: Mobile Computing

Chapter 4: Exploring Your Computer's Features

Chapter 5: Utilities

Chapter 6: If Something Goes Wrong

Appendix A: Hot Keys/Toshiba Cards

Appendix B: Power Cord/Cable Connectors

Quick Links

Related Manuals for Toshiba M500-ST54E2

Summary of Contents for Toshiba M500-ST54E2
