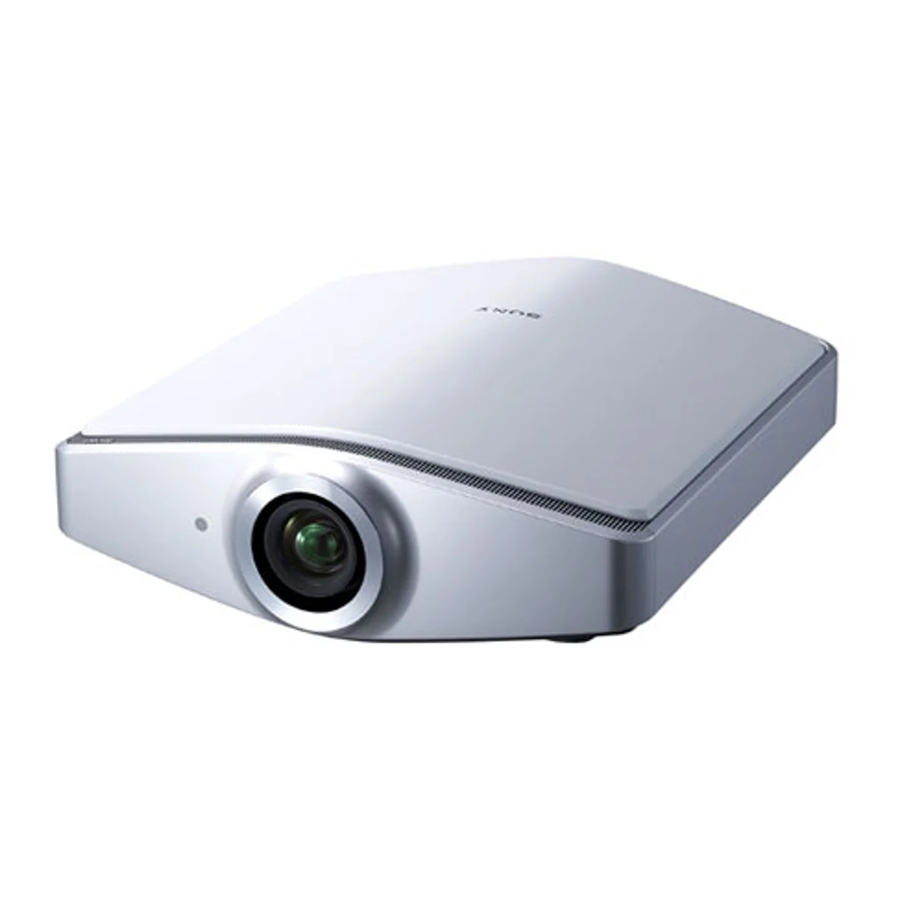

Sony VPL-VW100 Manual

OneHome
Manufacturer:
Model Number(s):
Comments:
Document Revision Date:
O S
VERVIEW AND UPPORTED
The projector includes both an RS-232 connection and an Ethernet connection. Either connection can be
used to connect to the OneHome system and provide reliable communications.
T
HE PROJECTOR SUPPORTS THE FOLLOWING FEATURES
Choice of Ethernet or RS-232 connections: The projector includes both RS-232 and Ethernet.
Input Selection and Power Control: Select any available input source, turn display off or on.
Display Modes: The following display mode commands are supported from the OneHome system:
Dynamic
Cinema
User 2
T
HE PROJECTORS DO NOT CURRENTLY SUPPORT THE FOLLOWING FEATURES
Dual Display Modes: No picture-in-picture / dual display modes can be set from the OneHome interface.
I O
NSTALLATION VERVIEW
1. During the rough-in phase install the necessary power and video cabling for the projector installation.
2. Also during the rough-in phase, run a Cat5 wire from the location of the projector back to the Network
Assembly of the OneHome system to provide either serial or Ethernet needed to control the display.
3. If you are using the RS-232 connection, refer also to the RS-232 Connection Options Integration
Note for other serial connection options.
4. Install the projector and related components.
5. Test the projector to ensure that the sources play correctly stand-alone.
6. Connect the OneHome system to the projector electrically.
7. Configure the OneHome system for the projector and confirm communication between the projector
and the HomeBrick.
8. Test the system by changing sources to confirm the correct video appears.
HomeLogic LLC
Sony
VPL-VW100
1/10/2006
F
EATURES
100 Hoods Lane Marblehead, MA 09145
Display Integration Note
:
Standard
User 1
User 3
:
Phone (781) 639-5155 Fax (781) 639-9677
