Sealey VS0561 Instructions

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to Wear protective
instruction gloves
manual
1. saFetY
WarNiNg! ensure Health and safety, local authority and general workshop practice regulations are adhered to when using tools and
‰
equipment.
dO NOt use caliper if damaged.
8
maintain caliper in good and clean condition for best and safest performance.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Keep children and unauthorised persons away from the work area.
9
dO NOt use the caliper for any purpose other than for which it is designed.
8
dO NOt get caliper wet or use in damp or wet locations, or areas where there is condensation. Keep caliper clean and dry using a dry
8
cotton cloth only.
dO NOt dip or submerge the caliper in any type of liquid.
8
dO NOt expose caliper to bright sunlight or dust.
8
dO NOt dis-assemble caliper. the caliper must be checked by qualified service personnel only.
8
dO NOt apply any voltage to the caliper i.e. with an electric marker pen.
8
the caliper is a precision instrument. treat with care, avoid using force and do not subject to knocks or shocks.
9
take particular care not to damage or scratch the scale surface.
9
use caliper in reasonably constant temperature conditions of approximately 20
9
When not in use, turn off and store caliper in a safe, dry, childproof location.
9
2. iNtrOductiON
i
Hardened and tempered stainless steel gauge, 11mm high figures in lcd display for ease of reading. metric or imperial read-out
with "Hold" function. Zero setting control allows for comparative measurement. include serial port connection for computer
interface. supplied in carry case.
3. speciFicatiON
i
model no: ................................................................. Vs0561
range: ............................................................0-100mm(0.4")
resolution: ..................................................0.01mm(0.0005")
Accuracy: ....................................................±0.02mm(0.001")
Battery: .............................................. sr44 - 1.5V (supplied)
1. "ON / OFF"
2. "mm / inch"
3. rs-232 connection
4. battery cover
5. "Zero"
6. thumb wheel
7. "HOld"
© Jack sealey limited

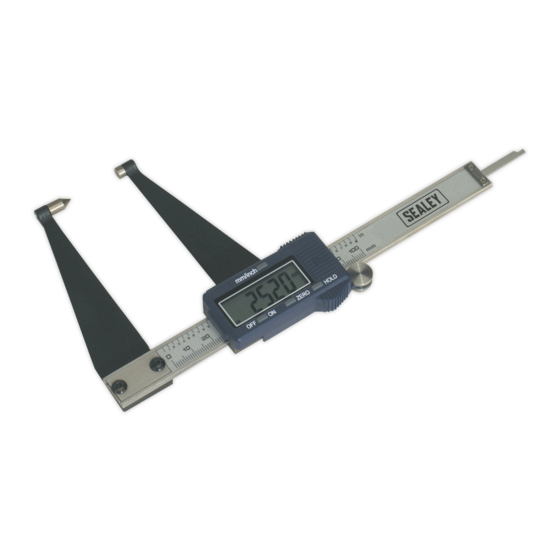

instructions for
digital brake disk caliper 100mm/4"
model no:
Wear eye
protection
Original Language Version
Vs0561
c.
o
Vs0561 issue 2 (H, f) 07/03/18
