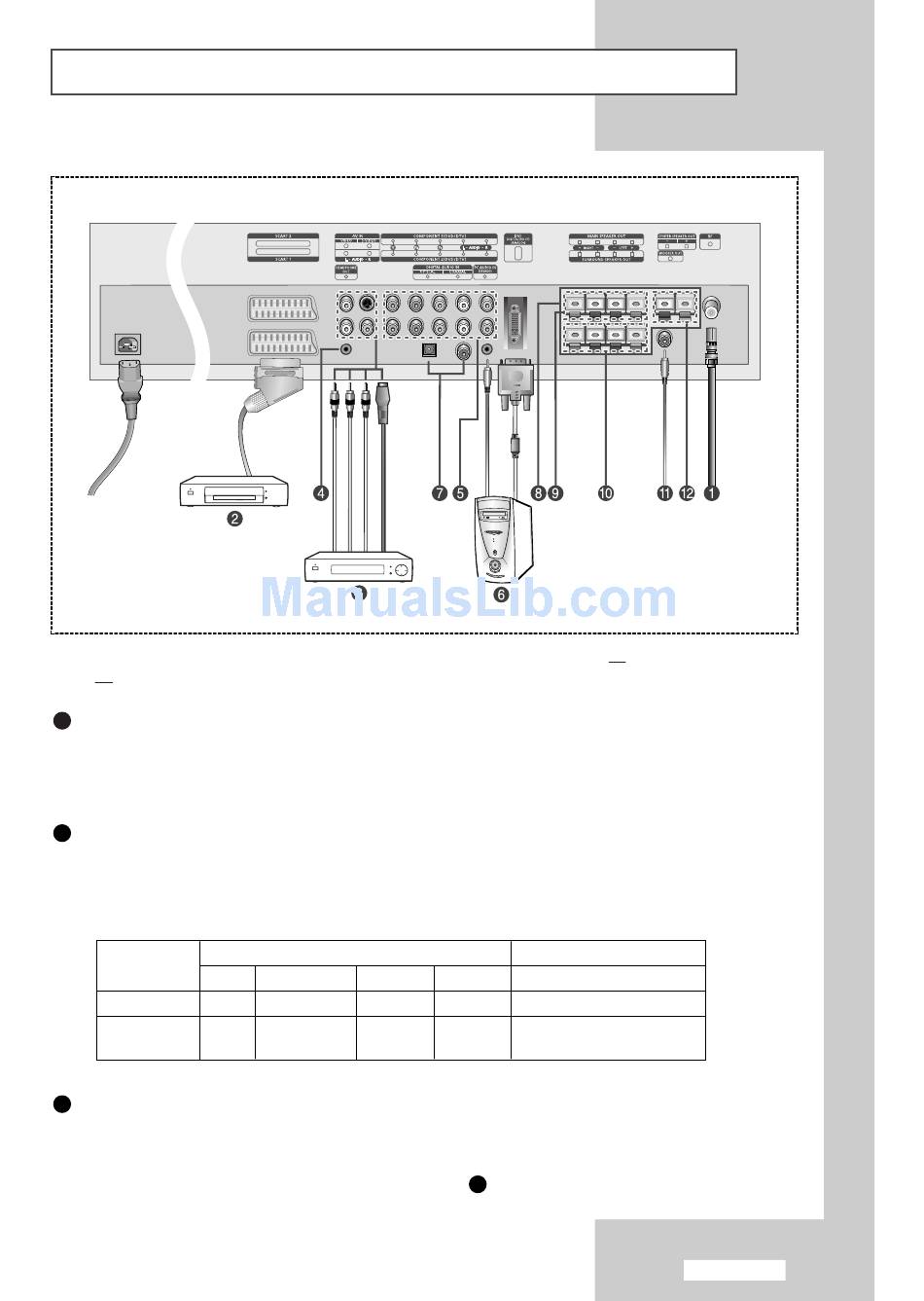

Viewing the Connection Panel Power Input ☛ Whenever you connect an audio or video system to your set, ensure that all elements are switched off. Connecting an Aerial or Cable Television Network To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial - A cable television network - A satellite network...
Page 2
Viewing the Connection Panel Connecting Component Devices (DTV/DVD) - Connect component video cables to component connector (“Y”,“Pb”,“Pr”) on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD. - If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector (“Y”,“Pb”,“Pr”) on your set.
Page 3
Viewing the Connection Panel Connecting 5.1 Channel Speakers For Home Theater Surround Speaker Main Speaker LCD TV Rear Center Speaker Main Speaker : When the speakers are separated from LCD TV Main Speaker : When the speakers are attached with LCD TV Mount the brackets on the speaker and your set.
How to Install the Wall Bracket Wall bracket Wall bracket plate 2 Assembly hinges (Make sure they are a left/right pair.) How to Adjust the Angle of the Bracket ➢ Please adjust the angle of the bracket to 0 degrees before you fix it to the wall. Captive screws Make sure you put the right hinge to the right side of the...
Page 5
How to Install the Wall Bracket How to Attach the LCD TV to the Bracket The LCD TV in the picture may not look exactly like yours. (You assemble the plastic screw anchors and the screws the same way regardless of the model of your TV.) Assemble the plastic screw anchors and the screws.
