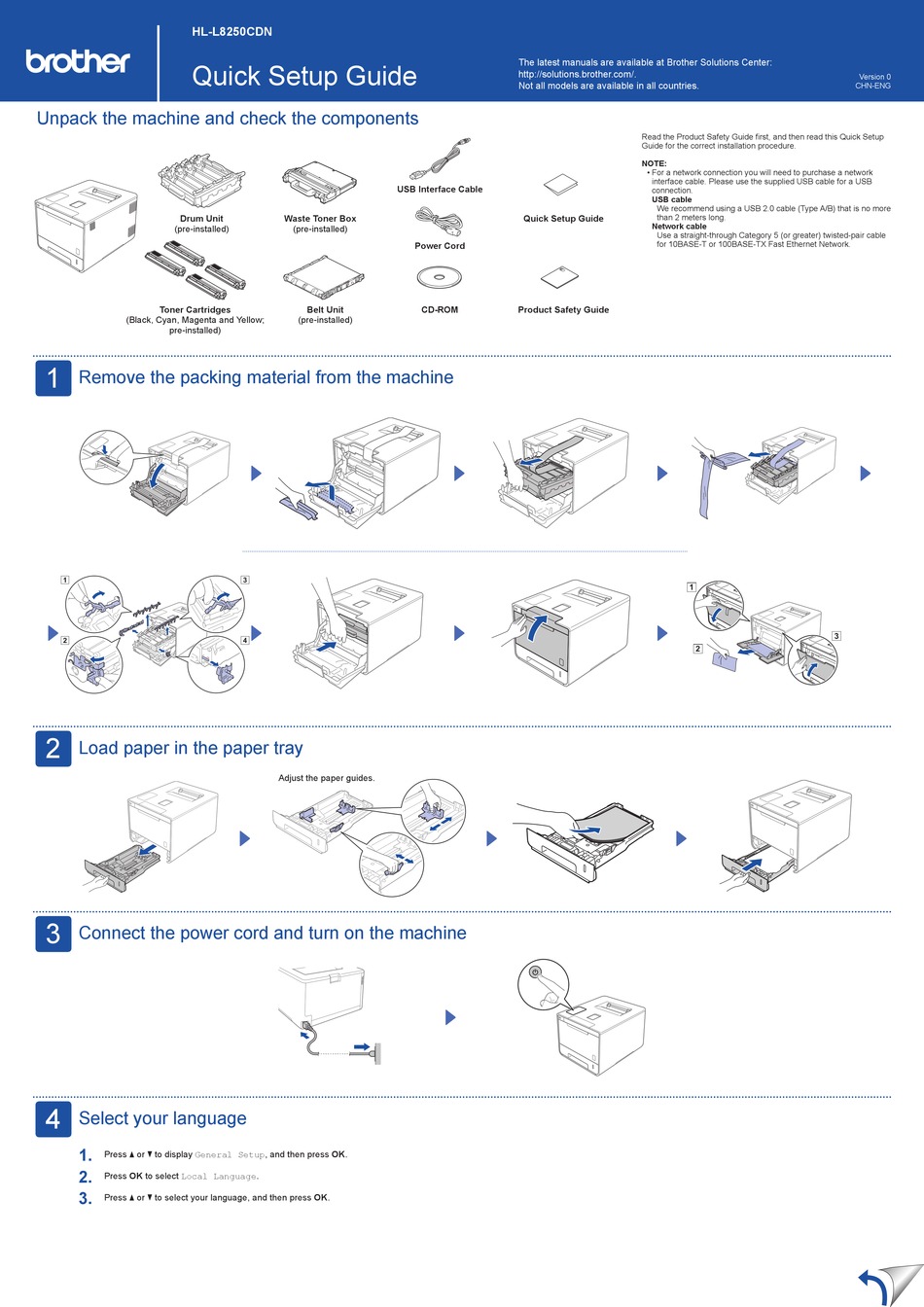

Brother HL-L8250CDN Quick Setup Manual

HL-L8250CDN
Quick Setup Guide
Unpack the machine and check the components
Drum Unit
(pre-installed)
Toner Cartridges
(Black, Cyan, Magenta and Yellow;
pre-installed)
1
Remove the packing material from the machine
1
2
2
Load paper in the paper tray
3
Connect the power cord and turn on the machine
4
Select your language
1.
a or b to display General Setup, and then press OK.
Press
2.
Press OK to select Local Language.
3.
a or b to select your language, and then press OK.
Press
USB Interface Cable
Waste Toner Box
(pre-installed)
Power Cord
Belt Unit
(pre-installed)
3
4
Adjust the paper guides.
The latest manuals are available at Brother Solutions Center:
http://solutions.brother.com/.
Not all models are available in all countries.
Quick Setup Guide
CD-ROM Product Safety Guide
Read the Product Safety Guide first, and then read this Quick Setup
Guide for the correct installation procedure.
NOTE:
• For a network connection you will need to purchase a network
interface cable. Please use the supplied USB cable for a USB
connection.
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more
than 2 meters long.
Network cable
Use a straight-through Category 5 (or greater) twisted-pair cable
for 10BASE-T or 100BASE-TX Fast Ethernet Network.
1
2
Version 0
CHN-ENG
3
