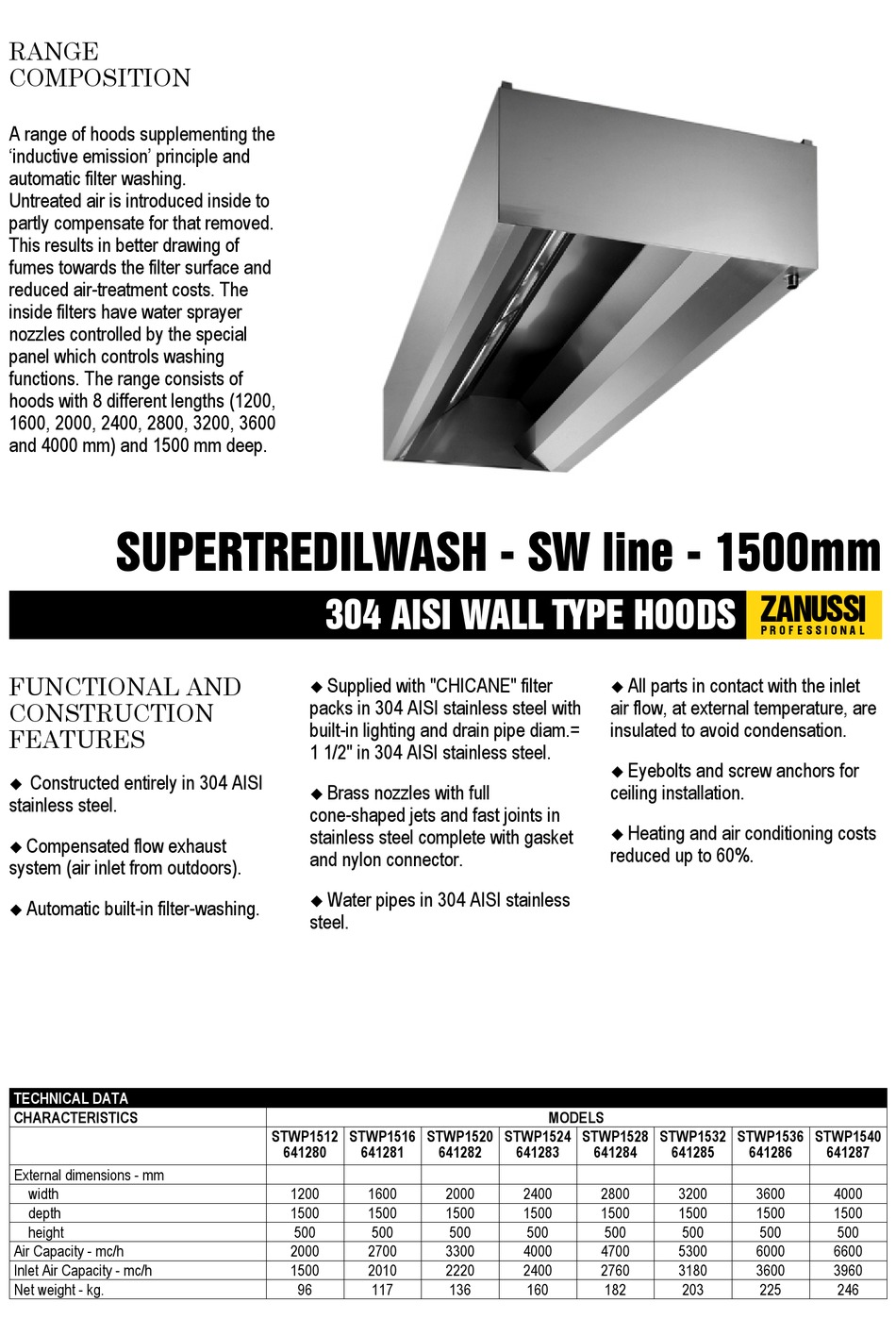

RANGE
COMPOSITION
A range of hoods supplementing the
'inductive emission' principle and
automatic filter washing.
Untreated air is introduced inside to
partly compensate for that removed.
This results in better drawing of
fumes towards the filter surface and
reduced air-treatment costs. The
inside filters have water sprayer
nozzles controlled by the special
panel which controls washing
functions. The range consists of
hoods with 8 different lengths (1200,
1600, 2000, 2400, 2800, 3200, 3600
and 4000 mm) and 1500 mm deep.
SUPERTREDILWASH - SW line - 1500mm
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Constructed entirely in 304 AISI
�
stainless steel.
Compensated flow exhaust
�
system (air inlet from outdoors).
Automatic built-in filter-washing.
�
TECHNICAL DATA
CHARACTERISTICS
External dimensions - mm
width
depth
height
Air Capacity - mc/h
Inlet Air Capacity - mc/h
Net weight - kg.
304 AISI WALL TYPE HOODS
Supplied with "CHICANE" filter
�
packs in 304 AISI stainless steel with
built-in lighting and drain pipe diam.=
1 1/2" in 304 AISI stainless steel.
Brass nozzles with full
�
cone-shaped jets and fast joints in
stainless steel complete with gasket
and nylon connector.
Water pipes in 304 AISI stainless
�
steel.
STWP1512
STWP1516
STWP1520
641280
641281
641282
1200
1600
1500
1500
500
500
2000
2700
1500
2010
96
117
�
air flow, at external temperature, are
insulated to avoid condensation.
�
ceiling installation.
�
reduced up to 60%.
MODELS
STWP1524
STWP1528
641283
641284
2000
2400
2800
1500
1500
1500
500
500
500
3300
4000
4700
2220
2400
2760
136
160
182
ZANUSSI
P R O F E S S I O N A L
All parts in contact with the inlet
Eyebolts and screw anchors for
Heating and air conditioning costs
STWP1532
STWP1536
641285
641286
3200
3600
1500
1500
500
500
5300
6000
3180
3600
203
225
STWP1540
641287
4000
1500
500
6600
3960
246
