Disassembly/Assembly > Controller System > Removing the Speaker (MF4870dn) > Procedure

Removing the Speaker (MF4870dn)

■ Preparation

1) Remove the left cover
2)Remove the right cover
3)Remove the front cover unit

■ Procedure

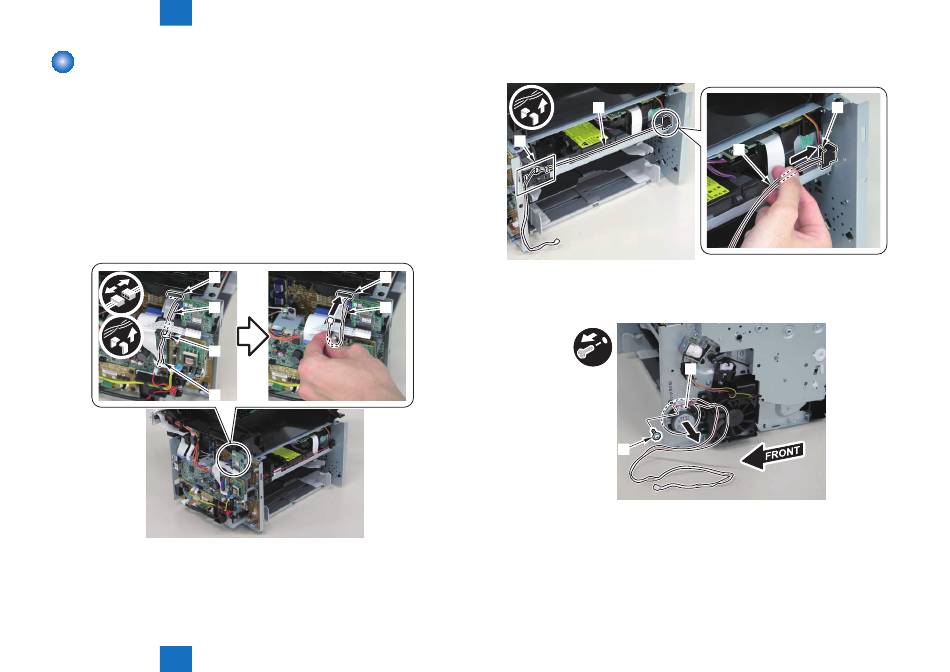

1)Disconnect the speaker harness[1], and put it through the hole[A] of the left side plate to the
inside.
• 1 connector[2]
• 1 wire saddle[3]
[A]
[1]
[3]
[2]
4 Disassembly/Assembly > Controller System > Removing the Speaker (MF4870dn) > Procedure
2)Free the speaker harness[1] from the harness guide[A], and put it through the hole[B] of the
right side plate to the outside.
[A]
[A]
3)Remove the speaker[1].
• 1 screw[2]
[1]
F-4-436
[1]
[1]
[1]
[2]
4-174
[B]
F-4-437
F-4-438
4-174
