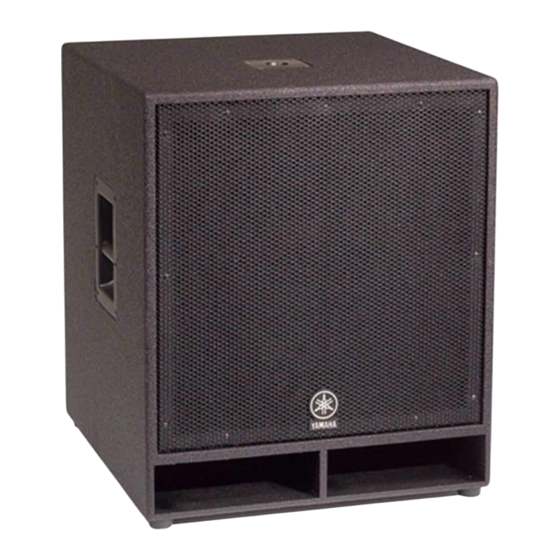

SPEAKER SYSTEM
C112V/C115V/C215V
CM10V/CM12V/CM15V
C112VA/C115VA
SUBWOOFER
CW115V/CW118V/CW218V
Owner's Manual
Thank you for choosing the YAMAHA speaker system.
In order to take maximum advantage of the speaker's
features and ensure maximum performance and longev-
ity, please read this manual carefully before using the
speaker system. Keep the manual in a safe place for
future reference.
Bedienungsanleitung
Wir beglückwünschen Sie zum Kauf dieses YAMAHA
-Lautsprechersystems. Damit Sie die Ausstattungen die-
ses Lautsprechersystems optimal nutzen können, und
um maximale Leistung und Lebensdauer sicherzustel-
len, lesen Sie bitte vor der Inbetriebnahme diese Anlei-
tung sorgfältig durch. Bitte bewahren Sie diese Bedie-
nungsanleitung gut auf, um bei Bedarf darauf zurück-
greifen zu können.
Mode d'emploi
Nous vous remercions d'avoir acheté les enceintes
YAMAHA. Pour obtenir les performances optimales de
vos enceintes et garantir une longévité maximale, lisez
attentivement ce mode d'emploi avant d'utiliser les
enceintes. Conservez-le en lieu sûr pour pouvoir vous y
référer ultérieurement.
Manual de instrucciónes
Gracias por escoger el sistema de altavoces YAMAHA.
A fin de aprovechar al máximo las características de los
altavoces y obtener un rendimiento y durabilidad ópti-
mos, lea atentamente este manual antes de utilizar el
sistema. Guarde este manual en un lugar seguro para
futuras consultas.
取 取 取 取 扱 扱 扱 扱 説 説 説 説 明 明 明 明 書 書 書 書
この たびは、ヤマハ製品 をお買い求めいた だきま
して、まことにありがとうございます。
スピ ーカーを安全に ご使用いただき、優れ た性能
を 十分に 生かし て末永 くご 愛用い ただく ために、
この 取扱説明書をご使 用の前に必ずお読み くださ
い。お読 みになったあと は保証書とともに 保管し
てください。

Advertisement

Table of Contents
loading

Summary of Contents for Yamaha C112V

  • Page 1 C112VA/C115VA SUBWOOFER CW115V/CW118V/CW218V Owner’s Manual Thank you for choosing the YAMAHA speaker system. In order to take maximum advantage of the speaker’s features and ensure maximum performance and longev- ity, please read this manual carefully before using the speaker system. Keep the manual in a safe place for future reference.
  • Page 2: Please Read Carefully Before Proceeding

    If it should appear to be mal- functioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel. CAUTION Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property.
  • Page 3 • Use only Neutrik NL4FC plugs for connecting Speakon con- nectors. Yamaha cannot be held responsible for damage caused by improper use or modifications to the device. * Illustrations in this manual are for explanatory purposes only, and may not match the actual appearance of the prod- uct during operation.
  • Page 4: Connecting The Speakers

    Connecting the Speakers I Phone Plug Wiring Phone plugs for connection to the phone jack inputs should be wired as shown to the right. Be sure to use proper speaker cable — NOT shielded instrument or line cable — for all speaker connections. I Neutrik Speakon NL4FC Plug Wiring If you will be using the Neutrik connectors for speaker input, wire the plugs as shown to the right.
  • Page 5 I Subwoofers and the PN90 Crossover Network Adding subwoofers to speaker systems like the one shown in the diagram can provide extended frequency range and superior overall sound quality. After dividing the line-level audio from the preamplifier or mixing console into sepa- rate frequency bands via the PN90 crossover network, the separate frequency bands are sent to separate power ampli- fiers.
  • Page 6: Suspended And Bracket Installation

    • Some fittings may deteriorate over extended periods of time due to wear or corrosion. For safety the installation should be checked thoroughly at regular intervals. Yamaha cannot be held responsible for damage or injury caused by insufficient strength of the support structure or improper installation.
  • Page 7: Specifications

    CW218V Specifications and descriptions in this owner’s manual are for 18" cone × 2 information purposes only. Yamaha Corp. reserves the right 600W to change or modify products or 1200W specifications at any time with- out prior notice. Since specifica-...
  • Page 8: Technical Data/Kennlinien/Données Techniques/Datos Técnicos

    Technical Data/Kennlinien/Données techniques/Datos técnicos ■ Frequency Response/Impedance • CM10V FREQUENCY(Hz) • C112V/CM12V/C112VA FREQUENCY(Hz) • CW115V FREQUENCY(Hz) • CW218V FREQUENCY(Hz) • C115V/CM15V/C115VA • C215V • CW118V FREQUENCY(Hz) FREQUENCY(Hz) FREQUENCY(Hz)
  • Page 9 ■ Horizontal Directivity • CM10V • 500Hz • 1kHz • 2kHz • C112V/CM12V/C112VA • 500Hz • 1kHz • 2kHz • C115V/CM15V/C115VA • 500Hz • 1kHz • 2kHz • C215V • 500Hz • 1kHz • 2kHz • 4kHz • 8kHz • 16kHz •...
  • Page 10 ■ Vertical Directivity • CM10V • 500Hz • 1kHz • 2kHz • C112V/CM12V/C112VA • 500Hz • 1kHz • 2kHz • C115V/CM15V/C115VA • 500Hz • 1kHz • 2kHz • C215V • 500Hz • 1kHz • 2kHz • 4kHz • 8kHz • 16kHz •...
  • Page 11 For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below. Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou au distributeur le plus proche de vous figurant dans la liste suivante.
