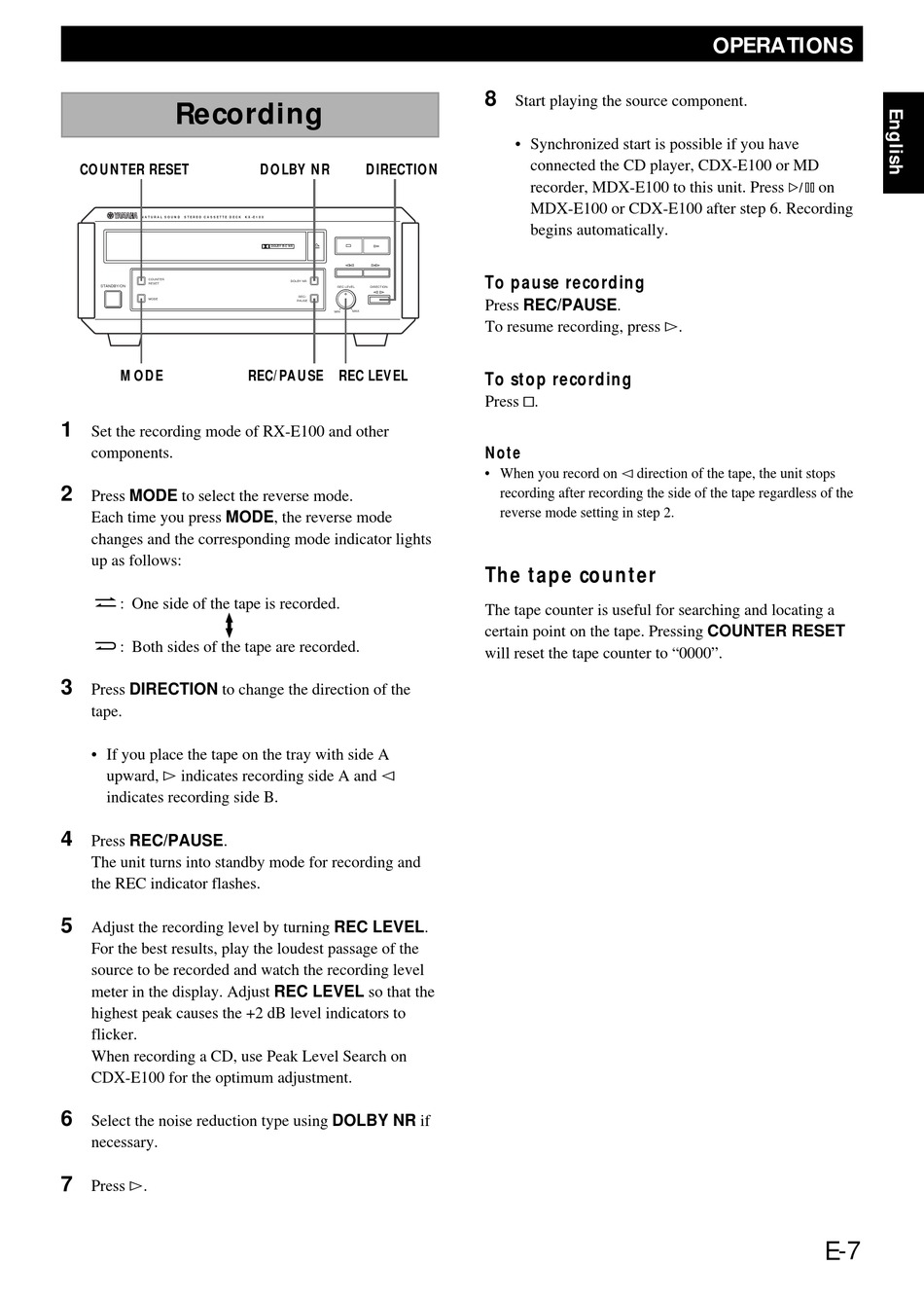

Recording

COUNTER RESET
NATURAL SOUND STEREO CASSETTE DECK KX-E100
COUNTER
RESET
STANDBY/ON
MODE
MODE
1
Set the recording mode of RX-E100 and other
components.
2
Press MODE to select the reverse mode.
Each time you press MODE, the reverse mode
changes and the corresponding mode indicator lights
up as follows:
: One side of the tape is recorded.
: Both sides of the tape are recorded.
3
Press DIRECTION to change the direction of the
tape.
• If you place the tape on the tray with side A
upward, # indicates recording side A and @
indicates recording side B.
4
Press REC/PAUSE.
The unit turns into standby mode for recording and
the REC indicator flashes.
5
Adjust the recording level by turning REC LEVEL.
For the best results, play the loudest passage of the
source to be recorded and watch the recording level
meter in the display. Adjust REC LEVEL so that the
highest peak causes the +2 dB level indicators to
flicker.
When recording a CD, use Peak Level Search on
CDX-E100 for the optimum adjustment.
6
Select the noise reduction type using DOLBY NR if
necessary.
7
Press #.
DOLBY NR DIRECTION
DOLBY B-C NR
DOLBY NR
REC LEVEL DIRECTION
REC/
PAUSE
MAX
MIN
REC/PAUSE REC LEVEL
8
Start playing the source component.
• Synchronized start is possible if you have
connected the CD player, CDX-E100 or MD
recorder, MDX-E100 to this unit. Press ^ on
MDX-E100 or CDX-E100 after step 6. Recording
begins automatically.
To pause recording
Press REC/PAUSE.
To resume recording, press #.
To stop recording
Press &.
Note
• When you record on @ direction of the tape, the unit stops
recording after recording the side of the tape regardless of the
reverse mode setting in step 2.
The tape counter
The tape counter is useful for searching and locating a
certain point on the tape. Pressing COUNTER RESET
will reset the tape counter to "0000".
OPERATIONS
E-7
