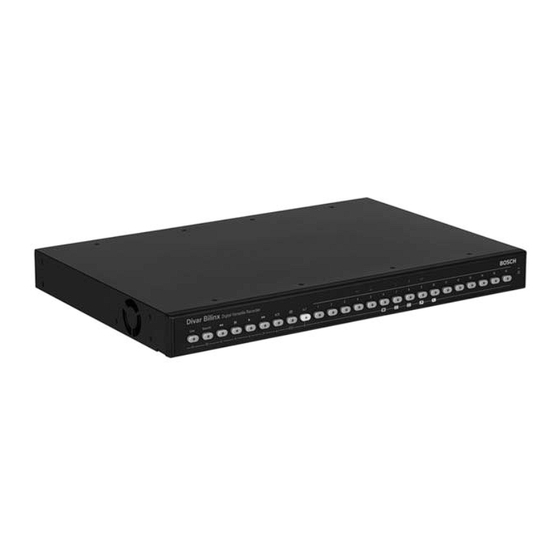

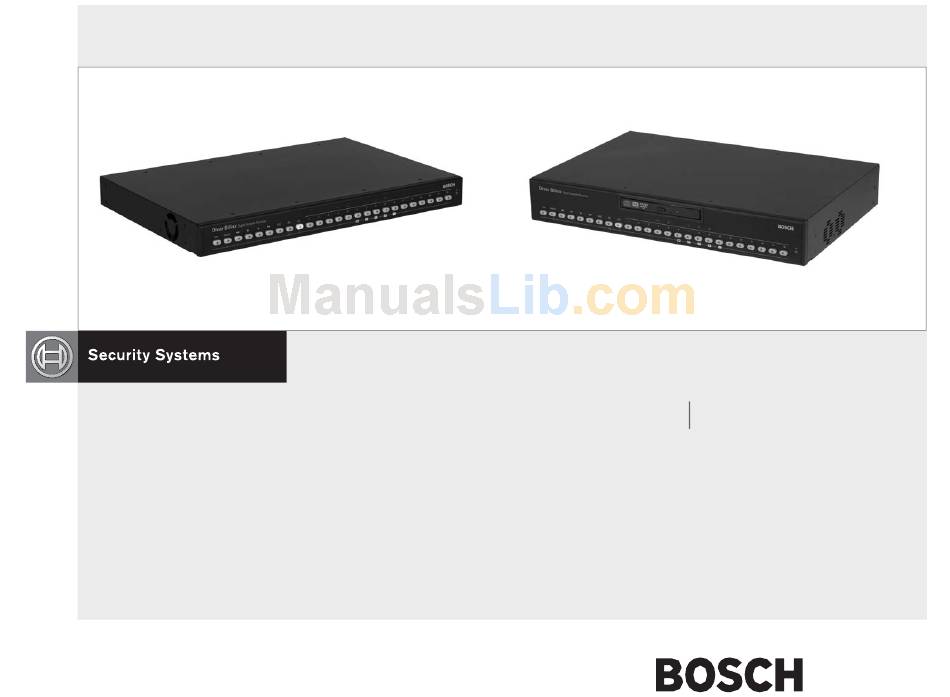

- Page 1 Divar - Digital Versatile Recorder Operation Manual...
- Page 2 Divar | Operation Manual IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions - All the safety, operating and installation instructions should be read before the unit is operated. 2. Keep these instructions - The safety, operating and installation instructions should be retained for future reference. 3.
-
Page 3: Table Of Contents
Divar | Operation Manual EN | 1 Divar Digital Versatile Recorder Operation manual Contents Introduction ..........3 Front panel controls . -
Page 4: Safety Precautions
Camera pictures shown one after the other in time either in full- screen or quad modes. Quad: Four camera pictures shown on one display screen. Icons shown on the screen Play forward Pause Play reverse Freeze Fast forward Zoom Fast reverse Sequence EN | 2 Alarm Motion Network Error... -
Page 5: Introduction
Instructions that only apply to the internal DVD writer or Bilinx functionality are indicated by a double (**) or triple (***) asterix respectively. If your unit has neither of these facilities, then please skip these instructions. EN | 3... - Page 6 Bosch Security Systems On-screen help On-screen help is available for all topics. Just press the yellow ALT key at least one second to see the help text associated with your current activity. Press the escape key to exit help. EN | 4...
-
Page 7: Front Panel Controls
Divar | Operation Manual | Front panel controls Front panel controls Divar Bilinx Divar Bilinx Divar Bilinx with internal DVD writer Divar Bilinx Bosch Security Systems DVD writer Open/Close button DVD writer Read/Write LED EN | 5... - Page 8 ALT key is lit. The unit automatically exits the alternate mode if the monitor A key monitor B key or sequence key is pressed. When in a menu, the keys operate according to their alternate function. EN | 6 and then...
- Page 9 ATM/POS data on and off. EN | 7 * can be 6, 9 or16...
- Page 10 A. Mon B key assigns front panel keys to monitor B. Sequence key - view cameras in sequence on full-screen or quad displays. Zoom key zooms in on the active camera display (full-screen or active cameo). EN | 8...
-
Page 11: Viewing Pictures
The number of connected cameras can also influence the multiscreen views available. Full-screen Quad The quad mode can have 4 different quad screens that can be shown in sequence to display 16 camera pictures. EN | 9 12+1... - Page 12 The zoom function can be used on a frozen picture. If you change viewing mode, any frozen pictures are released. to stop sequencing. EN | 10 and then the multiscreen key to interrupt cameo assignment and exit the assignment to freeze the picture in the active cameo.
- Page 13 > The zoom indicator no longer lights. 7. Press the ALT key to return the keys to normal operation. > The ALT indicator no longer lights. Bosch Security Systems EN | 11...
-
Page 14: Live, Playback And Search Modes
Press the current camera key to switch the ATM/POS display on and off. Press the live key to switch back to live viewing or press the search key to switch to the search mode. In both cases, playback stops. EN | 12... - Page 15 If Smart Motion Seach is selected, only a single camera can be selected. • Select Forward to search from start time to end time or Backward to search from end time to start time. EN | 13 > 9 10 11 12 13 14 15 16...
- Page 16 • Press the search key during playback to return to the list. • Press the escape key to return to the filter menu. Bosch Security Systems PLAYBACK SEARCH SEARCH RESULTS CAMERA 1 MOTION 2002-03-14 15:00:17 EN | 14...
-
Page 17: Using The Menu
Menu structure Main menu History Disk manager Time / Date History View history list Disk manager Status overview Local archiving Protected recordings Check authenticity Time / Date EN | 15 History list Status overview Local archiving Protected recordings Check authenticity... - Page 18 If a date or time has been changed, the original values are also displayed. • Alarm, motion and video loss events are stored for a maximum of one month. MAIN MENU HISTORY VIEW HISTORY LIST > TIME EVENT 2002-03-15 13:00:17 VIDEOLOSS EN | 16...
- Page 19 If the total size is greater than the disk capacity, then only the first segments that fit are archived. Those segments that are not archived remain in the list so that they can be archived to a new disk. EN | 17 > >...
- Page 20 If the result is Not OK, the date and time of the tampered video is displayed. MAIN MENU DISK MANAGER AUTHENTICITY CHECK BEGIN TIME END TIME START CHECK PROGRESS RESULT DISK CONTENTS EARLIEST TIME LATEST TIME EN | 18 2002-03-14 13:00:17 2002-03-14 13:00:17 > NOT OK 2002-03-14 13:00:17 2002-03-14 13:00:17...
- Page 21 Fill in the IP address of the network time server. • The time and date of all other connected units are automatically synchronized every hour from the time and date of the unit with DVR ID 1. Bosch Security Systems >...
-
Page 22: Triggers And Alarms
The unit can also be configured to record and automatically protect video clips upon the activation of an alarm input. A trigger may change the way the camera images are displayed on the monitors without requiring your intervention. EN | 20... -
Page 23: Triggers And Alarms
If auto-acknowledge is enabled, the beeper, and the motion indicators switch off after the dwell time. Using motion detection outdoors may cause false alarms because of varying light conditions. EN | 21 and the indicators flash. to acknowledge the alarm. -
Page 24: Video Loss Alarm
Bosch Security Systems Multiple alarms Monitor A switches to multiscreen view if more than one alarm occurs. The latest alarm status message is always shown. Pressing the acknowledge key deactivates all alarms. EN | 22... -
Page 25: Viewing Live And Playback Video Via A Web Browser
> To let the system remember your name and password on subsequent use, place a check mark in the Save login information box. Administrator passwords are not saved. 2. Select a language from a drop-down menu. 3. Click Login. EN | 23... -
Page 26: Viewing Live And Playback Video Via A Web Browser
Logout button To disconnect from the connected unit, click Logout appears. Now you can choose to connect to a different unit or to exit the program completely by clicking Cancel. EN | 24 . In the playback . The login page... -
Page 27: Camera Views
Four quad views are available. The current quad view is indicated by a number in the quad icon . Each quad view can have unique camera-to-cameo assignments. To manually cycle through the available views, click the quad icon EN | 25 to select a multiscreen view. and select a... -
Page 28: Capturing A Still Image
5. Click the lock-out icon again or select another active camera to unlock it. > When a user with higher priority requests exclusive privileges, the lower priority user loses control of the locked-out camera. EN | 26... - Page 29 2. Click Set. Aux functions Aux commands are special commands for controlling AutoDome™ cameras. To switch on the Aux command: 1. Enter an Aux number 2. Click Aux On. 3. To switch off the Aux command, click Off. EN | 27...
-
Page 30: Using The Playback Controls
> To see authenticity information about the current still image, click the information icon in the cameo. Step forward The step icon is only enabled in the still mode. 1. Click Step forward 2. Hold it down to continue stepping. EN | 28 to advance the image one frame. -
Page 31: Step Backward
2. Click the Go To control next to the From box to start playback at the time and date entered. Camera selection Click in a camera selection box to place a check mark under those cameras you want to include in the search. Click to select all EN | 29 From or none. - Page 32 2. Click on an entry in the list to select it. > Playback of the selected item starts in the playback page. 3. Use the playback controls to start the playback of the selection. Bosch Security Systems EN | 30...
- Page 34 Bosch Sicherheitssysteme GmbH Bosch Security Systems B.V. Ludwig-Bölkow-Allee P.O. Box 80002 85521 Ottobrunn 5600 JB Eindhoven Germany The Netherlands www.bosch-sicherheitssysteme.de www.boschsecuritysystems.com © 2005 Bosch Security Systems B.V. Subject to change. Printed in Portugal.
