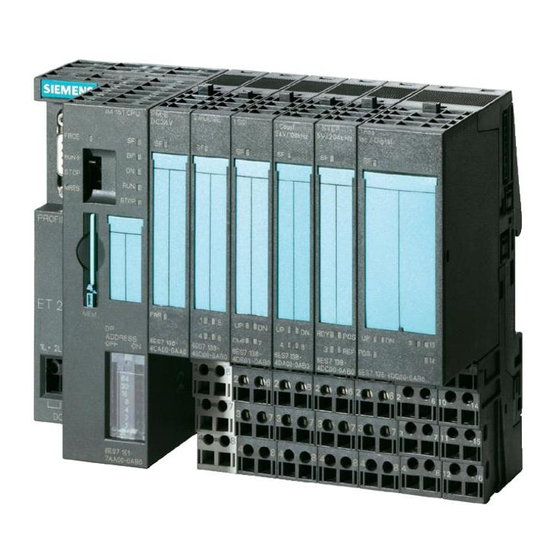

Siemens SIMATIC ET 200S Manual
  1. Manuals
  2. Brands
  3. Siemens Manuals
  4. I/O Systems
  5. SIMATIC ET 200S
  6. Manual

Siemens SIMATIC ET 200S Manual

Distributed i/o digital electronic module, dc24v/0.5a 6es7132-4bf00-0aa0
Hide thumbs Also See for SIMATIC ET 200S:

Advertisement

Quick Links

Digital electronic module 8DO
DC24V/0.5 A (6ES7132-4BF00-0AA0)
SIMATIC
ET 200S distributed I/O
Digital electronic module 8DO DC24V/0.5 A
(6ES7132-4BF00-0AA0)
Manual
10/2015
A5E01077385-AB
___________________
Preface
___________________
Properties
___________________
Diagnostics
1
2

Advertisement

loading

Related Manuals for Siemens SIMATIC ET 200S

Summary of Contents for Siemens SIMATIC ET 200S

  • Page 1 ___________________ Digital electronic module 8DO Preface DC24V/0.5 A (6ES7132-4BF00-0AA0) ___________________ Properties ___________________ SIMATIC Diagnostics ET 200S distributed I/O Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Manual 10/2015 A5E01077385-AB...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Preface

    Additional support If you have any questions relating to the products described in this manual and do not find the answers in this document, please contact your local Siemens representative (http://www.siemens.com/automation/partners). A guide to the technical documentation for the various SIMATIC products and systems is available on the Internet.
  • Page 4 You can contact Technical Support for all Industry Automation products by means of the Internet Web form for the Support Request (http://www.siemens.com/automation/csi_en_WW/support_request). Additional information about Siemens Technical Support is available on the Internet (http://www.siemens.com/automation/csi_en_WW/service). Service & Support on the Internet In addition to our documentation, we offer a comprehensive knowledge base on the Internet (http://www.siemens.com/automation/csi_en_WW/support).

  • Page 5: Table Of Contents

    Table of contents Preface ..............................3 Properties ............................... 6 Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) ........6 Diagnostics ............................12 Diagnostics using LED display ....................12 Index..............................13 Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Manual, 10/2015, A5E01077385-AB...

  • Page 6: Properties

    Properties Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Properties ● Digital electronic module with eight outputs ● Output current 0.5 A per output, total current 4 A ● Rated load voltage 24 V DC ● Short-circuit protection ● Suitable for solenoid valves, DC contactors, and indicator lights ●...
  • Page 7 Properties 1.1 Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) General terminal assignment Note Terminals A4, A8, A3 and A7 are only available at specified terminal modules. Terminal assignment for 8DO DC24V/0.5A (6ES7132-4BF00-0AA0) Terminal Allocation Terminal Allocation Notes : Output signal, channel n •...
  • Page 8 Properties 1.1 Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) 2-wire connection The following configuration example shows a two-wire connection with the electronic modules 8DO DC24V. You require further terminals so that sufficient terminals are available for the mass M connection when the TM-E15S26-A1 terminal modules are used. In the example this is implemented by the add-on terminal TE-U120S4x10, which you can mount as of a width of 120 mm (8 EMs).
  • Page 9 Properties 1.1 Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Block diagram Figure 1-1 Block diagram of the 8DO DC24V 0.5A Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Manual, 10/2015, A5E01077385-AB...
  • Page 10 Properties 1.1 Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Technical specifications 8DO DC24V/0.5A (6ES7132-4BF00-0AA0) Technical specifications 8DO DC24V/0.5A (6ES7132-4BF00-0AA0) Dimensions and weight Width (mm) Weight Approx. 40 g Module-specific data Supports isochronous operation Number of outputs Cable length Max. 600 m Unshielded •...
  • Page 11 Properties 1.1 Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Technical specifications 8DO DC24V/0.5A (6ES7132-4BF00-0AA0) Actuator selection data Output voltage Min. L+ (-1 V) At signal "1" • Output current At signal "1" • 0.5 A – Rated value 7 mA to 0.6 A –...

  • Page 12: Diagnostics

    Diagnostics Diagnostics using LED display LED display ① Status display for output status (green) Status and error displays Event (LEDs) Cause Remedy Output on channel 0 activated. — Output on channel 1 activated. — Output on channel 2 activated. — Output on channel 3 activated.

  • Page 13: Index

    Index 2-wire connection, 8 Basic knowledge requirements, 3 Block diagram, 9 Disposal, 3 Internet Service & Support, 4 LED display, 12 Properties, 6 Recycling, 3 Scope Manual, 3 Service & Support, 4 Technical specifications, 10 Technical Support, 4 Terminal assignment, 7 Training Center, 4 Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Manual, 10/2015, A5E01077385-AB...
  • Page 14 Index Digital electronic module 8DO DC24V/0.5 A (6ES7132-4BF00-0AA0) Manual, 10/2015, A5E01077385-AB...
