Line differential protection terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

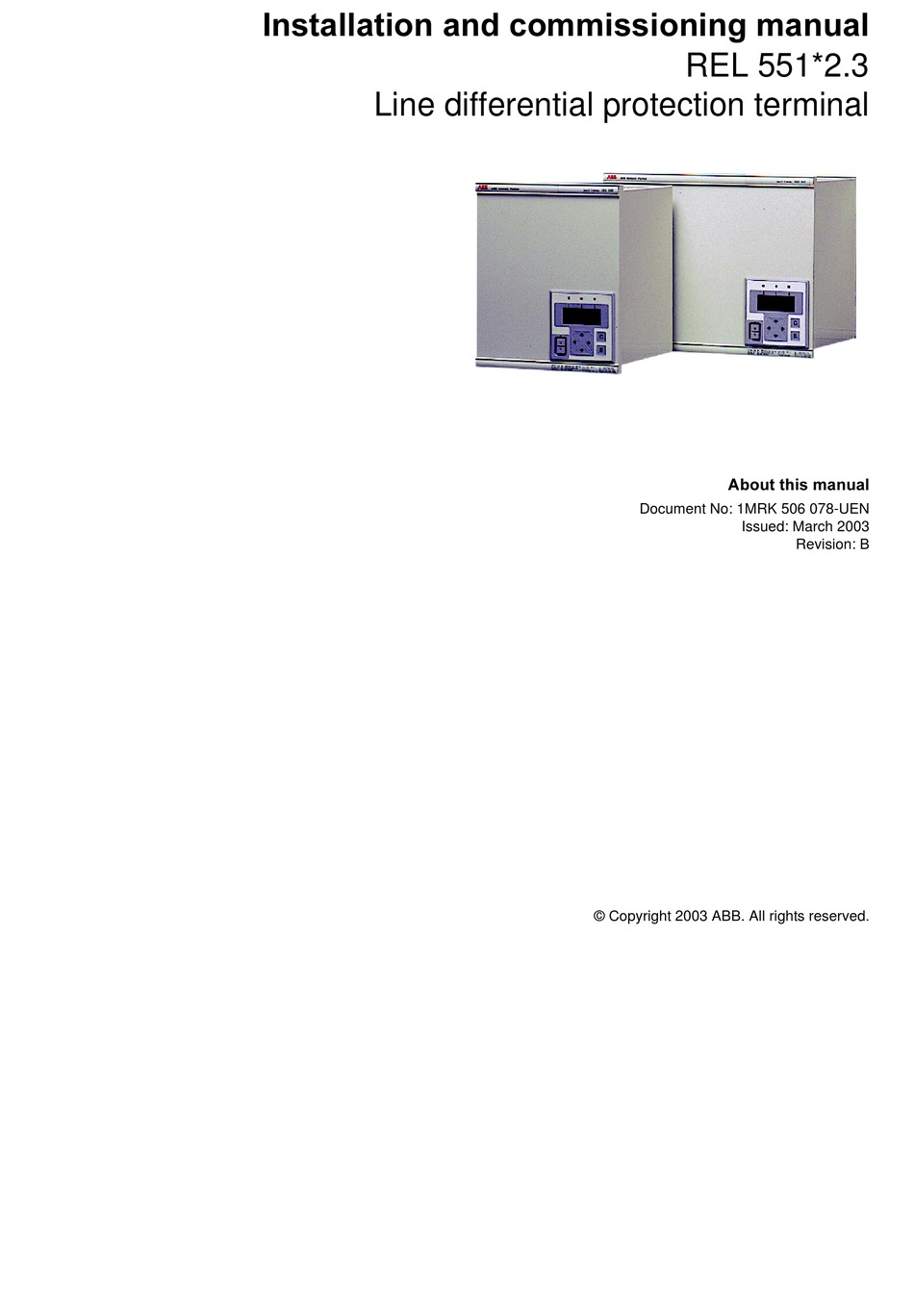

,QVWDOODWLRQ DQG FRPPLVVLRQLQJ PDQXDO
REL 551*2.3
Line differential protection terminal
$ERXW WKLV PDQXDO
Document No: 1MRK 506 078-UEN
Issued: March 2003
Revision: B
© Copyright 2003 ABB. All rights reserved.
