Summary of Contents for Whirlpool LE7700XW

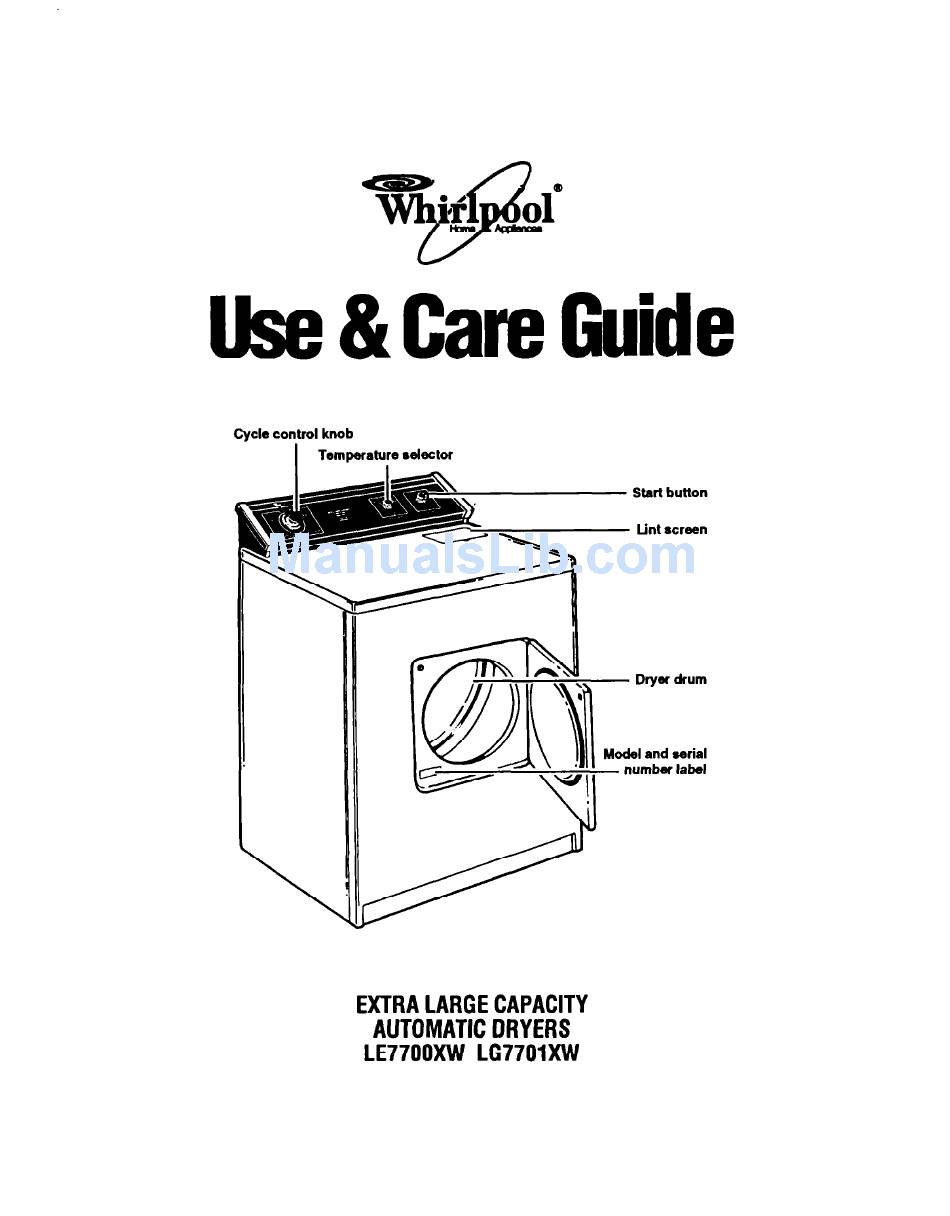

- Page 1 Use &Care Guide Cycle control knob Temperature selector Start button Lint screen Dryer drum Model and serial number Iabe EXTRALARGECAPACITY AUTOMATICDRYERS LE7700XW LG77OlXW...
-
Page 2: Table Of Contents
Thank you for buying a Whirlpool appliance. Please complete and mail the Owner Registration Card provided with this product. -
Page 3: Important Safety Instructions
Important Safety Instructions For your safety the information this manual must be followed to minimize the risk of fire or explo- sion or to prevent property dam- age, personal injury or loss of life. -Do Not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. -
Page 4: Additional Safety Instructions And Your Responsibilities
Important Safety Instructions Continued To reduce the risk of fire, electrical Injury to persons bask precautions, Read all Instructions before using the dryer. NEVER dry items cleaned, washed, soaked in or spotted with wax, paint, gasoline or flammable fluids in the dryer. -
Page 5: Operating Instructions
Operating Instructions Starting your dryer Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading and control setting information before starting your dryer. NOTE: Do not overdry. Overdrying can cause shrinkage, static cling, and damage some fabrics. - Page 6 Operating Instructions Continued Select cycle by turning the Cycle Control Knob either way. Stop when the indicator on the khob’s outer ring points to the cycle and setting you want. See pages 7-9 for further cycle information. Set the Temperature Selector the desired temperature setting.
-
Page 7: The Regular Cycles
The regular cycles The names of the regular cycles describe the types of loads they are designed to dry. Each cycle is followed by a 5 minute cool-down period. During the cool down, the load tumbles without heat. This helps make the load easier to handle. -
Page 8: The Permanent
Operating Instructions Continued Fhe PERMANENT PRESS cycle The PERMANENT PRESS cycle helps provide the special care that perma- nent press synthetic fabrics need. The cycle consists of a timed period of heated drying and a 10 minute cool- down period. During the cool down, the load tumbles without heat. -
Page 9: Using Tumble Press
- Using TUMBLE PRESS” The TUMBLE PRESS setting removes wrinkles from clothing that has been packed in a suitcase or closet, and from items .not removed from the dryer at the end of a cycle. 1. Set the Cycle Control Knob on TUMBLE PRESS. -
Page 10: Caring For Your Dryer
Caring For Your Dryer Product and Fabric Damage Hazard Do not run the dryer with the lint screen damaged, blocked cause overheating dryer and fabrics- loose, or missing. Doing so can and damage to both the Cleaning the lint screen The lint screen is conveniently located on top of the dryer. -
Page 11: Cleaning The Dryer
Cleaning the dryer Electrical Shock and Personal Injury Hazard Turn off the electrical power before cleaning the interior. Make sure the dryer is cool. Failure to do so could result in electrical rhock or injury. Fire Hazard Use non-flammable cleaner. Failure to do so could result in an explosion. -
Page 12: Lint Removal
Caring For Your Dryer Continued Thermostats Heat element Electric dryer with back panel removed igniter 1 Furnel Gas dryer with lower front- aoc686 panef removed Lint removal Lint can gather inside the dryer and be a fuel for fire. It is recommended lint be removed every 2 to 3 years, or more often, depending on dryer usage. - Page 13 Remove screw6 A before opening View A 6661 Drum Side panel Wire clip- hold6 door switch wires View E View C View D lf your dryer is gas and has a full front pane& renmve front p8nel as follows: Unplug the power supply cord or turn off the electrical power.
-
Page 14: You Need Service Or Assistance
United States. To locate the authorized Whirlpool service company in your area, call our Consumer Assistance Center telephone number (see Step 2) or look in your telephone directory Yellow Pages under:... - Page 15 Or Assistance Continued 4. tf you need FSP” replacement parts*... FSP is a registered trademark Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. replacement parts will fit right and work...
-
Page 16: Warranty
Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool distributor or military exchange. lf you need service, first see the “Service and Assistance”...
