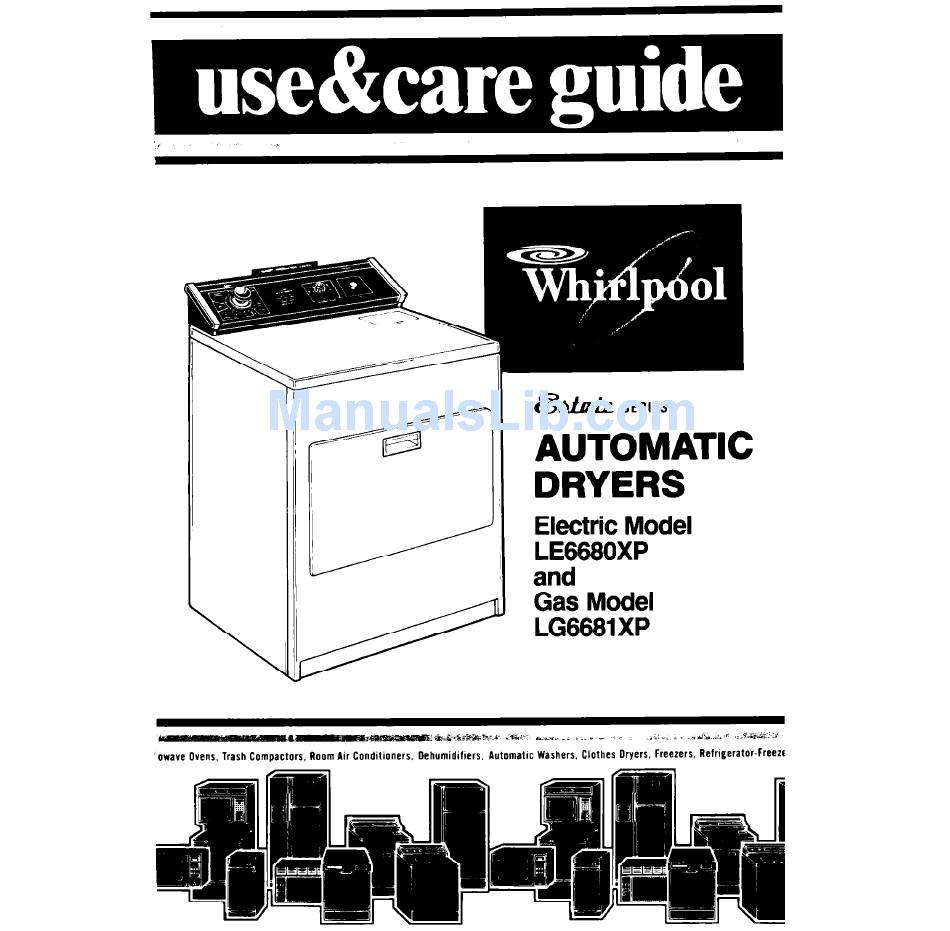

- Page 1 Ovens. Trash Compactors, Room Air Conditioners, Dehumidifiers. &tdU!L’ SERIES AUTOMATIC DRYERS Electric Model LE6660XP Gas Model LG6661XP a+&-Lf%%-.L- .I&~-- s _. Automatic Washers, Clothes OrYerS. FreeZerS. Refrigerator-Freeze .>d& ..;. ~:.‘!.a&%.-::...
-
Page 2: Parts And Features
Timed Drying DRYING TIPS FLUFF AIR Setting TUMBLE PRESS@ Setting Drying Times Mixed Loads ..End-of-Cycle Signal 01985 Whirlpool CENTER START BUTTON LINT SCREEN Remove the Con- sumer Buy Guide before using your dryer. It will be easier to remove. -
Page 3: Your Responsibilities
Your Responsibilities Read this “Use and Care Guide” and your “Dryer Guide” carefully important use and safety information. You are personally responsible making sure that your dryer... is installed by a qualified installer. is properly maintained. is installed in an area protected from the weather. - Page 4 TYPE OF LOAD COllONS - LINENS EXTRA HEAVY - Bedspreads, mattress pads, quilts. HEAVYWEIGHT FABRICS - Towels. jeans, corduroys, work clothes MEDIUMWEIGHT COTTONS - Sheets, pillowcases, cotton underwear, diapers LIGHTWEIGHT COTTONS - Batistes. organdies, lingerie PERMANENT PRESS, SYNTHETICS AND BLENDS HEAVYWEIGHT FABRICS -Work clothes, jackets.
-
Page 5: Start Button
Select a 1. CYCLE Turn the Control Knob either way to point to the cycle and setting want. See page 6 for information the cycles. Push the 3. START Button The dryer will start tumbling when you push the START Button. The Cycle Contl ,ol Knob should poinl... -
Page 6: The Automatic Cycles
Operating instructions The automatic cycles The automatic cycles allow you to select the degree of dryness you prefer for the clothes being dried. The Control Knob moves and stops several times until the load reaches the dryness setting you selected. the knob automatically moves to OFF and tumbling... -
Page 7: Drying Tips
Drying tips The dryer does not heat when the Temperature Selector is set on FLUFF AIR. This setting can be used to fluff bedding, plastic tablecloths, foam rubber pillows, stuffed toys, sneakers, etc. 1. Turn the Temperature Selector FLUFF AIR. 2. -
Page 8: Drying Times
Drying times Drying times will vary dependtng . amount of moisture in the clothes. type weight of the fabric. load. size of the room temperature around dryer. temperature of the wash rinse water. amount of lint in the lent screen. dryer temperature selection. -
Page 9: Lint Screen
Lint screen Clean the lint screen before each increase drying time and may be a FIRE HAZARD. Lint removal Lint can gather inside the dryer and create should be removed every 2 to 3 years, dryer usage. ELECTRIC DRYERS Cleaning should be done only by a qualified Avoid electrical... -
Page 10: Caring For Your Dryer
Caring for your dryer Remove sharp objects from clothing before drying - pins, buckles, etc. Close metal zippers. Wipe off ail spills with a damp, soft cloth.Spills allowed to remain dull or damage the finish. Non-colorfast items can stain the drum. - Page 11 Open the dryer door and remove light bulb cover by turning clockwise. 3. Replace the bulb only with a UO-watt appliance bulb from most hardware, grocery or variety stores. CAUTION: The bulb cover must be securely in place durtng dryer opera- tton to prevent overheating and possible damage to fabrics.
- Page 12 If you need service or assistance, we suggest you follow these four steps: 1. Before calling for assistance.. Performance problems often re- sult from little things you can find and fix yourself without tools of any kind DRYER DOES NOT RUN: 9 Is power supply cord plugged...
- Page 13 Look for this symbol of qualrty whenever you need a replacement part for your Whrrlpcol applrance FSP replacement parts WIII fit right and work righi. because they are made to the same exacting specifications used to butld every new Whirlpool appliance...
- Page 14 Notes...
- Page 15 Notes...
- Page 16 Making your world a little easier. Printed in U.S.A. Part No. 696207 01985 Whirlpool Corporation lmalic Washers, Clothes Dryers, Freezers, Refrigerator-Freezers. Ice Makers, Olshwashers. Built-In Ovens and Surface buts, Ranges. Mu...
