Operating Instructions
LED TV
Model No.
TH-24H400H
TH-32H400H
TH-40H400H
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and
retain them for future reference.
Please carefully read the "Safety Precautions" of this manual before use.
The images shown in this manual are for illustrative purposes only.
F0620-0
TH-24.32.40H400H_EN.indd 1
TH-24.32.40H400H_EN.indd 1

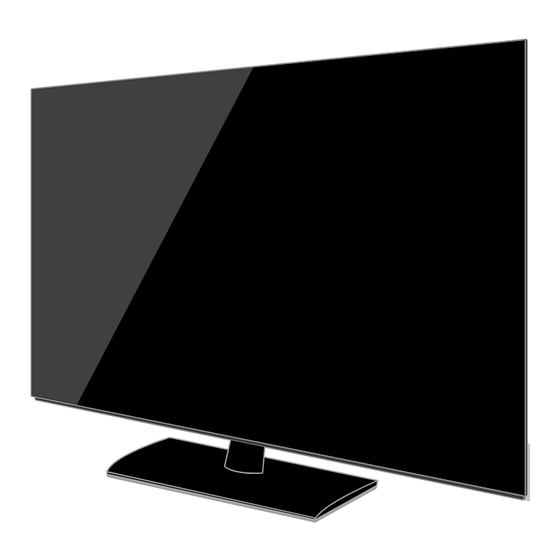

(image: TH-24H400H)
TQB4GD0350
English
FBB
English
10/7/2020 4:09:16 PM
10/7/2020 4:09:16 PM
Advertisement
Table of Contents
Related Manuals for Panasonic TH-24H400H
Summary of Contents for Panasonic TH-24H400H
- Page 1 Model No. TH-24H400H TH-32H400H TH-40H400H (image: TH-24H400H) Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. Please carefully read the “Safety Precautions” of this manual before use. TQB4GD0350 The images shown in this manual are for illustrative purposes only.
-
Page 2: Table Of Contents
These statements are under the Licence Agreement with RealNetworks, Inc. 4.4.2.1 Terms of use must prohibit the user from The illustration for TH-24H400H is used in this modifying, translating, reverse engineering, decompiling, manual unless otherwise mentioned. disassembling or using other means to discover the... -
Page 3: Safety Precautions
Do not use an unapproved pedestal / mounting supplied with the TV set. 40-inch model equipment. Be sure to ask your local Panasonic dealer ● Insert the mains plug fully into the mains socket. to perform the setup or installation of approved wall- ●... - Page 4 ● Incorrect installation may cause battery leakage, physically damaged. If this occurs, contact your corrosion and explosion. nearest Panasonic dealer immediately. ● Replace only with the same or equivalent type. ● During setup, make sure that all screws are securely ●...
-
Page 5: Setting Up The
Setting Up the TV 32-inch model ● Assembly screws (ST4 x 18 mm) × 4 Supplied accessories (M4 × 15 mm) × 4 Accessories may not be placed all together. Take care ● ● Bracket Base not to throw them away unintentionally. Operating Instructions Remote Control ●... - Page 6 Attaching the pedestal 24-inch model Correct Wrong View Front (Display) Front (Display) Side Front Front View (Display) (Display) 32-inch model 40-inch model Front TH-24.32.40H400H_EN.indd 6 TH-24.32.40H400H_EN.indd 6 10/7/2020 4:09:18 PM 10/7/2020 4:09:18 PM...
- Page 7 32-inch model Minimum: 9 mm Maximum: 14 mm Wall mounting the TV (optional) 40-inch model Please contact your local Panasonic dealer to purchase Minimum: 8 mm the recommended wall-hanging bracket. Maximum: 11 mm Rear of the TV (View from the side) Warning ●...
-
Page 8: Connecting The
Connecting the TV Pedestal hole cover (wall mount) 40-inch model ● Please ensure the TV is disconnected from the mains Note socket / power point before attaching or disconnecting ● Ensure every pedestal hole is covered with supplied any RF / AV leads. tape before wall mounting.Refer picture below. - Page 9 Connections 24-inch model 32-inch model Aerial and mains lead 24-inch model 32-inch model Aerial RF cable Mains lead (supplied) Insert the mains plug firmly into place. 40-inch model ● When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the mains socket first.
-
Page 10: Initial Setup
■ Using COMPONENT terminals Select your language. Select your area. Equipment Channel Plan Component Asia/W.Europe video cable CIS/E.Europe (Shielded) China Hong Kong Audio cable (Shielded) NZ/Indonesia ■ CATV/Other Using COMPOSITE terminals Select Equipment Start Auto Setup Scanning starts. Video cable (Shielded) Auto Tuning Audio cable (Shielded) -
Page 11: Operating The Tv
Operating the TV Input mode selection ● TV - switches to TV input mode. (Digital TV or Analogue TV). ● AV - displays [Input Selection] screen (p. 13) or press repeatedly to select the input mode. Using the remote control TV Guide (p. -
Page 12: Using Tv Guide
Using TV Guide Using the TV controls The TV Guide - Electronic Programme Guide (EPG), shows a list of broadcasts for several days (depending on the broadcasters). ● When this TV is turned on for the first time, or switched off for more than a week, it may take some time before the TV Guide is completely shown. -
Page 13: Watching External Inputs
Watching External Starting Media Player Inputs Insert the USB Flash Memory. Start Media Player. MEDIA PLAYER Connect the external equipment. (p. 9) Select the mode. Display the [Input Selection] menu, then select the input of the connected Select equipment. Access Example: [Photo]: Displays the thumbnail of all photos in the Input Selection... - Page 14 [View Select] Movie mode Lets you toggle between all photos view and folder view. Media Player Movie Title view My Movie_1 My Movie_2 My Movie_3 [All photos]: Display all photos. [Folder view]: Display the thumbnails grouped by folder. [Option Menu] ■...
-
Page 15: Using Hexaboost
Using HEXABOOST Select the item. Select Display the HEXABOOST modes. Change / Adjust / Access / Reset HEXA Change the setting. BOOST Example: Select the HEXABOOST modes. ● Change the setting option Example: Surround Sports HEXA Drama Select BOOST Animation Access Note ●... - Page 16 In [Music] and [Speech] modes, you can adjust the [Eco Mode] [Bass] and [Treble] settings, and those settings will be Automatically adjusts picture settings depending on stored for each mode. ambient lighting conditions. [Off] / [On] [User]: Adjusts the sounds manually by using the [P-NR] equaliser.
- Page 17 Adjusts the time delay for the sound output from [Off] / [On] DIGITAL AUDIO OUT or HDMI 2 (ARC function) – A Panasonic DVD Recorder will not turn off if it is still terminals if the sound does not synchronise with the in the Rec mode.
- Page 18 [System Menu] [Analogue Manual Tuning] Sets analogue channel manually. ■ [Shipping Condition] Analogue Manual Tuning Resets all settings, including tuning data, to the original condition. Searching Channels – Access this function and follow the on-screen Start Frequency (MHz) 48.00 instructions to complete the procedures. Scan up Scan down –...
- Page 19 [Skip] • You can set the characters by using the numeric and cursor buttons as follows: Skips or hides unwanted channels. ̺ 0 J K L 5 Select a channel, then reveal / hide. . ! : # 1 M N O 6 A B C 2 P Q R S 7 Skip...
-
Page 20: Additional Information
Additional Performing [System Update] Information To update automatically Set [Auto Download] and [Auto Install] to [Yes]. Setup Manual OAD Download Auto power standby function Auto Download The TV will automatically go into Standby mode in the Auto Install following conditions: ●... - Page 21 – For HD (High definition) signals only This TV supports this container recorded with ■ [Zoom1] Panasonic products. For details, read the manual of Displays a 16:9 letterbox or 4:3 image without the products. distortion. ■ ■...
-
Page 22: Troubleshooting
Turn the TV off with Mains power On / Off switch operation may damage the data or device. Panasonic (p. 12), then turn it on again. If the problem is not liable for any deterioration or damage of data or persists, initialise all settings. -
Page 23: Maintenance
Maintenance General The TV goes into Standby mode. First, remove the mains plug from the socket This TV is equipped with auto power standby outlet. function (p. 20). The remote control does not work or is Regular care intermittent. ●... -
Page 24: Specifications
Specifications Connection terminals AV1 IN (COMPONENT / VIDEO) VIDEO Model no. Pin jack × 1, 1.0 V[p-p] (75 ) : TH-24H400H 24-inch model AUDIO L - R : TH-32H400H 32-inch model Pin jack × 2, 0.5 V[rms] : TH-40H400H 40-inch model 1.0 V[p-p] (including synchronisation) - Page 25 S21-S41 (HYPER) At least three (3) years from delivery of this product, Z1-Z37 (CHINA) Panasonic Corporation will give to any third party who 5A, 9A (AUST.) contacts us at the contact information provided below, for a charge no more than our cost of physically...
