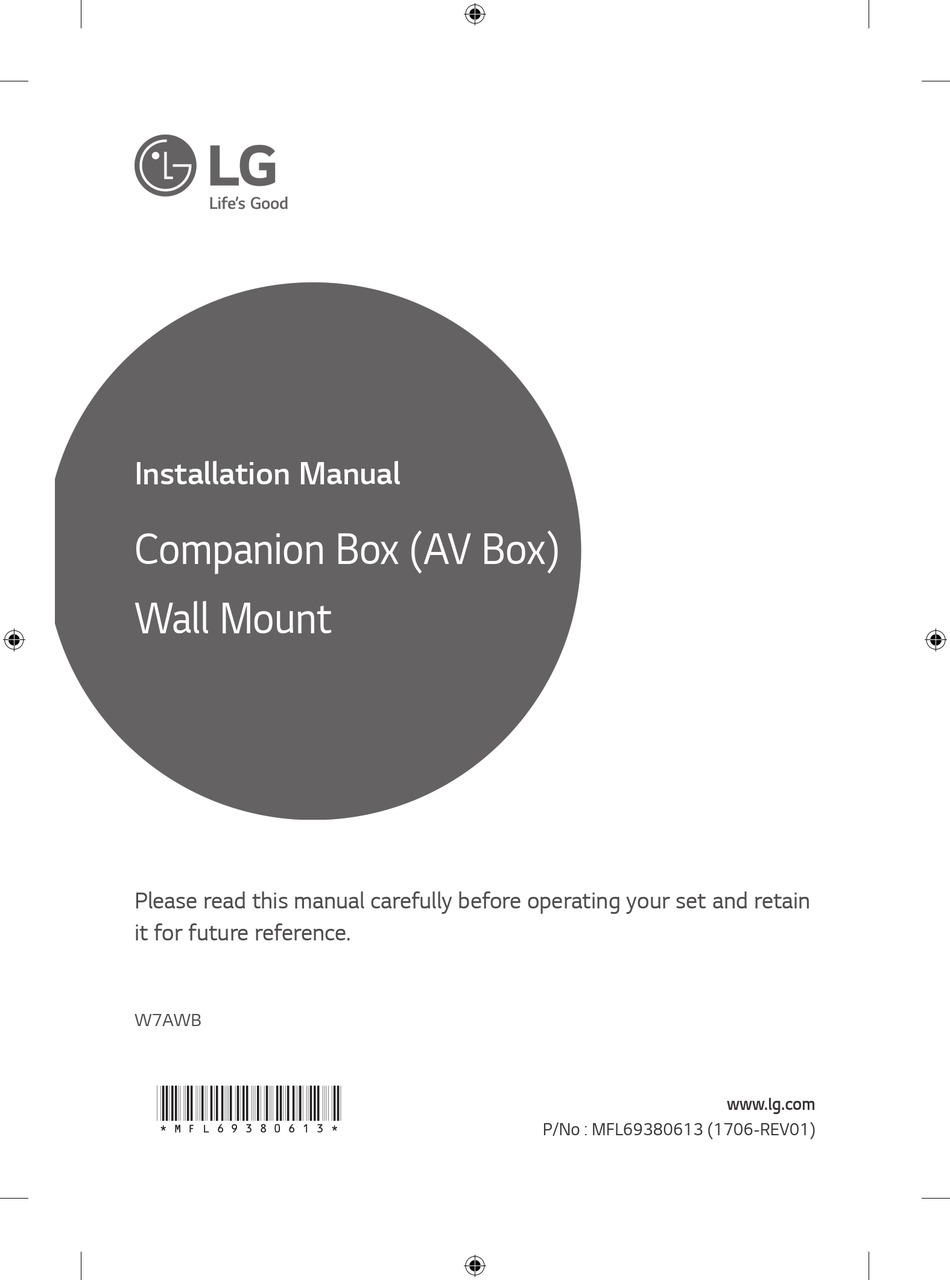

- Page 1 Installation Manual Companion Box (AV Box) Wall Mount Please read this manual carefully before operating your set and retain it for future reference. W7AWB *MFL69380613* www.lg.com P/No : MFL69380613 (1706-REV01)
- Page 2 COMPONENT Wall mounting anchor Wall mounting screw Decorative plate 4 units M5 x L65 4 units Installation Guide Sheet Installation manual Installation Guide Sheet...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • If you are a professional installer, please read this manual carefully before installing the product. • If you are a professional installer, please give this manual to the user after installing the product and ensure that the user also reads the manual carefully and retains it for future reference. After reading the manual, please keep it handy for future reference. -
Page 4: Before Installation
The manufacturer is not responsible for issues from installing the product on an angled wall or on the ceiling. • Check that the accessories provided with the product are all included before installing. LG Electronics is not liable for any damage or loss of accessories after the package has been opened. -
Page 5: Installation
INSTALLATION • The picture may differ from the actual product. • Consult a professional installer prior to mounting the TV using a wall bracket. 1. How to attach to masonry walls Marking the Screw Positions on the Wall Using the Installation Guide Sheet Check the wall type before mounting. - Page 6 Fix the Installation Guide Sheet in place according to the product’s inches. After the sheet is fixed, mark the position where the wall mount will be installed. Please follow the below directions. • Check the material of the wall and the thickness of the finishing. • If the wall is made of concrete, you can use the included anchors and screws only if the wall will not crack.
- Page 7 If there is space between the inner wall and the board Air gap Back Front Brick • When fastening the screws, use M5 screws at more than two points (a depth of 40 mm is recommended).(It is recommended that you fasten the screws at an equal distance from the left and right sides based on the center hole.
- Page 8 2. How to install the wall mounting bracket NOTE • Always install the display with 2 or more people. CAUTION • If the product is not level before the installation, level the product. • Verify which screws are appropriate for the wall type before the installation. • Use a leveler to verify the horizontal level of the wall mount.
- Page 9 When mounting to wooden studs * Screws for Wooden Wall Installation Wall mounting screw Screw Positions Drill bit ø Drill depth M5 x L65 ø 4 mm 76 mm Drywall 76 mm Wood stud [A type] [B type] Wood stud Wood stud Drywall / Drywall /...
- Page 10 Find the wooden studs within the walls and install them in the proper position. (Use of a stud finder is recommended.) Refer to page 9 for the drill bit ø and depth. (Clean the drilled hole.) Tighten the wall mounting screws for the wall bracket on the drilled hole. →...
- Page 11 Install the wall mount horizontally and then check whether it is level using a leveler. - If it is not level, the Companion Box (AV box) may fall. - The long vertical hole on the right may be useful for levelling the surface. Level Place the Companion Box (AV box) in the horizontal center of the wall mount.
- Page 12 Arrange the cables using the hole in the center. Connect the cables attached to the panel, to the Companion Box (AV box). CAUTION • Be careful not to apply a strong shock on the Companion Box or randomly move its position once its installation is complete.
-
Page 13: Specifications
SPECIFICATIONS Unit : mm 1280 41.5 477.5 Model name W7AWB Width (mm) 1280 Height (mm) Depth (mm) Product weight (kg) Max. tensile load (kg) - Page 16 The model and serial number of the product is Supported Displays located on the back or one side of the product. (Please contact the retailers or refer to the TV Record it below should you ever need service. owner’s manual for applicable models.) MODEL SERIAL...
