Table of Contents
. . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . 10
Write the model and serial numbers here:
Model # _________________
Serial # _________________
Find these numbers on a label
on the back of the unit.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
. . . . . . . . .3
. . . . . . . . . . . . . . . .5
. . . . . . . . . . . . . .6
. . . . . . . . . . .7
. . . . . . . . . . . . . 10
. . . . . . . 11
. . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . 15
. . . . . . . . . . . 19
. . . . . . . . . 20

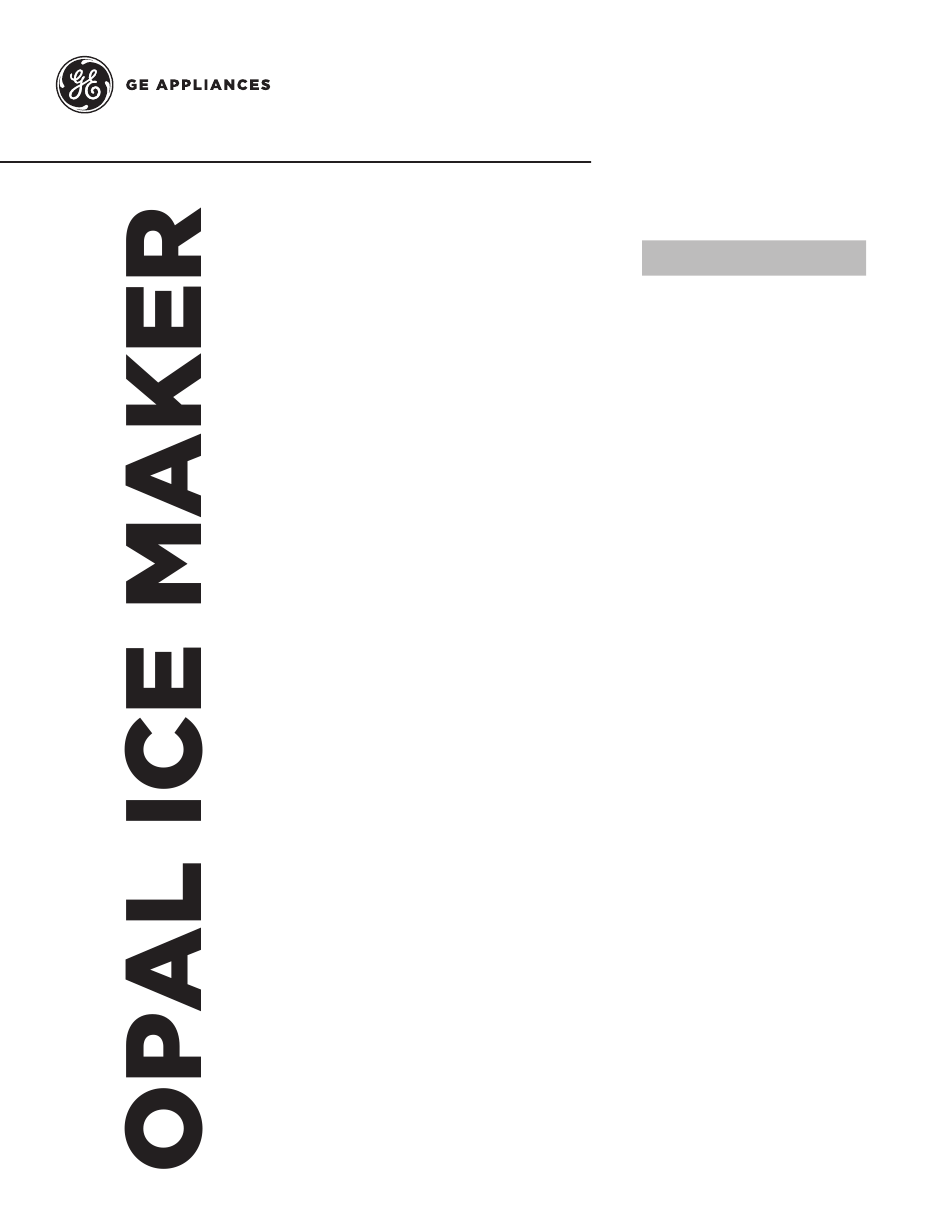

OWNER'S MANUAL
XPIO13BCBT
XPIO13SCSS
XPIO23BCBT
XPIO23SCSS
ENGLISH/FRANÇAIS
49-1000464 Rev. 0 03-20 GEA
Advertisement
Table of Contents
Related Manuals for GE OPAL XPIO13BCBT
Summary of Contents for GE OPAL XPIO13BCBT
-
Page 1: Table Of Contents
Write the model and serial numbers here: Model # _________________ Serial # _________________ Find these numbers on a label on the back of the unit. GE is a trademark of the General Electric Company. Manufactured under trademark license. 49-1000464 Rev. 0 03-20 GEA... - Page 2 THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME. Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family. We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too.
-
Page 3: Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE T o reduce the risk of fire, explosion, electric shock, exposure to UV radiation, or injury WARNING when using your Opal, follow these basic safety precautions. ■ D o not, under any circumstances, alter or remove the third power to the ice maker before removing the external (ground) prong from the power cord. For personal safety, covers. this product must be properly grounded. ■ D o not use with water that is micro-biologically unsafe or ■ D o not exceed power outlet ratings. It is recommended of unknown quality. - Page 4 CONSIGNES DE SÉCURITÉ IMPORTANTES LISEZ, SUIVRE, ET CONSERVER CES INSTRUCTIONS Pour réduire le risque d'incendie, d'explosion, de choc électrique, AVERTISSEMENT d’exposition aux rayons UV ou de blessure lors de l’utilisation de votre Opal, observez les consignes de sécurité élémentaires suivantes. ■ E n cas, vous ne devez modifier ni retirer la troisième broche ■ A fin de prévenir l'exposition aux radiations UV, débranchez (terre) du cordon électrique. Pour votre sécurité, ce produit doit...
-
Page 5: Parts Included
Parts Included Base Side Tank Accessory (Specific models Opal Ice Maker only) Side Tank Clip Ice Scoop Ice Bin OPAL Ice Maker Quickstart Guide IMPORTANT: Read and understand all safety instructions detailed in Owner's Manual before using the Opal. Cleaning the Ice Bin and Water Reservoir Remove the ice bin and wash with warm soapy water, then rinse thoroughly. Use a damp sponge to wipe down the water reservoir under the ice bin. -
Page 6: Getting Started
Getting Started Installation Requirements Lifting Hazard: It is recommended to have two people move and install the ice maker in CAUTION order to prevent injury. ■ P roduct is designed to be installed indoors. Do not ■ I nstall the product in a well-ventilated area with an use your ice maker outdoors. ambient temperature between 55°F and 90°F. ■ P roduct must be installed upright on a flat, level ■ D o not place the product near heat sources such as surface that is able to support the total weight when ovens or cooktops. -
Page 7: Care And Cleaning
Care and Cleaning To keep your nugget ice tasting fresh and your Opal WARNING Chemical Exposure Hazard, when looking great, we recommend cleaning/sanitizing your Opal once per week. cleaning with bleach, use bleach in a well ventilated area and avoid mixing bleach with other household cleaners. To clean the exterior of the ice maker, unplug the product, then use a soft cloth dampened with soapy WARNING water to gently clean the exterior surfaces. Dry with a Unplug the product before cleaning by... - Page 8 Care and Cleaning System Cleaning / Sanitizing Procedure (continued) Pull to the left to unhook 8. W hen the 'Cleaning' indicator light turns off, drain the Opal. 9. U nhook the top of the drain hoses at the back of the unit. See figure 5. Figure 5 10. T hen lay them down to drain into a sink or bucket that is below the level of the ice maker. See figure 6 and 7. 11. R emove the plugs and allow the water to completely drain. See figure 7. 12. O nce water stops flowing, re-insert the drain plugs. Figure 6 13. T o rinse: add five cups of fresh water to the water reservoir, and press the 'Clean' button to initiate a second cleaning cycle. To exit the cleaning cycle at any time, press and hold the 'Clean' button for 3 Figure 7...
- Page 9 Care and Cleaning Removal of Mineral Deposits 1. F ill the reservoir with white vinegar to the max fill line and run up to three cleaning cycles. Or purchase an Opal Cleaning Kit and follow instructions inside. 2. I f using vinegar, leave the vinegar in the unit for 18 hours and set a vinegar-soaked towel on the ice chute overnight to further dissolve any mineral buildup. See figure 10. 3. Clean the sensors with vinegar and wipe clean with water. After draining the vinegar, run three rinse cycles, using fresh water for each rinse. See figures 11, 12, and 13 to reference Figure 10 location of the sensors.
-
Page 10: Display Settings
2. You turn it off for more than a few days. (i.e. vacation) your Opal. Water Filter The Opal Water Filter, is available at GE Appliances NOTE: Remove your water filter (if installed) and and is the only water filter compatible with Opal. Please reinstall the screened intake cap prior to cleaning your follow the installation instructions included with your filter. -
Page 11: Side Tank Accessory
Side Tank Accessory NOTE: There are two drain tubes located on the back of your Opal Nugget Ice Maker indicated as drain tube A and B in the illustration on page 12. 1. H and Wash Only: Rinse and hand wash Opal Side Tank with warm water and a mild dish soap. Remove Opal Side Tank’s cap and wash the cap and rubber valve with water and a mild dish soap. The Side Tank base can be washed by disconnecting the hose and adding a small amount of soapy water to it. Scrub as needed and rinse thoroughly. The rinse water should drain out the port in the back. Side Tank Rinse the cap, rubber valve, tank and the base well to Cap and... - Page 12 Side Tank Accessory 6. Continued. Side tank clip Side tank clip area Side tank clip Bottom view Bottom view 7. Remove Opal Side Tank’s reservoir from i ts base. 8. U nscrew Opal Side Tank’s cap from the reservoir. F ill the clear reservoir with water. 9. R eplace Opal Side Tank’s cap. Ensure the cap is clean when installing. 10. C arefully flip over Opal Side Tank’s reservoir and place in the base. Water should start flowing into the Opal Nugget Ice Maker and bubbles in the Opal Side Tank will appear periodically during the time water is flowing to the ice maker. NOTE: If water does not appear to flow into the ice maker, please check for the following: - T here may be bubbles in tube (B) connecting the Side Tank to the Opal. - Tube (B) is not lying flat. If either of the above issues are present, adjust tube (B) to allow the water to flow. 11. Fill Opal Nugget Ice Maker’s reservoir (if desired). 12. Plug in Opal Nugget Ice Maker, and begin making ice. 49-1000464 Rev. 0...
-
Page 13: Troubleshooting
Side Tank Accessory To reduce the risk of electrical shock or injury when using your Opal, follow these basic WARNING safety precautions: ■ U nplug the product before cleaning by hand and when ■ S ide tank should be assembled to ice maker per not in use. installation instructions. Installing side tank in a different manner may result in overturning risk. ■ D o not use with water that is microbiologically unsafe or of unknown quality. - Page 14 Opal, the user is encouraged to try to correct the interference by one or more of the following measures: WiFi Connect Your OPAL ice maker is WiFi Connect Enabled. A WiFi Please visit geappliances.com/ge/ connected-appliances/ to learn more about connected communication card is built into the product allowing it to communicate with your Smart Phone for remote appliance features and to learn what connected monitoring, control, and notifications.
-
Page 15: Ice Maker Product Specifications
Ice Maker Product Specifications Description of product Portable nugget ice maker Model XPIO13BCBT / XPIO13SCSS / XPIO23BCBT / XPIO23SCSS Voltage/Frequency 120V AC/60Hz Current 3.0 A Ice storage capacity 3.0 lbs Ice making rate 24 lbs per day / 1 lb per hour* Dimensions (width x depth x height) 13.43 x 17.5 x 16.5 Installation clearance (sides and back) 3 in Operating environment 55°F - 90°F Weight (when empty) 38.6 lbs NOTE:Technical data and performance information provided for reference only. Specifications are subject to change. Check the rating label on your ice maker for the most accurate information. - Page 16 Notes 49-1000464 Rev. 0...
- Page 17 Notes 49-1000464 Rev. 0...
- Page 18 Notes 49-1000464 Rev. 0...
-
Page 19: Limited Warranty
One Year If the ice machine fails due to a defect in materials or workmanship, during the limited one-year From the date of the warranty, GE Appliances will either replace your product with a new or remanufactured product, original purchase or refund the purchase price of the product at GE Appliances sole discretion. What GE Appliances Will Not Cover: ■ Service trips to your home. -
Page 20: Consumer Support
Consumer Support Service and Registration Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. Register your appliance at GEAppliances.com/register or visit myopalservice.com to submit a service request. Contact Us If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to: In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225 GEAppliances.com/contact In Canada: Director, Consumer Relations, Mabe Canada Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3 GEAppliances.ca/en/contact-us 49-1000464 Rev. 0...
