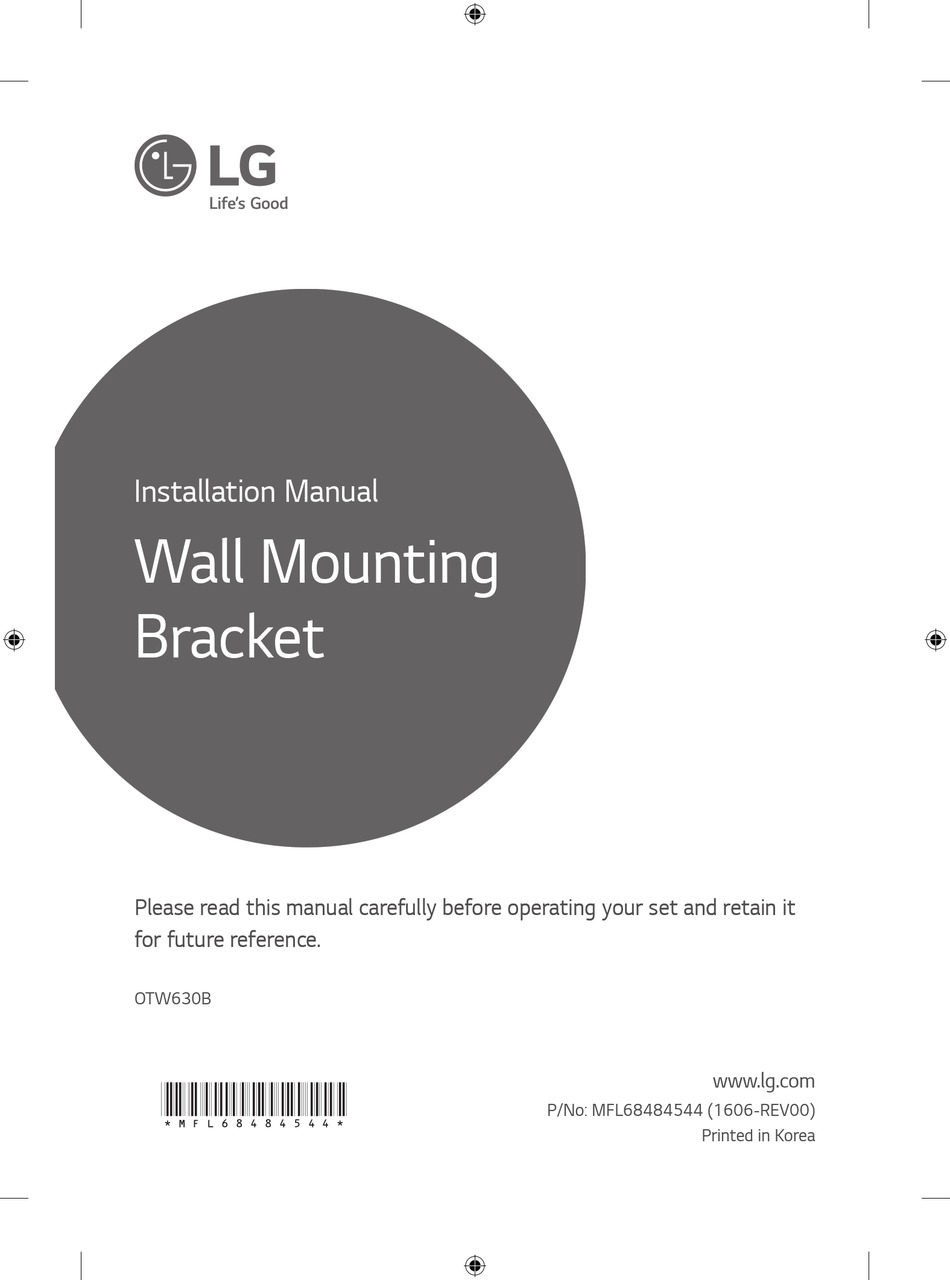

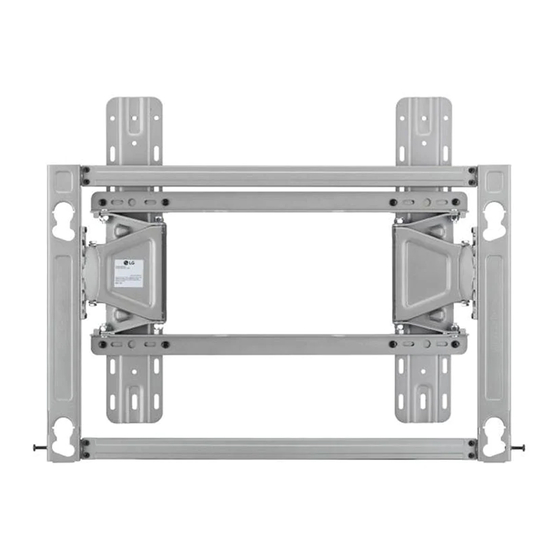

- Page 1 Installation Manual Wall Mounting Bracket Please read this manual carefully before operating your set and retain it for future reference. OTW630B www.lg.com *MFL68484544* P/No: MFL68484544 (1606-REV00) Printed in Korea...
- Page 2 COMPONENT Wall mounting anchor Wall mounting screw Install manual 8 units 10 units Guide spacer Guide space screw Guide space screw 2 units 2 units 2 units (M8 x L77) (M4 x L12) Guide spacer Guide space screw Set protection cushion 2 units 2 units 4 units...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • If you are a professional installer, please read this manual carefully before installing the product. • If you are a professional installer, please give this manual to the user after installing the product and ensure that the user also reads the manual carefully and retains it for future reference. -
Page 4: Before Installation
• Check that the accessories provided with the product are all included before installing. LG Electronics is not liable for any damage or loss of accessories after the package has been opened. -
Page 5: Installation
INSTALLATION • The picture may differ from the actual product. • Consult a professional installer prior to mounting the TV using a wall bracket. 1. How to Attach the Brackets for the Product to the TV NOTE • If the screws are not fully tightened when you fix the guide spacers, check the length of the screws again. Guide spacer screw Guide spacer screw Guide spacer... -
Page 6: How To Attach To Masonry Walls
2. How to attach to masonry walls Please follow the below direction. • Check the material of the wall and the thickness of the finishing. • Use the anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone masonry brick and hallow block that do not crack. - Page 7 3. How to install the wall mounting bracket When mounting to wooden stud Wood stud Drywall 76 mm Wood stud Drywall Wall mounting screw Locate the wood studs, installed at 406 mm intervals, and use a stud finder to mark the centers of the wood studs. Use the Ø...
- Page 8 When installing on a masonry wall Wall mounting screw • When aligning the wall mounting bracket to the location to install, mark the part to screw on the wall and then remove the wall mounting bracket. • Refer to next picture to attach the wall mounting bracket. •...
- Page 9 4. How to assemble the wall mounting bracket and display NOTE • It is recommended that installation be performed by 2 or more people. CAUTION • Prevent the power cord from being pinched between the wall mounting bracket and the set when installing the set. (A pinched power cord may cause damage to the product.) When inserting the guide spacer, align its...
- Page 10 5. Setting the Lock Springs CAUTION • After mounting the product, insert the Lock Springs in the bottom corners of the wall mount to fix in place. If the wall mounting bracket is not attached securely, the set may fall off, resulting in damage or injury. Lock Spring 6.
- Page 11 7. How to Organize Cables and Attach Protective Cushions Organize the cables as shown in the illustration. Please purchase a band for cable organization, or use the band that comes with the TV. Attach the protective cushions to minimize the impact between the wall and the TV in case they bump against each other when adjusting the angle.
-
Page 12: Specifications
SPECIFICATIONS 13±2° 15±2° [Unit: mm] Minimum Maximum 3131 345.5 175.5 35.5 224.3 84.3 Model name OTW630B Width (mm) Height (mm) 512.9 Depth (mm) Product weight (kg) Wall mounting bracket VESA specifications 600 x 300 Max. tensile load (kg) - Page 14 The model and serial number of the product is located Supported Displays on the back or one side of the product. Record it below (Please contact the retailer or refer to the TV should you ever need service. Owner’s Manual for applicable models.) MODEL SERIAL...
