Installing the Transparency Unit
Home
>
Using the Transparency Unit
Installing the Transparency Unit
Follow the steps below to install the Transparency Unit.
Make sure the scanner is turned off, and then unplug the power cord from the scanner.

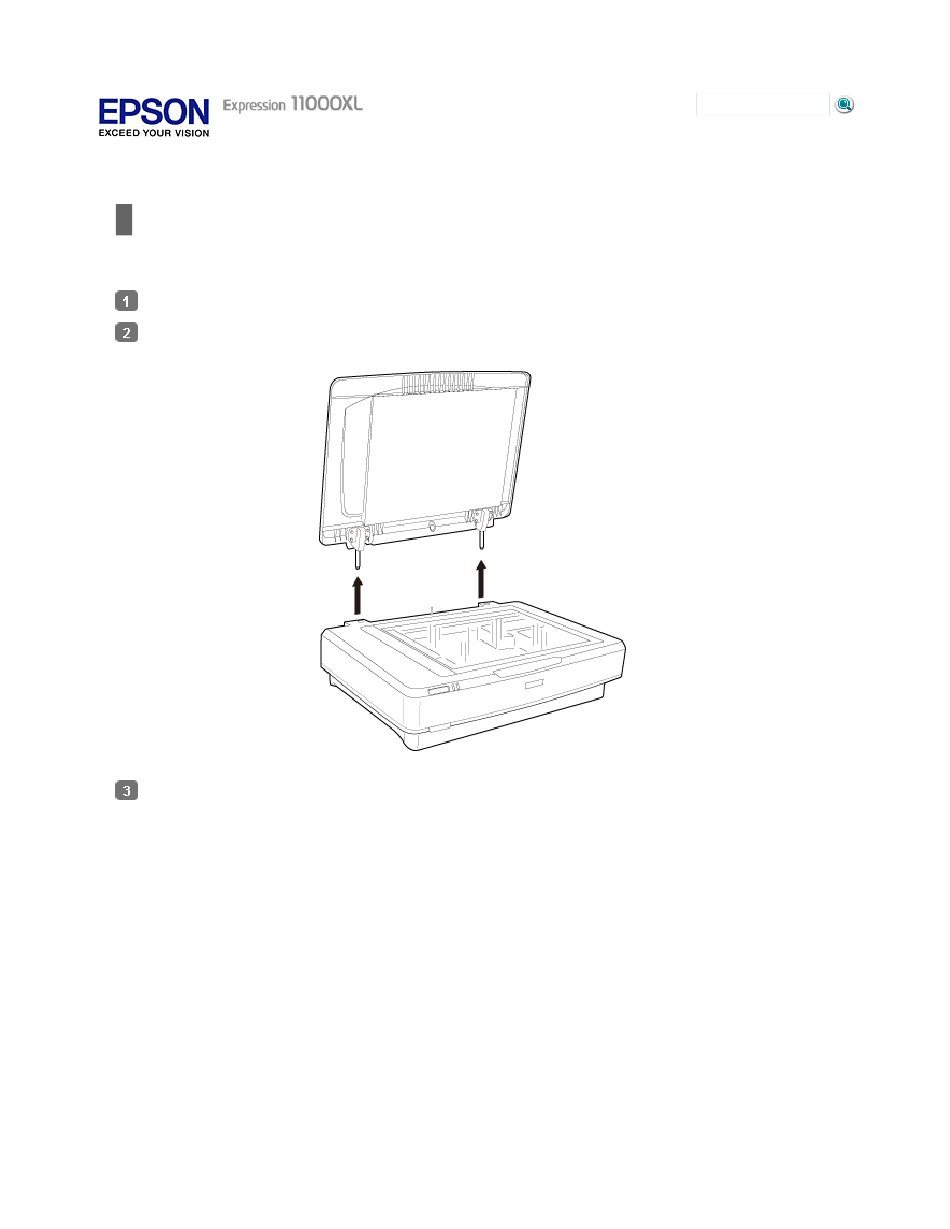

Open the scanner's document cover, and then remove it by lifting the cover straight up.
Align the pins of the unit with the holes of the scanner, and then lower the Transparency Unit
until it rests securely on the scanner with the pins in the holes.
18348_Epson_11000XL_Transparency_Unit_Installation_Instructions_Rev.1_4.17.2013
mhtml:http://sharepoint01/support/FAQ/Lists/EagleSoft FAQ Requests/Attachments/4123/...
Page 1 of 3
4/12/2013
Advertisement
Related Manuals for Epson Expression 11000XL
Summary of Contents for Epson Expression 11000XL
- Page 1 Installing the Transparency Unit Page 1 of 3 Home > Using the Transparency Unit Installing the Transparency Unit Follow the steps below to install the Transparency Unit. Make sure the scanner is turned off, and then unplug the power cord from the scanner. Open the scanner’s document cover, and then remove it by lifting the cover straight up.
- Page 2 Installing the Transparency Unit Page 2 of 3 Remove the reflective document mat from the Transparency Unit as shown below. Place the transparency guide on the scanner glass as shown below. mhtml:http://sharepoint01/support/FAQ/Lists/EagleSoft FAQ Requests/Attachments/4123/... 4/12/2013...
- Page 3 Installing the Transparency Unit Page 3 of 3 Close the Transparency Unit. Connect the Transparency Unit’s connector to the option connector on the back of the scanner. Connect the power cord to the scanner and then turn on the scanner. Important: Do not put heavy objects on the Transparency Unit;...
