BOSCH AutoDome 7000 HD
This Standard Operating Procedure is to provide a standard configuration for CCTV cameras in
District 5 for consistent operation in SunGuide, VLC and IVEDDS. Standard settings to check:
Network settings, Video/Encoder settings, SNTP (time server type), IP addresses, PTZ settings,
Date and Time, RTSP port, NTCIP (port and address), and On Screen Display (ODS).
The following SOP is for the BOSCH AutoDome 7000 HD (7230) IP camera.

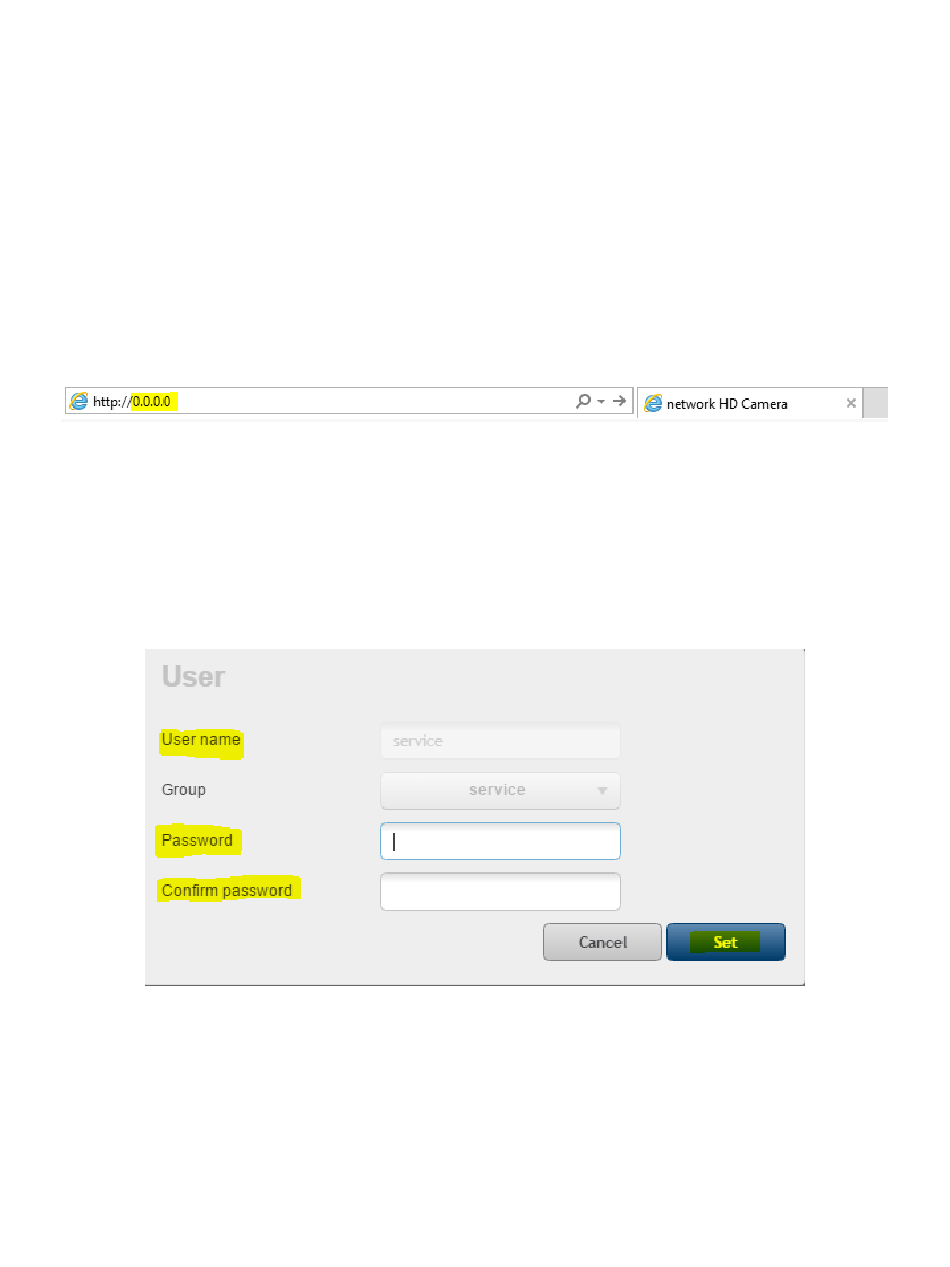

Log into the camera, using Internet Explorer or Chrome to access the camera's user interface.
Type in the default IP address.
Enter the following:
Enter the user name:
Enter the password:
Click "Set".
SOP for CCTVs in SunGuide
<service>
<Default>
