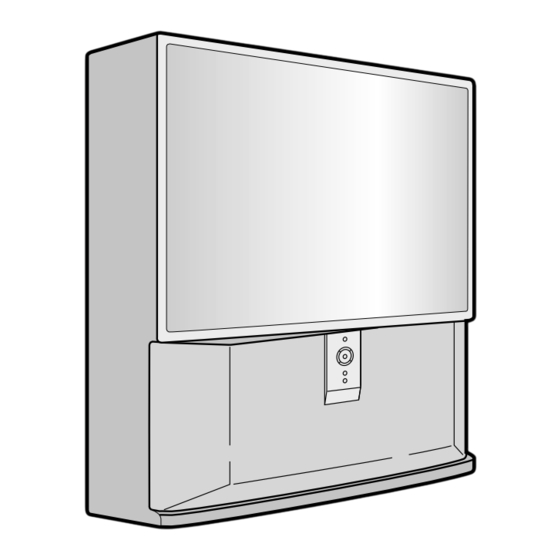

PROJECTION TV RECEIVER Chassis : J51A Model : SP43J5HF3C/XTT SP53J5HF3C/XTT PROJECTION TV RECEIVER C O N T E N T S Precautions Reference Information Specifications Alignment and Adjustments Troubleshooting Exploded View and Parts List Electrical Parts List Block Diagrams Wiring Diagram...
Initial display when the service mode is switched. 1. When a RF signal is received SERVICE MODE GEOMETRICS PICTURE PICTURE2 OPTIONS RESET 2. When the PC mode is received F.MENU F.MENU (Press to MAIN MENU ZOOM COMPRESS FREEZE SET UP RESET EXIT Samsung Electronics...
Page 4
CH UP/DOWN Select item by moving cursor VOL UP/DOWN Decrease or increase the adjustment values Note : The PC mode can be switched to the service mode by pressing the F.Mode Key (only on the factory remote control). Samsung Electronics...
Page 7
Alignment and Adjustments 4-2 Screen Change (When adjusting I C Bus Geometric items) V SHIFT V SIZE V LINEARITY V - S - CORRECTION PIN PHASE H SIZE PIN AMP H SHIFT V BOW V ANGLE Samsung Electronics...
Page 8
5. Adjust the Red lens using the same method as with the Green lens. 6. Note: The Blue lens is not adjusted because its focus varies little (VM-coil is installed). 7. After the adjustments are completed, disconnect the jig pin connector. Samsung Electronics...
Page 9
2. Adjust VR471 (located on the deflection board) so that the digital meter indicates 9. Adjust the high light with viewing the light DC 31V ± 0.1V. side of the screen. 10. If necessary, redo adjustments 6~9. 11. Press the Menu key to exit. Samsung Electronics...
Page 10
Set the Red lens at the point where Orange becomes Crimson. 7. Blue lens adjustment Set the Blue lens at the point where Purple becomes Green. Examine these points together Fig. 4-1 Crosshatch Pattern. RED ABERRATION BLUE ABERRATION L1, L2 < P Fig. 4-2 Color Aberration Samsung Electronics...
Page 11
(X:374=7 2+30 12, Y:220=14 2+32 6) 2 0 .3 4 m m 8 7 .1 9 m m 2 0 .3 4 m m 5 1 .9 9 m m 1 8 .8 4 m m 5 1 .9 9 m m Samsung Electronics...
Page 12
Data Shift Button (After PAL Adjustments are Completed, Press to transmit data to the NTSC mode) FACTORY CONV. ESCAPE 3SPEED F.MENU Operation of remote control may be affected by bright artificial light near to the TV set. 4-10 Samsung Electronics...
Page 13
9. LINE SHIFT Press to move a line up/down or left/right. 10. FACTORY DATA SELECT BUTTON Press to call the factory default values. MENU MENU 11. H/V DIRECTION SELECT BUTTON Press to switch the cursor direction horizontally or vertically. Samsung Electronics 4-11...
Page 14
Press to move the convergence pattern left ( ) or right ( 18. CONVERGENCE DATA ZERO BUTTON Press to zero the convergence correction data. ROTATE 19. DATA SHIFT BUTTON Press to transmit data (PAL mode / NTSC mode). 4-12 Samsung Electronics...
Page 15
If OSD is displayed as shown in figure below, press the key to exit. Then, redo step 3 to enter the Convergence Mode. NOTE After entering the Convergence Mode, Stand by for about five seconds before doing the adjustments. Samsung Electronics 4-13...
Page 16
Alignment and Adjustments -/-- 4. To adjust GREEN, first press the and the keys, and then press the key. -/-- 5. The key moves the cursor right, and the key moves the cursor left. 4-14 Samsung Electronics...
Page 17
Alignment and Adjustments key moves the cursor horizontally or vertically. MENU MENU When the key is pressed once again, the cursor moves horizontally. NOTE MENU MENU Samsung Electronics 4-15...
Page 18
After the Line Shift is cancelled by pressing the key, use the Channel and Volume keys (Up/Down) to make big adjustments. 9. After the green convergence adjustments are completed, press the key to save the data. 4-16 Samsung Electronics...
Page 19
B-Mute, and (3) the for B-select. 13. To adjust BLUE, redo steps 5 ~ 8, 12. 14. If any color is not properly adjusted when displaying the red, blue and green colors, readjust the color. Samsung Electronics 4-17...
Page 20
) key to save the data. The cursor moves to center, and then automatically moves up and NOTE to the left about five seconds later. S.STD 16. After the Convergence Adjustments are completed, press the key to exit. 4-18 Samsung Electronics...
Page 21
V POS DOWN Adjust screen left to balance PICTURE SETUP V SCALE SHRINK GROW EXIT RECALL SETTINGS EXIT SAVE AND E XI T Exit Adjust horizontal position (bottom) . Save and Exit Volume+ key CH Down,Volume+ key Samsung Electronics 4-19...
Page 22
P I CT URE SE T UP RESET EXIT EXIT Finish picture setup Finish Computer Setup Exit Volume+ key F.Menu key Adjust four different modes:VGA3 (VGA), VGA (DOS), VESA (SVGA), VEAS (XGA). 2). Perform the setup for each PC mode and picture setup. 4-20 Samsung Electronics...
Page 23
Exit Save and Exit Adjust horizontal position (bottom) CH Down, Volume+ key Volume+ key 1. Adjust four different modes:VGA3 (VGA), VGA (DOS), VESA (SVGA), VEAS (XGA). 2. Perform the setup for each PC mode and picture setup. Samsung Electronics 4-21...
Page 24
A N A L O G G N D SCL1 A N A L O G V C C SDA1 H A L F T O N E VSYNC OSD B HSYNC OSD G BLANK OSD R 4-22 Samsung Electronics...
LNA-INPUT SCART2 IDENT INPUT PORT ANALOG GND ANALOG VCC HALF TONE SIGNAL FOR OSC-FREQUENCY OSD CONTROL OSD B ON SCREEN DISPLAY BLUE OUTPUT OSD G ON SCREEN DISPLAY GREEN OUTPUT OSD R ON SCREEN DISPLAY RED OUTPUT Samsung Electronics 4-23...
Page 26
SECAM L/L’ MAIN SECAM SYSTEM SWITCH TIMER-LED TIMER LED 4.6V CONV. MODE CONTROL DATA3 TTX-SCL TELETEXT CLOCK BUS LINE MAIN-NT-V MAIN VIDEO SAW FILTER SWITCH BUS-STOP C BUS STOP POWER2 PC POWER CONTROL 4.6V CONV. MODE CONTROL DATA2 4-24 Samsung Electronics...
Page 27
1.6V H-BLK H-BLANK INPUT VERTICAL DRIVE (+VOLTAGE) 2.90V VERTICAL DRIVE (-VOLTAGE) 2.95V ABL INPUT 2.15V V-BLK V-BLANK INPUT EAST WEST OUT 2.2V SYNC V-SYNC OUT SYNC H-SYNC OUT 5V-A 5V-B INPUT TEST-Y WHEN CG ADJ PATTERN INPUT Samsung Electronics 4-25...
Page 28
OSD-G INPUT OSD-B OSD-B INPUT BLANK(MICOM OUT) NOT USED V-MUTE VIDEO MUTE 4.72V T/P-R TTX/PIP-R T/P-G TTX/PIP-G T/P-B TTX/PIP-B T/P-F/B TTX/PIP-F/B R-OUT R-OUT G-OUT G-OUT B-OUT B-OUT IK OUT 3.65V SPOT SPOT OUT VM-Y VM-Y OUT 5.42V 4-26 Samsung Electronics...
PIP-L/L’ SECAM SYSTEM SWITCH PIP-NT-V PIP VIDEO SAW FILTER SWITCH SUB-AFT SUB-AFT OUTPUT 4.37V IF-IN IF INPUT IF-AGC V-SYNC V-SYNC INPUT H-SYNC H-SYNC INPUT FAST BLANK OUTPUT 2.46V B OUTPUT 0.66V G OUTPUT 0.66V R OUTPUT 0.66V Samsung Electronics 4-27...
Page 30
5V INPUT R-IN PC R INPUT G-IN PC G INPUT B-IN PC B INPUT PC H-SYNC INPUT PC V-SYNC INPUT SERIAL DATA LINE SERIAL CLOCK LINE INPUT REMOCON 2.5V R-OUT/Y3 PC Y3 OUT B-OUT/C3 PC C3 OUT 4-28 Samsung Electronics...
Page 31
M-OUT-L MONITOR-L OUTPUT M-OUT-R MONITOR-R OUTPUT QSS-IN QUASI-SPLIT SOUND INPUT 1.95V AM-IN AM INPUT 2.53V SERIAL DATA LINE 4.6V SERIAL CLOCK LINE 4.6V 5V-A 5V-A INPUT 8V-INPUT AV4-RIN AV4-R INPUT AV4-LIN AV4-L INPUT S-RESET SOUND RESET INPUT Samsung Electronics 4-29...
Page 32
Alignment and Adjustments PIN NO. ITEM FUNCTION OUT VOLT 12V INPUT SURROUND DOLBY SURROUND OUTPUT 5.6V CENTER DOLBY CENTER OUTPUT 5.6V MAIN-R MAIN-R OUTPUT 5.6V MAIN-L MAIN-L OUTPUT 5.6V 4-30 Samsung Electronics...
V-BLK INPUT H-BLK H-BLK INPUT 0.52V COMP COMP VIDEO OUTPUT (N.C) INPUT REMOCON CTRL CTRL (N.C) D3/SEL 0.2V WHEN TEST PATTERN B OUT G(TEST) WHEN TEST PATTERN G OUT WHEN TEST PATTERN R OUT SYNC SYNC OUTPUT 4.41V 4-32 Samsung Electronics...
The current measured should the X–ray Protection Specifications Label, and not exceed 0.5 milliamp. Reverse the power- the Product Safety and X-ray Warning Note on plug prongs in the AC outlet and repeat the the service data schematic. test. Samsung Electronics...
Page 64
14. Components, parts and wiring that appear to have overheated or that are otherwise damaged should be replaced with parts that meet the original specifications. Always determine the cause of damage or overheat- ing, and correct any potential hazards. Samsung Electronics...
(except lamp) are damaged, replace the whole optical engine. 5. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks). Samsung Electronics...
Page 66
4. Do not use freon-propelled chemicals. These unpackaged replacement ESDs. Motions such can generate electrical charges that damage as brushing clothes together, or lifting a foot ESDs. from a carpeted floor can generate enough static electricity to damage an ESD. Samsung Electronics...
Page 67
Ly : 240 Y : 0.28 53 Inch Hx : 278 Hy : 272 Y : 4.93 Lx : 265 Ly : 233 Y : 0.26 High Voltage 31.5 [KV] 250[V] 6.3[A] FUSE CODE NO : 3601-000300 285W Power Consumption Samsung Electronics...
Millimeter Hour Millisecond Inches Per Second Millivolt Kilowatt-hour Nanofarad Ω Kilogram Kilohertz Picofarad kΩ Kilohm Pound Kilometer Revolutions Per Minute km/h Kilometer Per Hour Revolutions Per Second Kilovolt Second (Time) Kilovolt-ampere Volt Kilowatt Volt-ampere Liter Watt Megahertz Watt-hour Samsung Electronics...
Page 69
Fail Safe Voltage Controlled Oscillator Ground VCXO Voltage Controlled Crystal Oscillator Green-Y Very High Frequency High Video Intermediate Frequency High-Frequency Variable Resistor HI-FI High Fidelity Video Tape Recorder Inductance-Capacitance VTVM Vacuum Tube Voltmeter Integrated Circuit Transistor Intermediate Frequency Samsung Electronics...
Page 72
C X A 1 8 3 9 Q SLAVE ADDR.: 8Ah S D A 9 2 8 0 SLAVE ADDR.: 2Ch SE RIAL BUS S D A 5 4 5 7 # 32:T TX - SDA SLAVE ADDR.: 22h #48: T TX - SC L Samsung Electronics...
(BV, BH, RV, RH, GV, GH) 1. Check F802, F855, F805, F806 on the SUB Board Normal 2. Check the output from H-BLK, V-BLK, Check the associated D1, D2, D3 on Check Convergence circuitry the Main Board Module Samsung Electronics...
Page 80
I 4 @ 6 X ? @ @ h ? @ @ ? e ? @ @ ? e ? @ @ ? @ @ @ @ @ 0 Y ? ? @ 1 TP03 TP04 TP05 TP06 TP07 TP08 Powe L ne S gna L ne 10-2 Samsung Electronics...
Page 81
? @ h f ? V 4 @ @ @ @ 0 Y ? @ @ @ @ @ @ @ ? e ? @ @ ? f V 4 @ @ 0 Y e @ @ g ? @ @ ? @ @ ? @ @ ? TP01 : Power Line : Signal Line Samsung Electronics 10-3...
Page 92
? @ h f ? V 4 @ @ @ @ 0 Y ? @ @ @ @ @ @ @ ? e ? @ @ ? f V 4 @ @ 0 Y e @ @ g ? @ @ ? @ @ ? @ @ ? TP01 : Power Line : Signal Line 10-14 Samsung Electronics...
Page 93
? @ @ ? e W & ( Y e ? @ @ ? ? @ @ ? ? @ @ ? f @ 1 e ? 7 @ H e ? 3 @ L e @ @ ? @ @ ? ? N @ @ @ H f ? @ @ ? TP01 TP01 TP03 TP02 TP02 TP03 TP03 TP04 TP04 TP05 TP05 TP06 TP06 TP04 TP05 TP06 : Power Line : Signal Line Samsung Electronics 10-15...
Page 94
? @ h f ? V 4 @ @ @ @ 0 Y ? @ @ @ @ @ @ @ ? e ? @ @ ? f V 4 @ @ 0 Y e @ @ g ? @ @ ? @ @ ? @ @ ? : Power Line : Signal Line 10-16 Samsung Electronics...
Page 95
Schematic Diagrams 10-17 CONVERGENCE MODULE : Power Line : Signal Line Samsung Electronics 10-17...
Page 96
Schematic Diagrams 10-18 CRT : Power Line : Signal Line 10-18 Samsung Electronics...
Page 97
Schematic Diagrams 10-19 PCB-CONTROL : Power Line : Signal Line Samsung Electronics 10-19...
Page 98
Schematic Diagrams 10-20 FRONT-A/V : Power Line : Signal Line 10-20 Samsung Electronics...
