SIMATIC
ET 200SP HA
Digital output module DQ
32x24VDC/0.5A HA
(6DL1132-6BL00-0PH1)
Manual
09/2018
A5E39265993-AA
Security information
Preface
Product overview
Wiring
Displays and interrupts
Technical specifications
Drivers, parameters,
diagnostics messages and
address space
1
2
3
4
5
6
7
A

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC ET 200SP HA DQ 32x24VDC/0.5A HA

Summary of Contents for Siemens SIMATIC ET 200SP HA DQ 32x24VDC/0.5A HA

  • Page 1 Security information Preface Product overview SIMATIC Wiring ET 200SP HA Digital output module DQ Parameters 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Displays and interrupts Manual Technical specifications Drivers, parameters, diagnostics messages and address space 09/2018 A5E39265993-AA...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Table Of Contents

    Table of contents Security information............................5 Preface.................................7 Product overview............................9 Properties of the I/O module DQ 32x24VDC/0.5A HA.............9 Wiring.................................11 Pin assignment of the I/O module DQ 32x24VDC/0.5A HA (1-wire connector).....11 Pin assignment of the I/O module DQ 32x24VDC/0.5A HA (2-wire connector).....13 Schematic circuit diagram......................14 Pulling I/O module in runtime / output disable switch activated..........15 Parameters..............................17 Parameters of the I/O module DQ 32x24VDC/0.5A HA............17...
  • Page 4 Table of contents Digital output module DQ 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Manual, 09/2018, A5E39265993-AA...

  • Page 5: Security Information

    In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept. Customer is responsible to prevent unauthorized access to its plants, systems, machines and networks.
  • Page 6 Security information Digital output module DQ 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Manual, 09/2018, A5E39265993-AA...

  • Page 7: Preface

    Preface Validity of the documentation This manual describes the following I/O module: System family I/O module Article number SIMATIC; DQ 32x24VDC/0.5A HA 6DL1132-6BL00-0PH1 Distributed I/O System; ET 200SP HA ET 200SP HA Distributed I/O system system manual. It supplements the Functions that generally relate to the system are described in this manual.
  • Page 8 Preface Digital output module DQ 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Manual, 09/2018, A5E39265993-AA...

  • Page 9: Product Overview

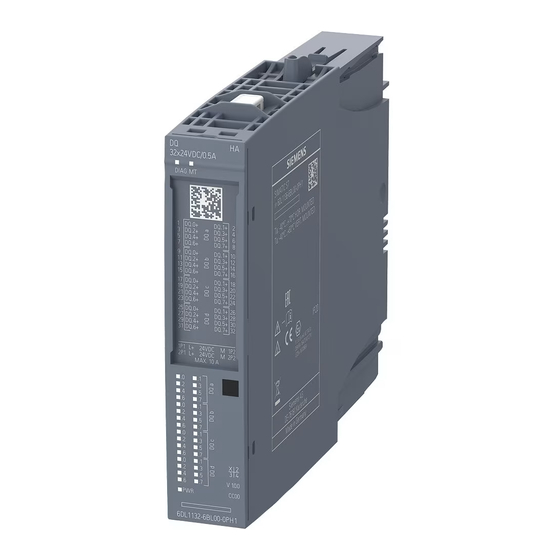

    Product overview Properties of the I/O module DQ 32x24VDC/0.5A HA View of the module 32 x2 4V DC /0 ,5 DI AG M T 1 DQ .0 + DQ .1+ 3 DQ .2+ DQ .3 + 5 DQ .4 + DQ .5 + 7 DQ .6 + DQ .7+...

  • Page 10: Parameters

    Product overview 3.1 Properties of the I/O module DQ 32x24VDC/0.5A HA Properties The I/O module has the following technical properties: ● 32 digital outputs with the following properties that can be individually configured for each channel – Diagnostics – Substitute values ●...

  • Page 11: Wiring

    Wiring Pin assignment of the I/O module DQ 32x24VDC/0.5A HA (1-wire connector) Terminal blocks You can operate the I/O module with the following terminal blocks: ● 6DL1193-6TP00-0DH1, light ● 6DL1193-6TP00-0BH1, dark ● 6DL1193-6TP00-0DN0, light, terminal block with potential distributor on the right side for connecting actuators to ground ●...
  • Page 12 Wiring 4.1 Pin assignment of the I/O module DQ 32x24VDC/0.5A HA (1-wire connector) General pin assignment Table 4-1 Pin assignment of the DQ 32x24VDC/0.5A HA Terminal Allocation Terminal Allocation Explanations DQ a/DQ.0+ DQ a/DQ.1+ DQ a /DQ.n+: Output signal, channel n (0…7) DQ a/DQ.2+ DQ a/DQ.3+ DQ b /DQ.n+: Output signal, channel n (8…15)

  • Page 13: Pin Assignment Of The I/O Module Dq 32X24Vdc/0.5A Ha (2-Wire Connector)

    Wiring 4.2 Pin assignment of the I/O module DQ 32x24VDC/0.5A HA (2-wire connector) Pin assignment of the I/O module DQ 32x24VDC/0.5A HA (2-wire connector) General pin assignment with potential distributor ● The pin assignment on the left side of the terminal block corresponds to the assignment in the section "Pin assignment of the I/O module DQ 32x24VDC/0.5A HA (1-wire connector) (Page 11)".

  • Page 14: Schematic Circuit Diagram

    Wiring 4.3 Schematic circuit diagram Schematic circuit diagram The following figure shows the block diagram of the DQ 32x24VDC/0.5A HA. Figure 4-1 Block diagram DQ 32×24VDC/0.5A HA Digital output module DQ 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Manual, 09/2018, A5E39265993-AA...

  • Page 15: Pulling I/O Module In Runtime / Output Disable Switch Activated

    Wiring 4.4 Pulling I/O module in runtime / output disable switch activated Pulling I/O module in runtime / output disable switch activated Pulling I/O module in runtime If the I/O module is to be plugged in runtime, note the following: 1.
  • Page 16 Wiring 4.4 Pulling I/O module in runtime / output disable switch activated Digital output module DQ 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Manual, 09/2018, A5E39265993-AA...

  • Page 17: Parameters

    Parameters Parameters of the I/O module DQ 32x24VDC/0.5A HA Configuration You configure the I/O module with PCS 7 V9.0 or higher. Parameters You define the functioning of the I/O module via parameters. See also Parameter assignment and structure of the module/channel parameters (Page 32) Digital output module DQ 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Manual, 09/2018, A5E39265993-AA...

  • Page 18: Module/Channel Parameters

    Parameters 5.2 Module/channel parameters Module/channel parameters Parameters of the DQ 32x24VDC/0.5A HA You have the following setting options: Table 5-1 Parameters and their default settings Parameter Value range Default Parameter re‐ Efficiency range assignment in Diagnostics, Enabled Module ● Enabled Missing supply voltage L+ ●...

  • Page 19: Explanation Of The Module/Channel Parameters

    Parameters 5.3 Explanation of the module/channel parameters Explanation of the module/channel parameters Diagnostics, Missing supply voltage L+ Enabling of the diagnostics for missing or insufficient supply voltage L+ Diagnostics, Short-circuit to ground Can be used only for activated channels. When the digital output is enabled, you can enable diagnostics that report a digital output short- circuit to M.
  • Page 20 Parameters 5.3 Explanation of the module/channel parameters ● Each light-colored terminal block which you install in the IO device starts a new potential group. ● The power bus is interrupted to the left. Extending the potential group ● Each dark-colored terminal block passes the supply voltage connected on the light-colored terminal block to the I/O modules and to the dark terminal block positioned to the right of it.

  • Page 21: Displays And Interrupts

    Displays and interrupts Status and error displays of the I/O module DQ 32x24VDC/0.5A HA LED displays The following figure shows the LED displays of the I/O module: 32x24VDC/0,5A DIAG MT 1 DQ.0 DQ.1 3 DQ.2 DQ.3 5 DQ.4 DQ.5 7 DQ.6 DQ.7 9 DQ.0 DQ.1...
  • Page 22 Displays and interrupts 6.1 Status and error displays of the I/O module DQ 32x24VDC/0.5A HA DIAG LED Table 6-1 Diagnostics display of the DIAG LED DIAG LED Meaning The power supply of the ET 200SP HA is disrupted or switched off. Module is not configured.
  • Page 23 Displays and interrupts 6.1 Status and error displays of the I/O module DQ 32x24VDC/0.5A HA PWR LED Table 6-4 Status display of the PWR LED PWR LED Meaning Supply voltage L+ missing Supply voltage L+ present Digital output module DQ 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Manual, 09/2018, A5E39265993-AA...

  • Page 24: Interrupts

    Displays and interrupts 6.2 Interrupts Interrupts The I/O module supports diagnostics interrupts and maintenance messages. Diagnostics interrupts The I/O module generates a diagnostics interrupt at the following events: ● Supply voltage L+ missing ● Parameter assignment error ● Channel/component temporarily unavailable ●...

  • Page 25: Technical Specifications

    Technical specifications Technical specifications of the DQ 32×24VDC/0.5A HA Article number 6DL1132-6BL00-0PH1 General information Product type designation DQ 32x24VDC/0.5A HA Firmware version V1.0 ● FW update possible Usable terminal block TB type H1 and N0 Color code for module-specific color identifica‐ CC00 tion plate Product function...
  • Page 26 Technical specifications Article number 6DL1132-6BL00-0PH1 Number of digital outputs Current-sinking Current-sourcing Short-circuit protection Yes; Clocked electronically 2 A; Overload / short circuit ● Response threshold, typ. Open-circuit detection Overload protection Limitation of inductive shutdown voltage to Typ. L+ (-53 V) Controlling a digital input Switching capacity of the outputs 0.5 A...
  • Page 27 Technical specifications Article number 6DL1132-6BL00-0PH1 Alarms ● Diagnostic alarm Diagnostic messages ● Monitoring the supply voltage – parameterizable ● Wire-break ● Short-circuit Yes; channel by channel ● Short-circuit to M ● Short-circuit to L+ ● Group error Diagnostics indication LED ●...
  • Page 28 Technical specifications Response to short-circuit detection The I/O module is equipped with an overload protection that triggers as of about 2 A. When this limit is exceeded, the I/O module automatically limits the current (typically: to 1.3 A). If the overload continues, it results in a temperature increase in the I/O module.

  • Page 29: Drivers, Parameters, Diagnostics Messages And Address Space

    Drivers, parameters, diagnostics messages and address space Concept of the driver and diagnostics blocks Use with PCS 7 The following information shows you the benefits of using PCS 7. PCS 7 automatically carries out many important parameterizations and interconnections of blocks. If you want to use the ET 200SP HA outside of the PCS 7 environment, note the next, following section.
  • Page 30 A.1 Concept of the driver and diagnostics blocks This block concept supports all modules from the list of approved modules. When new Siemens or non-Siemens module types are integrated, the meta-knowledge for the driver generator can be extended by additional XML files (object and action lists).

  • Page 31: Parameters, Diagnostics Messages And Address Space Without Pcs 7

    Drivers, parameters, diagnostics messages and address space A.2 Parameters, diagnostics messages and address space without PCS 7 Parameters, diagnostics messages and address space without PCS A.2.1 Parameter assignment Parameter assignment in the user program You can reconfigure individual channels of the module in RUN without this having an effect on the other channels.

  • Page 32: Parameter Assignment And Structure Of The Module/Channel Parameters

    Drivers, parameters, diagnostics messages and address space A.2 Parameters, diagnostics messages and address space without PCS 7 Error_ Error_ Cause Remedy Code_1 Code_2 0xE0 0x02 Header error (number or length of parameter Correct the length and number of the param‐ block) eter blocks.
  • Page 33 Drivers, parameters, diagnostics messages and address space A.2 Parameters, diagnostics messages and address space without PCS 7 Header information and module parameters The following figure shows the configuration of the header information and module parameters. Figure A-2 Header information and module parameters of data record 128 Channel parameters Each channel parameter block contains the channel parameters for a digital output (2 bytes).

  • Page 34: Diagnostics Messages And Maintenance Events

    Drivers, parameters, diagnostics messages and address space A.2 Parameters, diagnostics messages and address space without PCS 7 The following figure shows the configuration of the channel parameters for channels 0 to 31. x = 12 + (channel number * 2); with channel number = 0…31 All unused bits and the bits or bytes marked as "reserved"...

  • Page 35: Address Space

    Drivers, parameters, diagnostics messages and address space A.2 Parameters, diagnostics messages and address space without PCS 7 Diagnostics Error code Assign‐ Meaning Remedy message ment Channel/compo‐ Module Firmware update is in progress or has been ● Restart the firmware update nent temporarily canceled during the update.
  • Page 36 Drivers, parameters, diagnostics messages and address space A.2 Parameters, diagnostics messages and address space without PCS 7 Address space The following figure shows the mapping of the address space of the DQ 32x24VDC/0.5A HA: Table A-3 Address space of the DQ 32x24VDC/0.5A HA IB x + AB x + QDQ7...

  • Page 37: Index

    Index Channel fault LED, 21 Schematic circuit diagram, 14 Channel parameters, 18, 32 Channel status LED, 21 Configuration Requirements, 7 Technology parameters, 32 Conventions, 7 Terminal block, 10, 13 Data record 128, 32 Value status Header information, 33 Evaluating, 36 DIAG LED, 22 Diagnostics interrupt, 24 Documentation...
  • Page 38 Index Digital output module DQ 32x24VDC/0.5A HA (6DL1132-6BL00-0PH1) Manual, 09/2018, A5E39265993-AA...
