Philips 34 IN WIDESCREEN HDTV MONITOR 34PW862H Quick Use And Setup Manual

Quick Use and Hookup Guide
Important Notice/Warning . . . . . . . . . . . . . . . . . . . . .1
Basic TV Operation . . . . . . . . . . . . . . . . . . . . . . . . . .1
Jack Panel Descriptions and Required Cables . . . . .1
Remote Battery Installation . . . . . . . . . . . . . . . . . . .2
Remote Control Button Descriptions . . . . . . . . . . . .2
Direct Cable TV Input Connection . . . . . . . . . . . . . .3
Cable TV Box Input Connections . . . . . . . . . . . . . . .3
Antenna TV Connection . . . . . . . . . . . . . . . . . . . . . .3

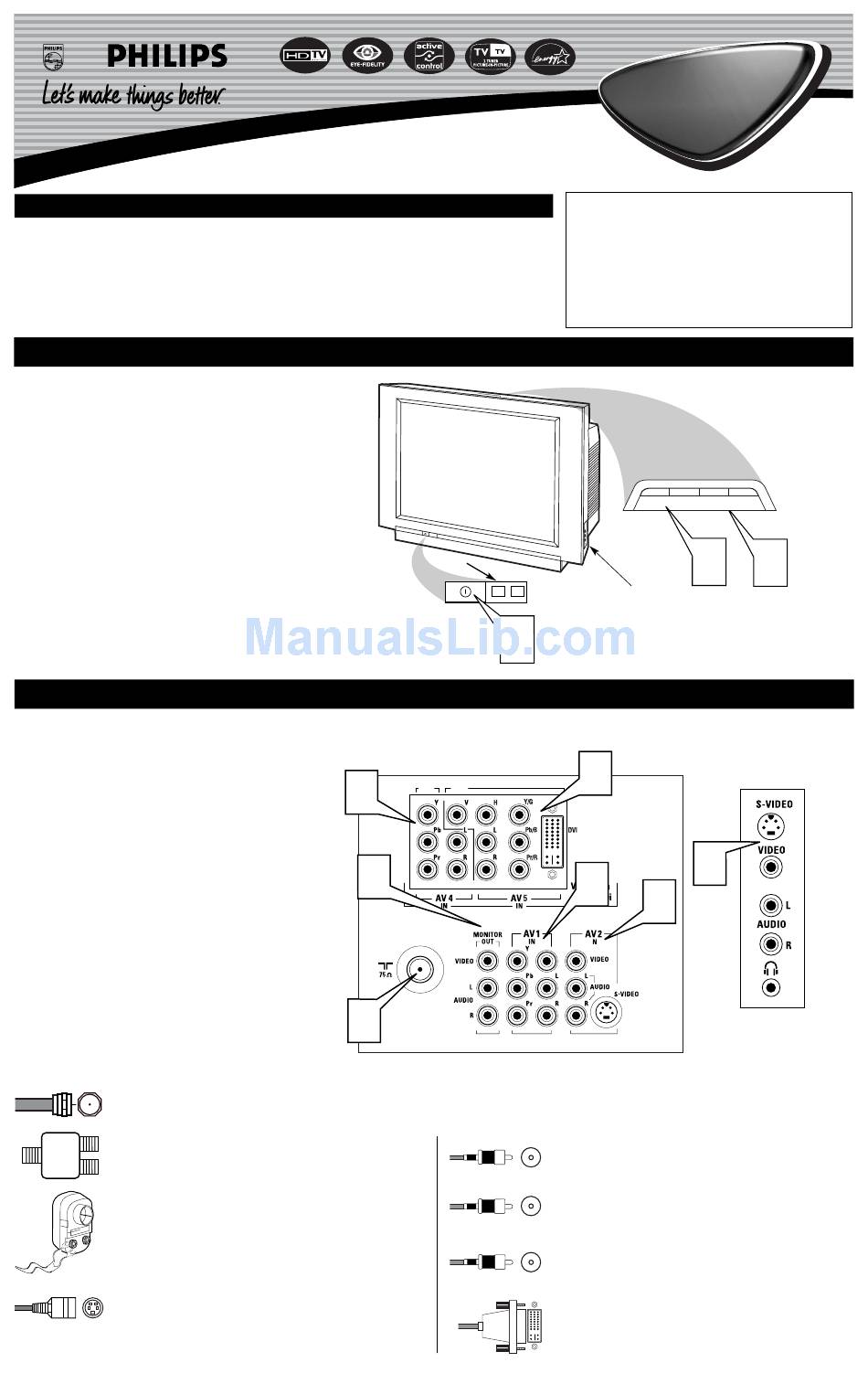

Y
our television has a set of controls located on the top and
front of the cabinet for use when the remote control is not
needed.
1
Press the POWER button on the front of the TV cabinet to
turn the TV ON.
Note: With AutoChron ON, the TV will search for a PBS chan-
nel to set the clock before powering itself on. This can take sev-
eral seconds.
2
Press the VOLUME + button to increase the sound level or
the VOLUME – button to lower the sound level.
Pressing both buttons at the same time will display the
onscreen menu. After you are in the menu, use these buttons to
make adjustments or selections.
3
Press the CHANNEL + or – button to select TV channels.
Use these buttons to make adjustments or selections in the
onscreen menu.
There is also a set of Audio and Video Input jacks located on the side
of the television cabinet. Refer to the Side AV3 Input section on page 6
of this Quick Use and Hookup Guide.
J
ACK
T
he television is equipped with external input and output jacks
for use with optional accessory devices such as Home enter-
tainment Receivers, VCRs, DVD Player, Gaming Units, Video
Cameras, etc.
1
75Ω RF - Cable/Antenna Input connection jack.
2 AV 1 IN - Audio/Video connection jacks including
Component Video Inputs.
3
AV 2 IN - Audio/Video Input connection jacks including
S-Video connections.
4 AV 5 IN - High Definition 1080i or 480p Video, DVI
(Digital Video Input), Audio Inputs, Horizontal and
Vertical Sync connection jacks.
5
AV 4 IN - High Definition 1080i or 480p Video and Audio
Input connection jacks.
6
Monitor Out - Audio/Video Output connection jacks (TV
tuner signal only).
7
SIDE (AV 3) - Audio/Video Input jacks include a S-Video
jack, plus a Headphone jack located on the side of the cabi-
net.
A 75-ohm coaxial cable connects signals from an antenna or a
cable TV company to the antenna jack on the back of the TV.
Coaxial cables use "F" connectors.
A two-way signal splitter enables you to take a single antenna or
cable TV signal and supply it to two different inputs.
A 300- to 75-ohm twin-lead adapter accepts the antenna cables
(called twin-lead wires) from an antenna, allowing you to connect
the antenna signal to the TV.
A S-Video cable provides better picture performance than regular
(composite) video connections.
S-Video cables can be used only with S-Video-compatible acces-
sory devices. You must also connect the left and right audio
cables to the AV 2 Audio in jacks because the S-Video jack car-
ries only the picture signal, not the sound.
C
ONTENTS
AV1 Input Jacks Connections . . . . . . . . . . . . . . . . . .4
AV2 Input Jacks Connections . . . . . . . . . . . . . . . . . .4
AV5 Input Jacks including DVI Connections . . . . . .5
AV4 Input Jacks Connections . . . . . . . . . . . . . . . . . .6
Side Input Jacks Connections . . . . . . . . . . . . . . . . . .6
Component Video Input Jacks Connections . . . . . . .7
S-Video Input Connection . . . . . . . . . . . . . . . . . . . . .7
Monitor Output Jack Connections . . . . . . . . . . . . . .8
B
ASIC
P D
ANEL ESCRIPTIONS AND
5
1
TV O
PERATION
Remote Sensor Window
POWER
1
R
Located on the back of the TV
HD1 HD2
6
Yellow - Video
White - Audio Left
Red - Audio Right
3121 233 44011
Color TV
Color TV
IMPORTANT
NOTE: This owner's manual is used with several dif-
ferent television models. Not all features (and drawings)
discussed in this manual will necessarily match those
found with your television set. This is normal and does
not require that you contact your dealer or request serv-
ice.
WARNING: TO PREVENT FIRE OR SHOCK HAZ-
ARD DO NOT EXPOSE THIS UNIT TO RAIN OR
EXCESSIVE MOISTURE.
Volume and Channel buttons are located
on the top of the television cabinet.
+ –
VOLUME
2
Audio, Video, S-Video
and Headphone Jacks
located on the side of
the television.
C
EQUIRED ABLES
4
7
2 3
Located on the side of the TV
Video and audio cables with standard RCA (phono) connec-
tors connect the video and audio jacks of accessory devices
such as VCRs and DVD players to the jacks on the TV.
These connectors are usually color coded. The jacks on your
TV are also color coded to match the colors of the connectors.
Yellow for video (composite) and Red and White for the right
and left audio channels. The video cables used to connect com-
ponent video or RGB (high-resolution) jacks are color coded
red, green, and blue.
A DVI (Digital Video) cable that will support digital connec-
tion from a PC. Only Single Digital Link DVI is supported for
PCs with 480p or 1080i output.
+ –
CHANNEL
3
