Selecting a location for the TV

Note: Before installing your TV, Please read the important safety information
on pages 2-4.
• Place the TV on the floor or a sturdy, levels stable surface.
• Place the TV in a location where light does not directly hit
the screen.
• Place the TV far enough from the walls to allow proper ventilation.
Inadequate ventilation may cause overheating, which may damage the TV.

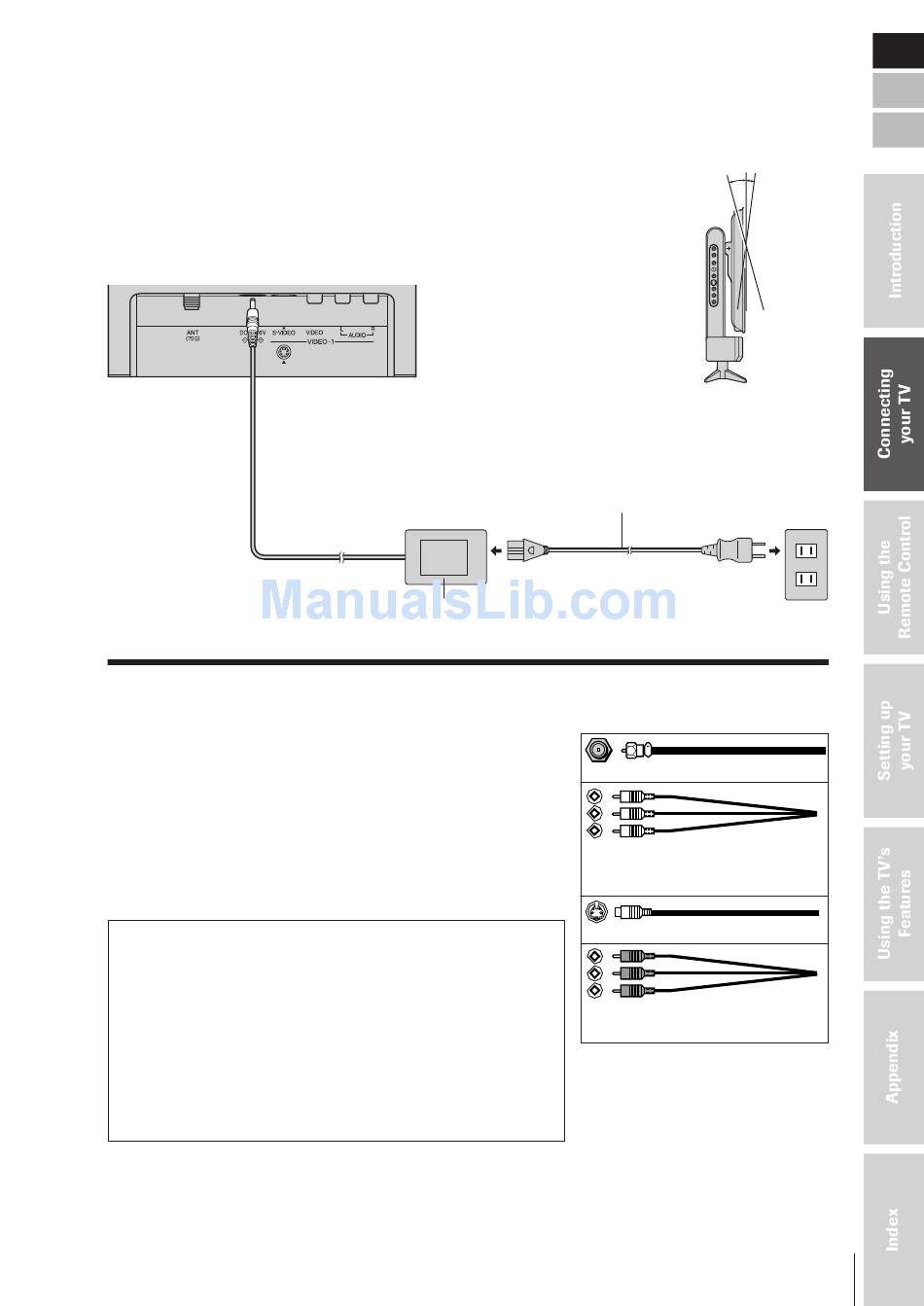

Connecting the power cord and AC adaptor

Back of TV

Connecting your TV

Note: Cables are not supplied with your TV.
●
Coaxial cable is the cable that comes in from your antenna, cable TV service,
or cable converter box. Coaxial cable uses "F" connectors.
●
Standard stereo A/V cables usually come in sets of three, and are
typically color-coded according to use: yellow for video, red for stereo
right audio, and white for stereo left (or mono) audio. Your TV's stand-
ard A/V inputs are color-coded in the same manner as the cables.
●
S-Video cable is for use with video equipment that has S-Video connectors.
● Component video cables come in sets of three (typically color-coded
red, green, and blue), and are for use with video equipment that has
component video connectors. Your TV's ColorStream
video) inputs are color-coded in the same manner as the cables.
NOTE REGARDING PICTURE QUALITY
When connecting video equipment to your Toshiba TV:
●
For GOOD picture quality: Use a standard yellow video cable.
● For BETTER picture quality: If your equipment has S-video connec-
tors, use an S-video cable instead of a standard yellow video cable. (You
still must connect the standard red and white audio cables for full system
connection, but do not connect a standard yellow video cable at the same
time or the picture performance will be unacceptable.)
● For BEST picture quality: If your equipment has component video
connectors, use component video cables instead of a standard yellow video
cable or S-video cable. (You still must connect the standard red and white
audio cables for full system connection.)
Power cord (supplied)
Adaptor (supplied)
® (component
The LCD panel can be made to
incline forward and backward.
15˚ 5˚
Coaxial (antenna) cable
Standard stereo A/V cables
(typically color-coded yellow for video,
red and white for audio)
S-video cable
Component video cables
(typically color-coded red, green, blue)
CAUTION:
Do not plug in any power cords
until you have finished connecting all
equipment.
E
F
S
Front
Wall outlet
