Siemens IRA211 Quick Start Manual

Infrared remote control

Download this manual

Use

Functions

N3060en

2014-04-04

IRA211

Infrared remote control

for fan coil unit thermostats with infrared receiver

For remote control of fan coil unit thermostats.

Designed for use with the following types of room thermostat:

· RDF110.../IR

· RDF210.../IR

· RDF310.21

· RDF410.21

· RDE410

· RDG1...T

· Selection of operating mode: Comfort, Auto Timer or Protection

· Adjustment of room temperature setpoint in Comfort mode

· Selection of fan mode: Automatic or manual fan speed

· Room temperature setpoint in °C or °F (selectable)

Base

IRA211

Building Technologies

060

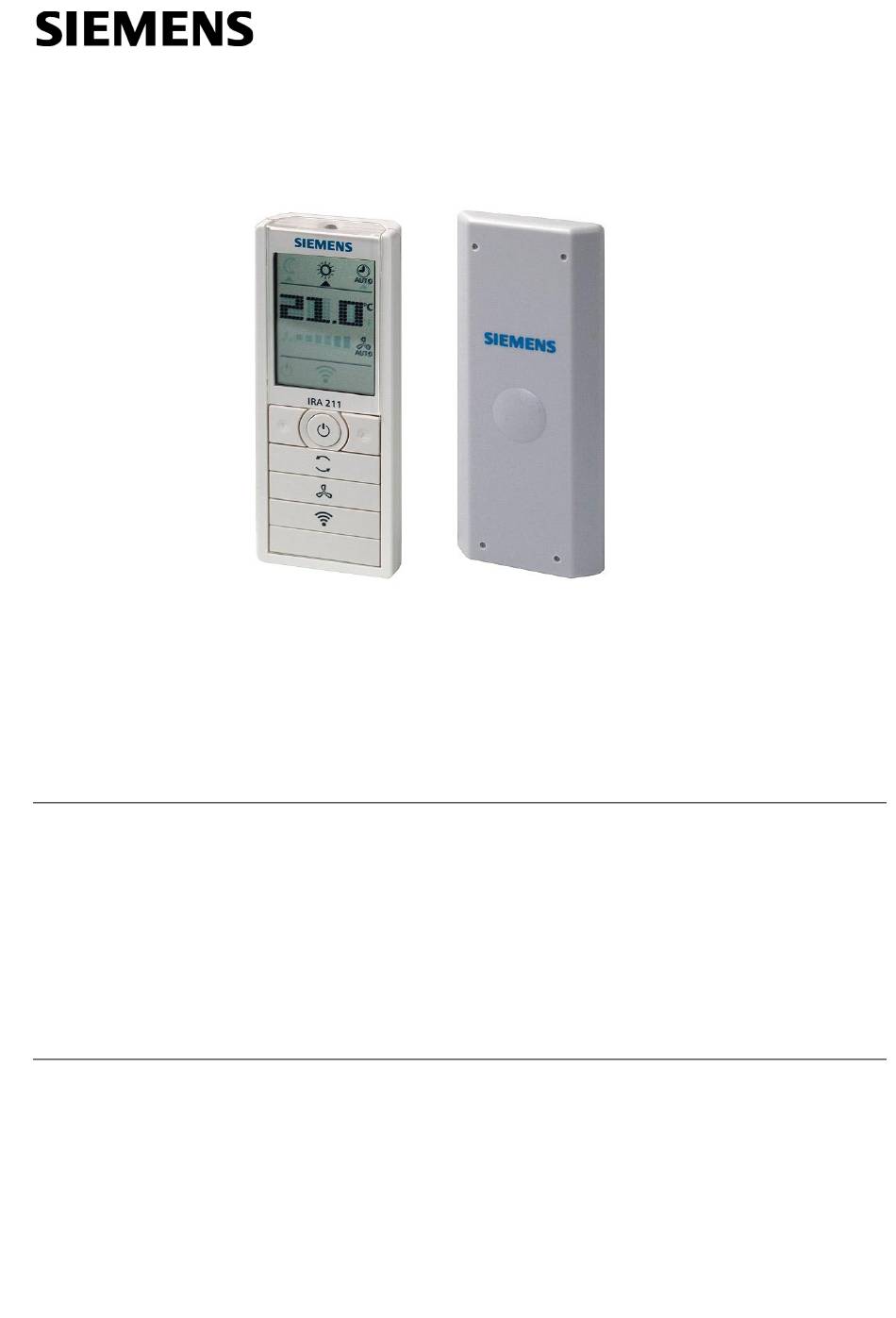

Page 1 IRA211 Base Infrared remote control IRA211 for fan coil unit thermostats with infrared receiver For remote control of fan coil unit thermostats. Designed for use with the following types of room thermostat: · RDF110.../IR · RDF210…/IR · RDF310.21 · RDF410.21 ·...

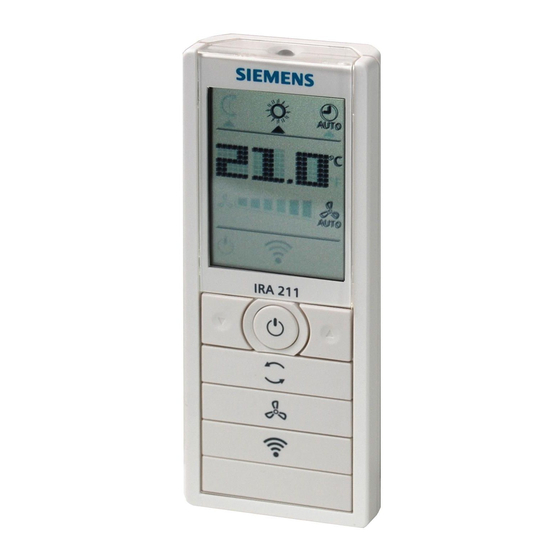

Page 2 Remote control The IRA211 is an infrared remote control for use with fan coil unit thermostats equipped with infrared receiver. Communication between remote control and room thermostat is unidirectional. The digital display shows the actual setting. Any changes made directly on the room thermostat will not be synchronized with the remote control.
Page 3 Degree of protection of housing IP30 as per EN 60529 Weight 0.042 kg General Color of housing front Main body: RAL 9003 white Base: RAL 7035 grey *) The documents can be downloaded from http://siemens.com/bt/download. Siemens Infrared remote control IRA211 N3060en Building Technologies 2014-04-04...
Page 4 Dimensions 38,8 Unit Base Mounting plate ã2009-2014 Siemens Switzerland Ltd. Subject to change Siemens Infrared remote control IRA211 N3060en Building Technologies 2014-04-04...
