Section 3 Exploded Views - Sony MOD-RF1 Service Manual

NOTE:
• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Abbreviation
CND : Canadian
CH : Chinese
2
1
Ref. No. Part No. Description
* 1 4-900-317-01 PLATE (F), INDICATION
2 4-991-632-11 PANEL, FRONT
3 3-380-952-21 BUTTON
* 4 1-669-803-11 PANEL BOARD
* 5 4-900-315-01 CASE (8565165)
* 6 A-4407-981-A MAIN BOARD, COMPLETE
7 1-543-653-11 CORE ASSY, BEAD (DIVISION TYPE)

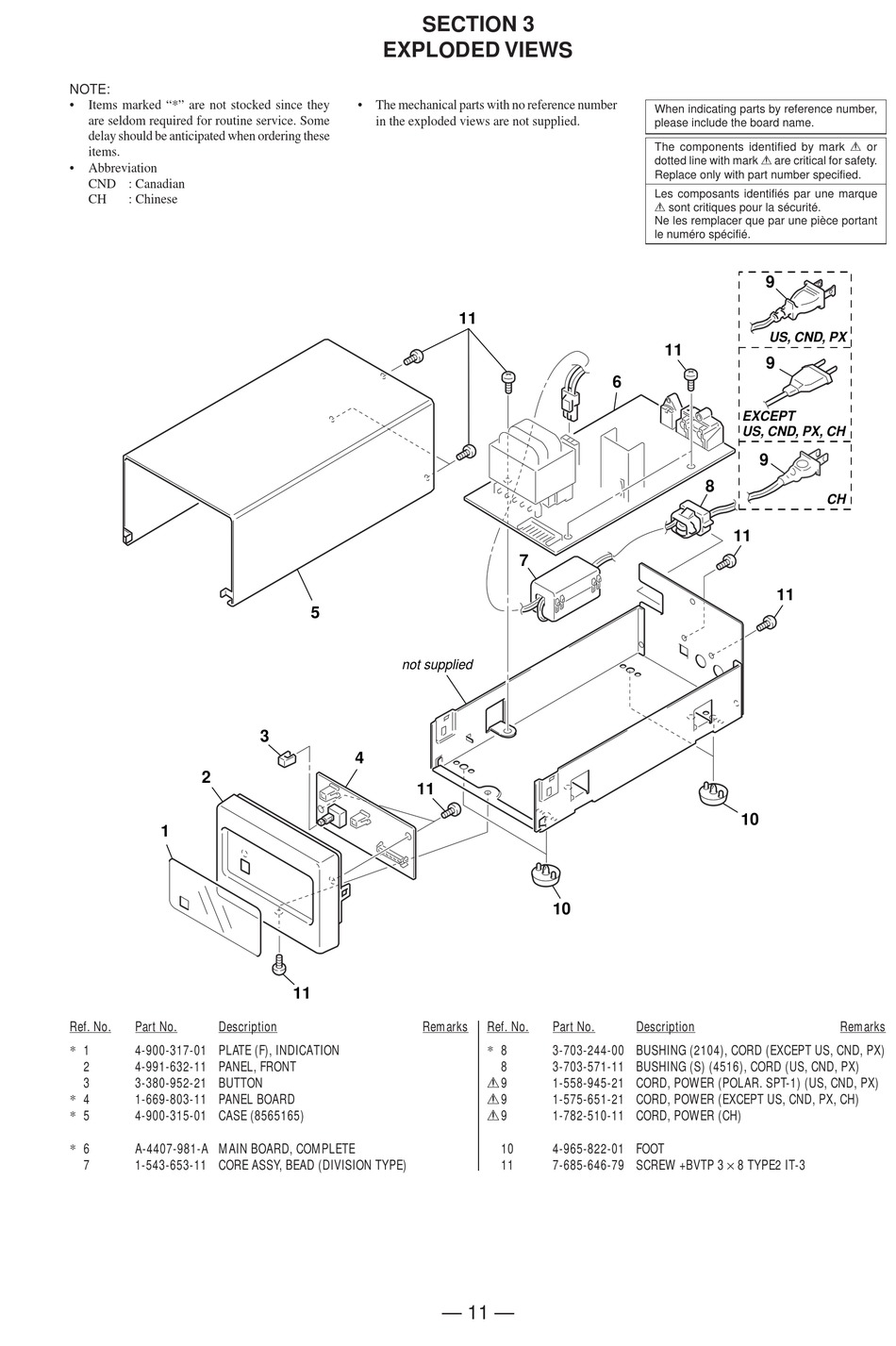

SECTION 3
EXPLODED VIEWS
• The mechanical parts with no reference number
in the exploded views are not supplied.
5
not supplied
3
4
11
11
Remarks
11
7
10
Ref. No. Part No.
* 8 3-703-244-00 BUSHING (2104), CORD (EXCEPT US, CND, PX)
8 3-703-571-11 BUSHING (S) (4516), CORD (US, CND, PX)
! 9 1-558-945-21 CORD, POWER (POLAR. SPT-1) (US, CND, PX)
! 9 1-575-651-21 CORD, POWER (EXCEPT US, CND, PX, CH)
! 9 1-782-510-11 CORD, POWER (CH)
10 4-965-822-01 FOOT
7-685-646-79 SCREW +BVTP 3 × 8 TYPE2 IT-3
11
— 11 —
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
9
US, CND, PX
11
9
6
EXCEPT
US, CND, PX, CH
9
8
11
11
10
Description
CH
Remarks
