GB
A
GENERAL RECOMMENDATIONS.......................................................... Page
C
INSTRUCTIONS FOR THE USER........................................................... Page
D
TROUBLESHOOTING ............................................................................. Page
CONTENTS
4
4
4
4
5
7
7
7
8
9
10
12
13
14
14
14
15
16
16
18
3
Advertisement
Table of Contents
Related Manuals for Electrolux ZHTAROW

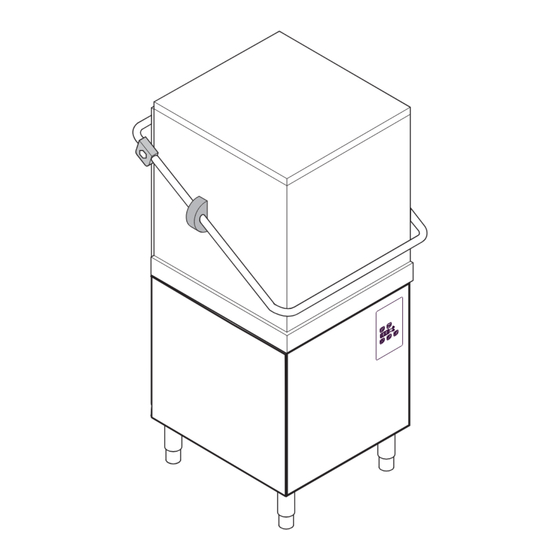

Summary of Contents for Electrolux ZHTAROW
-
Page 1: Table Of Contents
CONTENTS GENERAL RECOMMENDATIONS............Page HANDLING ........................Page UNPACKING........................Page DISPOSAL........................Page TECHNICAL DATA ......................Page INSTRUCTIONS FOR THE INSTALLER/MAINTENANCE PERSON ..Page WATER CONNECTION ....................Page ELECTRICAL CONNECTION ..................Page WARNING MESSAGES DISPLAYED ON THE CONTROL PANEL........ Page DETERGENT/RINSE-AID DISPENSERS AND SETTINGS..........Page SETTING THE DISPENSERS.................. -
Page 2: General Recommendations
GENERAL RECOMMENDATIONS Lift the appliance using a lift truck, remove the base WARNING and position the appliance where it is to be installed. CAREFULLY READ THE INSTALLATION, OPERAT- ING AND MAINTENANCE INSTRUCTIONS BEFORE INSTALLING THIS APPLIANCE. INCORRECT INSTALLATIONS, ADAPTATIONS OR ALTERA- TIONS COULD CAUSE DAMAGE TO PROPERTY OR INJURY TO PERSONS. -
Page 3: A4 Technical Data
TECHNICAL DATA MODEL EHTAROW / ZHTAROW / EHTAROW60 / ZHTAROW60 / OHTAROW OHTAROW60 Supply voltage: • three-phase version 400...415- 3N~ 220...240- 3~ N~ - convertible to 220...240- 3~ 400...415- 3 - convertible to 220...240- 1N~ (**) 220...240- 1N~ (**) Frequency Max. - Page 4 Figure 4 Legend Figure 4 A - Water inlet pipe with Ø 3/4” G fittings C - Outlet pipe Øi 40 mm (^) – Øi 18 mm (*). - Power supply S - Pipe inlet for detergents S2 - Solid detergent injector (only ”OHTAROW / OHTAROW60” versions) Q - Unipotential screw (^) - Only for model with free-fall drainage (*) - Only for model with drain pump...
-
Page 5: Binstructions For The Installer/Maintenance Person
B INSTRUCTIONS FOR THE INSTALLER/MAINTENANCE PERSON Install a disconnecting switch with a capacity at least equal to that given in the technical data table, a 30mA residual current circuit breaker and an overcurrent device (magnetothermal cut-out with manual reset or fuse) between the appliance and the mains power outlet. -
Page 6: B3 Warning Messages Displayed On The Control Panel
Power supply 400…415V 3N cal data table), connect the phase and neutral to termi- nals 5 and 6 respectively and the earth wire to the terminal Connections provided for energy control This appliance is designed for an external energy con- sumption control. -
Page 7: B4 Detergent/Rinse-Aid Dispensers And Settings
Connections for automatic rinse-aid dispenser CALL THE SERVICE CENTRE C1..C8 (Figure 14) CALL THE SERVICE CENTRE E1..E8 The appliance continues to operate, but appropri- ate checks by a technician are recommended. DETERGENT/RINSE-AID DISPENSERS AND SETTINGS If the appliance is connected to a water softener or osmotic device, contact the detergent supplier for a specific product. -
Page 8: B5 Setting The Dispensers
MANUAL ACTIVATION Initial amount of detergent: Whenever the detergent containers are replaced, it may be necessary to activate the dispensers manually in order to fill the hoses and eliminate any air. Simultaneously press the buttons, as shown in the figures below. If necessary, repeat this operation several times. - Page 9 Amount of detergent during the cycle: Exit from programming mode: Notes for external dispensers: Setting the activation time: dEt=181 the detergent dispenser only operates during wash pump operation; terminals 7-9 of the main terminal board are powered at the same time. dEt=182 the detergent dispenser only operates during filling electrovalve operation for...
-
Page 10: B6 Maintenance
MAINTENANCE • Descale the boiler, the internal surfaces of the tank and the appliance water piping once or twice a year. • Descale the rinse and wash jets every month using vinegar or a descaling agent. • The internal hose of the rinse-aid and detergent peristaltic dispenser should undergo periodic main- tenance (once or twice a year). -
Page 11: Instructions For The User
INSTRUCTIONS FOR THE USER Our appliances have been studied and optimised to give high performance. This appliance must be used exclusively for the purpose for which it has been designed, i.e. for washing dishes with water and specific detergents. Any other use is to be considered improper. -
Page 12: C1 Starting
"thermal label" mode (factory Standard cycle time with supply water at 10 °C. default). The LED switches ON when the button is Led “G” ZHTAROW / EHTAROW / pressed and the machine is configured in "high OHTAROW (Figure 17 productivity"... -
Page 13: C4 End Of Work And Daily Cleaning
• GREEN rack: for 12 bowls with maximum diameter of 240 mm. • To stop the wash cycle, just press the selected cycle button or leave the hood. • To continue the wash cycle, just press the selected Figure 19 cycle button or close the hood. -
Page 14: C5 Warning Messages Displayed On The Control Panel
The message "CLE" ("CLEAN") will be displayed Upon completion of cleaning operations, replace the throughout the drain cycle: parts removed previously. Cleaning the exterior surfaces Before carrying out any cleaning operations, turn off the power at the mains. • After a few minutes, 3 beeps indicate the end of thecleaning cycle and “END”... - Page 15 Nevertheless, through this manual the Manufacturer has taken steps to inform operators of such risks, care- fully indicating the personal protection equipment to be used by them. Sufficient spaces are provided for during the machine installation phases in order to limit these risks. To preserve these conditions, the corridors and areas around the machine must always be: •...
-
Page 16: Troubleshooting
TROUBLESHOOTING DISHWASHER DOES NOT WASH 1. Check if the suction filter is dirty and clean it thoroughly. WELL 2. Check if the wash jets are clogged by solid food remains. 3. Check that the initial amount of detergent or subsequent additions are correct.
