Toro SGR-13 Original Instructions Manual

Stump grinder
Hide thumbs Also See for SGR-13:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Register at www.Toro.com.

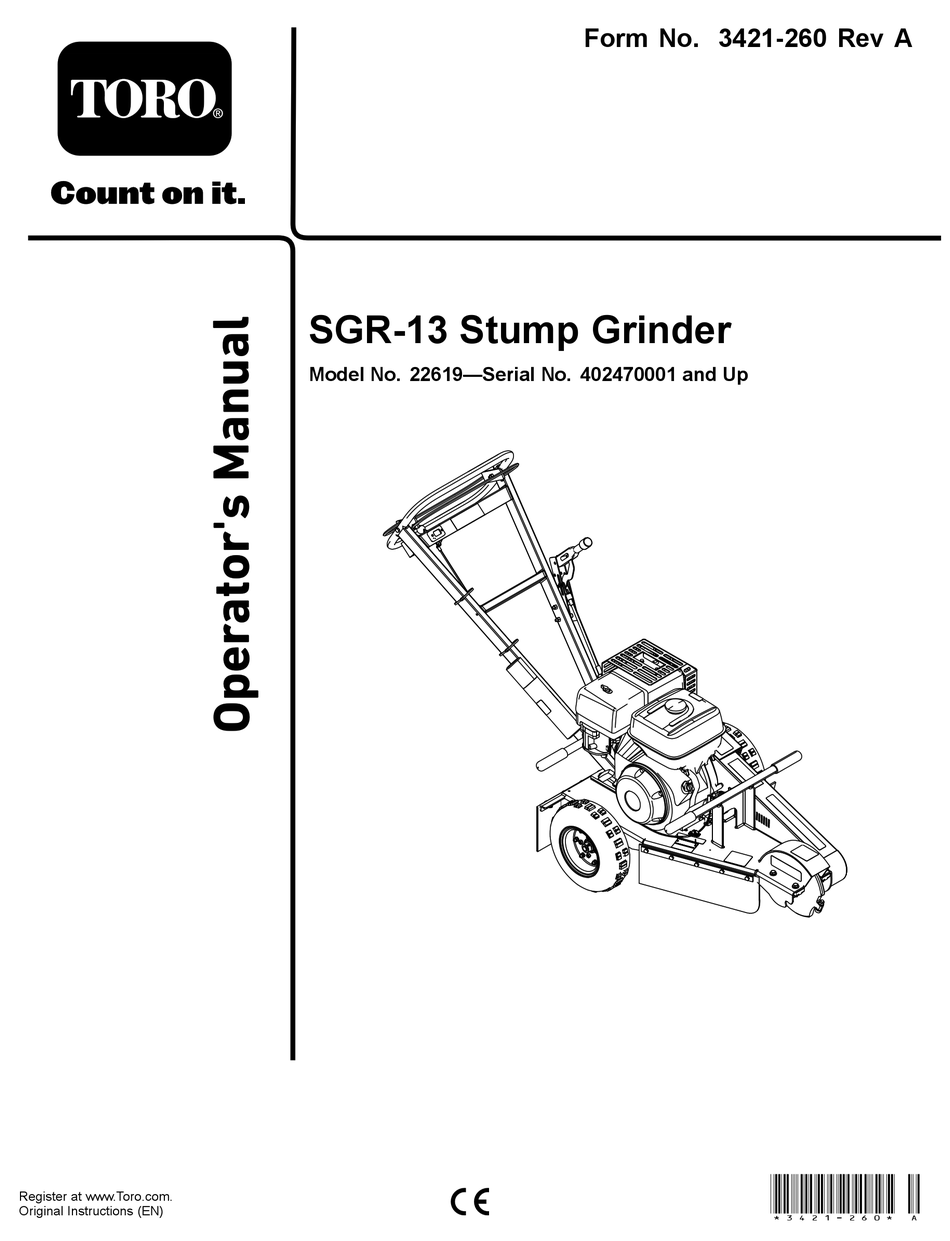

Original Instructions (EN)
SGR-13 Stump Grinder
Model No. 22619—Serial No. 402470001 and Up
Form No. 3421-260 Rev A
*3421-260* A

Advertisement

Table of Contents
loading

Related Manuals for Toro SGR-13

Summary of Contents for Toro SGR-13

  • Page 1 Form No. 3421-260 Rev A SGR-13 Stump Grinder Model No. 22619—Serial No. 402470001 and Up *3421-260* A Register at www.Toro.com. Original Instructions (EN)

  • Page 2: Table Of Contents

    Whenever you need service, genuine Toro parts, or Controls ............. 7 additional information, contact an Authorized Service Specifications ............ 8 Dealer or Toro Customer Service and have the model Attachments/Accessories ........8 and serial numbers of your product ready. Figure Operation ..............

  • Page 3: Safety

    Safety Starting the Engine ........... 10 Shutting Off the Engine........10 Grinding a Stump..........10 Improper use or maintenance by the operator or owner Lifting the Machine ..........11 can result in injury. To reduce the potential for injury, Maintenance ............12 comply with these safety instructions and always pay Recommended Maintenance Schedule(s) ...
  • Page 4 Make any Keep your hands and feet away from moving parts. necessary repairs before starting the machine. • Look behind and down before backing up to • ensure that the path is clear. Use only genuine Toro replacement parts.

  • Page 5: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal117-4979 117-4979 1. Entanglement hazard, belt—stay away from moving parts; keep all guards and shields in place.
  • Page 6 decal133-8056 133-8056 decal119-4701 119-4701 1. Warning—read the Operator's Manual. 5. Crushing hazard of hand—stay away from moving parts; keep all guards and shields in place. 2. Warning—do not operate this machine unless you are trained. 6. Explosion hazard; electrical shock hazard—do not dig in areas with buried utility lines;...

  • Page 7: Product Overview

    Product Overview g014499 Figure 4 1. Throttle—Disengage 2. Throttle—Engaged position position g205066 Figure 3 Parking Brake 1. Throttle lever 8. Cutting wheel The parking brake holds the left wheel from turning to 2. Hour meter 9. Belt cover secure the machine and for easy movement of the 3.

  • Page 8: Specifications

    • Never smoke when handling fuel and stay your Authorized Service Dealer or authorized Toro away from an open flame or where fuel distributor or go to www.Toro.com for a list of all fumes may be ignited by a spark. approved attachments and accessories.
  • Page 9 • Do not use gasoline containing methanol. DANGER • Do not store fuel either in the fuel tank or fuel In certain conditions during fueling, static containers over the winter unless you use a fuel electricity can be released, causing a spark stabilizer.

  • Page 10: Performing Daily Maintenance

    Performing Daily Shutting Off the Engine Maintenance Move the throttle to the D position. ISENGAGE Note: If the engine has been working hard or Before starting the machine each day, perform the is hot, let it run for a minute before releasing the Each Use/Daily procedures listed in Maintenance safety bail.

  • Page 11: Lifting The Machine

    each sweep, until you have removed the front portion of the stump to ground level (A through D in Figure 10). Raise the cutting wheel, release the parking brake, and move the machine forward a few centimeters (inches). Engage the parking brake. Repeat steps until you have completely removed the stump (E through H in...

  • Page 12: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Important: You can tip the machine backward or on its side to clean or service it, but no longer than 2 minutes. If you hold the machine in this position for too long, fuel can drain into the crankcase and damage the engine.

  • Page 13: Engine Maintenance

    Engine Maintenance Place the air channels in the cyclone housing. Insert cyclone housing into position and make sure that it fits in the upper portion. Servicing the Air Cleaner Important: Do not use force; align it in place before fitting the screws. Service Interval: Before each use or daily—Check the air filter (more often in dirty or Secure the cyclone housing using the 3 screws.

  • Page 14: Servicing The Engine Oil

    Servicing the Engine Oil Servicing the Foam Air-Cleaner Element Wash the foam element using a mild detergent Service Interval: Before each use or daily—Check and water. the engine-oil level. Squeeze it dry with a clean cloth. After the first 20 hours—Change the engine oil. Soak it with new engine oil.
  • Page 15 Changing the Engine Oil Start the engine and let it run for 5 minutes. Note: This warms the oil so that it drains better. Park the machine on a level surface and engage the parking brake. Shut off the engine and wait for all moving parts g205123 to stop.

  • Page 16: Servicing The Spark Plug

    Removing the Spark Plug Park the machine on a level surface and engage the parking brake. Shut off the engine, wait for all moving parts to stop, and allow the engine to cool. Locate and remove the spark plug (Figure 19).

  • Page 17: Cleaning The Engine Screen

    Installing the Spark Plug Fuel System Maintenance Cleaning the Sediment Cup Service Interval: Every 100 hours Yearly or before storage Underneath the fuel valve is a sediment cup to catch dirt in the fuel. Park the machine on a level surface and engage the parking brake.

  • Page 18: Brake Maintenance

    Brake Maintenance Belt Maintenance Adjusting the Parking Adjusting the Drive-Belt Brake Tension Park the machine on a level surface and engage Service Interval: Before each use or daily the parking brake. Note: Inspect the drive belt through the slot on top of Shut off the engine and wait for all moving parts the belt cover.

  • Page 19: Replacing The Drive Belt

    g242386 g017434 Figure 25 Figure 27 1. Bolt 1. Straightedge 2. Flex of 1 cm (0.40 inch) Loosen the belt-tension bolt and jam nut. Slide Ensure that the pulleys are aligned and the the engine toward the flywheel housing to loosen engine is parallel with the frame (not angled the belt (Figure...

  • Page 20: Grinder Maintenance

    Grinder Maintenance Replacing the Teeth Service Interval: Before each use or daily—Check the condition of the teeth; rotate or replace any that are worn or damaged and torque the nuts for all teeth. Due to the high amount of wear placed on the teeth, you need to rotate and replace them periodically (Figure 28).

  • Page 21: Cleaning

    Cleaning Storage For storage over 30 days, prepare the machine as Removing Debris from the follows: Machine Park the machine on a level surface and engage the parking brake. Regular cleaning and washing increases the life span Shut off the engine and wait for all moving parts of the machine.
  • Page 22 Grease the cutter wheel bearings; refer to Greasing the Machine (page 12). Check and tighten all bolts, nuts, and screws. Repair or replace any part that is damaged. Paint all scratched or bare metal surfaces. Paint is available from your Authorized Service Dealer. Store the machine in a clean, dry garage or storage area.

  • Page 23: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The engine does not start. 1. The safety bail is in the O position. 1. Hold the safety bail against the handle. 2. If your model is equipped with an 2. Move the switch to the O position.
  • Page 24 Notes:...
  • Page 25 Notes:...
  • Page 26 Notes:...
  • Page 27 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
  • Page 28 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
