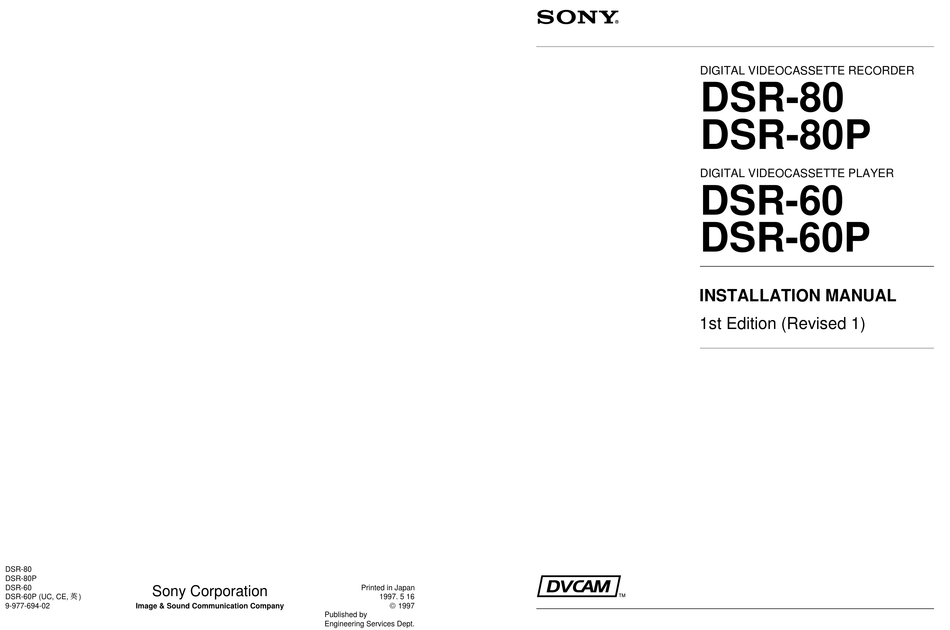

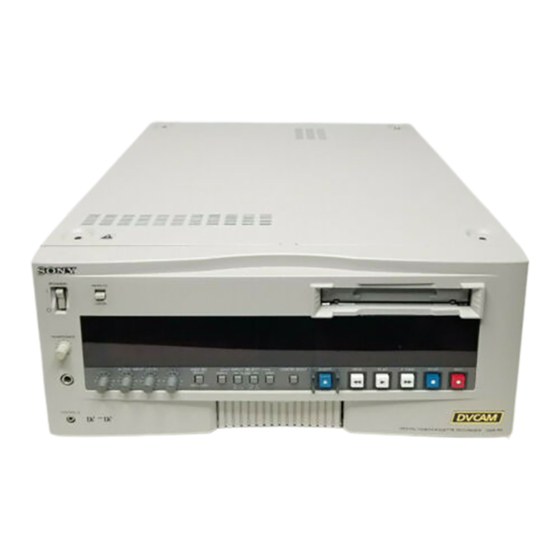

DSR-80
DSR-80P
DSR-60
Sony Corporation
DSR-60P (UC, CE,
)
9-977-694-02
Image & Sound Communication Company
Printed in Japan
1997. 5 16
1997
Published by
Engineering Services Dept.
DIGITAL VIDEOCASSETTE RECORDER
DSR-80
DSR-80P
DIGITAL VIDEOCASSETTE PLAYER
DSR-60
DSR-60P
INSTALLATION MANUAL
1st Edition (Revised 1)

Advertisement

Table of Contents
loading

Related Manuals for Sony DSR-80

Summary of Contents for Sony DSR-80

  • Page 1 DIGITAL VIDEOCASSETTE RECORDER DSR-80 DSR-80P DIGITAL VIDEOCASSETTE PLAYER DSR-60 DSR-60P INSTALLATION MANUAL 1st Edition (Revised 1) DSR-80 DSR-80P DSR-60 Printed in Japan Sony Corporation DSR-60P (UC, CE, 1997. 5 16  9-977-694-02 Image & Sound Communication Company 1997 Published by...
  • Page 2 SAFETY CHECK-OUT The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the After correcting the original service problem, perform the equipment described in this manual.
  • Page 3 This manual is the installation manual of the digital videocassette recorder model DSR-80/80P and the digital videocassette player model DSR-60/60P. This manual contains rack mount information necessary for installation of the equipment, the connector information necessary for connecting the unit with peripherals and others.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INSTALLATION Installation Procedure ............1 Operational Environment ............. 1 Operating Voltage ..............1 Installation Space ..............2 Supplied Accessories ............2 Optional Accessories ............2 Rack Mounting ..............3 Connection of Editing Equipment, and Input/Output Signals of Connectors ............... 5 8-1.

  • Page 7: Installation

    INSTALLATION Be sure to install the DSR-80/80P/60/60P in location satisfying the required operational environment described below to assure the DSR-80/80P/60/60P superior performance and to maintain the excellent serviceability and accessibility. 1. INSTALLATION PROCEDURE START DETERMINATION OF · · · 2. OPERATIONAL ENVIRONMENT INSTALLATION PLACE ·...

  • Page 8: Installation Space

    . Digital video cassette (Mini size) : PDVM-12ME/22ME/32ME/40ME . Digital video cassette (Standard size) : PDV-64ME/94ME/124ME/184ME . SDI output board : DSBK-100/100P (DSR-60/60P) . QSDI output board : DSBK-110/110P (DSR-60/60P) . SDI input/output board : DSBK-120/120P (DSR-80/80P) . Time code input/output board : DSBK-130/130P...

  • Page 9: Rack Mounting

    7. RACK MOUNTING The unit can be mounted in a 19-inch standard rack. 1. Remove the four screws on right and left side panels. It is recommended to use the following kit. And install the Inner Members of the rails to the right and left side panels with the screws removed.
  • Page 10 3. Remove the two screws (B 4x8) on the right and left side panels. (Be careful not to lose these four screws.) Screws (B 4x8) Screws (B 4x8) 4. Install the L-angles to the holes described in step 3 with the supplied screws (PSW 4x16) in RMM-130 for these L-angles.

  • Page 11: Connection Of Editing Equipment, And Input/Output Signals Of Connectors

    Use of the QSDI interface (optional board as to DSR-60/60P) enables transfer of the compressed data such as video, audio and timecode from DSR-80/80P/60/60P to ES-7. DSR-80/80P/60/60P supports the ClipLink function. The index picture which is recorded on tape and the ClipLink log data which is stored in the cassette memory can be transferred immediately to ES-7.
  • Page 12 Connection for Cut Editing System Connection example of the cut editing system when DSR-60/60P is connected with DSR-80/80P or DSR-80/80P is connected with another DSR-80/80P is shown below. . Refer to the Operating Instructions of other equipment at the same time for connection.
  • Page 13 Connection example of the A/B roll editing system using a recorder and two players is shown below. In this example, DSR-80/80P is used as recorder, DSR-60/60P is used as player-1 and an analog betacam video cassette player UVW-1600/ 1600P is used as player-2. When you require the completed tape (the tape in which complete packaged program is stored) in the betacam format, use a betacam VTR as recorder.
  • Page 14 QSDI dubbing A connection example of QSDI dubbing using DSR-80/80P as a recorder and the DSR-60/60P as a player, is shown below. DSR-60/60P DSR-80/80P (player) (recorder) QSDI IN QSDI OUT VIDEO REMOTE REMOTE MONITOR OUT 2 AUDIO (SUPER) Audio input...

  • Page 15: Matching Connectors

    8-2. Matching Connectors When external cables are connected to the connector on a connector panel during maintenance, the hardware listed below (or equivalents) must be used. For DSR-80/80P DSR-80/80P, 60/60P Side connector Matching Connector/Cable only Panel indication Connector/Cable Sony Part No.

  • Page 16: Input/Output Signals Of The Connectors

    1.0 Vp-p, 75 Z, sync negative : for composite video signal (black burst signal possible) VIDEO IN : BNCx2 (loop-through)/DSR-80/80P 1.0 Vp-p, 75 Z, sync negative COMPONENT/RGB IN VIDEO : BNCx3/DSR-80/80P Luminance : 1.0 Vp-p, 75 Z, sync negative : 0.7 Vp-p, 75 Z (NTSC : 75 % PAL : 100 %) R-Y/B-Y...
  • Page 17 : BNCx2 Serial digital interface format (270 Mbps), SMPTE 259M/ITU-R BT.656 *Using optional DSBK-100/100P (SDI output board)/DSR-60/60P *Using optional DSBK-120/120P (SDI input/output board)/DSR-80/80P QSDI* OUT : BNCx1 Serial digital interface (DVCAM compression signal : Video + Audio + TC signal)
  • Page 18 TBC REMOTE (D-sub 15 pin : MALE) <external view> Pin No. Signal Operating Voltage IN/OUT _5 to +5 V SYNC CONTROL HUE CONTROL _5 to +5 V SC CONTROL _5 to +5 V _5 to +5 V VIDEO LEVEL CONTROL SET UP CONTROL _5 to +5 V _5 to +5 V...

  • Page 19: Installation Setup And Adjustment

    . Storing the menu and setting the points A and B of REPEAT . “Yes” reply from the DSR-80/80P/60/60P to the inquiry. (7) TC PRESET / DSR-80/80P : Used for setting the TC initial value and UB data (on display block).

  • Page 20: On-Board Switch Setting

    9-3. On-board Switch Setting SV-184 S201 S101 S101 : 8 bit Switch No. Description Factory Setting Set this switch to ON in some adjustment modes. . Search speed in LOCAL is as follows : PLAY/F.FWD pressed simultaneously: FWD searchx5 PLAY/REW pressed simultaneously : REW searchx5 .
  • Page 21 Set it to OFF normally Function Setting Factory Setting No. 3 factory use factory use (x1 VTR) (x4 VTR) No. 4 factory use factory use ON (DSR-60/60P) (PLAYER) (RECORDER) OFF (DSR-80/80P) IO-149 S601 S601 : RGB adjustment switch (factory setting : OFF)

  • Page 22: System Adjustment After Installation

    SDI-26 S301 S301 : Switch for error check (factory setting : OFF) 9-4. System Adjustment After Installation Observe the following precautions when this equipment is used for editing system. . The REF. VIDEO INPUT requires video signal which complies with RS-170A. .
  • Page 23 3. BVE-600/900/910/2000 NTSC BLOCK-1 BLOCK-2 DSR-80 DSR-60 DSR-85 BLOCK-1 BLOCK-2 DSR-80P DSR-60P DSR-85P 4. FXE-100/100P/120/120P NTSC BLOCK-1 BLOCK-2 DSR-80 DSR-60 DSR-85 BLOCK-1 BLOCK-2 DSR-80P DSR-60P DSR-85P 5. BVE-800 NTSC NTSC...

  • Page 24: Setup Check Sheet

    . Setup menu information can be saved separately from record area in this equipment. But some repair work can destroy the saved information. This sheet is effective for the backup. CONNECTOR PANEL AUDIO IN CH-1 600 Z / DSR-80/80PON AUDIO IN CH-2 600 Z / DSR-80/80P AUDIO IN CH-3 600 Z / DSR-80/80P AUDIO IN CH-4 600 Z / DSR-80/80P REF.
  • Page 25 SETUP MENU * : DSR-80/80P only ** : DSR-60/60P only Menu Level 1 Menu Level 2/3 Factory Setting Setting REPEAT MODE REPEAT TOP TAPE TOP **REPEAT FUNCTION REPEAT END VIDEO END A PRESET 00 : 00 : 00 : 00...
  • Page 26 Menu Level 1 Menu Level 2/3 Factory Setting Setting STILL MODE FIELD 1 STILL * SETUP REMOVE SETUP ADD (NTSC only) VIDEO CONTROL SYNC ON GREEN CC (F1) BLANK (NTSC only) CC (F2) BLANK (NTSC only) * DIGITAL INPUT VARIABLE REC POINT MUTE NTSC : _20 dB AUDIO CONTROL...
