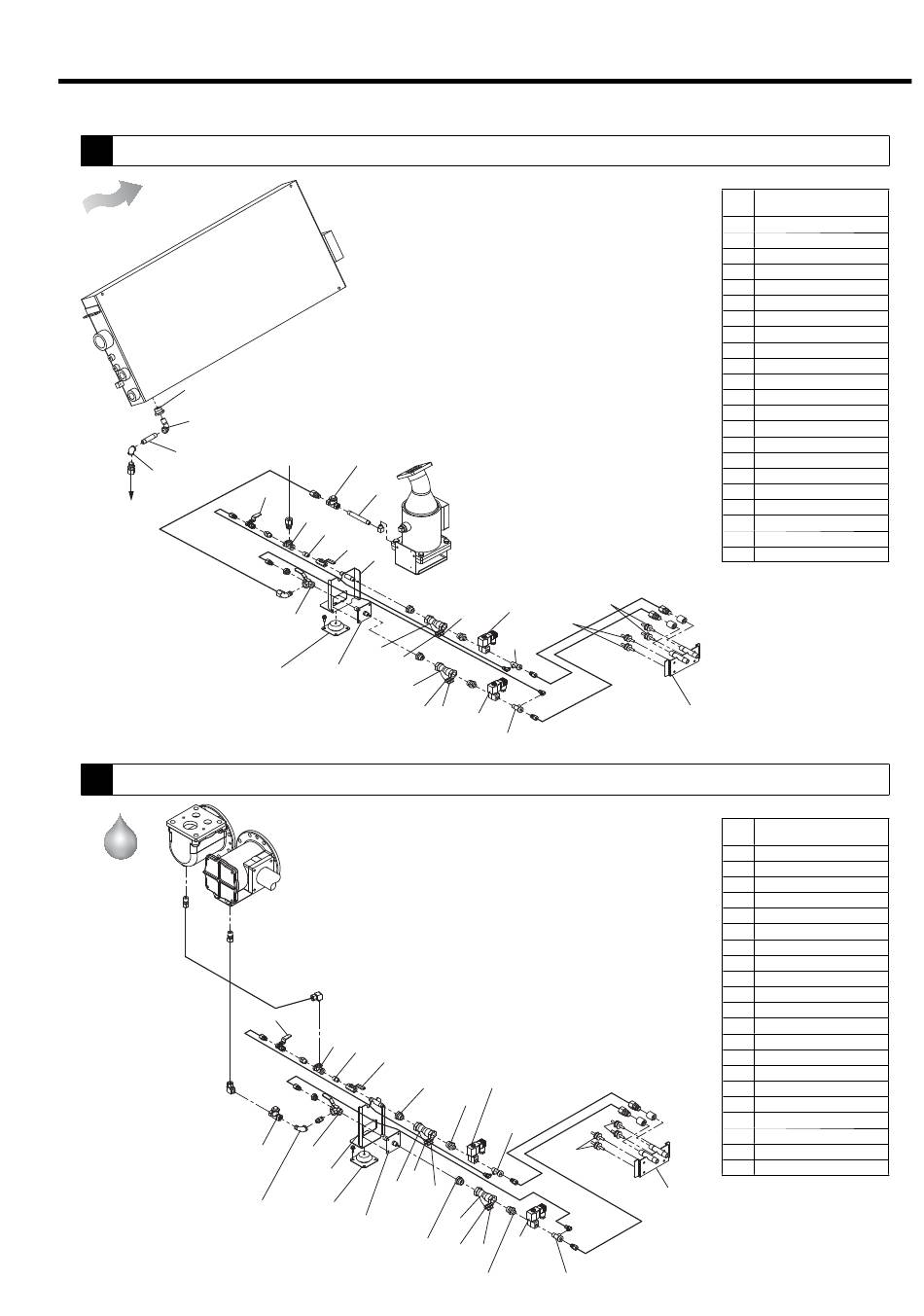

Hitachi NEXT Series Instruction Manual page 107

10 Drain Pipe
Air-Cooled
B96
B85
B81
B86
From Ⓐ
10
Drain Pipe
Water-Cooled
H75
043
B85
Ⓐ 043
B82
H75
B94
B80
876
F68
F67
006
007
F69
B78
006
007
B94
B80
876
B95
B83
F67
F68
007
006
047
B78
F69
B95
F48
F80
047
F48
052
047
F80
045
F80
B84
F48
052
F48
006
F80
007 047
B84 045
11. PARTS LIST
Ref.
Description
No.
006 IC Strainer Assy
007 Gasket, IC strainer
043 Check Valve
045 Orifice, condensate piping (IC)
047 IC Strainer Element
052 Orifice, condensate piping (AC)
876 2 way Valve (1)
B78 Vibration Isolation Rubber
B80 Nipple
B81 Steel Pipe
B82 Steel Pipe
B85 Male & Female Elbow
B86 Elbow
B94 Tee Fitting
B96 Bushing
F40 Drain Piping Seat
F48 Vibration Isolation Rubber
F67 3 way Switching Valve
F68 Support (H), drain piping
F69 Support (L), drain piping
F80 Drain Solenoid Valve
H75 2 way Valve (2)
F40
Ref.
Description
No.
006 Strainer Assy
007 Gasket, Strainer
043 Check Valve
045 Orifice, condensate piping (IC)
047 Strainer Element
052 Orifice, condensate piping (AC)
876 2 way Valve (1)
B78 Vibration Isolation Rubber
B80 Nipple
B83 Nipple
B84 Diameter Change Nipple
B85 Male & Female Elbow
B94 Tee Fitting
B95 Bushing
F40 Drain Piping Seat
F48 Vibration Isolation Rubber
F67 3 way Switching Valve
F68 Support (H), drain piping
F69 Support (L), drain piping
F80 Condensate Solenoid Valve
H75 2 way Valve (2)
F40
