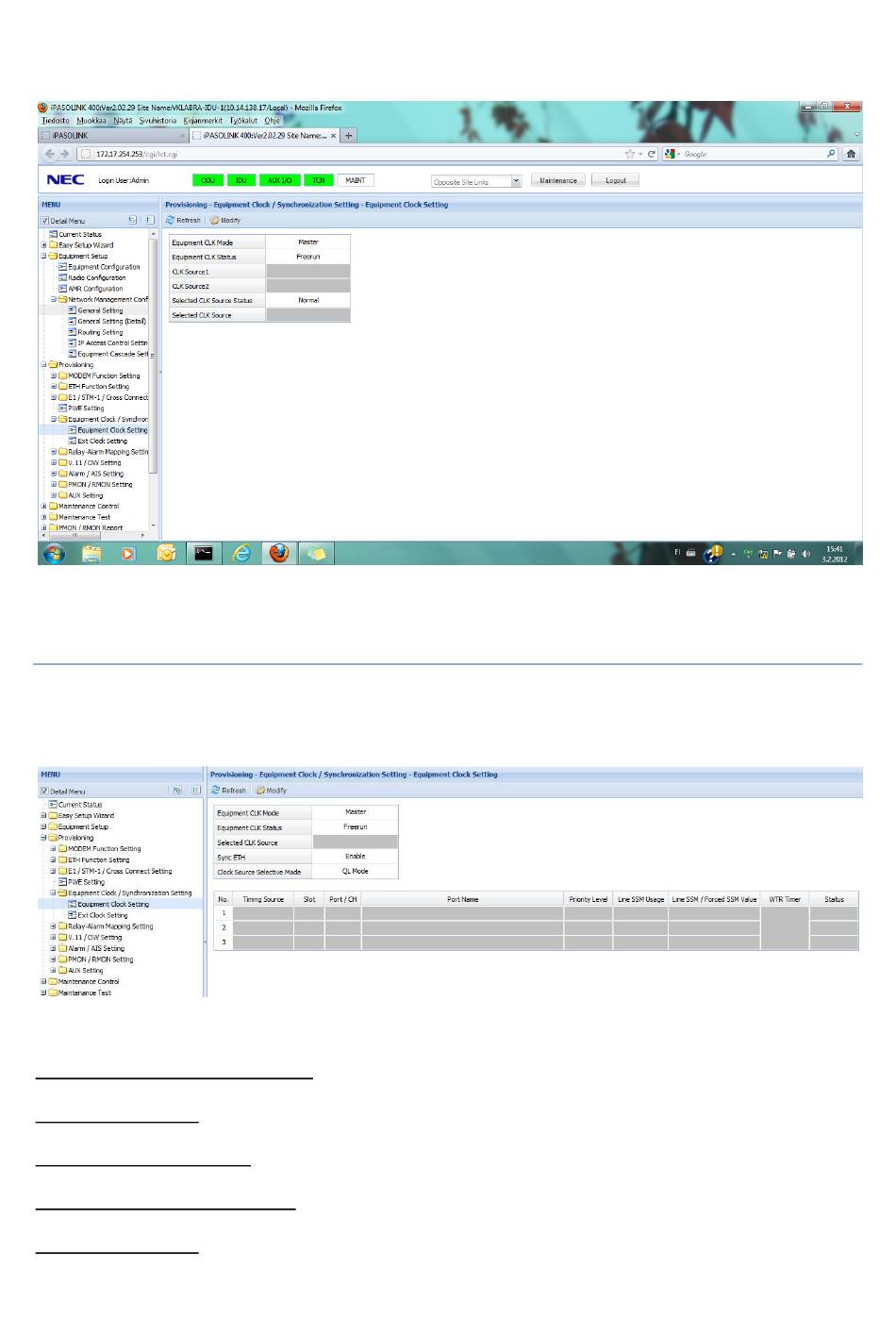

Figure 38. Master setting without the Clock Module.
SYNCHRONIZATION SETTINGS WITH THE CLOCK MODULE
The settings are presented in Fig. 39 and 40.
Figure 39. Master setting with the Clock Card -option.
Equipment Clock Setting – MASTER
Equipment CLK Mode: Master
Clock Source Selective Mode: QL Mode (Quality level).
Equipment Clock Setting – SLAVE
Equipment CLK Mode: Slave
