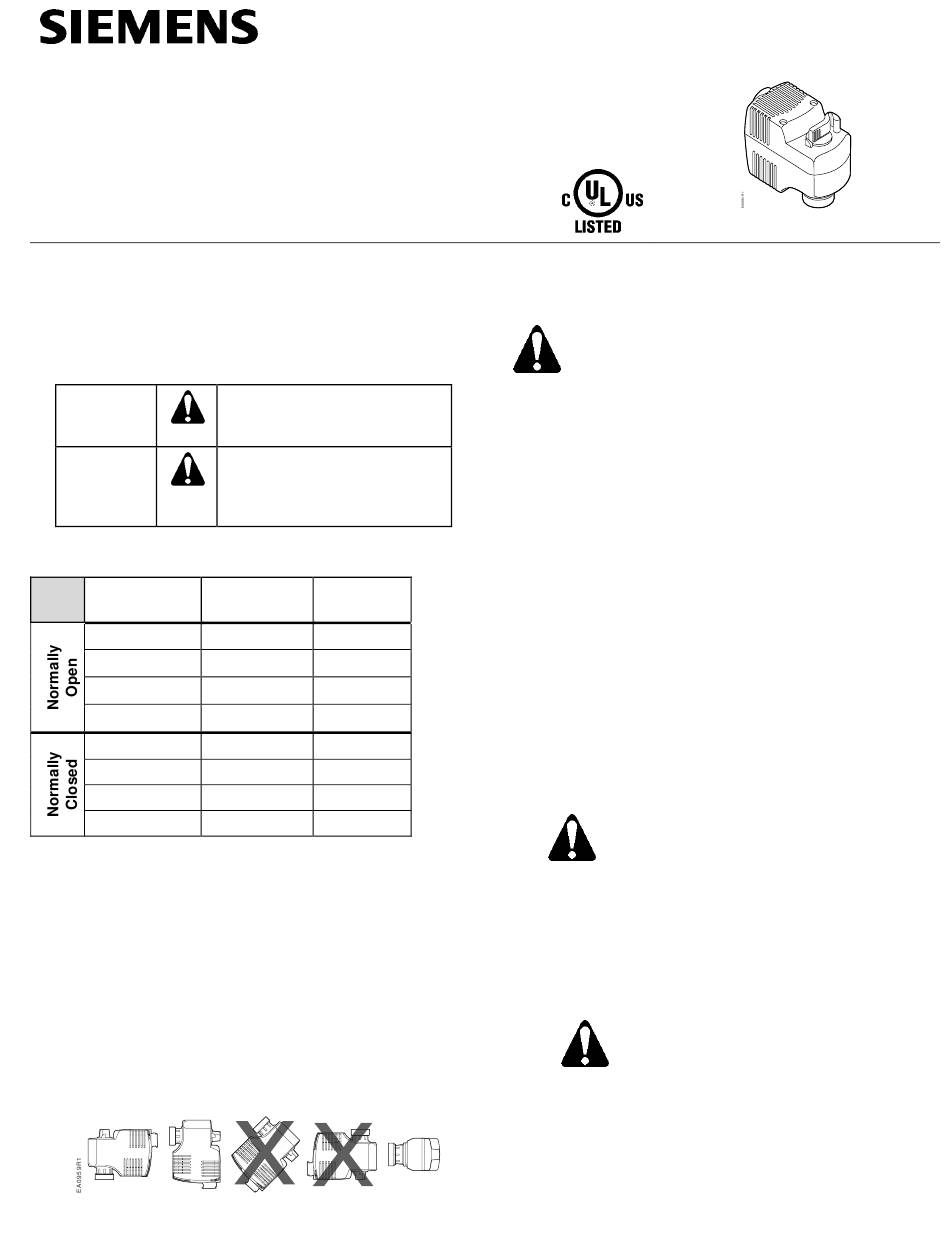

Siemens 599 Series Installation Instructions

599 Series Zone Valves

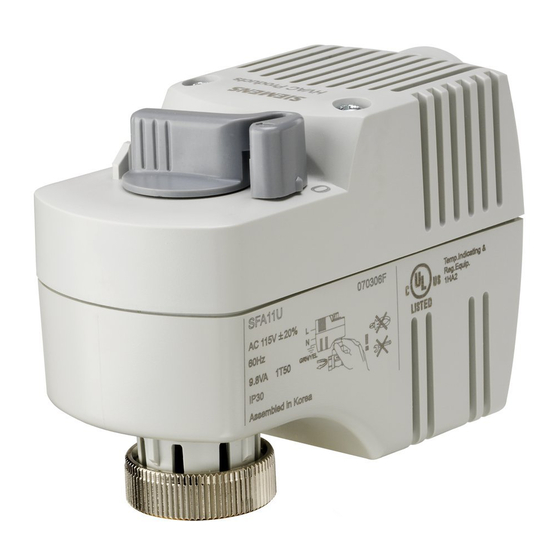

SFA/SFP Electronic Valve Actuator
2-Position Control
Product Description
The SF Series actuator requires a 24 Vac, 120 Vac, 208 Vac,
or 277 Vac Class-2 supply signal to control Siemens Zone
Valves with a 1/10-inch (2.5 mm) stroke.
Warning/Caution Notations
WARNING:
CAUTION:
Product Numbers
Actuator
Model
SFP71U 24 Vac
SFP11U 120 Vac
SFP277U/25 277 Vac
SFP208U/25 208 Vac
SFA71U 24 Vac
SFA11U 120 Vac
SFA208U/25 208 Vac
SFA277U/25 277 Vac
* Actuator only with 2.5-meter cable, not available
as an assembly.
Contents
One actuator
Required Tools
•
Small flat-blade screwdriver
•
Wire stripper
Estimated Installation Time
20 minutes
Figure 1. Acceptable Mounting Positions.
Item Number 129-335, Rev. 015
Personal injury or loss of life
may occur if you do not follow
a procedure as specified.
Equipment damage, or loss of
data may occur if you do not
follow a procedure as
specified.
Power Actuator
Supply Code
243
241
– *
– *
242
240
– *
– *
The vertical position is recommended for mounting.
Prerequisites
WARNING:
1. If mounting the actuator to a valve already
in line:
•
Close the shut-off valves in the piping
(upstream first, then downstream).
Or
•
Switch off the pump to allow the
differential pressure in the valve to
drop.
2. Disconnect the controller power before
replacing the actuator.
Installation
Mounting the SFP Actuator to a Valve
1. Place the actuator on the valve and firmly hand-tighten the
coupling piece.
2. Connect the wires. See Wiring.
Mounting the SFA Actuator on a Valve
CAUTION:
The black actuator attachment support ring
must be in place on top of the valve bonnet
before installing the actuator.
If the support ring is not in place, damage to
the actuator connection may result.
1. Rotate the manual override lever and latch.
2. Place the actuator on the valve and firmly hand-tighten
the coupling piece.
CAUTION:
Failure to fully rotate the manual override
handle before hand tightening will hinder
proper valve close off.
3. Release manual override handle.
4. Connect the wires. See Wiring.
Installation Instructions
Document No. 129-335
June 22, 2005
1 of 4
