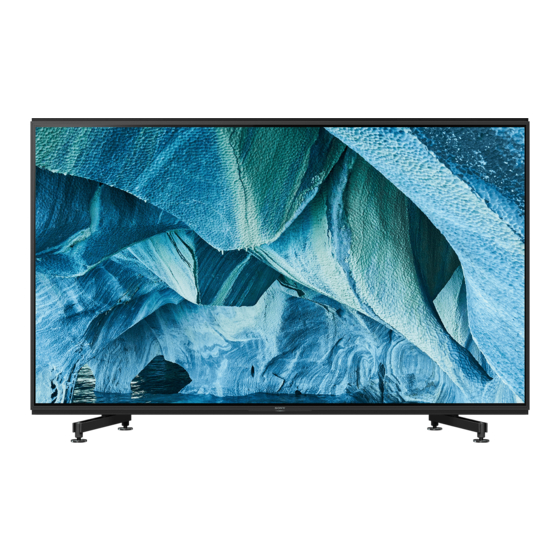

Introduction For information on setting Thank you for choosing this Sony product. up your TV, refer to the Before operating the TV, please read this manual thoroughly and Setup Guide. retain it for future reference. Note • Before operating the TV, please read the “Safety Information”...
Page 3
• For safety reasons, it is strongly recommended that you use Topple prevention Sony accessories, including: Wall-Mount Bracket SU-WL450 • Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket.
Page 4
• Never cover the ventilation holes or insert anything in the cabinet. • Leave space around the TV set as shown below. • It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation. Installed on the wall...
Parts and Controls Controls and Indicators (Power) / + / – Built-in MIC* When the TV is off, Use the hands-free built-in microphone for Press to power on. voice search. To enable the built-in MIC, When the TV is on, follow the on-screen instructions when you Press and hold ...
Using Remote Control Remote Control Parts Description The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model. (Microphone) Use voice search*. (e.g., Search various content by voice.) //// (Navigation D-Pad) On screen menu navigation and selection.
Page 7
GUIDE/ AUDIO Display the digital programme guide. Select the sound of multilingual source or dual sound for the programme currently APPS being viewed (depend on programme Display a list of installed apps. source). (Input select) (Subtitle setting) Display and select the input source, etc.
Connection Diagram For more information on connections, refer to the Help Guide by pressing HELP on the remote control. VCR/Video game equipment/DVD player/ Camcorder Headphone Digital still camera/ Camcorder/USB storage media HDMI Device AV Receiver HDMI Cable/ Router Audio System Audio HDMI Digital still...
Page 9
/ VIDEO IN • HDMI IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) • For a composite connection, use an Connect your audio system to the Analogue Extension Cable (not supplied). HDMI IN 3 to route TV audio to your audio •...
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
Page 11
Remove the stand cover and terminal covers. Remove the screws from the rear of the TV.
(mains lead) until the illumination LED stopped flashing in red, then turn on the TV. If the problem persists, disconnect the AC power cord (mains lead), and contact your dealer or Sony service centre with the number of times the illumination LED flashes.
DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM: Specifications 48 kHz 16 bits, Dolby Digital, DTS) (Stereo mini jack) System Headphone Panel system LCD (Liquid Crystal Display) Panel, LED Backlight USB port 1 and 2 support High Speed USB TV system (USB 2.0) Analogue: I, D/K, B/G, M...
Page 14
Bluetooth SIG, Inc. and any use of such *6 Specified standby power is reached after the TV marks by Sony Corporation is under finishes necessary internal processes. license. Other trademarks and trade names *7 Standby power consumption will increase when are those of their respective owners.
